casa::ROSolvableVisJonesMCol Class Reference

ROSolvableVisJonesMCol: Read-only SolvableVisJones cal_main column access. More...

#include <SolvableVJMCol.h>

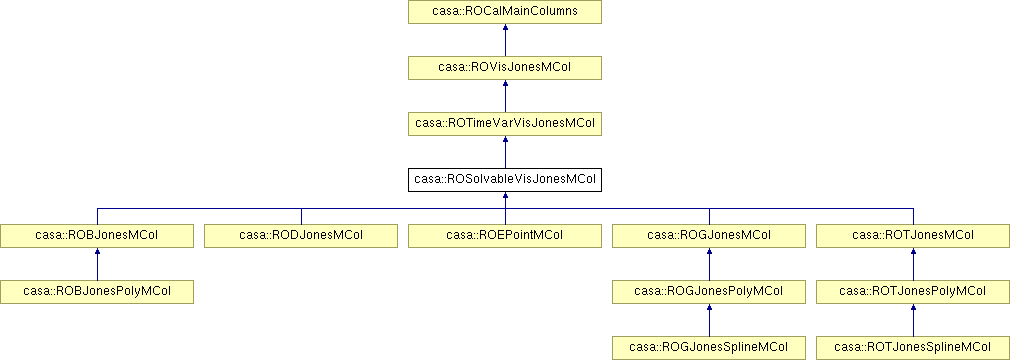

Inheritance diagram for casa::ROSolvableVisJonesMCol:

List of all members.

Public Member Functions
	ROSolvableVisJonesMCol (const SolvableVisJonesTable &svjTable)
	Construct from a calibration table.
virtual	~ROSolvableVisJonesMCol ()
	Default destructor.
const ROScalarColumn< Bool > &	totalSolnOk () const
	Read-only column accessors.
const ROScalarColumn< Float > &	totalFit () const
const ROScalarColumn< Float > &	totalFitWgt () const
const ROArrayColumn< Bool > &	solnOk () const
const ROArrayColumn< Float > &	fit () const
const ROArrayColumn< Float > &	fitWgt () const
const ROArrayColumn< Bool > &	flag () const
const ROArrayColumn< Float > &	snr () const
Protected Member Functions
	ROSolvableVisJonesMCol ()
	Prohibit public use of the null constructor, which does not produce a usable object.
Private Member Functions
	ROSolvableVisJonesMCol (const ROSolvableVisJonesMCol &)
	Prohibit copy constructor and assignment operator.
ROSolvableVisJonesMCol &	operator= (const ROSolvableVisJonesMCol &)
Private Attributes
ROScalarColumn< Bool >	totalSolnOk_p
	Private column accessors.
ROScalarColumn< Float >	totalFit_p
ROScalarColumn< Float >	totalFitWgt_p
ROArrayColumn< Bool >	solnOk_p
ROArrayColumn< Float >	fit_p
ROArrayColumn< Float >	fitWgt_p
ROArrayColumn< Bool >	flag_p
ROArrayColumn< Float >	snr_p

---

Detailed Description

ROSolvableVisJonesMCol: Read-only SolvableVisJones cal_main column access.

Intended use:

Public interface

Prerequisite

• ROCalMainColumns module

Etymology

From "read-only","solvable visibility Jones","cal main" and "columns".

Synopsis

The ROSolvableVisJonesMCol class allows read-only access to columns in the SolvableVisJones main calibration table. Specializations for individual solvable Jones matrix types (e.g. GJones) are provided through inheritance.

Example

Motivation

Encapsulate read-only access to SVJ calibration table columns.

Definition at line 72 of file SolvableVJMCol.h.

---

Constructor & Destructor Documentation

casa::ROSolvableVisJonesMCol::ROSolvableVisJonesMCol

(

const SolvableVisJonesTable &

svjTable

)

Construct from a calibration table.

virtual casa::ROSolvableVisJonesMCol::~ROSolvableVisJonesMCol

(

)

[inline, virtual]

Default destructor.

Definition at line 79 of file SolvableVJMCol.h.

casa::ROSolvableVisJonesMCol::ROSolvableVisJonesMCol

(

)

[inline, protected]

Prohibit public use of the null constructor, which does not produce a usable object.

Definition at line 94 of file SolvableVJMCol.h.

casa::ROSolvableVisJonesMCol::ROSolvableVisJonesMCol

(

const ROSolvableVisJonesMCol &

)

[private]

Prohibit copy constructor and assignment operator.

---

Member Function Documentation

const ROArrayColumn<Float>& casa::ROSolvableVisJonesMCol::fit

(

)

const [inline]

Definition at line 86 of file SolvableVJMCol.h.

References fit_p.

const ROArrayColumn<Float>& casa::ROSolvableVisJonesMCol::fitWgt

(

)

const [inline]

Definition at line 87 of file SolvableVJMCol.h.

References fitWgt_p.

const ROArrayColumn<Bool>& casa::ROSolvableVisJonesMCol::flag

(

void

)

const [inline]

Definition at line 88 of file SolvableVJMCol.h.

References flag_p.

ROSolvableVisJonesMCol& casa::ROSolvableVisJonesMCol::operator=

(

const ROSolvableVisJonesMCol &

)

[private]

Reimplemented from casa::ROTimeVarVisJonesMCol.

Reimplemented in casa::ROBJonesMCol, casa::ROBJonesPolyMCol, casa::ROEPointMCol, casa::ROGJonesPolyMCol, casa::ROGJonesSplineMCol, casa::ROGJonesMCol, casa::RODJonesMCol, casa::ROTJonesMCol, casa::ROTJonesPolyMCol, and casa::ROTJonesSplineMCol.

const ROArrayColumn<Float>& casa::ROSolvableVisJonesMCol::snr

(

)

const [inline]

Definition at line 89 of file SolvableVJMCol.h.

References snr_p.

const ROArrayColumn<Bool>& casa::ROSolvableVisJonesMCol::solnOk

(

)

const [inline]

Definition at line 85 of file SolvableVJMCol.h.

References solnOk_p.

const ROScalarColumn<Float>& casa::ROSolvableVisJonesMCol::totalFit

(

)

const [inline]

Definition at line 83 of file SolvableVJMCol.h.

References totalFit_p.

const ROScalarColumn<Float>& casa::ROSolvableVisJonesMCol::totalFitWgt

(

)

const [inline]

Definition at line 84 of file SolvableVJMCol.h.

References totalFitWgt_p.

const ROScalarColumn<Bool>& casa::ROSolvableVisJonesMCol::totalSolnOk

(

)

const [inline]

Read-only column accessors.

Definition at line 82 of file SolvableVJMCol.h.

References totalSolnOk_p.

---

Member Data Documentation

ROArrayColumn<Float> casa::ROSolvableVisJonesMCol::fit_p [private]

Definition at line 106 of file SolvableVJMCol.h.

Referenced by fit().

ROArrayColumn<Float> casa::ROSolvableVisJonesMCol::fitWgt_p [private]

Definition at line 107 of file SolvableVJMCol.h.

Referenced by fitWgt().

ROArrayColumn<Bool> casa::ROSolvableVisJonesMCol::flag_p [private]

Definition at line 108 of file SolvableVJMCol.h.

Referenced by flag().

ROArrayColumn<Float> casa::ROSolvableVisJonesMCol::snr_p [private]

Definition at line 109 of file SolvableVJMCol.h.

Referenced by snr().

ROArrayColumn<Bool> casa::ROSolvableVisJonesMCol::solnOk_p [private]

Definition at line 105 of file SolvableVJMCol.h.

Referenced by solnOk().

ROScalarColumn<Float> casa::ROSolvableVisJonesMCol::totalFit_p [private]

Definition at line 103 of file SolvableVJMCol.h.

Referenced by totalFit().

ROScalarColumn<Float> casa::ROSolvableVisJonesMCol::totalFitWgt_p [private]

Definition at line 104 of file SolvableVJMCol.h.

Referenced by totalFitWgt().

ROScalarColumn<Bool> casa::ROSolvableVisJonesMCol::totalSolnOk_p [private]

Private column accessors.

Definition at line 102 of file SolvableVJMCol.h.

Referenced by totalSolnOk().

---

The documentation for this class was generated from the following file:

• code/synthesis/CalTables/SolvableVJMCol.h
