casa::ROBJonesPolyMCol Class Reference

ROBJonesPolyMCol: Read-only BJonesPoly cal_main column access. More...

#include <BJonesMCol.h>

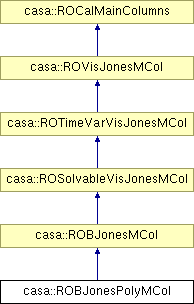

Inheritance diagram for casa::ROBJonesPolyMCol:

List of all members.

Public Member Functions
	ROBJonesPolyMCol (const BJonesPolyTable &bjTable)
	Construct from a calibration table.
virtual	~ROBJonesPolyMCol ()
	Default destructor.
const ROScalarColumn< String > &	polyType () const
	Read-only column accessors.
const ROScalarColumn< String > &	polyMode () const
const ROScalarColumn< Complex > &	scaleFactor () const
const ROArrayColumn< Double > &	validDomain () const
const ROScalarColumn< Int > &	nPolyAmp () const
const ROScalarColumn< Int > &	nPolyPhase () const
const ROArrayColumn< Double > &	polyCoeffAmp () const
const ROArrayColumn< Double > &	polyCoeffPhase () const
const ROScalarColumn< String > &	phaseUnits () const
const ROScalarColumn< Complex > &	sideBandRef () const
Protected Member Functions
	ROBJonesPolyMCol ()
	Prohibit public use of the null constructor, which does not produce a usable object.
Private Member Functions
	ROBJonesPolyMCol (const ROBJonesPolyMCol &)
	Prohibit copy constructor and assignment operator.
ROBJonesPolyMCol &	operator= (const ROBJonesPolyMCol &)
Private Attributes
ROScalarColumn< String >	polyType_p
	Private column accessors.
ROScalarColumn< String >	polyMode_p
ROScalarColumn< Complex >	scaleFactor_p
ROArrayColumn< Double >	validDomain_p
ROScalarColumn< Int >	nPolyAmp_p
ROScalarColumn< Int >	nPolyPhase_p
ROArrayColumn< Double >	polyCoeffAmp_p
ROArrayColumn< Double >	polyCoeffPhase_p
ROScalarColumn< String >	phaseUnits_p
ROScalarColumn< Complex >	sideBandRef_p

---

Detailed Description

ROBJonesPolyMCol: Read-only BJonesPoly cal_main column access.

Intended use:

Public interface

Prerequisite

• ROCalMainColumns module

Etymology

From "read-only","BJonesPoly","cal main" and "columns".

Synopsis

The ROBJonesPolyMCol class allows read-only access to columns in the BJonesPoly main calibration table. BJonesPoly matrices are used to store bandpass information in the Measurement Equation formalism in polynomial form.

Example

Motivation

Encapsulate read-only access to BJonesPoly calibration table columns.

Definition at line 184 of file BJonesMCol.h.

---

Constructor & Destructor Documentation

casa::ROBJonesPolyMCol::ROBJonesPolyMCol

(

const BJonesPolyTable &

bjTable

)

Construct from a calibration table.

virtual casa::ROBJonesPolyMCol::~ROBJonesPolyMCol

(

)

[inline, virtual]

Default destructor.

Definition at line 191 of file BJonesMCol.h.

casa::ROBJonesPolyMCol::ROBJonesPolyMCol

(

)

[inline, protected]

Prohibit public use of the null constructor, which does not produce a usable object.

Definition at line 209 of file BJonesMCol.h.

casa::ROBJonesPolyMCol::ROBJonesPolyMCol

(

const ROBJonesPolyMCol &

)

[private]

Prohibit copy constructor and assignment operator.

---

Member Function Documentation

const ROScalarColumn<Int>& casa::ROBJonesPolyMCol::nPolyAmp

(

)

const [inline]

Definition at line 198 of file BJonesMCol.h.

References nPolyAmp_p.

const ROScalarColumn<Int>& casa::ROBJonesPolyMCol::nPolyPhase

(

)

const [inline]

Definition at line 199 of file BJonesMCol.h.

References nPolyPhase_p.

ROBJonesPolyMCol& casa::ROBJonesPolyMCol::operator=

(

const ROBJonesPolyMCol &

)

[private]

Reimplemented from casa::ROBJonesMCol.

const ROScalarColumn<String>& casa::ROBJonesPolyMCol::phaseUnits

(

)

const [inline]

Definition at line 203 of file BJonesMCol.h.

References phaseUnits_p.

const ROArrayColumn<Double>& casa::ROBJonesPolyMCol::polyCoeffAmp

(

)

const [inline]

Definition at line 200 of file BJonesMCol.h.

References polyCoeffAmp_p.

const ROArrayColumn<Double>& casa::ROBJonesPolyMCol::polyCoeffPhase

(

)

const [inline]

Definition at line 201 of file BJonesMCol.h.

References polyCoeffPhase_p.

const ROScalarColumn<String>& casa::ROBJonesPolyMCol::polyMode

(

)

const [inline]

Definition at line 195 of file BJonesMCol.h.

References polyMode_p.

const ROScalarColumn<String>& casa::ROBJonesPolyMCol::polyType

(

)

const [inline]

Read-only column accessors.

Definition at line 194 of file BJonesMCol.h.

References polyType_p.

const ROScalarColumn<Complex>& casa::ROBJonesPolyMCol::scaleFactor

(

)

const [inline]

Definition at line 196 of file BJonesMCol.h.

References scaleFactor_p.

const ROScalarColumn<Complex>& casa::ROBJonesPolyMCol::sideBandRef

(

)

const [inline]

Definition at line 204 of file BJonesMCol.h.

References sideBandRef_p.

const ROArrayColumn<Double>& casa::ROBJonesPolyMCol::validDomain

(

)

const [inline]

Definition at line 197 of file BJonesMCol.h.

References validDomain_p.

---

Member Data Documentation

ROScalarColumn<Int> casa::ROBJonesPolyMCol::nPolyAmp_p [private]

Definition at line 221 of file BJonesMCol.h.

Referenced by nPolyAmp().

ROScalarColumn<Int> casa::ROBJonesPolyMCol::nPolyPhase_p [private]

Definition at line 222 of file BJonesMCol.h.

Referenced by nPolyPhase().

ROScalarColumn<String> casa::ROBJonesPolyMCol::phaseUnits_p [private]

Definition at line 225 of file BJonesMCol.h.

Referenced by phaseUnits().

ROArrayColumn<Double> casa::ROBJonesPolyMCol::polyCoeffAmp_p [private]

Definition at line 223 of file BJonesMCol.h.

Referenced by polyCoeffAmp().

ROArrayColumn<Double> casa::ROBJonesPolyMCol::polyCoeffPhase_p [private]

Definition at line 224 of file BJonesMCol.h.

Referenced by polyCoeffPhase().

ROScalarColumn<String> casa::ROBJonesPolyMCol::polyMode_p [private]

Definition at line 218 of file BJonesMCol.h.

Referenced by polyMode().

ROScalarColumn<String> casa::ROBJonesPolyMCol::polyType_p [private]

Private column accessors.

Definition at line 217 of file BJonesMCol.h.

Referenced by polyType().

ROScalarColumn<Complex> casa::ROBJonesPolyMCol::scaleFactor_p [private]

Definition at line 219 of file BJonesMCol.h.

Referenced by scaleFactor().

ROScalarColumn<Complex> casa::ROBJonesPolyMCol::sideBandRef_p [private]

Definition at line 226 of file BJonesMCol.h.

Referenced by sideBandRef().

ROArrayColumn<Double> casa::ROBJonesPolyMCol::validDomain_p [private]

Definition at line 220 of file BJonesMCol.h.

Referenced by validDomain().

---

The documentation for this class was generated from the following file:

• code/synthesis/CalTables/BJonesMCol.h
