Represents a node in the queue of incoming messages. More...

#include <Queued_Data.h>

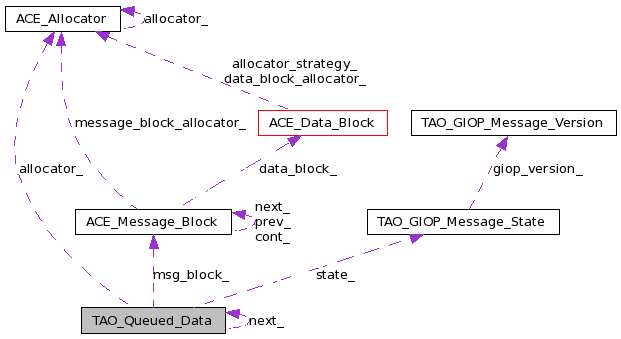

Collaboration diagram for TAO_Queued_Data:

Public Member Functions
	TAO_Queued_Data (ACE_Allocator *alloc=0)
	Default Constructor.
	TAO_Queued_Data (ACE_Message_Block mb, ACE_Allocator alloc=0)
	Constructor.
	TAO_Queued_Data (const TAO_Queued_Data &qd)
	Copy constructor.
int	consolidate (void)
size_t	missing_data (void) const
	Get missing data.
void	missing_data (size_t data)
	Set missing data.
TAO_GIOP_Message_Version const &	giop_version (void) const
	Get the GIOP version.
CORBA::Octet	byte_order (void) const
	Get byte_order.
CORBA::Boolean	more_fragments (void) const
	Get more fragments.
GIOP::MsgType	msg_type (void) const
	Get message type.
TAO_Queued_Data *	next (void) const
	Get next.
void	next (TAO_Queued_Data *qd)
	Set next.
ACE_Message_Block *	msg_block (void) const
	Get message block.
void	msg_block (ACE_Message_Block *mb)
	Set message block.
void	state (const TAO_GIOP_Message_State &state)
	Set the state.
const TAO_GIOP_Message_State &	state (void) const
	Get the state.
Static Public Member Functions
static TAO_Queued_Data *	make_queued_data (ACE_Allocator message_buffer_alloc=0, ACE_Allocator input_cdr_alloc=0, ACE_Data_Block *db=0)
	Creation of a node in the queue.
static void	release (TAO_Queued_Data *qd)
	Deletion of a node from the queue.
static TAO_Queued_Data *	duplicate (TAO_Queued_Data &qd)
Static Private Member Functions
static void	replace_data_block (ACE_Message_Block &mb)
Private Attributes
ACE_Message_Block *	msg_block_
	The message block that contains the message.
TAO_GIOP_Message_State	state_
	State of this queued data.
TAO_Queued_Data *	next_
	Pounter to the next element in the queue.
ACE_Allocator *	allocator_
	The allocator used to allocate this class.
Missing Data details
The missing_data_ member contains the number of bytes of data missing from msg_block_.
size_t	missing_data_

Detailed Description

Represents a node in the queue of incoming messages.

This class contains necessary information about a message that is stored in the queue. Such a node can be used by the incoming thread from the reactor to dequeue and process the message by sending it to the higher layers of the ORB.

The ACE_Message_Block contained within this class may contain a chain of message blocks (usually when GIOP fragments are involved). In that case consolidate () needs to be called prior to being sent to higher layers of the ORB when the GIOP fragment chain is complete.

Definition at line 47 of file Queued_Data.h.

Constructor & Destructor Documentation

TAO_Queued_Data::TAO_Queued_Data ( ACE_Allocator * alloc = 0 )

Default Constructor.

Definition at line 34 of file Queued_Data.inl.

  : msg_block_ (0),
    missing_data_ (0),
    state_ (),
    next_ (0),
    allocator_ (alloc)
{
}

TAO_Queued_Data::TAO_Queued_Data	(	ACE_Message_Block *	mb,
		ACE_Allocator *	alloc = `0`
	)

Constructor.

Definition at line 44 of file Queued_Data.inl.

  : msg_block_ (mb),
    missing_data_ (0),
    state_ (),
    next_ (0),
    allocator_ (alloc)
{
}

TAO_Queued_Data::TAO_Queued_Data ( const TAO_Queued_Data & qd )

Copy constructor.

Definition at line 55 of file Queued_Data.inl.

  : msg_block_ (qd.msg_block_->duplicate ()),
    missing_data_ (qd.missing_data_),
    state_ (qd.state_),
    next_ (0),
    allocator_ (qd.allocator_)
{
}

Member Function Documentation

CORBA::Octet TAO_Queued_Data::byte_order ( void ) const

Get byte_order.

Definition at line 84 of file Queued_Data.inl.

{
  return this->state_.byte_order ();
}

int TAO_Queued_Data::consolidate ( void )

Consolidate this fragments chained message blocks into one.

Returns:: -1 if consolidation failed, eg out or memory, otherwise 0

Definition at line 205 of file Queued_Data.cpp.

{
  // Is this a chain of fragments?
  if (this->state_.more_fragments () && this->msg_block_->cont () != 0)
    {
      // Create a message block big enough to hold the entire chain
      ACE_Message_Block *dest = clone_mb_nocopy_size (
                                      this->msg_block_,
                                      this->msg_block_->total_length ());

      if (0 == dest)
        {
          // out of memory
          return -1;
        }
      // Memory allocation succeeded, the new message block can hold the consolidated
      // message. The following code just copies all the data into this new message block.
      // No further memory allocation will take place.

      // Reset the cont() parameter.  We have cloned the message
      // block but not the chain as we will no longer have chain.
      dest->cont (0);

      // Use ACE_CDR to consolidate the chain for us
      ACE_CDR::consolidate (dest, this->msg_block_);

      // free the original message block chain
      this->msg_block_->release ();

      // Set the message block to the new consolidated message block
      this->msg_block_ = dest;
      this->state_.more_fragments (false);
    }

  return 0;
}

TAO_Queued_Data * TAO_Queued_Data::duplicate ( TAO_Queued_Data & qd ) [static]

Duplicate ourselves. This creates a copy of ourselves on the heap and returns a pointer to the duplicated node.

Definition at line 158 of file Queued_Data.cpp.

{
  // Check to see if the underlying block is on the stack. If not it
  // is fine. If the datablock is on stack, try to make a copy of that
  // before doing a duplicate.
  // @@ todo: Theoretically this should be within the Message Block,
  // but we dont have much scope to do this in that mess. Probably in
  // the next stage of MB rewrite we should be okay
  ACE_Message_Block::Message_Flags fl =
    sqd.msg_block_->self_flags ();

  if (ACE_BIT_ENABLED (fl,
                       ACE_Message_Block::DONT_DELETE))
    (void) TAO_Queued_Data::replace_data_block (*sqd.msg_block_);


  TAO_Queued_Data *qd = 0;

  if (sqd.allocator_)
    {
      ACE_NEW_MALLOC_RETURN (qd,
                             static_cast<TAO_Queued_Data *> (
                               sqd.allocator_->malloc (sizeof (TAO_Queued_Data))),
                             TAO_Queued_Data (sqd),
                             0);

      return qd;
    }

  // No allocator, so use the global pool!
  // @@ TODO: We should be removing this at some point of time!
  if (TAO_debug_level == 4)
    {
      // This debug is for testing purposes!
      ACE_DEBUG ((LM_DEBUG,
                  "TAO (%P|%t) - Queued_Data[%d]::duplicate\n",
                  "Using global pool for allocation\n"));
    }

  ACE_NEW_RETURN (qd,
                  TAO_Queued_Data (sqd),
                  0);

  return qd;
}

TAO_GIOP_Message_Version const & TAO_Queued_Data::giop_version ( void ) const

Get the GIOP version.

Definition at line 78 of file Queued_Data.inl.

{
  return this->state_.giop_version ();
}

TAO_Queued_Data * TAO_Queued_Data::make_queued_data	(	ACE_Allocator *	message_buffer_alloc = `0`,
		ACE_Allocator *	input_cdr_alloc = `0`,
		ACE_Data_Block *	db = `0`
	)			`[static]`

Creation of a node in the queue.

Definition at line 78 of file Queued_Data.cpp.

{
  // Get a node for the queue..
  TAO_Queued_Data *qd = 0;

  if (message_buffer_alloc)
    {
      ACE_NEW_MALLOC_RETURN (qd,
                             static_cast<TAO_Queued_Data *> (
                               message_buffer_alloc->malloc (sizeof (TAO_Queued_Data))),
                             TAO_Queued_Data (message_buffer_alloc),
                             0);

    }
  else
    {
      // No allocator, so use the global pool!
      ACE_NEW_RETURN (qd,
                      TAO_Queued_Data,
                      0);
    }

  // Providing an ACE_Data_Block indicates that the caller wants
  // an aligned ACE_Message_Block added to the TAO_Queued_Data.
  if (db != 0)
    {
      // If this allocation fails, the TAO_Queued_Data will be leaked.
      if (input_cdr_alloc == 0)
        ACE_NEW_RETURN (qd->msg_block_,
                        ACE_Message_Block (db,
                                           0,
                                           input_cdr_alloc),
                        0);
      else
        ACE_NEW_MALLOC_RETURN (qd->msg_block_,
                               static_cast<ACE_Message_Block*> (
                                 input_cdr_alloc->malloc (sizeof (ACE_Message_Block))),
                               ACE_Message_Block (db,
                                                  0,
                                                  input_cdr_alloc),
                               0);

      ACE_CDR::mb_align (qd->msg_block_);
    }

  return qd;
}

size_t TAO_Queued_Data::missing_data ( void ) const

Get missing data.

Definition at line 66 of file Queued_Data.inl.

{
  return this->missing_data_;
}

void TAO_Queued_Data::missing_data ( size_t data )

Set missing data.

Definition at line 72 of file Queued_Data.inl.

{
  this->missing_data_ = data;
}

CORBA::Boolean TAO_Queued_Data::more_fragments ( void ) const

Get more fragments.

Definition at line 90 of file Queued_Data.inl.

{
  return this->state_.more_fragments ();
}

ACE_Message_Block * TAO_Queued_Data::msg_block ( void ) const

Get message block.

Definition at line 114 of file Queued_Data.inl.

{
  return this->msg_block_;
}

void TAO_Queued_Data::msg_block ( ACE_Message_Block * mb )

Set message block.

Definition at line 120 of file Queued_Data.inl.

{
  this->msg_block_ = mb;
}

GIOP::MsgType TAO_Queued_Data::msg_type ( void ) const

Get message type.

Definition at line 96 of file Queued_Data.inl.

{
  return this->state_.message_type ();
}

TAO_Queued_Data * TAO_Queued_Data::next ( void ) const

Get next.

Definition at line 102 of file Queued_Data.inl.

{
  return this->next_;
}

void TAO_Queued_Data::next ( TAO_Queued_Data * qd )

Set next.

Definition at line 108 of file Queued_Data.inl.

{
  this->next_ = qd;
}

void TAO_Queued_Data::release ( TAO_Queued_Data * qd ) [static]

Deletion of a node from the queue.

Definition at line 130 of file Queued_Data.cpp.

{
  //// TODO
  ACE_Message_Block::release (qd->msg_block_);

  if (qd->allocator_)
    {
      ACE_DES_FREE (qd,
                    qd->allocator_->free,
                    TAO_Queued_Data);

      return;
    }

  // @todo: Need to be removed at some point of time!
  if (TAO_debug_level == 4)
    {
      // This debug is for testing purposes!
      ACE_DEBUG ((LM_DEBUG,
                  "TAO (%P|%t) - Queued_Data[%d]::release\n",
                  "Using global pool for releasing\n"));
    }
  delete qd;

}

void TAO_Queued_Data::replace_data_block ( ACE_Message_Block & mb ) [static, private]

Replace the datablock with a one allocated on the heap or allocator

Definition at line 9 of file Queued_Data.inl.

{
  size_t const newsize =
    ACE_CDR::total_length (&mb, 0) + ACE_CDR::MAX_ALIGNMENT;

  ACE_Data_Block *db =
    mb.data_block ()->clone_nocopy ();

  if (db->size (newsize) == -1)
    return;

  ACE_Message_Block tmp (db);
  ACE_CDR::mb_align (&tmp);

  tmp.copy (mb.rd_ptr (), mb.length());
  mb.data_block (tmp.data_block ()->duplicate ());

  mb.rd_ptr (tmp.rd_ptr ());
  mb.wr_ptr (tmp.wr_ptr ());

  // Remove the DONT_DELETE flags from mb
  mb.clr_self_flags (ACE_Message_Block::DONT_DELETE);
}

const TAO_GIOP_Message_State & TAO_Queued_Data::state ( void ) const

Get the state.

Definition at line 132 of file Queued_Data.inl.

{
  return this->state_;
}

void TAO_Queued_Data::state ( const TAO_GIOP_Message_State & state )

Set the state.

Definition at line 126 of file Queued_Data.inl.

{
  this->state_ = state;
}

Member Data Documentation

ACE_Allocator* TAO_Queued_Data::allocator_ [private]

The allocator used to allocate this class.

Definition at line 141 of file Queued_Data.h.

size_t TAO_Queued_Data::missing_data_ [private]

Data missing in the above message that hasn't been read or processed yet, the value TAO_MISSING_DATA_UNDEFINED indicates it hasn't been processed yet, otherwise greater or equal zero.

Definition at line 127 of file Queued_Data.h.

ACE_Message_Block* TAO_Queued_Data::msg_block_ [private]

The message block that contains the message.

Definition at line 115 of file Queued_Data.h.

TAO_Queued_Data* TAO_Queued_Data::next_ [private]

Pounter to the next element in the queue.

Definition at line 134 of file Queued_Data.h.

TAO_GIOP_Message_State TAO_Queued_Data::state_ [private]

State of this queued data.

Definition at line 131 of file Queued_Data.h.

The documentation for this class was generated from the following files:
