Use the Leader/Follower loop to wait for one specific event in the invocation path. More...

#include <LF_CH_Event.h>

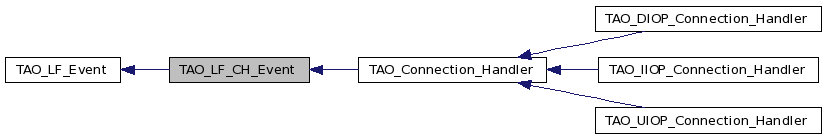

Inheritance diagram for TAO_LF_CH_Event:

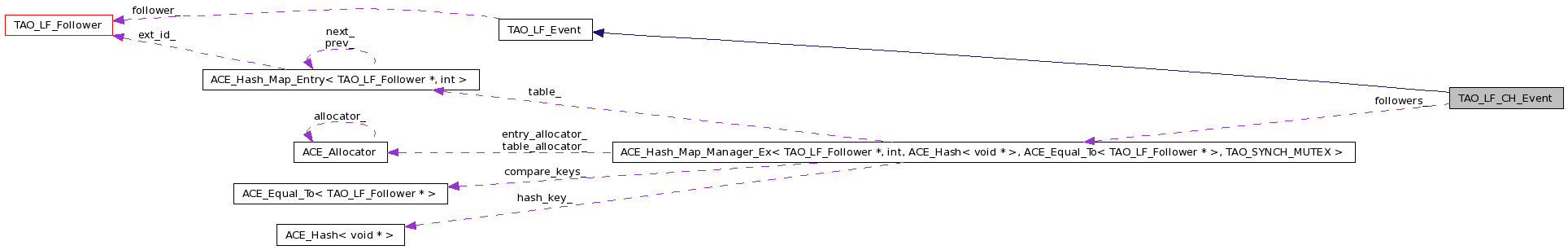

Collaboration diagram for TAO_LF_CH_Event:

Public Member Functions
	TAO_LF_CH_Event (void)
	Constructor.
virtual	~TAO_LF_CH_Event (void)
	Destructor.
Private Types
typedef ACE_Hash_Map_Manager_Ex < TAO_LF_Follower , int, ACE_Hash< void > , ACE_Equal_To < TAO_LF_Follower * > , TAO_SYNCH_MUTEX >	HASH_MAP
Private Member Functions
virtual void	state_changed_i (int new_state)
	Validate and change the state.
virtual void	set_state (int new_state)
	Set the state irrespective of anything.
virtual int	bind (TAO_LF_Follower *follower)
	Bind a follower.
virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower.
void	validate_state_change (int new_state)
Private Attributes
int	prev_state_
	The previous state that the LF_CH_Event was in.
HASH_MAP	followers_
Friends
class	TAO_LF_Multi_Event

int	successful (void) const
int	error_detected (void) const
virtual int	is_state_final (void)
	Check whether we have reached the final state..

Detailed Description

Use the Leader/Follower loop to wait for one specific event in the invocation path.

Concrete event types and manipulation class which is used for connection handling purposes.

Definition at line 41 of file LF_CH_Event.h.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<TAO_LF_Follower *, int, ACE_Hash<void *>, ACE_Equal_To<TAO_LF_Follower *>, TAO_SYNCH_MUTEX> TAO_LF_CH_Event::HASH_MAP [private]

Definition at line 128 of file LF_CH_Event.h.

Constructor & Destructor Documentation

TAO_LF_CH_Event::TAO_LF_CH_Event ( void )

Constructor.

Definition at line 13 of file LF_CH_Event.cpp.

  : TAO_LF_Event (),
    prev_state_ (TAO_LF_Event::LFS_IDLE)

{
}

TAO_LF_CH_Event::~TAO_LF_CH_Event ( void ) [virtual]

Destructor.

Definition at line 20 of file LF_CH_Event.cpp.

{
}

Member Function Documentation

int TAO_LF_CH_Event::bind ( TAO_LF_Follower * follower ) [private, virtual]

Bind a follower.

An event can be waited on by at most one follower thread, this method is used to bind the waiting thread to the event, in order to let the event signal any important state changes.

This is virtual to allow the LF_Multi_Event derived type share the follower with all the subordinate LF_CH_Events.

Returns:: -1 if the LF_Event is already bound, 0 otherwise

Reimplemented from TAO_LF_Event.

Definition at line 25 of file LF_CH_Event.cpp.

{
  return this->followers_.bind (follower, 0);
}

int TAO_LF_CH_Event::error_detected ( void ) const [virtual]

Return 1 if an error was detected while waiting for the event

Implements TAO_LF_Event.

Definition at line 126 of file LF_CH_Event.cpp.

{
  if (this->prev_state_ == TAO_LF_Event::LFS_CONNECTION_WAIT)
    return this->state_ == TAO_LF_Event::LFS_CONNECTION_CLOSED;

  return this->state_ == TAO_LF_Event::LFS_TIMEOUT;
}

int TAO_LF_CH_Event::is_state_final ( void ) [protected, virtual]

Check whether we have reached the final state..

Implements TAO_LF_Event.

Definition at line 158 of file LF_CH_Event.cpp.

{
  return this->state_ == TAO_LF_Event::LFS_CONNECTION_CLOSED;
}

void TAO_LF_CH_Event::set_state ( int new_state ) [private, virtual]

Set the state irrespective of anything.

Reimplemented from TAO_LF_Event.

Definition at line 135 of file LF_CH_Event.cpp.

{
  // @@ NOTE: Is this still required?
  if (this->is_state_final () == 0
      && new_state == TAO_LF_Event::LFS_TIMEOUT)
    {
      this->state_ = new_state;
      if (TAO_debug_level > 9)
        {
          size_t id = 0;
          TAO_Connection_Handler *ch = 0;
          if ((ch = dynamic_cast<TAO_Connection_Handler *> (this)) &&
              ch->transport ())
            {
              id = ch->transport ()->id ();
            }
          ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - TAO_LF_CH_Event[%d]::set_state, "
                      "state_ is LFS_TIMEOUT\n", id));
        }
    }
}

void TAO_LF_CH_Event::state_changed_i ( int new_state ) [private, virtual]

Validate and change the state.

Implements TAO_LF_Event.

Definition at line 37 of file LF_CH_Event.cpp.

{
  if (this->state_ != new_state)
    {
      this->validate_state_change (new_state);

      if (TAO_debug_level > 9)
        {
          size_t id = 0;
          TAO_Connection_Handler *ch = 0;
          if ((ch = dynamic_cast<TAO_Connection_Handler *> (this))
              && ch->transport ())
            {
              id = ch->transport ()->id ();
            }

          ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - TAO_LF_CH_Event[%d]::"
                      "state_changed_i, state %C->%C\n",
                      id,
                      TAO_LF_Event::state_name(prev_state_),
                      TAO_LF_Event::state_name(state_)));
        }
    }

  ACE_MT (ACE_GUARD (TAO_SYNCH_MUTEX, guard, this->followers_.mutex ()));

  HASH_MAP::iterator end_it = this->followers_.end ();
  for (HASH_MAP::iterator it = this->followers_.begin (); it != end_it ; ++it)
    {
      it->ext_id_->signal ();
    }
}

int TAO_LF_CH_Event::successful ( void ) const [virtual]

Return 1 if the condition was satisfied successfully, 0 if it has not

Implements TAO_LF_Event.

Definition at line 117 of file LF_CH_Event.cpp.

{
  if (this->prev_state_ == TAO_LF_Event::LFS_CONNECTION_WAIT)
    return this->state_ == TAO_LF_Event::LFS_SUCCESS;

  return this->state_ == TAO_LF_Event::LFS_CONNECTION_CLOSED;
}

int TAO_LF_CH_Event::unbind ( TAO_LF_Follower * follower ) [private, virtual]

Unbind the follower.

Reimplemented from TAO_LF_Event.

Definition at line 31 of file LF_CH_Event.cpp.

{
  return this->followers_.unbind (follower);
}

void TAO_LF_CH_Event::validate_state_change ( int new_state ) [private]

Definition at line 71 of file LF_CH_Event.cpp.

{
  if (this->state_ == TAO_LF_Event::LFS_IDLE)
    {
      // From the LFS_IDLE state we can only become active.
      if (new_state == TAO_LF_Event::LFS_CONNECTION_WAIT)
        {
          this->prev_state_ = this->state_;
          this->state_ = new_state;
        }
      return;
    }
  else if (this->state_ == TAO_LF_Event::LFS_CONNECTION_WAIT)
    {
      // Only a few states are possible from CONNECTION_WAIT states
      if (new_state == TAO_LF_Event::LFS_CONNECTION_CLOSED
          || new_state == TAO_LF_Event::LFS_SUCCESS)
        {
          this->prev_state_ = this->state_;
          this->state_ = new_state;
        }

      return;
    }
  else if (this->state_ == TAO_LF_Event::LFS_SUCCESS)
    {
      if (new_state == TAO_LF_Event::LFS_CONNECTION_CLOSED)
        {
          this->prev_state_ = this->state_;
          this->state_ = new_state;
        }
      return;
    }
  else if (this->state_ == TAO_LF_Event::LFS_TIMEOUT)
    {
      if (new_state == TAO_LF_Event::LFS_CONNECTION_CLOSED)
        {
          // Dont reset the previous state
          this->state_ = new_state;
        }
    }
  return;
}

Friends And Related Function Documentation

friend class TAO_LF_Multi_Event [friend]

The TAO_LF_Multi_Event class is another specialization of TAO_LF_Event, used for aggregating many connection handlers into a single event object.. It requires friendship so that it can check the is_state_final() flag on each of its contained connection handlers.

Definition at line 51 of file LF_CH_Event.h.

Member Data Documentation

HASH_MAP TAO_LF_CH_Event::followers_ [private]

Definition at line 129 of file LF_CH_Event.h.

int TAO_LF_CH_Event::prev_state_ [private]

The previous state that the LF_CH_Event was in.

Definition at line 121 of file LF_CH_Event.h.

The documentation for this class was generated from the following files:
