TAO_LF_Event Class Reference

Use the Leader/Follower loop to wait for one specific event. More...

#include <LF_Event.h>

Inheritance diagram for TAO_LF_Event:

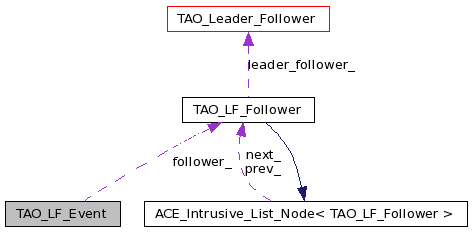

Collaboration diagram for TAO_LF_Event:

List of all members.

Public Member Functions
	TAO_LF_Event (void)
	Constructor.
virtual	~TAO_LF_Event (void)
	Destructor.
virtual int	bind (TAO_LF_Follower *follower)
	Bind a follower.
virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower.
void	reset_state (int new_state)
	Reset the state, irrespective of the previous states.
Static Public Member Functions
static const char *	state_name (int st)
Protected Member Functions
virtual void	state_changed_i (int new_state)=0
	Validate the state change.
virtual int	is_state_final (void)=0
	Check whether we have reached the final state..
Protected Attributes
int	state_
	The current state.
TAO_LF_Follower *	follower_
	The bounded follower.
Private Member Functions
virtual void	set_state (int new_state)
	Set the state irrespective of anything.
Friends
class	TAO_Leader_Follower
State management
A Leader/Followers event goes through several states during its lifetime. We use an enum to represent those states and state changes are validated according to the rules defined in the concrete classes. We treat the states as finite states in a FSM. The possible sequence of states through which the FSM migrates is defined in the concrete classes.
enum	{   LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS,   LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED }
void	state_changed (int new_state, TAO_Leader_Follower &lf)
virtual int	successful (void) const =0
virtual int	error_detected (void) const =0
int	keep_waiting (void)
	Check if we should keep waiting.

---

Detailed Description

Use the Leader/Follower loop to wait for one specific event.

The Leader/Follower event loop is used to wait for incoming responses, as well as to wait for all the data to be flushed. This class encapsulates this event loop. It uses Template Method to parametrize the 'waited for' predicate (i.e. reply received or message sent or connection establishment etc.)

Todo:

Implementing the Leader/Followers loop in this class, as well as the callbacks to communicate that an event has completed leads to excessive coupling. A better design would use a separate class to signal the events, that would allow us to remove the Leader/Followers logic from the ORB. However, that requires other major changes and it somewhat complicates the design.

Definition at line 50 of file LF_Event.h.

---

Member Enumeration Documentation

anonymous enum

Virtual methods for this class hierarchy.. Accessor to change the state. The state isnt changed unless certain conditions are satisfied.

Sort of double-checked optimization..

Enumerator:

LFS_IDLE	The event is created, and is in initial state.
LFS_ACTIVE	The event is active.
LFS_CONNECTION_WAIT	The event is waiting for connection completion.
LFS_SUCCESS	The event has completed successfully.
LFS_FAILURE	A failure has been detected while the event was active.
LFS_TIMEOUT	The event has timed out.
LFS_CONNECTION_CLOSED	The connection was closed.

Definition at line 88 of file LF_Event.h.

       {
    /// The event is created, and is in initial state
    LFS_IDLE = 0,
    /// The event is active
    LFS_ACTIVE,
    /// The event is waiting for connection completion.
    LFS_CONNECTION_WAIT,
    /// The event has completed successfully
    LFS_SUCCESS,
    /// A failure has been detected while the event was active
    LFS_FAILURE,
    /// The event has timed out
    LFS_TIMEOUT,
    /// The connection was closed.
    LFS_CONNECTION_CLOSED
  };

---

Constructor & Destructor Documentation

TAO_LF_Event::TAO_LF_Event

(

void

)

Constructor.

Definition at line 18 of file LF_Event.cpp.

  : state_ (TAO_LF_Event::LFS_IDLE)
  , follower_ (0)
{
}

TAO_LF_Event::~TAO_LF_Event

(

void

)

[virtual]

Destructor.

Definition at line 24 of file LF_Event.cpp.

{
}

---

Member Function Documentation

int TAO_LF_Event::bind

(

TAO_LF_Follower *

follower

)

[virtual]

Bind a follower.

An event can be waited on by at most one follower thread, this method is used to bind the waiting thread to the event, in order to let the event signal any important state changes.

This is virtual to allow the LF_Multi_Event derived type share the follower with all the subordinate LF_CH_Events.

Returns:

-1 if the LF_Event is already bound, 0 otherwise

Reimplemented in TAO_LF_CH_Event, and TAO_LF_Multi_Event.

Definition at line 8 of file LF_Event.inl.

{
  if (this->follower_ != 0)
    return -1;
  this->follower_ = follower;
  return 0;
}

virtual int TAO_LF_Event::error_detected

(

void

)

const [pure virtual]

Return 1 if an error was detected while waiting for the event

Implemented in TAO_LF_CH_Event, TAO_LF_Invocation_Event, and TAO_LF_Multi_Event.

virtual int TAO_LF_Event::is_state_final

(

void

)

[protected, pure virtual]

Check whether we have reached the final state..

Implemented in TAO_LF_CH_Event, TAO_LF_Invocation_Event, and TAO_LF_Multi_Event.

int TAO_LF_Event::keep_waiting

(

void

)

Check if we should keep waiting.

Definition at line 32 of file LF_Event.inl.

{
  return (this->successful () == 0) && (this->error_detected () == 0);
}

void TAO_LF_Event::reset_state

(

int

new_state

)

Reset the state, irrespective of the previous states.

Definition at line 26 of file LF_Event.inl.

{
  this->state_ = new_state;
}

void TAO_LF_Event::set_state

(

int

new_state

)

[private, virtual]

Set the state irrespective of anything.

Reimplemented in TAO_LF_CH_Event.

Definition at line 44 of file LF_Event.cpp.

{
  this->state_ = new_state;
}

void TAO_LF_Event::state_changed	(	int	new_state,
		TAO_Leader_Follower &	lf
	)

Virtual methods for this class hierarchy.. Accessor to change the state. The state isnt changed unless certain conditions are satisfied.

Sort of double-checked optimization..

Definition at line 29 of file LF_Event.cpp.

{
  ACE_GUARD (TAO_SYNCH_MUTEX, ace_mon, lf.lock ());

  if (this->is_state_final () == 0)
    {
      this->state_changed_i (new_state);

      /// Sort of double-checked optimization..
      if (this->follower_ != 0)
        this->follower_->signal ();
    }
}

virtual void TAO_LF_Event::state_changed_i

(

int

new_state

)

[protected, pure virtual]

Validate the state change.

Implemented in TAO_LF_CH_Event, TAO_LF_Invocation_Event, and TAO_LF_Multi_Event.

const char * TAO_LF_Event::state_name

(

int

st

)

[static]

Definition at line 38 of file LF_Event.inl.

{
#define TAO_LF_EVENT_ENTRY(X) case X: return #X
  switch (st)
    {
      TAO_LF_EVENT_ENTRY (LFS_IDLE);
      TAO_LF_EVENT_ENTRY (LFS_ACTIVE);
      TAO_LF_EVENT_ENTRY (LFS_CONNECTION_WAIT);
      TAO_LF_EVENT_ENTRY (LFS_SUCCESS);
      TAO_LF_EVENT_ENTRY (LFS_FAILURE);
      TAO_LF_EVENT_ENTRY (LFS_TIMEOUT);
      TAO_LF_EVENT_ENTRY (LFS_CONNECTION_CLOSED);
    }
  return "***Unknown enum value, update TAO_LF_Event::state_name()";
#undef TAO_LF_EVENT_ENTRY
}

virtual int TAO_LF_Event::successful

(

void

)

const [pure virtual]

Return 1 if the condition was satisfied successfully, 0 if it has not

Implemented in TAO_LF_CH_Event, TAO_LF_Invocation_Event, and TAO_LF_Multi_Event.

int TAO_LF_Event::unbind

(

TAO_LF_Follower *

follower

)

[virtual]

Unbind the follower.

Reimplemented in TAO_LF_CH_Event, and TAO_LF_Multi_Event.

Definition at line 17 of file LF_Event.inl.

{
  if (this->follower_ == 0)
    return -1;
  this->follower_ = 0;
  return 0;
}

---

Friends And Related Function Documentation

friend class TAO_Leader_Follower [friend]

Definition at line 54 of file LF_Event.h.

---

Member Data Documentation

TAO_LF_Follower* TAO_LF_Event::follower_ [protected]

The bounded follower.

Definition at line 147 of file LF_Event.h.

int TAO_LF_Event::state_ [protected]

The current state.

Definition at line 144 of file LF_Event.h.

---

The documentation for this class was generated from the following files:

• LF_Event.h
• LF_Event.cpp
• LF_Event.inl
