Specialize TAO_Queued_Message for asynch requests, i.e. oneways sent with SYNC_NONE policy. More...

#include <Asynch_Queued_Message.h>

Inheritance diagram for TAO_Asynch_Queued_Message:

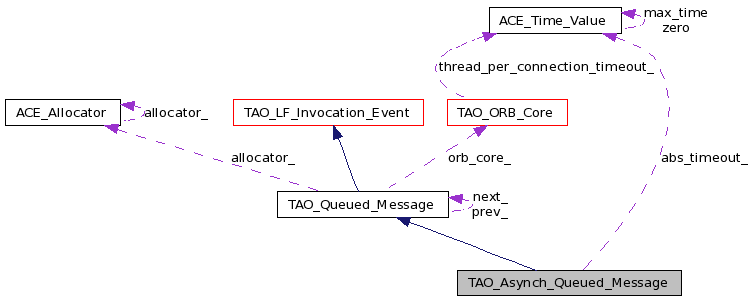

Collaboration diagram for TAO_Asynch_Queued_Message:

Public Member Functions
	TAO_Asynch_Queued_Message (const ACE_Message_Block contents, TAO_ORB_Core oc, ACE_Time_Value timeout, ACE_Allocator alloc, bool is_heap_allocated)
	Constructor.
virtual	~TAO_Asynch_Queued_Message (void)
	Destructor.
Implement the Template Methods from TAO_Queued_Message

virtual size_t	message_length (void) const
virtual int	all_data_sent (void) const
virtual void	fill_iov (int iovcnt_max, int &iovcnt, iovec iov[]) const
virtual void	bytes_transferred (size_t &byte_count)
virtual TAO_Queued_Message *	clone (ACE_Allocator *alloc)
virtual void	destroy (void)
virtual bool	is_expired (const ACE_Time_Value &now) const
virtual void	copy_if_necessary (const ACE_Message_Block *chain)
Protected Member Functions
	TAO_Asynch_Queued_Message (char buf, TAO_ORB_Core oc, size_t size, const ACE_Time_Value &abs_timeout, ACE_Allocator *alloc, bool is_heap_allocated)
	Constructor.
Private Member Functions
void	operator= (const TAO_Asynch_Queued_Message &)
	TAO_Asynch_Queued_Message (const TAO_Asynch_Queued_Message &)
Private Attributes
size_t const	size_
	The number of bytes in the buffer.
size_t	offset_
	The offset in the buffer.
char *	buffer_
	The buffer containing the complete message.
ACE_Time_Value	abs_timeout_

Detailed Description

Specialize TAO_Queued_Message for asynch requests, i.e. oneways sent with SYNC_NONE policy.

Definition at line 39 of file Asynch_Queued_Message.h.

Constructor & Destructor Documentation

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message	(	const ACE_Message_Block *	contents,
		TAO_ORB_Core *	oc,
		ACE_Time_Value *	timeout,
		ACE_Allocator *	alloc,
		bool	is_heap_allocated
	)

Constructor.

Parameters:

	contents	The message block chain that must be sent.
	alloc	Allocator used for creating `this` object.
	timeout	The relative timeout after which this message should be expired.

Todo:: I'm almost sure this class will require a callback interface for AMIs sent with SYNC_NONE policy. Those guys need to hear when the connection timeouts or closes, but cannot block waiting for the message to be delivered.

Definition at line 19 of file Asynch_Queued_Message.cpp.

  : TAO_Queued_Message (oc, alloc, is_heap_allocated)
  , size_ (contents->total_length ())
  , offset_ (0)
  , abs_timeout_ (ACE_Time_Value::zero)
{
  if (timeout != 0)// && *timeout != ACE_Time_Value::zero)
    {
      this->abs_timeout_ = ACE_High_Res_Timer::gettimeofday_hr () + *timeout;
    }
  // @@ Use a pool for these guys!!
  ACE_NEW (this->buffer_, char[this->size_]);

  size_t copy_offset = 0;
  for (const ACE_Message_Block *i = contents;
       i != 0;
       i = i->cont ())
    {
      ACE_OS::memcpy (this->buffer_ + copy_offset,
                      i->rd_ptr (),
                      i->length ());
      copy_offset += i->length ();
    }
}

TAO_Asynch_Queued_Message::~TAO_Asynch_Queued_Message ( void ) [virtual]

Destructor.

Definition at line 63 of file Asynch_Queued_Message.cpp.

{
  // @@ Use a pool for these guys!
  delete [] this->buffer_;
}

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message	(	char *	buf,
		TAO_ORB_Core *	oc,
		size_t	size,
		const ACE_Time_Value &	abs_timeout,
		ACE_Allocator *	alloc,
		bool	is_heap_allocated
	)			`[protected]`

Constructor.

Parameters:

	buf	The buffer that needs to be sent on the wire. The buffer will be owned by this class. The buffer will be deleted when the destructor is called and hence the buffer should always come off the heap!
	oc	The ORB Core
	size	The size of the buffer <buf> that is being handed over.
	abs_timeout	The time after which this message should be expired.
	alloc	Allocator used for creating <this> object.

Definition at line 49 of file Asynch_Queued_Message.cpp.

  : TAO_Queued_Message (oc, alloc, is_heap_allocated)
  , size_ (size)
  , offset_ (0)
  , buffer_ (buf)
  , abs_timeout_ (abs_timeout)
{
}

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message ( const TAO_Asynch_Queued_Message & ) [private]

Member Function Documentation

int TAO_Asynch_Queued_Message::all_data_sent ( void ) const [virtual]

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

Definition at line 76 of file Asynch_Queued_Message.cpp.

{
  return this->size_ == this->offset_;
}

void TAO_Asynch_Queued_Message::bytes_transferred ( size_t & byte_count ) [virtual]

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

Definition at line 95 of file Asynch_Queued_Message.cpp.

{
  this->state_changed_i (TAO_LF_Event::LFS_ACTIVE);

  size_t const remaining_bytes = this->size_ - this->offset_;
  if (byte_count > remaining_bytes)
    {
      this->offset_ = this->size_;
      byte_count -= remaining_bytes;
      return;
    }
  this->offset_ += byte_count;
  byte_count = 0;

  if (this->all_data_sent ())
    this->state_changed (TAO_LF_Event::LFS_SUCCESS,
                         this->orb_core_->leader_follower ());
}

TAO_Queued_Message * TAO_Asynch_Queued_Message::clone ( ACE_Allocator * alloc ) [virtual]

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

Definition at line 116 of file Asynch_Queued_Message.cpp.

{
  char *buf = 0;

  // @todo: Need to use a memory pool. But certain things need to
  // change a bit in this class for that. Till then.

  // Just allocate and copy data that needs to be sent, no point
  // copying the whole buffer.
  size_t const sz = this->size_ - this->offset_;

  ACE_NEW_RETURN (buf,
                  char[sz],
                  0);

  ACE_OS::memcpy (buf,
                  this->buffer_ + this->offset_,
                  sz);

  TAO_Asynch_Queued_Message *qm = 0;

  if (alloc)
    {
      ACE_NEW_MALLOC_RETURN (qm,
                             static_cast<TAO_Asynch_Queued_Message *> (
                                 alloc->malloc (sizeof (TAO_Asynch_Queued_Message))),
                             TAO_Asynch_Queued_Message (buf,
                                                        this->orb_core_,
                                                        sz,
                                                        this->abs_timeout_,
                                                        alloc,
                                                        true),
                             0);
    }
  else
    {
      // No allocator, so use the common heap!
      if (TAO_debug_level == 4)
        {
          // This debug is for testing purposes!
          ACE_DEBUG ((LM_DEBUG,
                      "TAO (%P|%t) - Asynch_Queued_Message::clone\n"
                      "Using global pool for allocation\n"));
        }

      ACE_NEW_RETURN (qm,
                      TAO_Asynch_Queued_Message (buf,
                                                 this->orb_core_,
                                                 sz,
                                                 this->abs_timeout_,
                                                 0,
                                                 true),
                      0);
    }

  return qm;
}

void TAO_Asynch_Queued_Message::copy_if_necessary ( const ACE_Message_Block * chain ) [virtual]

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

Definition at line 210 of file Asynch_Queued_Message.cpp.

{
  // It's never necessary for asynchronously queued messages
}

void TAO_Asynch_Queued_Message::destroy ( void ) [virtual]

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

Definition at line 175 of file Asynch_Queued_Message.cpp.

{
  if (this->is_heap_created_)
    {
      // If we have an allocator release the memory to the allocator
      // pool.
      if (this->allocator_)
        {
          ACE_DES_FREE (this,
                        this->allocator_->free,
                        TAO_Asynch_Queued_Message);

        }
      else // global release..
        {
          delete this;
        }
    }
}

void TAO_Asynch_Queued_Message::fill_iov	(	int	iovcnt_max,
		int &	iovcnt,
		iovec	iov[]
	)			const `[virtual]`

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

Definition at line 82 of file Asynch_Queued_Message.cpp.

{
  ACE_ASSERT (iovcnt_max > iovcnt);
  ACE_UNUSED_ARG (iovcnt_max); // not used if ACE_ASSERT() is empty

  iov[iovcnt].iov_base = this->buffer_ + this->offset_;
  iov[iovcnt].iov_len  = static_cast<u_long> (this->size_ - this->offset_);
  ++iovcnt;
}

bool TAO_Asynch_Queued_Message::is_expired ( const ACE_Time_Value & now ) const [virtual]

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Reimplemented from TAO_Queued_Message.

Definition at line 196 of file Asynch_Queued_Message.cpp.

{
  if (this->abs_timeout_ > ACE_Time_Value::zero)
    {
      if (this->offset_ > 0)
        {
          return false; //never expire partial messages
        }
      return this->abs_timeout_ < now;
    }
  return false;
}

size_t TAO_Asynch_Queued_Message::message_length ( void ) const [virtual]

Note:: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

Definition at line 70 of file Asynch_Queued_Message.cpp.

{
  return this->size_ - this->offset_;
}

void TAO_Asynch_Queued_Message::operator= ( const TAO_Asynch_Queued_Message & ) [private]

Member Data Documentation

ACE_Time_Value TAO_Asynch_Queued_Message::abs_timeout_ [private]

Definition at line 125 of file Asynch_Queued_Message.h.

char* TAO_Asynch_Queued_Message::buffer_ [private]

The buffer containing the complete message.

Definition at line 122 of file Asynch_Queued_Message.h.

size_t TAO_Asynch_Queued_Message::offset_ [private]

The offset in the buffer.

Data up to offset has been sent already, only the [offset_,size_) range remains to be sent.

Definition at line 119 of file Asynch_Queued_Message.h.

size_t const TAO_Asynch_Queued_Message::size_ [private]

The number of bytes in the buffer.

Definition at line 112 of file Asynch_Queued_Message.h.
