#include <NVList.h>

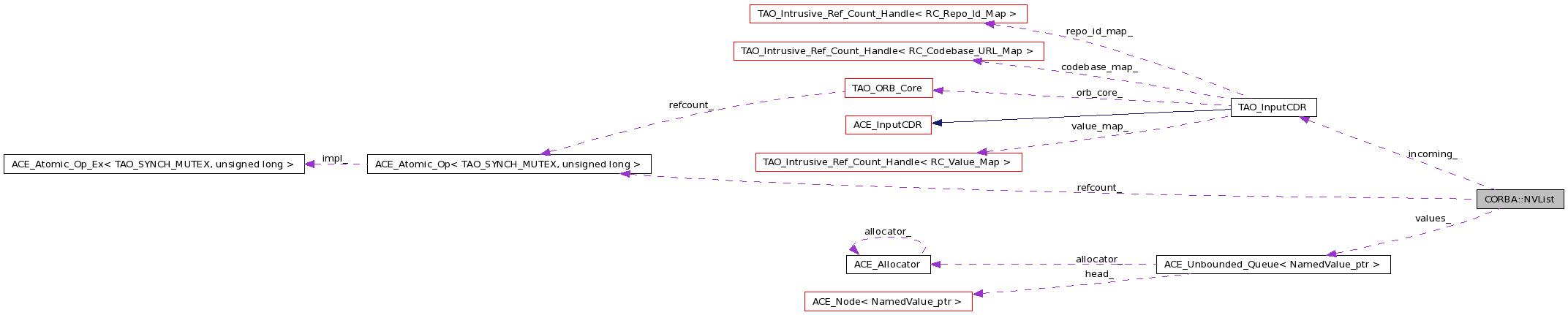

Collaboration diagram for CORBA::NVList:

Public Types
typedef NVList_ptr	_ptr_type
typedef NVList_var	_var_type
typedef NVList_out	_out_type
Public Member Functions
ULong	count (void) const
	return the current number of elements in the list
NamedValue_ptr	add (Flags)
	add an element and just initialize the flags
NamedValue_ptr	add_item (const char *, Flags)
	add an element and initialize its name and flags
NamedValue_ptr	add_value (const char *, const Any &, Flags)
	initializes a value, name, and flags
NamedValue_ptr	add_item_consume (char *, Flags)
NamedValue_ptr	add_value_consume (char *, Any_ptr, Flags)
NamedValue_ptr	item (ULong n)
	retrieve the item at the nth location. Raises Bounds
void	remove (ULong n)
	remove element at index n. Raises Bounds
ULong	_incr_refcnt (void)
ULong	_decr_refcnt (void)
void	_tao_incoming_cdr (TAO_InputCDR &cdr, int flag, bool &lazy_evaluation)
void	_tao_encode (TAO_OutputCDR &cdr, int flag)
void	_tao_decode (TAO_InputCDR &cdr, int flag)
	Decode the NVList arguments from the cdr stream.
ptrdiff_t	_tao_target_alignment (void)
Boolean	_lazy_has_arguments (void) const
Static Public Member Functions
static NVList *	_duplicate (NVList *)
static NVList *	_nil (void)
Protected Member Functions
	~NVList (void)
	Destructor.
Private Member Functions
	NVList (void)
NamedValue_ptr	add_element (Flags)
void	evaluate (void)
Private Attributes
ACE_Unbounded_Queue < NamedValue_ptr >	values_
	Internal list of parameters stored as NamedValues.
ULong	max_
	Maximum length of list.
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_
	Reference counter.
TAO_SYNCH_MUTEX	lock_
	Protects the incoming pointer.
TAO_InputCDR *	incoming_
int	incoming_flag_
Friends
class	::TAO_NVList_Adapter_Impl
class	Request

Detailed Description

CORBA::NVList implementation.

This is used in the (client side) DII (Dynamic Invocation Interface) to hold parameters, except for the return parameter. It's used in the same role in the (server side) DSI (Dynamic Skeleton Interface).

Each user (client, server) provides the typecode and memory for each parameter using an NVList, then talks to the ORB using a Request or ServerRequest pseudo-object. The ORB copies data to/from the IPC messages (e.g. IIOP::Request, IIOP::Response) as appropriate.

Definition at line 159 of file NVList.h.

Member Typedef Documentation

typedef NVList_out CORBA::NVList::_out_type

Definition at line 237 of file NVList.h.

typedef NVList_ptr CORBA::NVList::_ptr_type

Definition at line 235 of file NVList.h.

typedef NVList_var CORBA::NVList::_var_type

Definition at line 236 of file NVList.h.

Constructor & Destructor Documentation

CORBA::NVList::~NVList ( void ) [protected]

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

Definition at line 79 of file NVList.cpp.

{
  // initialize an iterator and delete each NamedValue
  ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> iter (this->values_);

  for (iter.first (); !iter.done (); iter.advance ())
    {
      CORBA::NamedValue_ptr *nv = 0;
      (void) iter.next (nv);
      delete *nv;
    }

  this->max_ = 0;

  // Remove the CDR stream if it is present.
  delete this->incoming_;
}

CORBA::NVList::NVList ( void ) [private]

Constructor - cannot be instantiated directly other than through the CORBA::ORB::create_list method

Definition at line 92 of file NVList.inl.

  : max_ (0),
    refcount_ (1),
    incoming_ (0),
    incoming_flag_ (0)
{
}

Member Function Documentation

CORBA::ULong CORBA::NVList::_decr_refcnt ( void )

Definition at line 69 of file NVList.cpp.

{
  CORBA::ULong const new_count = --this->refcount_;

  if (new_count == 0)
    delete this;

  return new_count;
}

CORBA::NVList * CORBA::NVList::_duplicate ( CORBA::NVList * x ) [static]

Definition at line 111 of file NVList.inl.

{
  if (x != 0)
    {
      x->_incr_refcnt ();
    }

  return x;
}

CORBA::ULong CORBA::NVList::_incr_refcnt ( void )

Definition at line 63 of file NVList.cpp.

{
  return ++this->refcount_;
}

CORBA::Boolean CORBA::NVList::_lazy_has_arguments ( void ) const

If this list is used by a DII request, this will tell us if our CDR stream contains any marshaled arguments (needed for GIOP 1.2).

Definition at line 452 of file NVList.cpp.

{
  if (this->incoming_ != 0)
    {
      return this->incoming_->length () <= 1 ? false : true;
    }
  else
    {
      return this->count () <= 1 ? false : true;
    }
}

CORBA::NVList * CORBA::NVList::_nil ( void ) [static]

Definition at line 123 of file NVList.inl.

{
  return 0;
}

void CORBA::NVList::_tao_decode	(	TAO_InputCDR &	cdr,
		int	flag
	)

Decode the NVList arguments from the cdr stream.

Definition at line 373 of file NVList.cpp.

{
  if (TAO_debug_level > 3)
    {
      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("TAO (%P|%t) : NVList::_tao_decode\n")));
    }

  // Then unmarshal each "in" and "inout" parameter.
  ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> i (this->values_);

  for (i.first (); !i.done (); i.advance ())
    {
      CORBA::NamedValue_ptr *item = 0;
      (void) i.next (item);

      CORBA::NamedValue_ptr nv = *item;

      // check if it is an in or inout parameter
      // @@ this is where we assume that the NVList is coming from
      //    a Server-side request, we could probably handle both
      //    cases with a flag, but there is no clear need for that.
      if (ACE_BIT_DISABLED (nv->flags (), flag))
        {
          continue;
        }

      if (TAO_debug_level > 3)
        {
          ACE_DEBUG ((LM_DEBUG,
                      ACE_TEXT ("TAO (%P|%t) : NVList::_tao_decode - %C\n"),
                      nv->name ()? nv->name () : "(no name given)" ));
        }

      CORBA::Any_ptr any = nv->value ();
      any->impl ()->_tao_decode (incoming
                                );
    }
}

void CORBA::NVList::_tao_encode	(	TAO_OutputCDR &	cdr,
		int	flag
	)

Encode the NVList into the CDR stream. flag masks the type of arguments (IN, OUT or INOUT) that are to be marshaled.

Definition at line 292 of file NVList.cpp.

{
  ACE_GUARD (TAO_SYNCH_MUTEX,
             ace_mon,
             this->lock_);

  if (this->incoming_ != 0)
    {
      if (this->max_ == 0)
        {
          // The list is empty aggresively reduce copies and just send
          // the CDR stream, we assume that
          // TAO_Server_Request::init_reply
          // has inserted appropiated padding already to make this
          // operation correct
          cdr.write_octet_array_mb (this->incoming_->start ());
          return;
        }

      // Then unmarshal each "in" and "inout" parameter.
      ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> i (this->values_);

      for (i.first (); !i.done (); i.advance ())
        {
          CORBA::NamedValue_ptr *item = 0;
          (void) i.next (item);

          CORBA::NamedValue_ptr nv = *item;

          if (ACE_BIT_DISABLED (nv->flags (), flag))
            {
              continue;
            }

          if (TAO_debug_level > 3)
            {
              const char* arg = nv->name ();

              if (arg == 0)
                {
                  arg = "(nil)";
                }

              ACE_DEBUG ((LM_DEBUG,
                          ACE_TEXT ("NVList::_tao_encode - parameter <%C>\n"),
                          arg));
            }
          CORBA::TypeCode_ptr tc = nv->value ()->_tao_get_typecode ();
          (void) TAO_Marshal_Object::perform_append (tc,
                                                     this->incoming_,
                                                     &cdr);
        }

      delete this->incoming_;
      this->incoming_ = 0;
      return;
    }

  // The list is already evaluated, we cannot optimize the copies, go
  // ahead with the slow way to do things.

  // Then marshal each "in" and "inout" parameter.
  ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> i (this->values_);

  for (i.first (); !i.done (); i.advance ())
    {
      CORBA::NamedValue_ptr *item = 0;
      (void) i.next (item);

      CORBA::NamedValue_ptr nv = *item;

      if (ACE_BIT_DISABLED (nv->flags (), flag))
        {
          continue;
        }

      nv->value ()->impl ()->marshal_value (cdr);
    }
}

void CORBA::NVList::_tao_incoming_cdr	(	TAO_InputCDR &	cdr,
		int	flag,
		bool &	lazy_evaluation
	)

Set the incoming CDR stream, this is used by TAO to perform lazy evaluation of the NVList in an incoming ServerRequest. The <flag> is used to check which parameters (IN, OUT and/or INOUT) are to be extracted

Definition at line 259 of file NVList.cpp.

{
  // If the list is empty then using lazy evaluation is the only
  // choice.
  // @@ There are other cases where we can use lazy evaluation, for
  //    example if the list is not empty but the anys own all their
  //    objects.
  if (lazy_evaluation == false && this->max_ == 0)
    {
      lazy_evaluation = true;
    }

  if (lazy_evaluation == false)
    {
      this->_tao_decode (cdr, flag);
      return;
    }

  ACE_GUARD (TAO_SYNCH_MUTEX, ace_mon, this->lock_);

  if (this->incoming_ != 0)
    {
      delete this->incoming_;
      this->incoming_ = 0;
    }

  ACE_NEW (this->incoming_, TAO_InputCDR (cdr));
  this->incoming_flag_ = flag;
}

ptrdiff_t CORBA::NVList::_tao_target_alignment ( void )

Return the required alignment to marshal the NVList without any re-alignment. It returns ACE_CDR::MAX_ALIGNMENT to indicate errors.

Definition at line 414 of file NVList.cpp.

{
  ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
                    ace_mon,
                    this->lock_,
                    ACE_CDR::MAX_ALIGNMENT);

  if (this->incoming_ == 0)
    {
      return ACE_CDR::MAX_ALIGNMENT;
    }

  const char* rd = this->incoming_->start ()->rd_ptr ();
  ptrdiff_t t = ptrdiff_t (rd) % ACE_CDR::MAX_ALIGNMENT;

  if (t < 0)
    {
      t += ACE_CDR::MAX_ALIGNMENT;
    }

  return t;
}

CORBA::NamedValue_ptr CORBA::NVList::add ( CORBA::Flags flags )

add an element and just initialize the flags

Definition at line 99 of file NVList.cpp.

{
  // call the helper to allocate a NamedValue element (if necessary)
  return this->add_element (flags);
}

CORBA::NamedValue_ptr CORBA::NVList::add_element ( CORBA::Flags flags ) [private]

Helper to increase the list size. This is used by all the add_ methods of the NVList class

Definition at line 211 of file NVList.cpp.

{
  this->evaluate ();

  if (ACE_BIT_DISABLED (flags,
                        CORBA::ARG_IN | CORBA::ARG_OUT | CORBA::ARG_INOUT))
    {
      throw ::CORBA::BAD_PARAM ();
    }

  CORBA::NamedValue_ptr nv;

  // allocate a new NamedValue
  ACE_NEW_THROW_EX (nv,
                    CORBA::NamedValue,
                    CORBA::NO_MEMORY ());

  // set the flags and enqueue in the queue
  nv->flags_ = flags;

  if (this->values_.enqueue_tail (nv) == -1)
    {
      delete nv;
      return 0;
    }

  ++this->max_;
  return nv; // success
}

CORBA::NamedValue_ptr CORBA::NVList::add_item	(	const char *	name,
		CORBA::Flags	flags
	)

add an element and initialize its name and flags

Definition at line 107 of file NVList.cpp.

{
  // call the helper to allocate a NamedValue element
  CORBA::NamedValue_ptr nv = this->add_element (flags);

  if (nv)
    {
      // now initialize the fields
      nv->name_ = CORBA::string_dup (name);
      return nv;
    }
  else
    {
      return 0;
    }
}

CORBA::NamedValue_ptr CORBA::NVList::add_item_consume	(	char *	name,
		CORBA::Flags	flags
	)

just like add_item. In addition, memory management of char * name is taken over by the NVList

Definition at line 154 of file NVList.cpp.

{

  // call the helper to allocate a NamedValue element
  CORBA::NamedValue_ptr nv = this->add_element (flags);

  if (nv)
    {
      // now initialize the fields

      // consume the name
      nv->name_ = name;
      return nv;
    }
  else
    {
      return 0;
    }
}

CORBA::NamedValue_ptr CORBA::NVList::add_value	(	const char *	name,
		const Any &	value,
		CORBA::Flags	flags
	)

initializes a value, name, and flags

Definition at line 126 of file NVList.cpp.

{
  // Call the helper to allocate a NamedValue element.
  CORBA::NamedValue_ptr nv = this->add_element (flags);

  if (nv)
    {
      nv->name_ = CORBA::string_dup (name);

      // With the original Any implementation, we had alternate
      // paths for the assignment based on the IN_COPY_VALUE flag.
      // Now that the Any's contained Any_Impl is refcounted, the
      // distinction between the ORB "copying" or "borrowing" the
      // memory is irrelevant. The IN_COPY_VALUE flag was not
      // checked anywhere else in the ORB anyway.
      nv->any_ = value;
      return nv;
    }
  else
    {
      return 0;
    }
}

NamedValue_ptr CORBA::NVList::add_value_consume	(	char *	,
		Any_ptr	,
		Flags
	)

just like add_value. In addition, the NVList controls the memory management of the char *name and Any *value parameter

CORBA::ULong CORBA::NVList::count ( void ) const

return the current number of elements in the list

Definition at line 102 of file NVList.inl.

{
  (const_cast<CORBA::NVList *> (this))->evaluate ();

  return this->max_;
}

void CORBA::NVList::evaluate ( void ) [private]

Lazy evaluation routine to fill up the Anys in the NVList from the CDR stream.

Definition at line 438 of file NVList.cpp.

{
  ACE_GUARD (TAO_SYNCH_MUTEX, ace_mon, this->lock_);

  if (this->incoming_ != 0)
    {
      auto_ptr<TAO_InputCDR> incoming (this->incoming_);
      this->incoming_ = 0;

      this->_tao_decode (*(incoming.get ()), this->incoming_flag_);
    }
}

CORBA::NamedValue_ptr CORBA::NVList::item ( CORBA::ULong n )

retrieve the item at the nth location. Raises Bounds

Definition at line 243 of file NVList.cpp.

{
  this->evaluate ();

  if (n >= this->max_)
    {
      throw ::CORBA::Bounds ();
    }

  CORBA::NamedValue_ptr *nv = 0;

  this->values_.get (nv, n);
  return *nv;
}

void CORBA::NVList::remove ( CORBA::ULong n )

remove element at index n. Raises Bounds

Definition at line 203 of file NVList.cpp.

{
  // not implemented
  // @@ (ASG) - TODO
}

Friends And Related Function Documentation

friend class ::TAO_NVList_Adapter_Impl [friend]

Definition at line 161 of file NVList.h.

friend class Request [friend]

Definition at line 162 of file NVList.h.

Member Data Documentation

TAO_InputCDR* CORBA::NVList::incoming_ [private]

When the NVList is used as part of a Server Request we can simply store the CDR buffer and perform lazy evaluation to compute the Anys.

Definition at line 279 of file NVList.h.

int CORBA::NVList::incoming_flag_ [private]

The flags used to check which parameters are actually extracted from the <incoming_> buffer

Definition at line 283 of file NVList.h.

TAO_SYNCH_MUTEX CORBA::NVList::lock_ [private]

Protects the incoming pointer.

Definition at line 272 of file NVList.h.

ULong CORBA::NVList::max_ [private]

Maximum length of list.

Definition at line 266 of file NVList.h.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, unsigned long> CORBA::NVList::refcount_ [private]

Reference counter.

Definition at line 269 of file NVList.h.

ACE_Unbounded_Queue<NamedValue_ptr> CORBA::NVList::values_ [private]

Internal list of parameters stored as NamedValues.

Definition at line 263 of file NVList.h.

The documentation for this class was generated from the following files:

CORBA::NVList Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions
