CORBA Name/value pair implementation. More...

#include <NVList.h>

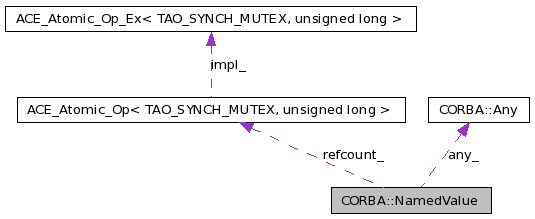

Collaboration diagram for CORBA::NamedValue:

Public Types
typedef NamedValue_ptr	_ptr_type
typedef NamedValue_var	_var_type
typedef NamedValue_out	_out_type
Public Member Functions
const char *	name (void) const
	optional name
Any_ptr	value (void) const
	return the value
Flags	flags (void) const
	return the parameter mode flag
ULong	_incr_refcnt (void)
ULong	_decr_refcnt (void)
Static Public Member Functions
static NamedValue *	_duplicate (NamedValue *)
static NamedValue *	_nil (void)
Public Attributes
Identifier	name
any	argument
long	len
Flags	arg_modes
Protected Member Functions
	~NamedValue (void)
	Destructor.
Private Member Functions
	NamedValue (void)
Private Attributes
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_
	Reference counter.
Any	any_
	holds the value
Flags	flags_
	parameter mode flags
char *	name_
	optional IDL name of the parameter
Friends
class	::TAO_NVList_Adapter_Impl
class	NVList
class	Request

Detailed Description

CORBA Name/value pair implementation.

These occur only in "NVList" (named value list) data structures. The binary form of the data structure is frozen and visible to programs using it (e.g. from C). The C++ class supports some programming discipline, e.g. to avoid memory leaks. They just represent parameters to calls. The name is optional, and the value is packaged as an Any. The flags indicate parameter mode, and some ownership rules for "top level" memory.

Definition at line 79 of file NVList.h.

Member Typedef Documentation

typedef NamedValue_out CORBA::NamedValue::_out_type

Definition at line 106 of file NVList.h.

typedef NamedValue_ptr CORBA::NamedValue::_ptr_type

Definition at line 104 of file NVList.h.

typedef NamedValue_var CORBA::NamedValue::_var_type

Definition at line 105 of file NVList.h.

Constructor & Destructor Documentation

CORBA::NamedValue::~NamedValue ( void ) [protected]

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

Definition at line 50 of file NVList.cpp.

{
  if (this->name_)
    {
      CORBA::string_free (this->name_);
      this->name_ = 0;
    }
  // the any will be destroyed by itself
}

CORBA::NamedValue::NamedValue ( void ) [private]

private constructor. Cannot be directly instantiated other than by its friends.

Definition at line 23 of file NVList.inl.

  : refcount_ (1),
    flags_ (0),
    name_ (0)
{
}

Member Function Documentation

CORBA::ULong CORBA::NamedValue::_decr_refcnt ( void )

Definition at line 40 of file NVList.cpp.

{
  CORBA::ULong const new_count = --this->refcount_;

  if (new_count == 0)
    delete this;

  return new_count;
}

CORBA::NamedValue * CORBA::NamedValue::_duplicate ( CORBA::NamedValue * x ) [static]

Definition at line 53 of file NVList.inl.

{
  if (x != 0)
    {
      x->_incr_refcnt ();
    }

  return x;
}

CORBA::ULong CORBA::NamedValue::_incr_refcnt ( void )

Definition at line 34 of file NVList.cpp.

{
  return ++this->refcount_;
}

CORBA::NamedValue * CORBA::NamedValue::_nil ( void ) [static]

Definition at line 65 of file NVList.inl.

{
  return 0;
}

CORBA::Flags CORBA::NamedValue::flags ( void ) const

return the parameter mode flag

Definition at line 46 of file NVList.inl.

{
  return this->flags_;
}

const char* CORBA::NamedValue::name ( void ) const

optional name

CORBA::Any_ptr CORBA::NamedValue::value ( void ) const

return the value

Definition at line 39 of file NVList.inl.

{
  return const_cast<CORBA::Any_ptr> (&this->any_);
}

Friends And Related Function Documentation

friend class ::TAO_NVList_Adapter_Impl [friend]

Definition at line 81 of file NVList.h.

friend class NVList [friend]

Definition at line 82 of file NVList.h.

friend class Request [friend]

Definition at line 83 of file NVList.h.

Member Data Documentation

Any CORBA::NamedValue::any_ [private]

holds the value

Definition at line 129 of file NVList.h.

Flags CORBA::NamedValue::arg_modes

Definition at line 45 of file orb.idl.

any CORBA::NamedValue::argument

Definition at line 43 of file orb.idl.

Flags CORBA::NamedValue::flags_ [private]

parameter mode flags

Definition at line 132 of file NVList.h.

long CORBA::NamedValue::len

Definition at line 44 of file orb.idl.

const char * CORBA::NamedValue::name

Definition at line 42 of file orb.idl.

char* CORBA::NamedValue::name_ [private]

optional IDL name of the parameter

Definition at line 135 of file NVList.h.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, unsigned long> CORBA::NamedValue::refcount_ [private]

Reference counter.

Definition at line 126 of file NVList.h.

The documentation for this class was generated from the following files:
