An object-oriented event demultiplexor and event handler dispatcher that uses the X Toolkit functions. More...

#include <XtReactor.h>

Inheritance diagram for ACE_XtReactor:

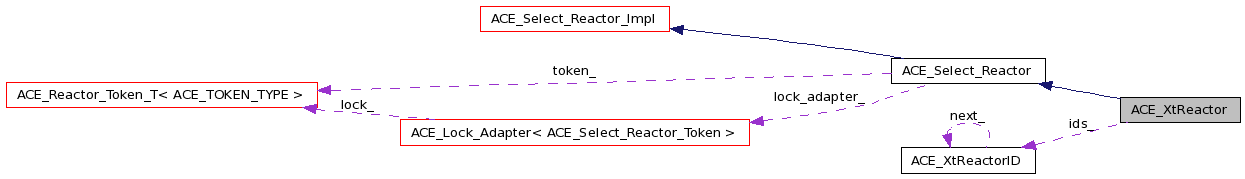

Collaboration diagram for ACE_XtReactor:

Public Member Functions
	ACE_XtReactor (XtAppContext context=0, size_t size=DEFAULT_SIZE, bool restart=false, ACE_Sig_Handler *=0)
virtual	~ACE_XtReactor (void)
XtAppContext	context (void) const
void	context (XtAppContext)
virtual long	schedule_timer (ACE_Event_Handler event_handler, const void arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval)
virtual int	reset_timer_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1)
virtual int	cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)
Protected Member Functions
virtual int	register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a single handler.
virtual int	register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a set of <handlers>.
virtual int	remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
	Remove the handler associated with this handle.
virtual int	remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask)
	Remove a set of <handles>.
virtual int	suspend_i (ACE_HANDLE handle)
	Suspend the <Event_Handler> associated with handle.
virtual int	resume_i (ACE_HANDLE handle)
	Resume the <Event_Handler> associated with handle.
virtual void	synchronize_XtInput (ACE_HANDLE handle)
	Synchronize XtInputHandler for handle.
virtual int	compute_Xt_condition (ACE_HANDLE handle)
	Compute needed Xt condition by looking at base class wait set.
virtual int	wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
	Wait for events to occur.
virtual int	XtWaitForMultipleEvents (int, ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
	Wait for Xt events to occur.
Protected Attributes
XtAppContext	context_
ACE_XtReactorID *	ids_
XtIntervalId	timeout_
Private Member Functions
void	reset_timeout (void)
	ACE_XtReactor (const ACE_XtReactor &)
	Deny access since member-wise won't work...
ACE_XtReactor &	operator= (const ACE_XtReactor &)
Static Private Member Functions
static void	TimerCallbackProc (XtPointer closure, XtIntervalId *id)
static void	InputCallbackProc (XtPointer closure, int source, XtInputId id)

Detailed Description

An object-oriented event demultiplexor and event handler dispatcher that uses the X Toolkit functions.

Definition at line 57 of file XtReactor.h.

Constructor & Destructor Documentation

ACE_XtReactor::ACE_XtReactor	(	XtAppContext	context = `0`,
		size_t	size = `DEFAULT_SIZE`,
		bool	restart = `false`,
		ACE_Sig_Handler *	h = `0`
	)

Definition at line 15 of file XtReactor.cpp.

  : ACE_Select_Reactor (size, restart, h),
    context_ (context),
    ids_ (0),
    timeout_ (0)
{
  // When the ACE_Select_Reactor is constructed it creates the notify
  // pipe and registers it with the register_handler_i() method. The
  // XtReactor overloads this method BUT because the
  // register_handler_i occurs when constructing the base class
  // ACE_Select_Reactor, the ACE_Select_Reactor register_handler_i()
  // is called not the XtReactor register_handler_i().  This means
  // that the notify pipe is registered with the ACE_Select_Reactor
  // event handling code not the XtReactor and so notfications don't
  // work.  To get around this we simply close and re-opened the
  // notification handler in the constructor of the XtReactor.

#if defined (ACE_MT_SAFE) && (ACE_MT_SAFE != 0)
  this->notify_handler_->close ();
  this->notify_handler_->open (this, 0);
#endif /* ACE_MT_SAFE */
}

ACE_XtReactor::~ACE_XtReactor ( void ) [virtual]

Definition at line 41 of file XtReactor.cpp.

{
  // Delete the remaining items in the linked list.

  while (this->ids_)
    {
      ACE_XtReactorID *XtID = this->ids_->next_;
      delete this->ids_;
      this->ids_ = XtID;
    }
}

ACE_XtReactor::ACE_XtReactor ( const ACE_XtReactor & ) [private]

Deny access since member-wise won't work...

Member Function Documentation

int ACE_XtReactor::cancel_timer	(	ACE_Event_Handler *	event_handler,
		int	dont_call_handle_close = `1`
	)			`[virtual]`

Cancel all <event_handlers> that match the address of event_handler. If dont_call_handle_close is 0 then the <handle_close> method of event_handler will be invoked. Returns number of handler's cancelled.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 437 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::cancel_timer");

  if (ACE_Select_Reactor::cancel_timer (handler,
                                        dont_call_handle_close) == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return 0;
    }
}

int ACE_XtReactor::cancel_timer	(	long	timer_id,
		const void **	arg = `0`,
		int	dont_call_handle_close = `1`
	)			`[virtual]`

Cancel the single ACE_Event_Handler that matches the timer_id value (which was returned from the <schedule> method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the Event_Handler was registered. This makes it possible to free up the memory and avoid memory leaks. If dont_call_handle_close is 0 then the <handle_close> method of <event_handler> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 453 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::cancel_timer");

  if (ACE_Select_Reactor::cancel_timer (timer_id,
                                        arg,
                                        dont_call_handle_close) == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return 0;
    }
}

int ACE_XtReactor::compute_Xt_condition ( ACE_HANDLE handle ) [protected, virtual]

Compute needed Xt condition by looking at base class wait set.

Definition at line 334 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::compute_Xt_condition");

  // Retrieve current wait mask from base class.
  // The returned value is either a combination of READ/WRITE/EXCEPT_MASK
  // or -1.
  int mask =this->bit_ops(handle,
                          0,
                          this->wait_set_,
                          ACE_Reactor::GET_MASK);

  if (mask == -1) // No active mask.
    return 0;

 int condition = 0;

#if !defined ACE_WIN32
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK))
    ACE_SET_BITS (condition, XtInputReadMask);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK))
    ACE_SET_BITS (condition, XtInputWriteMask);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK))
    ACE_SET_BITS (condition, XtInputExceptMask);
#else
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK))
    ACE_SET_BITS (condition, XtInputReadWinsock);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK))
    ACE_SET_BITS (condition, XtInputWriteWinsock);
  // EXCEPT_MASK is not supported for WIN32. As this was
  // already handled in register_handler_i, no check here.
#endif /* !ACE_WIN32 */

  return condition;
}

XtAppContext ACE_XtReactor::context ( void ) const

Definition at line 185 of file XtReactor.cpp.

{
  return this->context_;
}

void ACE_XtReactor::context ( XtAppContext context )

Definition at line 191 of file XtReactor.cpp.

{
  this->context_ = context;
}

void ACE_XtReactor::InputCallbackProc	(	XtPointer	closure,
		int *	source,
		XtInputId *	id
	)			`[static, private]`

Definition at line 105 of file XtReactor.cpp.

{
  ACE_XtReactor *self = (ACE_XtReactor *) closure;
  ACE_HANDLE handle = (ACE_HANDLE) *source;

  // my copy isn't const.
  ACE_Time_Value zero = ACE_Time_Value::zero;

  ACE_Select_Reactor_Handle_Set wait_set;

  // Deal with one file event.

  // - read which kind of event
  if (self->wait_set_.rd_mask_.is_set (handle))
    wait_set.rd_mask_.set_bit (handle);
  if (self->wait_set_.wr_mask_.is_set (handle))
    wait_set.wr_mask_.set_bit (handle);
  if (self->wait_set_.ex_mask_.is_set (handle))
    wait_set.ex_mask_.set_bit (handle);

  int result = ACE_OS::select (*source + 1,
                               wait_set.rd_mask_,
                               wait_set.wr_mask_,
                               wait_set.ex_mask_, &zero);

  ACE_Select_Reactor_Handle_Set dispatch_set;

  // - Use only that one file event (removes events for other files).
  if (result > 0)
    {
      if (wait_set.rd_mask_.is_set (handle))
        dispatch_set.rd_mask_.set_bit (handle);
      if (wait_set.wr_mask_.is_set (handle))
        dispatch_set.wr_mask_.set_bit (handle);
      if (wait_set.ex_mask_.is_set (handle))
        dispatch_set.ex_mask_.set_bit (handle);

      self->dispatch (1, dispatch_set);
    }
}

ACE_XtReactor& ACE_XtReactor::operator= ( const ACE_XtReactor & ) [private]

int ACE_XtReactor::register_handler_i	(	const ACE_Handle_Set &	handles,
		ACE_Event_Handler *	handler,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Register a set of <handlers>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 222 of file XtReactor.cpp.

{
  return ACE_Select_Reactor::register_handler_i (handles,
                                                 handler,
                                                 mask);
}

int ACE_XtReactor::register_handler_i	(	ACE_HANDLE	handle,
		ACE_Event_Handler *	handler,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Register a single handler.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 197 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::register_handler_i");

  // Make sure we have a valid context
  ACE_ASSERT (this->context_ != 0);

#if defined ACE_WIN32
  // Let's handle this special case before we do any real work.
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK))
    ACE_NOTSUP_RETURN(-1);
#endif /* ACE_WIN32 */

  int result = ACE_Select_Reactor::register_handler_i (handle,
                                                       handler, mask);
  if (result == -1)
    return -1;

  synchronize_XtInput (handle);
  return 0;
}

int ACE_XtReactor::remove_handler_i	(	const ACE_Handle_Set &	handles,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Remove a set of <handles>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 247 of file XtReactor.cpp.

{
  return ACE_Select_Reactor::remove_handler_i (handles,
                                               mask);
}

int ACE_XtReactor::remove_handler_i	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Remove the handler associated with this handle.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 232 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::remove_handler_i");

  int result  = ACE_Select_Reactor::remove_handler_i (handle,
                                                      mask);
  if (result == -1)
    return -1;

  synchronize_XtInput (handle);
  return 0;
}

void ACE_XtReactor::reset_timeout ( void ) [private]

This method ensures there's an Xt timeout for the first timeout in the Reactor's Timer_Queue.

Definition at line 374 of file XtReactor.cpp.

{
  // Make sure we have a valid context
  ACE_ASSERT (this->context_ != 0);

  if (timeout_)
    ::XtRemoveTimeOut (timeout_);
  timeout_ = 0;

  ACE_Time_Value *max_wait_time =
    this->timer_queue_->calculate_timeout (0);

  if (max_wait_time)
    timeout_ = ::XtAppAddTimeOut (this->context_,
                                  max_wait_time->msec (),
                                  TimerCallbackProc,
                                  (XtPointer) this);
}

int ACE_XtReactor::reset_timer_interval	(	long	timer_id,
		const ACE_Time_Value &	interval
	)			`[virtual]`

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 395 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::reset_timer_interval");
  ACE_MT (ACE_GUARD_RETURN (ACE_Select_Reactor_Token, ace_mon, this->token_, -1));

  int const result = ACE_Select_Reactor::timer_queue_->reset_interval
    (timer_id,
     interval);

  if (result == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return result;
    }
}

int ACE_XtReactor::resume_i ( ACE_HANDLE handle ) [protected, virtual]

Resume the <Event_Handler> associated with handle.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 269 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::resume_i");

  int result  =  ACE_Select_Reactor::resume_i (handle);

  if (result == -1)
    return -1;

  synchronize_XtInput (handle);
  return 0;
}

long ACE_XtReactor::schedule_timer	(	ACE_Event_Handler *	event_handler,
		const void *	arg,
		const ACE_Time_Value &	delay,
		const ACE_Time_Value &	interval
	)			`[virtual]`

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:: cancel_timer(); reset_timer_interval()

Parameters:

	event_handler	Event handler to schedule on reactor
	arg	Argument passed to the handle_timeout() method of event_handler
	delay	Time interval after which the timer will expire
	interval	Time interval after which the timer will be automatically rescheduled

Returns:: -1 on failure, a timer_id value on success

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 415 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::schedule_timer");
  ACE_MT (ACE_GUARD_RETURN (ACE_Select_Reactor_Token, ace_mon, this->token_, -1));

  long const result = ACE_Select_Reactor::schedule_timer (event_handler,
                                                          arg,
                                                          delay,
                                                          interval);
  if (result == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return result;
    }
}

int ACE_XtReactor::suspend_i ( ACE_HANDLE handle ) [protected, virtual]

Suspend the <Event_Handler> associated with handle.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 255 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::suspend_i");

  int result  = ACE_Select_Reactor::suspend_i (handle);

  if (result == -1)
    return -1;

  synchronize_XtInput (handle);
  return 0;
}

void ACE_XtReactor::synchronize_XtInput ( ACE_HANDLE handle ) [protected, virtual]

Synchronize XtInputHandler for handle.

Definition at line 283 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::synchronize_XtInput");

  // The idea here is to call this function after the base class has
  // processed the register/remove/suspend/resume_handler request. The
  // resulting mask is used to find out which XtInput mask we need.

  // Find existing handler in linked list.
  ACE_XtReactorID **XtID = &(this->ids_);

  while (*XtID && (*XtID)->handle_ != handle)
    XtID = &((*XtID)->next_);

  // Remove existing input handler.
  if (*XtID)
    ::XtRemoveInput ((*XtID)->id_);

  int condition = compute_Xt_condition (handle);

  if (condition == 0) // No input handler needed.
    {
      if (*XtID)
        {
          // Remove linked list entry.
          ACE_XtReactorID *toDelete  = *XtID;
          *XtID = (*XtID)->next_;
          delete toDelete;
        }
      return;
    }

  if (*XtID == 0)
    {
      // Create new node.
      ACE_XtReactorID *tmp = new ACE_XtReactorID;
      tmp->next_ = this->ids_;
      tmp->handle_ = handle;
      this->ids_ = tmp;
      XtID = &(this->ids_);
    }

  // Finally, add input handler.
  (*XtID)->id_ = ::XtAppAddInput (this->context_,
                                  (int) handle,
                                  (XtPointer) condition,
                                  InputCallbackProc,
                                  (XtPointer) this);
}

void ACE_XtReactor::TimerCallbackProc	(	XtPointer	closure,
		XtIntervalId *	id
	)			`[static, private]`

Definition at line 89 of file XtReactor.cpp.

{
  ACE_XtReactor *self = (ACE_XtReactor *) closure;
  self->timeout_ = 0;

  // Deal with any timer events
  ACE_Select_Reactor_Handle_Set handle_set;
  self->dispatch (0, handle_set);
  self->reset_timeout ();
}

int ACE_XtReactor::wait_for_multiple_events	(	ACE_Select_Reactor_Handle_Set &	handle_set,
		ACE_Time_Value *	max_wait_time
	)			`[protected, virtual]`

Wait for events to occur.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 57 of file XtReactor.cpp.

{
  ACE_TRACE ("ACE_XtReactor::wait_for_multiple_events");
  int nfound;

  do
    {
      max_wait_time = this->timer_queue_->calculate_timeout (max_wait_time);

      size_t width = this->handler_rep_.max_handlep1 ();
      handle_set.rd_mask_ = this->wait_set_.rd_mask_;
      handle_set.wr_mask_ = this->wait_set_.wr_mask_;
      handle_set.ex_mask_ = this->wait_set_.ex_mask_;
      nfound = XtWaitForMultipleEvents (width,
                                        handle_set,
                                        max_wait_time);

    } while (nfound == -1 && this->handle_error () > 0);

  if (nfound > 0)
    {
#if !defined (ACE_WIN32)
      handle_set.rd_mask_.sync (this->handler_rep_.max_handlep1 ());
      handle_set.wr_mask_.sync (this->handler_rep_.max_handlep1 ());
      handle_set.ex_mask_.sync (this->handler_rep_.max_handlep1 ());
#endif /* ACE_WIN32 */
    }
  return nfound; // Timed out or input available
}

int ACE_XtReactor::XtWaitForMultipleEvents	(	int	width,
		ACE_Select_Reactor_Handle_Set &	wait_set,
		ACE_Time_Value *
	)			`[protected, virtual]`

Wait for Xt events to occur.

Definition at line 149 of file XtReactor.cpp.

{
  // Make sure we have a valid context
  ACE_ASSERT (this->context_ != 0);

  // Check to make sure our handle's are all usable.
  ACE_Select_Reactor_Handle_Set temp_set = wait_set;

  if (ACE_OS::select (width,
                      temp_set.rd_mask_,
                      temp_set.wr_mask_,
                      temp_set.ex_mask_,
                      (ACE_Time_Value *) &ACE_Time_Value::zero) == -1)
    return -1; // Bad file arguments...

  // Instead of waiting using <select>, just use the Xt mechanism to
  // wait for a single event.

  // Wait for something to happen.
  ::XtAppProcessEvent (this->context_, XtIMAll);

  // Reset the width, in case it changed during the upcalls.
  width = this->handler_rep_.max_handlep1 ();

  // Now actually read the result needed by the <Select_Reactor> using
  // <select>.
  return ACE_OS::select (width,
                         wait_set.rd_mask_,
                         wait_set.wr_mask_,
                         wait_set.ex_mask_,
                         (ACE_Time_Value *) &ACE_Time_Value::zero);
}

Member Data Documentation

XtAppContext ACE_XtReactor::context_ [protected]

Definition at line 125 of file XtReactor.h.

ACE_XtReactorID* ACE_XtReactor::ids_ [protected]

Definition at line 126 of file XtReactor.h.

XtIntervalId ACE_XtReactor::timeout_ [protected]

Definition at line 127 of file XtReactor.h.

The documentation for this class was generated from the following files:

ACE_XtReactor Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
