This is the main dispatcher of signals for ACE. It improves the existing UNIX signal handling mechanism by allowing C++ objects to handle signals in a way that avoids the use of global/static variables and functions. More...

#include <Sig_Handler.h>

Inheritance diagram for ACE_Sig_Handler:

[legend]

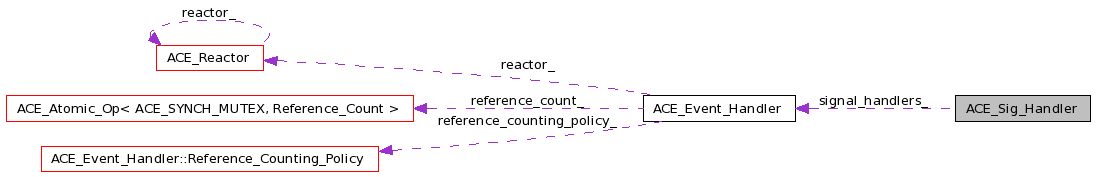

Collaboration diagram for ACE_Sig_Handler:

[legend]

List of all members.

Public Member Functions
	ACE_Sig_Handler (void)
	Default constructor.
virtual	~ACE_Sig_Handler (void)
	Destructor.
virtual int	register_handler (int signum, ACE_Event_Handler new_sh, ACE_Sig_Action new_disp=0, ACE_Event_Handler *old_sh=0, ACE_Sig_Action old_disp=0)
virtual int	remove_handler (int signum, ACE_Sig_Action new_disp=0, ACE_Sig_Action old_disp=0, int sigkey=-1)
virtual ACE_Event_Handler *	handler (int signum)
	Return the ACE_Sig_Handler associated with signum.
virtual ACE_Event_Handler *	handler (int signum, ACE_Event_Handler *)
void	dump (void) const
	Dump the state of an object.
Static Public Member Functions
static int	sig_pending (void)
	True if there is a pending signal.
static void	sig_pending (int)
	Reset the value of <sig_pending_> so that no signal is pending.
static void	dispatch (int, siginfo_t , ucontext_t )
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Static Protected Member Functions
static ACE_Event_Handler *	handler_i (int signum, ACE_Event_Handler *)
static int	register_handler_i (int signum, ACE_Event_Handler new_sh, ACE_Sig_Action new_disp=0, ACE_Event_Handler *old_sh=0, ACE_Sig_Action old_disp=0)
static int	in_range (int signum)
	Check whether the SIGNUM is within the legal range of signals.
Static Protected Attributes
static sig_atomic_t	sig_pending_ = 0
	Keeps track of whether a signal is pending.
Static Private Attributes
static ACE_Event_Handler *	signal_handlers_ [ACE_NSIG]

Detailed Description

This is the main dispatcher of signals for ACE. It improves the existing UNIX signal handling mechanism by allowing C++ objects to handle signals in a way that avoids the use of global/static variables and functions.

Using this class a program can register an ACE_Event_Handler with the ACE_Sig_Handler in order to handle a designated signum. When a signal occurs that corresponds to this signum, the handle_signal method of the registered ACE_Event_Handler is invoked automatically.

Definition at line 43 of file Sig_Handler.h.

Constructor & Destructor Documentation

ACE_Sig_Handler::ACE_Sig_Handler ( void )

Default constructor.

Definition at line 6 of file Sig_Handler.inl.

{
}

ACE_Sig_Handler::~ACE_Sig_Handler ( void ) [virtual]

Destructor.

Definition at line 55 of file Sig_Handler.cpp.

{
}

Member Function Documentation

void ACE_Sig_Handler::dispatch	(	int	signum,
		siginfo_t *	siginfo,
		ucontext_t *	ucontext
	)			`[static]`

Callback routine registered with sigaction(2) that dispatches the <handle_signal> method of the appropriate pre-registered ACE_Event_Handler.

Reimplemented in ACE_Sig_Handlers.

Definition at line 231 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::dispatch");

  // Save/restore errno.
  ACE_Errno_Guard error (errno);

  // We can't use the <sig_pending> call here because that acquires
  // the lock, which is non-portable...
  ACE_Sig_Handler::sig_pending_ = 1;

  // Darn well better be in range since the OS dispatched this...
  ACE_ASSERT (ACE_Sig_Handler::in_range (signum));

  ACE_Event_Handler *eh = ACE_Sig_Handler::signal_handlers_[signum];

  if (eh != 0)
    {
      if (eh->handle_signal (signum, siginfo, ucontext) == -1)
        {
          // Define the default disposition.
          ACE_Sig_Action sa ((ACE_SignalHandler) SIG_DFL, (sigset_t *) 0);

          ACE_Sig_Handler::signal_handlers_[signum] = 0;

          // Remove the current disposition by registering the default
          // disposition.
          sa.register_action (signum);

          // Allow the event handler to close down if necessary.
          eh->handle_close (ACE_INVALID_HANDLE,
                            ACE_Event_Handler::SIGNAL_MASK);
        }
#if defined (ACE_WIN32)
      else
        // Win32 is weird in the sense that it resets the signal
        // disposition to SIG_DFL after a signal handler is
        // dispatched.  Therefore, to workaround this "feature" we
        // must re-register the <ACE_Event_Handler> with <signum>
        // explicitly.
        ACE_Sig_Handler::register_handler_i (signum,
                                             eh);
#endif /* ACE_WIN32*/
    }
}

void ACE_Sig_Handler::dump ( void ) const

Dump the state of an object.

Reimplemented in ACE_Sig_Handlers.

Definition at line 60 of file Sig_Handler.cpp.

{
#if defined (ACE_HAS_DUMP)
  ACE_TRACE ("ACE_Sig_Handler::dump");
#endif /* ACE_HAS_DUMP */
}

ACE_Event_Handler * ACE_Sig_Handler::handler ( int signum ) [virtual]

Return the ACE_Sig_Handler associated with signum.

Reimplemented in ACE_Sig_Handlers.

Definition at line 91 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::handler");
  ACE_MT (ACE_Recursive_Thread_Mutex *lock =
    ACE_Managed_Object<ACE_Recursive_Thread_Mutex>::get_preallocated_object
      (ACE_Object_Manager::ACE_SIG_HANDLER_LOCK);
    ACE_Guard<ACE_Recursive_Thread_Mutex> m (*lock));

  if (ACE_Sig_Handler::in_range (signum))
    return ACE_Sig_Handler::signal_handlers_[signum];
  else
    return 0;
}

ACE_Event_Handler * ACE_Sig_Handler::handler	(	int	signum,
		ACE_Event_Handler *	new_sh
	)			`[virtual]`

Set a new ACE_Event_Handler that is associated with signum. Return the existing handler.

Reimplemented in ACE_Sig_Handlers.

Definition at line 123 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::handler");
  ACE_MT (ACE_Recursive_Thread_Mutex *lock =
    ACE_Managed_Object<ACE_Recursive_Thread_Mutex>::get_preallocated_object
      (ACE_Object_Manager::ACE_SIG_HANDLER_LOCK);
    ACE_Guard<ACE_Recursive_Thread_Mutex> m (*lock));

  return ACE_Sig_Handler::handler_i (signum, new_sh);
}

ACE_Event_Handler * ACE_Sig_Handler::handler_i	(	int	signum,
		ACE_Event_Handler *	new_sh
	)			`[static, protected]`

Set a new ACE_Event_Handler that is associated with signum. Return the existing handler. Does not acquire any locks so that it can be called from a signal handler, such as <dispatch>.

Definition at line 106 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::handler_i");

  if (ACE_Sig_Handler::in_range (signum))
    {
      ACE_Event_Handler *sh = ACE_Sig_Handler::signal_handlers_[signum];

      ACE_Sig_Handler::signal_handlers_[signum] = new_sh;
      return sh;
    }
  else
    return 0;
}

int ACE_Sig_Handler::in_range ( int signum ) [static, protected]

Check whether the SIGNUM is within the legal range of signals.

Definition at line 11 of file Sig_Handler.inl.

{
  ACE_TRACE ("ACE_Sig_Handler::in_range");
  return signum > 0 && signum < ACE_NSIG;
}

int ACE_Sig_Handler::register_handler	(	int	signum,
		ACE_Event_Handler *	new_sh,
		ACE_Sig_Action *	new_disp = `0`,
		ACE_Event_Handler **	old_sh = `0`,
		ACE_Sig_Action *	old_disp = `0`
	)			`[virtual]`

Add a new ACE_Event_Handler and a new sigaction associated with signum. Passes back the existing ACE_Event_Handler and its sigaction if pointers are non-zero. Returns -1 on failure and >= 0 on success.

Reimplemented in ACE_Sig_Handlers.

Definition at line 178 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::register_handler");
  ACE_MT (ACE_Recursive_Thread_Mutex *lock =
    ACE_Managed_Object<ACE_Recursive_Thread_Mutex>::get_preallocated_object
      (ACE_Object_Manager::ACE_SIG_HANDLER_LOCK);
    ACE_Guard<ACE_Recursive_Thread_Mutex> m (*lock));

  return ACE_Sig_Handler::register_handler_i (signum,
                                              new_sh,
                                              new_disp,
                                              old_sh,
                                              old_disp);
}

int ACE_Sig_Handler::register_handler_i	(	int	signum,
		ACE_Event_Handler *	new_sh,
		ACE_Sig_Action *	new_disp = `0`,
		ACE_Event_Handler **	old_sh = `0`,
		ACE_Sig_Action *	old_disp = `0`
	)			`[static, protected]`

This implementation method is called by <register_handler> and dispatch. It doesn't do any locking so that it can be called within a signal handler, such as dispatch. It adds a new ACE_Event_Handler and a new sigaction associated with signum. Passes back the existing ACE_Event_Handler and its sigaction if pointers are non-zero. Returns -1 on failure and >= 0 on success.

Definition at line 140 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::register_handler_i");

  if (ACE_Sig_Handler::in_range (signum))
    {
      ACE_Sig_Action sa; // Define a "null" action.
      ACE_Event_Handler *sh = ACE_Sig_Handler::handler_i (signum, new_sh);

      // Return a pointer to the old <ACE_Sig_Handler> if the user
      // asks for this.
      if (old_sh != 0)
        *old_sh = sh;

      // Make sure that <new_disp> points to a valid location if the
      // user doesn't care...
      if (new_disp == 0)
        new_disp = &sa;

      new_disp->handler (ace_signal_handler_dispatcher);
#if !defined (ACE_HAS_LYNXOS4_SIGNALS)
      new_disp->flags (new_disp->flags () | SA_SIGINFO);
#endif /* ACE_HAS_LYNXOS4_SIGNALS */
      return new_disp->register_action (signum, old_disp);
    }
  else
    return -1;
}

int ACE_Sig_Handler::remove_handler	(	int	signum,
		ACE_Sig_Action *	new_disp = `0`,
		ACE_Sig_Action *	old_disp = `0`,
		int	sigkey = `-1`
	)			`[virtual]`

Remove the ACE_Event_Handler currently associated with signum. sigkey is ignored in this implementation since there is only one instance of a signal handler. Install the new disposition (if given) and return the previous disposition (if desired by the caller). Returns 0 on success and -1 if signum is invalid.

Reimplemented in ACE_Sig_Handlers.

Definition at line 200 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::remove_handler");
  ACE_MT (ACE_Recursive_Thread_Mutex *lock =
    ACE_Managed_Object<ACE_Recursive_Thread_Mutex>::get_preallocated_object
      (ACE_Object_Manager::ACE_SIG_HANDLER_LOCK);
    ACE_Guard<ACE_Recursive_Thread_Mutex> m (*lock));

  if (ACE_Sig_Handler::in_range (signum))
    {
      ACE_Sig_Action sa (SIG_DFL, (sigset_t *) 0); // Define the default disposition.

      if (new_disp == 0)
        new_disp = &sa;

      ACE_Sig_Handler::signal_handlers_[signum] = 0;

      // Register either the new disposition or restore the default.
      return new_disp->register_action (signum, old_disp);
    }

    return -1;
}

void ACE_Sig_Handler::sig_pending ( int pending ) [static]

Reset the value of <sig_pending_> so that no signal is pending.

Definition at line 79 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::sig_pending");

  ACE_MT (ACE_Recursive_Thread_Mutex *lock =
          ACE_Managed_Object<ACE_Recursive_Thread_Mutex>::get_preallocated_object
          (ACE_Object_Manager::ACE_SIG_HANDLER_LOCK);
          ACE_Guard<ACE_Recursive_Thread_Mutex> m (*lock));
  ACE_Sig_Handler::sig_pending_ = pending;
}

int ACE_Sig_Handler::sig_pending ( void ) [static]

True if there is a pending signal.

Definition at line 68 of file Sig_Handler.cpp.

{
  ACE_TRACE ("ACE_Sig_Handler::sig_pending");
  ACE_MT (ACE_Recursive_Thread_Mutex *lock =
          ACE_Managed_Object<ACE_Recursive_Thread_Mutex>::get_preallocated_object
          (ACE_Object_Manager::ACE_SIG_HANDLER_LOCK);
          ACE_Guard<ACE_Recursive_Thread_Mutex> m (*lock));
  return ACE_Sig_Handler::sig_pending_ != 0;
}
