An object-oriented event demultiplexor and event handler dispatcher that uses the Tk functions. More...

#include <TkReactor.h>

Inheritance diagram for ACE_TkReactor:

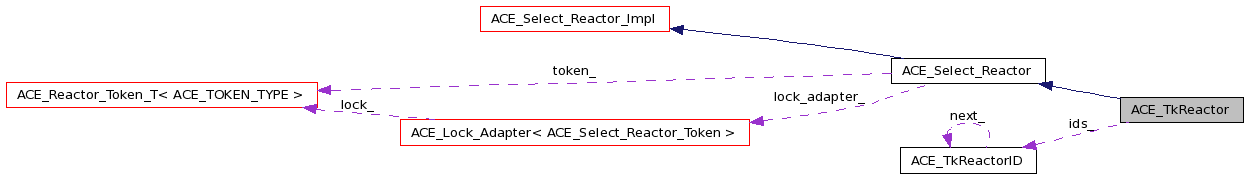

Collaboration diagram for ACE_TkReactor:

Public Member Functions
	ACE_TkReactor (size_t size=DEFAULT_SIZE, bool restart=false, ACE_Sig_Handler *=0)
virtual	~ACE_TkReactor (void)
virtual long	schedule_timer (ACE_Event_Handler event_handler, const void arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval)
virtual int	reset_timer_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1)
virtual int	cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)
Protected Member Functions
virtual int	register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a single handler.
virtual int	register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
	Register a set of <handlers>.
virtual int	remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
	Remove the handler associated with this handle.
virtual int	remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask)
	Remove a set of <handles>.
virtual void	remove_TkFileHandler (ACE_HANDLE handle)
	Removes an Tk FileHandler.
virtual int	wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
	Wait for events to occur.
virtual int	TkWaitForMultipleEvents (int, ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *)
	Wait for Tk events to occur.
Protected Attributes
ACE_TkReactorID *	ids_
Tk_TimerToken	timeout_
Private Member Functions
void	reset_timeout (void)
	ACE_TkReactor (const ACE_TkReactor &)
	Deny access since member-wise won't work...
ACE_TkReactor &	operator= (const ACE_TkReactor &)
Static Private Member Functions
static void	TimerCallbackProc (ClientData cd)
static void	InputCallbackProc (ClientData cd, int mask)

Detailed Description

An object-oriented event demultiplexor and event handler dispatcher that uses the Tk functions.

Definition at line 61 of file TkReactor.h.

Constructor & Destructor Documentation

ACE_TkReactor::ACE_TkReactor	(	size_t	size = `DEFAULT_SIZE`,
		bool	restart = `false`,
		ACE_Sig_Handler *	h = `0`
	)

Definition at line 13 of file TkReactor.cpp.

  : ACE_Select_Reactor (size, restart, h),
    ids_ (0),
    timeout_ (0)
{
  // When the ACE_Select_Reactor is constructed it creates the notify
  // pipe and registers it with the register_handler_i() method. The
  // TkReactor overloads this method BUT because the
  // register_handler_i occurs when constructing the base class
  // ACE_Select_Reactor, the ACE_Select_Reactor register_handler_i()
  // is called not the TkReactor register_handler_i().  This means
  // that the notify pipe is registered with the ACE_Select_Reactor
  // event handling code not the TkReactor and so notfications don't
  // work.  To get around this we simply close and re-opened the
  // notification handler in the constructor of the TkReactor.

#if defined (ACE_MT_SAFE) && (ACE_MT_SAFE != 0)
  this->notify_handler_->close ();
  this->notify_handler_->open (this, 0);
#endif /* ACE_MT_SAFE */
}

ACE_TkReactor::~ACE_TkReactor ( void ) [virtual]

Definition at line 37 of file TkReactor.cpp.

{
  // Delete the remaining items in the linked list.

  while (this->ids_)
    {
      ACE_TkReactorID *TkID = this->ids_->next_;
      delete this->ids_;
      this->ids_ = TkID;
    }
}

ACE_TkReactor::ACE_TkReactor ( const ACE_TkReactor & ) [private]

Deny access since member-wise won't work...

Member Function Documentation

int ACE_TkReactor::cancel_timer	(	ACE_Event_Handler *	event_handler,
		int	dont_call_handle_close = `1`
	)			`[virtual]`

Cancel all <event_handlers> that match the address of event_handler. If dont_call_handle_close is 0 then the <handle_close> method of event_handler will be invoked. Returns number of handler's cancelled.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 406 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::cancel_timer");

  if (ACE_Select_Reactor::cancel_timer (handler,
                                        dont_call_handle_close) == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return 0;
    }
}

int ACE_TkReactor::cancel_timer	(	long	timer_id,
		const void **	arg = `0`,
		int	dont_call_handle_close = `1`
	)			`[virtual]`

Cancel the single ACE_Event_Handler that matches the timer_id value (which was returned from the <schedule> method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the Event_Handler was registered. This makes it possible to free up the memory and avoid memory leaks. If dont_call_handle_close is 0 then the <handle_close> method of <event_handler> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 422 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::cancel_timer");

  if (ACE_Select_Reactor::cancel_timer (timer_id,
                                        arg,
                                        dont_call_handle_close) == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return 0;
    }
}

void ACE_TkReactor::InputCallbackProc	(	ClientData	cd,
		int	mask
	)			`[static, private]`

Todo:: the unused mask argument is probably quite useful, but we ignore it, why? In fact the following comment probably relates to that: This could be made shorter if we know which *kind* of event we were about to get. Here we use <select> to find out which one might be available.

Definition at line 105 of file TkReactor.cpp.

{
  ACE_TkReactor_Input_Callback *callback = (ACE_TkReactor_Input_Callback *) cd;
  ACE_TkReactor *self = callback->reactor_;
  ACE_HANDLE handle = callback->handle_;

  // my copy isn't const.
  ACE_Time_Value zero = ACE_Time_Value::zero;

  ACE_Select_Reactor_Handle_Set wait_set;

  // Deal with one file event.

  // - read which kind of event
  if (self->wait_set_.rd_mask_.is_set (handle))
    wait_set.rd_mask_.set_bit (handle);
  if (self->wait_set_.wr_mask_.is_set (handle))
    wait_set.wr_mask_.set_bit (handle);
  if (self->wait_set_.ex_mask_.is_set (handle))
    wait_set.ex_mask_.set_bit (handle);

  int result = ACE_OS::select (handle + 1,
                               wait_set.rd_mask_,
                               wait_set.wr_mask_,
                               wait_set.ex_mask_, &zero);

  ACE_Select_Reactor_Handle_Set dispatch_set;

  // - Use only that one file event (removes events for other files).
  if (result > 0)
    {
      if (wait_set.rd_mask_.is_set (handle))
        dispatch_set.rd_mask_.set_bit (handle);
      if (wait_set.wr_mask_.is_set (handle))
        dispatch_set.wr_mask_.set_bit (handle);
      if (wait_set.ex_mask_.is_set (handle))
        dispatch_set.ex_mask_.set_bit (handle);

      self->dispatch (1, dispatch_set);
    }
}

ACE_TkReactor& ACE_TkReactor::operator= ( const ACE_TkReactor & ) [private]

int ACE_TkReactor::register_handler_i	(	const ACE_Handle_Set &	handles,
		ACE_Event_Handler *	handler,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Register a set of <handlers>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 271 of file TkReactor.cpp.

{
  return ACE_Select_Reactor::register_handler_i (handles,
                                                 handler,
                                                 mask);
}

int ACE_TkReactor::register_handler_i	(	ACE_HANDLE	handle,
		ACE_Event_Handler *	handler,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Register a single handler.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 182 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::register_handler_i");

  int result = ACE_Select_Reactor::register_handler_i (handle,
                                                       handler, mask);
  if (result == -1)
    return -1;

  int condition = 0;

#if !defined ACE_WIN32
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK))
    ACE_SET_BITS (condition, TK_READABLE);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK))
    ACE_SET_BITS (condition, TK_WRITABLE);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK))
    ACE_SET_BITS (condition, TK_EXCEPTION);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::ACCEPT_MASK))
    ACE_SET_BITS (condition, TK_READABLE);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::CONNECT_MASK)){
      ACE_SET_BITS (condition, TK_READABLE); // connected, you may write
      ACE_SET_BITS (condition, TK_WRITABLE);  // connected, you have data/err
  }
#else
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK))
    ACE_SET_BITS (condition, TK_READABLE);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK))
    ACE_SET_BITS (condition, TK_WRITABLE);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK))
    ACE_NOTSUP_RETURN(-1);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::ACCEPT_MASK))
    ACE_SET_BITS (condition, TK_READABLE);
  if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::CONNECT_MASK)){
      ACE_SET_BITS (condition, TK_READABLE); // connected, you may write
      ACE_SET_BITS (condition, TK_WRITABLE);  // connected, you have data/err
  }
#endif /* !ACE_WIN32 */

  if (condition != 0)
    {
      ACE_TkReactorID *TkID = this->ids_;

      while(TkID)
        {
          if (TkID->handle_ == handle)
            {
              ::Tk_DeleteFileHandler (TkID->handle_);

              ACE_TkReactor_Input_Callback *callback;
              ACE_NEW_RETURN (callback,
                              ACE_TkReactor_Input_Callback,
                              -1);
              callback->reactor_ = this;
              callback->handle_ = handle;
              ::Tk_CreateFileHandler ((int) handle,
                                      condition,
                                      InputCallbackProc,
                                      (ClientData) callback);
              return 0;
            }
          else
            TkID = TkID->next_;
        }

      ACE_NEW_RETURN (TkID,
                      ACE_TkReactorID,
                      -1);
      TkID->next_ = this->ids_;
      TkID->handle_ = handle;
      ACE_TkReactor_Input_Callback *callback;
      ACE_NEW_RETURN (callback,
                      ACE_TkReactor_Input_Callback,
                      -1);
      callback->reactor_ = this;
      callback->handle_ = handle;

      ::Tk_CreateFileHandler ((int) handle,
                              condition,
                              InputCallbackProc,
                              (ClientData) callback);
      this->ids_ = TkID;
    }
  return 0;
}

int ACE_TkReactor::remove_handler_i	(	const ACE_Handle_Set &	handles,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Remove a set of <handles>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 336 of file TkReactor.cpp.

{
  return ACE_Select_Reactor::remove_handler_i (handles,
                                               mask);
}

int ACE_TkReactor::remove_handler_i	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask
	)			`[protected, virtual]`

Remove the handler associated with this handle.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 281 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::remove_handler_i");

  // In the registration phase we registered first with
  // ACE_Select_Reactor and then with X.  Now we are now doing things
  // in reverse order.

  // First clean up the corresponding X11Input.
  this->remove_TkFileHandler (handle);

  // Now let the reactor do its work.
  return ACE_Select_Reactor::remove_handler_i (handle,
                                               mask);
}

void ACE_TkReactor::remove_TkFileHandler ( ACE_HANDLE handle ) [protected, virtual]

Removes an Tk FileHandler.

Definition at line 299 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::remove_TkFileHandler");

  ACE_TkReactorID *TkID = this->ids_;

  if (TkID)
    {
      if (TkID->handle_ == handle)
        {
          ::Tk_DeleteFileHandler (TkID->handle_);
          this->ids_ = TkID->next_;
          delete TkID;
          return;
        }

      ACE_TkReactorID *NextID = TkID->next_;

      while (NextID)
        {
          if (NextID->handle_ == handle)
            {
              ::Tk_DeleteFileHandler (NextID->handle_);
              TkID->next_ = NextID->next_;
              delete NextID;
              return;
            }
          else
            {
              TkID = NextID;
              NextID = NextID->next_;
            }
        }
    }
}

void ACE_TkReactor::reset_timeout ( void ) [private]

This method ensures there's a Tk timeout for the first timeout in the Reactor's Timer_Queue.

Definition at line 347 of file TkReactor.cpp.

{
  if (this->timeout_)
    ::Tk_DeleteTimerHandler (this->timeout_);
  timeout_ = 0;

  ACE_Time_Value *max_wait_time =
    this->timer_queue_->calculate_timeout (0);

  if (max_wait_time)
    timeout_ = ::Tk_CreateTimerHandler (max_wait_time->msec (),
                                        TimerCallbackProc,
                                        (ClientData) this);
}

int ACE_TkReactor::reset_timer_interval	(	long	timer_id,
		const ACE_Time_Value &	interval
	)			`[virtual]`

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 364 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::reset_timer_interval");
  ACE_MT (ACE_GUARD_RETURN (ACE_Select_Reactor_Token, ace_mon, this->token_, -1));

  int result = ACE_Select_Reactor::timer_queue_->reset_interval
    (timer_id,
     interval);

  if (result == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return result;
    }
}

long ACE_TkReactor::schedule_timer	(	ACE_Event_Handler *	event_handler,
		const void *	arg,
		const ACE_Time_Value &	delay,
		const ACE_Time_Value &	interval
	)			`[virtual]`

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:: cancel_timer(); reset_timer_interval()

Parameters:

	event_handler	Event handler to schedule on reactor
	arg	Argument passed to the handle_timeout() method of event_handler
	delay	Time interval after which the timer will expire
	interval	Time interval after which the timer will be automatically rescheduled

Returns:: -1 on failure, a timer_id value on success

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 384 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::schedule_timer");
  ACE_MT (ACE_GUARD_RETURN (ACE_Select_Reactor_Token, ace_mon, this->token_, -1));

  long result = ACE_Select_Reactor::schedule_timer (event_handler,
                                                    arg,
                                                    delay,
                                                    interval);
  if (result == -1)
    return -1;
  else
    {
      this->reset_timeout ();
      return result;
    }
}

void ACE_TkReactor::TimerCallbackProc ( ClientData cd ) [static, private]

Definition at line 85 of file TkReactor.cpp.

{
  ACE_TkReactor *self = (ACE_TkReactor *) cd;
  self->timeout_ = 0;

  // Deal with any timer events
  ACE_Select_Reactor_Handle_Set handle_set;
  self->dispatch (0, handle_set);
  self->reset_timeout ();
}

int ACE_TkReactor::TkWaitForMultipleEvents	(	int	width,
		ACE_Select_Reactor_Handle_Set &	wait_set,
		ACE_Time_Value *
	)			`[protected, virtual]`

Wait for Tk events to occur.

Definition at line 149 of file TkReactor.cpp.

{
  // Check to make sure our handle's are all usable.
  ACE_Select_Reactor_Handle_Set temp_set = wait_set;

  if (ACE_OS::select (width,
                      temp_set.rd_mask_,
                      temp_set.wr_mask_,
                      temp_set.ex_mask_,
                      (ACE_Time_Value *) &ACE_Time_Value::zero) == -1)
    return -1; // Bad file arguments...

  // Instead of waiting using <select>, just use the Tk mechanism to
  // wait for a single event.

  // Wait for something to happen.
  ::Tcl_DoOneEvent (0);

  // Reset the width, in case it changed during the upcalls.
  width = this->handler_rep_.max_handlep1 ();

  // Now actually read the result needed by the <Select_Reactor> using
  // <select>.
  return ACE_OS::select (width,
                         wait_set.rd_mask_,
                         wait_set.wr_mask_,
                         wait_set.ex_mask_,
                         (ACE_Time_Value *) &ACE_Time_Value::zero);
}

int ACE_TkReactor::wait_for_multiple_events	(	ACE_Select_Reactor_Handle_Set &	handle_set,
		ACE_Time_Value *	max_wait_time
	)			`[protected, virtual]`

Wait for events to occur.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 53 of file TkReactor.cpp.

{
  ACE_TRACE ("ACE_TkReactor::wait_for_multiple_events");
  int nfound;

  do
    {
      max_wait_time = this->timer_queue_->calculate_timeout (max_wait_time);

      size_t width = this->handler_rep_.max_handlep1 ();
      handle_set.rd_mask_ = this->wait_set_.rd_mask_;
      handle_set.wr_mask_ = this->wait_set_.wr_mask_;
      handle_set.ex_mask_ = this->wait_set_.ex_mask_;
      nfound = TkWaitForMultipleEvents (width,
                                        handle_set,
                                        max_wait_time);

    } while (nfound == -1 && this->handle_error () > 0);

  if (nfound > 0)
    {
#if !defined (ACE_WIN32)
      handle_set.rd_mask_.sync (this->handler_rep_.max_handlep1 ());
      handle_set.wr_mask_.sync (this->handler_rep_.max_handlep1 ());
      handle_set.ex_mask_.sync (this->handler_rep_.max_handlep1 ());
#endif /* ACE_WIN32 */
    }
  return nfound; // Timed out or input available
}

Member Data Documentation

ACE_TkReactorID* ACE_TkReactor::ids_ [protected]

Definition at line 116 of file TkReactor.h.

Tk_TimerToken ACE_TkReactor::timeout_ [protected]

Definition at line 117 of file TkReactor.h.

The documentation for this class was generated from the following files:

ACE_TkReactor Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
