ACE_Thread_Descriptor_Base Class Reference

Basic information for thread descriptors. These information gets extracted out because we need it after a thread is terminated. More...

#include <Thread_Manager.h>

Inheritance diagram for ACE_Thread_Descriptor_Base:

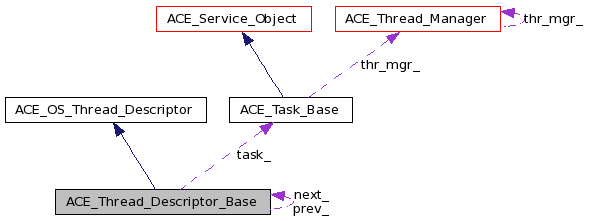

Collaboration diagram for ACE_Thread_Descriptor_Base:

List of all members.

Public Member Functions
	ACE_Thread_Descriptor_Base (void)
	~ACE_Thread_Descriptor_Base (void)
bool	operator== (const ACE_Thread_Descriptor_Base &rhs) const
	Equality operator.
bool	operator!= (const ACE_Thread_Descriptor_Base &rhs) const
	Inequality operator.
int	grp_id (void) const
	Group ID.
ACE_UINT32	state (void) const
	Current state of the thread.
ACE_Task_Base *	task (void) const
Protected Member Functions
void	reset (void)
	Reset this base thread descriptor.
Protected Attributes
ACE_thread_t	thr_id_
	Unique thread ID.
ACE_hthread_t	thr_handle_
	Unique handle to thread (used by Win32 and AIX).
int	grp_id_
	Group ID.
ACE_UINT32	thr_state_
	Current state of the thread.
ACE_Task_Base *	task_
ACE_Thread_Descriptor_Base *	next_
ACE_Thread_Descriptor_Base *	prev_
Friends
class	ACE_Thread_Manager
class	ACE_Double_Linked_List< ACE_Thread_Descriptor_Base >
class	ACE_Double_Linked_List_Iterator_Base< ACE_Thread_Descriptor_Base >
class	ACE_Double_Linked_List_Iterator< ACE_Thread_Descriptor_Base >
class	ACE_Double_Linked_List< ACE_Thread_Descriptor >
class	ACE_Double_Linked_List_Iterator_Base< ACE_Thread_Descriptor >
class	ACE_Double_Linked_List_Iterator< ACE_Thread_Descriptor >

---

Detailed Description

Basic information for thread descriptors. These information gets extracted out because we need it after a thread is terminated.

For internal use only.

Definition at line 165 of file Thread_Manager.h.

---

Constructor & Destructor Documentation

ACE_Thread_Descriptor_Base::ACE_Thread_Descriptor_Base

(

void

)

Definition at line 62 of file Thread_Manager.inl.

  : ACE_OS_Thread_Descriptor (),
    thr_id_ (ACE_OS::NULL_thread),
    thr_handle_ (ACE_OS::NULL_hthread),
    grp_id_ (0),
    thr_state_ (ACE_Thread_Manager::ACE_THR_IDLE),
    task_ (0),
    next_ (0),
    prev_ (0)
{
}

ACE_Thread_Descriptor_Base::~ACE_Thread_Descriptor_Base

(

void

)

Definition at line 75 of file Thread_Manager.inl.

{
}

---

Member Function Documentation

int ACE_Thread_Descriptor_Base::grp_id

(

void

)

const

Group ID.

Definition at line 104 of file Thread_Manager.inl.

{
  ACE_TRACE ("ACE_Thread_Descriptor_Base::grp_id");
  return grp_id_;
}

bool ACE_Thread_Descriptor_Base::operator!=

(

const ACE_Thread_Descriptor_Base &

rhs

)

const

Inequality operator.

Definition at line 89 of file Thread_Manager.inl.

{
  return !(*this == rhs);
}

bool ACE_Thread_Descriptor_Base::operator==

(

const ACE_Thread_Descriptor_Base &

rhs

)

const

Equality operator.

Definition at line 80 of file Thread_Manager.inl.

{
  return
    ACE_OS::thr_cmp (this->thr_handle_, rhs.thr_handle_)
    && ACE_OS::thr_equal (this->thr_id_, rhs.thr_id_);
}

void ACE_Thread_Descriptor_Base::reset

(

void

)

[protected]

Reset this base thread descriptor.

Definition at line 120 of file Thread_Manager.inl.

{
  ACE_TRACE ("ACE_Thread_Descriptor_Base::reset");
  this->thr_id_ = ACE_OS::NULL_thread;
  this->thr_handle_ = ACE_OS::NULL_hthread;
  this->grp_id_ = 0;
  this->thr_state_ = ACE_Thread_Manager::ACE_THR_IDLE;
  this->task_ = 0;
  this->flags_ = 0;
}

ACE_UINT32 ACE_Thread_Descriptor_Base::state

(

void

)

const

Current state of the thread.

Definition at line 112 of file Thread_Manager.inl.

{
  ACE_TRACE ("ACE_Thread_Descriptor_Base::state");
  return thr_state_;
}

ACE_Task_Base * ACE_Thread_Descriptor_Base::task

(

void

)

const

Return the pointer to an ACE_Task_Base or NULL if there's no ACE_Task_Base associated with this thread.;

Definition at line 95 of file Thread_Manager.inl.

{
  ACE_TRACE ("ACE_Thread_Descriptor_Base::task");
  return this->task_;
}

---

Friends And Related Function Documentation

friend class ACE_Double_Linked_List< ACE_Thread_Descriptor > [friend]

Reimplemented in ACE_Thread_Descriptor.

Definition at line 172 of file Thread_Manager.h.

friend class ACE_Double_Linked_List< ACE_Thread_Descriptor_Base > [friend]

Definition at line 169 of file Thread_Manager.h.

friend class ACE_Double_Linked_List_Iterator< ACE_Thread_Descriptor > [friend]

Reimplemented in ACE_Thread_Descriptor.

Definition at line 174 of file Thread_Manager.h.

friend class ACE_Double_Linked_List_Iterator< ACE_Thread_Descriptor_Base > [friend]

Definition at line 171 of file Thread_Manager.h.

friend class ACE_Double_Linked_List_Iterator_Base< ACE_Thread_Descriptor > [friend]

Definition at line 173 of file Thread_Manager.h.

friend class ACE_Double_Linked_List_Iterator_Base< ACE_Thread_Descriptor_Base > [friend]

Definition at line 170 of file Thread_Manager.h.

friend class ACE_Thread_Manager [friend]

Reimplemented in ACE_Thread_Descriptor.

Definition at line 168 of file Thread_Manager.h.

---

Member Data Documentation

int ACE_Thread_Descriptor_Base::grp_id_ [protected]

Group ID.

Definition at line 208 of file Thread_Manager.h.

ACE_Thread_Descriptor_Base* ACE_Thread_Descriptor_Base::next_ [protected]

We need these pointers to maintain the double-linked list in a thread managers.

Definition at line 219 of file Thread_Manager.h.

ACE_Thread_Descriptor_Base* ACE_Thread_Descriptor_Base::prev_ [protected]

Definition at line 220 of file Thread_Manager.h.

ACE_Task_Base* ACE_Thread_Descriptor_Base::task_ [protected]

Pointer to an ACE_Task_Base or NULL if there's no ACE_Task_Base.

Definition at line 215 of file Thread_Manager.h.

ACE_hthread_t ACE_Thread_Descriptor_Base::thr_handle_ [protected]

Unique handle to thread (used by Win32 and AIX).

Definition at line 205 of file Thread_Manager.h.

ACE_thread_t ACE_Thread_Descriptor_Base::thr_id_ [protected]

Unique thread ID.

Definition at line 202 of file Thread_Manager.h.

ACE_UINT32 ACE_Thread_Descriptor_Base::thr_state_ [protected]

Current state of the thread.

Definition at line 211 of file Thread_Manager.h.

---

The documentation for this class was generated from the following files:

• Thread_Manager.h
• Thread_Manager.inl
