ACE_QtReactor Class Reference

An object-oriented event demultiplexor and event handler dispatcher that uses the Qt Library. This class declaration also uses the extension facilities provided by the Qt. So, readers of the class declaration should not be upset with the appearence of the Keywords like Q_OBJECT, private slots etc. They are specific to Qt which uses these as a call back methods implementation mechanism. More...

#include <QtReactor.h>

Inheritance diagram for ACE_QtReactor:
Inheritance graph
[legend]

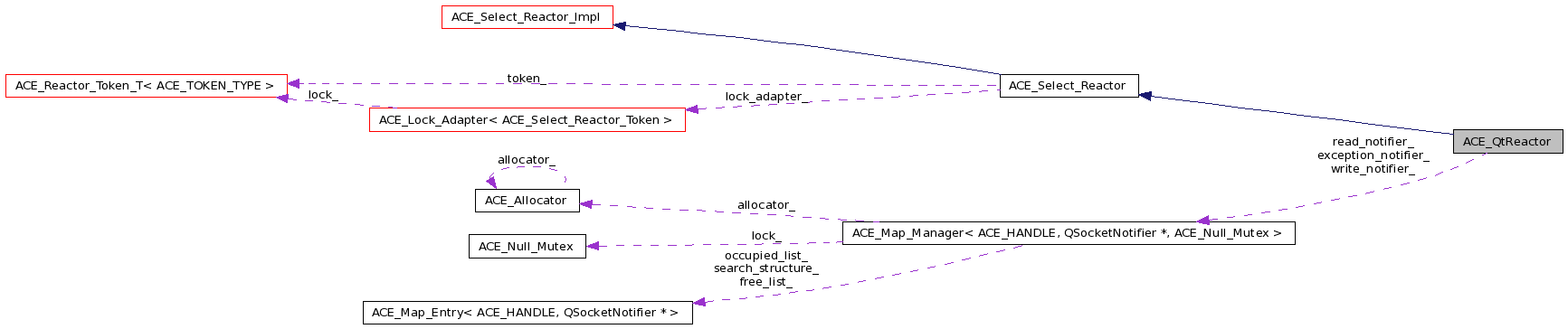

Collaboration diagram for ACE_QtReactor:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ACE_QtReactor (QApplication *qapp=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *notify=0, bool mask_signals=true, int s_queue=ACE_SELECT_TOKEN::FIFO)
 Constructor follows .
 ACE_QtReactor (size_t size, QApplication *qapp=0, bool restart=false, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *notify=0, bool mask_signals=true, int s_queue=ACE_SELECT_TOKEN::FIFO)
 Constructor follows .
virtual ~ACE_QtReactor (void)
void qapplication (QApplication *qapp)
virtual long schedule_timer (ACE_Event_Handler *handler, const void *arg, const ACE_Time_Value &delay_time, const ACE_Time_Value &interval)
virtual int cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1)
virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)

Protected Types

typedef ACE_Map_Manager
< ACE_HANDLE, QSocketNotifier
*, ACE_Null_Mutex > 		MAP
 Typedef of a map.

Protected Member Functions

virtual int register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
 Register a single handler.
virtual int register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask)
 Register a set of <handlers> with Qt.
virtual int remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
 Remove the <handler> associated with this handle.
virtual int remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask mask)
 Remove a set of <handles>.
virtual int wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &handle_set, ACE_Time_Value *max_wait_time)
 Wait for events to occur.
virtual int QtWaitForMultipleEvents (int width, ACE_Select_Reactor_Handle_Set &wait_set, ACE_Time_Value *max_wait_time)
virtual int bit_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Select_Reactor_Handle_Set &handle_set, int ops)
 Allow manipulation of the <wait_set_> mask and <ready_set_> mask.
int set_enable_flag_by_mask (int flag_value, ACE_HANDLE handle, ACE_Reactor_Mask mask)
void create_notifiers_for_handle (ACE_HANDLE handle)
void destroy_notifiers_for_handle (ACE_HANDLE handle)

Protected Attributes

QApplication * qapp_
 Some Qt stuff that we need to have.
MAP read_notifier_
 A notifier for a read.
MAP write_notifier_
 A write notifier.
MAP exception_notifier_
 An exception notifier.
QTimer * qtime_
 The timer class that would provide timer-sgnals & single-shot timers.

Private Slots

void read_event (int FD)
 Dispatch a Read Event.
void write_event (int FD)
 Dispatch a Write Event.
void exception_event (int FD)
 Dispatch an exception event.
void timeout_event (void)
 Dispach a timeout event.

Private Member Functions

void reset_timeout (void)
void reopen_notification_pipe (void)
 reopens notification pipe to create SocketNotifier for it
 ACE_QtReactor (const ACE_QtReactor &)
 Deny access since member-wise won't work...
ACE_QtReactor & operator= (const ACE_QtReactor &)

Detailed Description

An object-oriented event demultiplexor and event handler dispatcher that uses the Qt Library. This class declaration also uses the extension facilities provided by the Qt. So, readers of the class declaration should not be upset with the appearence of the Keywords like Q_OBJECT, private slots etc. They are specific to Qt which uses these as a call back methods implementation mechanism.

Note:
Marek Brudka <mbrudka@elka.pw.edu.pl>: ACE_QtReactor was quickly bugfixed to meet ACE 5.4.2 (6.0.0?) deadline. While it passes QtReactor_Test now, there is a great room for improvements as the implementation is rather inefficient and obfuscated To be more specific:
  • reset_timeout always creates and removes qtimer after each timeout event! Obviously, for fast triggering timers this may lead to excessive memory management.
  • create/destroy_notifiers_for_handle may also be reworked to establish more clean relations between handles and QSocketNotifiers.
  • read/write_exception_event disable now SocketNotifier for a while to clear pending events. The cost of this operation is high: two hash acces in ACE and at least two next ones in Qt. This makes QtReator slow, but how clear pending events another way ?
  • there is qapplication() mutator, which sets new qapplication for QtReactor. This mutator violates implicit assumption about the relations between QTimer and QSocketNotifiers and QApplication for this reactor, namely one may expect that after qapplication(), none of QtReactor artifacts is bound to old qapplication. That's not true now, as QTimer and QSocketNotifiers are not reparent to new QApplication. As a result, the sequence: QApplication *old_qapp = new QApplication(..); QtReactor qreactor( old_qapp); // .. register handlers, schedule_timers etc QApplication *new_qapp = new QApplication(..); qreactor.qpplication( new_qapp ); delete old_qapp; almost always leads to problems and memory violation, because QSocketNotifiers are released by old_qapp. Therefore QtReactor should not be reparent now by setting new qapplication.
  • the lifecycle of Qt objects in ACE contects is rather mysterious and should be made more explicit.
  • valgrind reports a small memory leak in QtReactor_Test, though as for now it is not clear if the leak is introduced by QtReactor, or rather incorrect memory management in QtReactor_Test.

Definition at line 97 of file QtReactor.h.

Member Typedef Documentation

typedef ACE_Map_Manager<ACE_HANDLE, QSocketNotifier *, ACE_Null_Mutex> ACE_QtReactor::MAP [protected]

Typedef of a map.

Definition at line 192 of file QtReactor.h.

Constructor & Destructor Documentation

ACE_QtReactor::ACE_QtReactor ( QApplication *  qapp = 0,
ACE_Sig_Handler *  sh = 0,
ACE_Timer_Queue *  tq = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify *  notify = 0,
bool  mask_signals = true,
int  s_queue = ACE_SELECT_TOKEN::FIFO
)

Constructor follows .

Parameters:
QApplication *qapp, qapplication which runs events loop

Definition at line 11 of file QtReactor.cpp.

                 :
    ACE_Select_Reactor( sh, tq, disable_notify_pipe,
        notify, mask_signals, s_queue),
    qapp_(qapp),
    qtime_ (0)
{
    reopen_notification_pipe();
}

ACE_QtReactor::ACE_QtReactor ( size_t  size,
QApplication *  qapp = 0,
bool  restart = false,
ACE_Sig_Handler *  sh = 0,
ACE_Timer_Queue *  tq = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify *  notify = 0,
bool  mask_signals = true,
int  s_queue = ACE_SELECT_TOKEN::FIFO
)

Constructor follows .

Parameters:
QApplication *qapp, qapplication which runs events loop

Definition at line 27 of file QtReactor.cpp.

                :
    ACE_Select_Reactor( size, restart, sh, tq,
        disable_notify_pipe, notify, mask_signals,
        s_queue ),
    qapp_(qapp),
    qtime_ (0)

{
    reopen_notification_pipe();
}

ACE_QtReactor::~ACE_QtReactor ( void   )  [virtual]

Definition at line 73 of file QtReactor.cpp.

{
    // iterate over QSocketNotifiers for read and release them
    MAP::ITERATOR iter = this->read_notifier_.begin ();
    MAP::ITERATOR iterEnd = this->read_notifier_.end ();
    while( iter != iterEnd )
    {
        MAP::ENTRY &entry = *iter;
        // QOBject destructor notifies qapplication (hopefully) on delete
        delete entry.int_id_;
        ++iter;
    }

    // iterate over QSocketNotifiers for write and release them
    this->write_notifier_.begin ();
    this->write_notifier_.end ();
    while( iter != iterEnd )
    {
        MAP::ENTRY &entry = *iter;
        // QOBject destructor notifies qapplication (hopefully) on delete
        delete entry.int_id_;
        ++iter;
    }

    // iterate over QSocketNotifiers for exceptions and release them
    this->exception_notifier_.begin ();
    this->exception_notifier_.end ();
    while( iter != iterEnd )
    {
        MAP::ENTRY &entry = *iter;
        // QOBject destructor notifies qapplication (hopefully) on delete
        delete entry.int_id_;
        ++iter;
    }

    // QOBject destructor notifies qapplication (hopefully) on delete
    delete qtime_;
}

ACE_QtReactor::ACE_QtReactor ( const ACE_QtReactor &   )  [private]

Deny access since member-wise won't work...

Member Function Documentation

int ACE_QtReactor::bit_ops ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
ACE_Select_Reactor_Handle_Set &  handle_set,
int  ops
) [protected, virtual]

Allow manipulation of the <wait_set_> mask and <ready_set_> mask.

Reimplemented from ACE_Select_Reactor_Impl.

Definition at line 262 of file QtReactor.cpp.

{
  int result;
  ACE_Select_Reactor_Handle_Set preserved_handle_set = handle_set;

  // Call regular bit_ops
  if ((result = ACE_Select_Reactor::bit_ops (handle, mask, handle_set, ops)) == -1)
    return -1;

  // disable or enable the notifiers based on handle_set and mask
  int enableFlag = -1;
  if (&handle_set == &this->suspend_set_)
    enableFlag = 0;
  else if (&handle_set == &this->wait_set_)
    enableFlag = 1;
  else
    // We have no work to do here, so just return
    return result;

  switch (ops)
    {
    case ACE_Reactor::SET_MASK:
    case ACE_Reactor::ADD_MASK:
      // Enable or disable notifiers based on the specified masks
      if (this->set_enable_flag_by_mask (enableFlag, handle, mask) == -1)
        {
          // We can't just return -1 here because we'll have half-changed things.
          // So, we need to restore the old handle_set, then return -1.
          handle_set = preserved_handle_set;
          return -1;
        }
      break;

    case ACE_Reactor::CLR_MASK:
      if (this->set_enable_flag_by_mask (!enableFlag, handle, mask) == -1)
        {
          handle_set = preserved_handle_set;
          return -1;
        }
      break;

    default:
      // we take no action for any other operations
      break;
    }

  return result;
}

int ACE_QtReactor::cancel_timer ( ACE_Event_Handler *  event_handler,
int  dont_call_handle_close = 1
) [virtual]

Cancel all <event_handlers> that match the address of event_handler. If dont_call_handle_close is 0 then the <handle_close> method of event_handler will be invoked. Returns number of handler's cancelled.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 535 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::cancel_timer");

  if (ACE_Select_Reactor::cancel_timer (handler,
                                        dont_call_handle_close ) == -1 )
    return -1 ;
  else
  {
    this->reset_timeout( ) ;
    return 0 ;
  }
}

int ACE_QtReactor::cancel_timer ( long  timer_id,
const void **  arg = 0,
int  dont_call_handle_close = 1
) [virtual]

Cancel the single ACE_Event_Handler that matches the timer_id value (which was returned from the <schedule> method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the Event_Handler was registered. This makes it possible to free up the memory and avoid memory leaks. If dont_call_handle_close is 0 then the <handle_close> method of <event_handler> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 550 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::cancel_timer") ;

  if (ACE_Select_Reactor::cancel_timer (timer_id,
                                        arg,
                                        dont_call_handle_close ) == -1 )
    return -1 ;
  else
  {
    this->reset_timeout( ) ;
    return 0 ;
  }
}

void ACE_QtReactor::create_notifiers_for_handle ( ACE_HANDLE  handle  )  [protected]

Definition at line 315 of file QtReactor.cpp.

{
    QSocketNotifier *qsock_notifier = 0;

    // if there is already a read socket notifier for this handle, do nothing
    // otherwise create read notifier
    if ( ( this->read_notifier_.find (handle,
               qsock_notifier) == -1) )
    {
        ACE_NEW (qsock_notifier,
            QSocketNotifier (int(handle), QSocketNotifier::Read, this));
        this->read_notifier_.bind (handle,
            qsock_notifier);
        QObject::connect (qsock_notifier,
            SIGNAL (activated (int)),
            this,
            SLOT (read_event (int))) ;
        // disable; it will be enabled by the regular register_handler_i if
        // necessary
        qsock_notifier->setEnabled (0);
    }

    qsock_notifier = 0;


    // if there is already a write socket notifier for this handle, do nothing
    // otherwise create read notifier
    if ((this->write_notifier_.find (handle,
             qsock_notifier) == -1))
    {
        ACE_NEW (qsock_notifier,
            QSocketNotifier (int(handle), QSocketNotifier::Write, this));

        this->write_notifier_.bind (handle,
            qsock_notifier);

        QObject::connect (qsock_notifier,
            SIGNAL (activated (int)),
            this,
            SLOT (write_event (int)));
        // disable; it will be enabled by the regular register_handler_i if
        // necessary
        qsock_notifier->setEnabled (0);
    }


    qsock_notifier = 0;

    // if there is already a write socket notifier for this handle, do nothing
    // otherwise create read notifier
    if ((this->exception_notifier_.find (handle,
             qsock_notifier) == -1))
    {

        ACE_NEW (qsock_notifier,
            QSocketNotifier (int(handle), QSocketNotifier::Exception, this));

        this->exception_notifier_.bind (handle,
            qsock_notifier);

        QObject::connect (qsock_notifier,
            SIGNAL (activated (int)),
            this,
            SLOT (exception_event (int))) ;
        // disable; it will be enabled by the regular register_handler_i if
        // necessary
        qsock_notifier->setEnabled (0);
    }
}

void ACE_QtReactor::destroy_notifiers_for_handle ( ACE_HANDLE  handle  )  [protected]

Definition at line 386 of file QtReactor.cpp.

{
  QSocketNotifier *qsock_notifier = 0;

  // Looks for the handle in the maps and removes them.

  if ((this->read_notifier_.find (handle,
                                  qsock_notifier) != -1))
    {
      this->read_notifier_.unbind (handle,
                                   qsock_notifier);
      delete qsock_notifier;
    }

  if ((this->write_notifier_.find (handle,
                                   qsock_notifier) != -1))
    {
      this->write_notifier_.unbind (handle,
                                    qsock_notifier);
      delete qsock_notifier;
    }


  if ((this->exception_notifier_.find (handle,
                                       qsock_notifier) != -1))
    {
      this->exception_notifier_.unbind (handle,
                                        qsock_notifier);
      delete qsock_notifier;
    }
}

void ACE_QtReactor::exception_event ( int  FD  )  [private, slot]

Dispatch an exception event.

Definition at line 190 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::exception_event");

  ACE_HANDLE handle = ACE_HANDLE( p_handle );


#ifdef ACE_QTREACTOR_CLEAR_PENDING_EVENTS
  // disable socket notifier to clear pending events
  QSocketNotifier *qsock_notifier = 0;
  if ( ( this->exception_notifier_.find( handle, qsock_notifier) != -1) )
    qsock_notifier->setEnabled( false );
#endif /* ACE_QTREACTOR_CLEAR_PENDING_EVENTS  */

  // The core of exception event handling
  ACE_Select_Reactor_Handle_Set dispatch_set;

  dispatch_set.ex_mask_.set_bit( handle );
  dispatch (1, dispatch_set);

#ifdef ACE_QTREACTOR_CLEAR_PENDING_EVENTS
  // enable socket notifier according to current mask
  ACE_Reactor_Mask mask = 0;
  mask = mask_ops( handle, mask, ACE_Reactor::GET_MASK );
  if ( -1 != mask )
        set_enable_flag_by_mask ( 1, handle, mask);
#endif /* ACE_QTREACTOR_CLEAR_PENDING_EVENTS  */
}

ACE_QtReactor& ACE_QtReactor::operator= ( const ACE_QtReactor &   )  [private]
void ACE_QtReactor::qapplication ( QApplication *  qapp  )

Definition at line 113 of file QtReactor.cpp.

{
  // reparent QSocketNotifiers and QTimer
  qapp_ = qapp ;
}

int ACE_QtReactor::QtWaitForMultipleEvents ( int  width,
ACE_Select_Reactor_Handle_Set &  wait_set,
ACE_Time_Value *  max_wait_time
) [protected, virtual]

Definition at line 569 of file QtReactor.cpp.

{
  // Keep a copy of the wait set in case the wait_set be changed
  // between the two select calls in this function. It could happen
  // while waiting for an event, another event is handled and dispatched
  // which changes the dispatch_set_/wait_set.
  ACE_Select_Reactor_Handle_Set orig_wait_set = wait_set;

  // Check to make sure our handle's are all usable.
  ACE_Select_Reactor_Handle_Set temp_set = wait_set;

  if (ACE_OS::select (width,
                      temp_set.rd_mask_,
                      temp_set.wr_mask_,
                      temp_set.ex_mask_,
                      (ACE_Time_Value *) &ACE_Time_Value::zero ) == -1)
    return -1; // Bad file arguments...

  // Qt processing.
#if QT_VERSION >= 0x040000
  this->qapp_->processEvents();
#else
  this->qapp_->processOneEvent ();
#endif

  // Reset the width, in case it changed during the upcalls.
  width = handler_rep_.max_handlep1 ();

  // Now actually read the result needed by the <Select_Reactor> using
  // <select>.
  return ACE_OS::select(width,
                        orig_wait_set.rd_mask_,
                        orig_wait_set.wr_mask_,
                        orig_wait_set.ex_mask_,
                        (ACE_Time_Value *) &ACE_Time_Value::zero);
}

void ACE_QtReactor::read_event ( int  FD  )  [private, slot]

Dispatch a Read Event.

Definition at line 131 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::read_event");

  ACE_HANDLE handle = ACE_HANDLE( p_handle );

#ifdef ACE_QTREACTOR_CLEAR_PENDING_EVENTS
  // disable socket notifier to clear pending events
  QSocketNotifier *qsock_notifier = 0;
  if ( ( this->read_notifier_.find( handle,
             qsock_notifier) != -1) )
    qsock_notifier->setEnabled( false );
#endif /* ACE_QTREACTOR_CLEAR_PENDING_EVENTS  */

  // The core of read event handling
  ACE_Select_Reactor_Handle_Set dispatch_set;

  dispatch_set.rd_mask_.set_bit ( handle );
  this->dispatch (1, dispatch_set);

#ifdef ACE_QTREACTOR_CLEAR_PENDING_EVENTS
  // enable socket notifier according to current mask
  ACE_Reactor_Mask mask = 0;
  mask = mask_ops( handle, mask, ACE_Reactor::GET_MASK );
  if ( -1 != mask )
        set_enable_flag_by_mask ( 1, handle, mask);
#endif /* ACE_QTREACTOR_CLEAR_PENDING_EVENTS  */
}

int ACE_QtReactor::register_handler_i ( ACE_HANDLE  handle,
ACE_Event_Handler *  handler,
ACE_Reactor_Mask  mask
) [protected, virtual]

Register a single handler.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 419 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::register_handler_i");

  this->create_notifiers_for_handle (handle);

  int result;
  if ((result = ACE_Select_Reactor::register_handler_i(handle,
                                                       handler,
                                                       mask ))
      == -1)
    {
        // destroy notifiers only when there is no handler for handle
        if ( !ACE_Select_Reactor::find_handler( handle ) )
            this->destroy_notifiers_for_handle (handle);
      return -1;
    }

  return 0;
}

int ACE_QtReactor::register_handler_i ( const ACE_Handle_Set &  handles,
ACE_Event_Handler *  handler,
ACE_Reactor_Mask  mask
) [protected, virtual]

Register a set of <handlers> with Qt.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 443 of file QtReactor.cpp.

{
  return ACE_Select_Reactor::register_handler_i(handles,
                                                handler,
                                                mask);
}

int ACE_QtReactor::remove_handler_i ( const ACE_Handle_Set &  handles,
ACE_Reactor_Mask  mask
) [protected, virtual]

Remove a set of <handles>.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 466 of file QtReactor.cpp.

{
  return ACE_Select_Reactor::remove_handler_i (handles,
                                               mask);
}

int ACE_QtReactor::remove_handler_i ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
) [protected, virtual]

Remove the <handler> associated with this handle.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 452 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::remove_handler_i");

  int result = ACE_Select_Reactor::remove_handler_i (handle, mask);
  // destroy notifiers only when there is no handler for handle
  if ( !ACE_Select_Reactor::find_handler( handle ) )
      this->destroy_notifiers_for_handle (handle);
  return result;
}

void ACE_QtReactor::reopen_notification_pipe ( void   )  [private]

reopens notification pipe to create SocketNotifier for it

Definition at line 46 of file QtReactor.cpp.

{
  // When the ACE_Select_Reactor is constructed it creates the notify
  // pipe and registers it with the register_handler_i() method. The
  // QtReactor overloads this method BUT because the
  // register_handler_i occurs when constructing the base class
  // ACE_Select_Reactor, the ACE_Select_Reactor register_handler_i()
  // is called not the QtReactor register_handler_i().  This means
  // that the notify pipe is registered with the ACE_Select_Reactor
  // event handling code not the QtReactor and so notfications don't
  // work.  To get around this we simply close and re-opened the
  // notification handler in the constructor of the QtReactor.

#if defined (ACE_MT_SAFE) && (ACE_MT_SAFE != 0)
    if ( initialized_ )
    {
        this->notify_handler_->close ();

        // Patch for MS Windows: close and open doesn't clear the read
        // fd_set, so reset it manually
        this->wait_set_.rd_mask_.reset ();

        this->notify_handler_->open (this, 0);
    }
#endif /* ACE_MT_SAFE */
}

void ACE_QtReactor::reset_timeout ( void   )  [private]

This method ensures there's an Qt timeout for the first timeout in the Reactor's Timer_Queue.

Definition at line 477 of file QtReactor.cpp.

{
  if (this->qtime_ != 0)
    {
      delete this->qtime_;
      this->qtime_ = 0;
    }

  ACE_Time_Value *max_wait_time =
    this->timer_queue_->calculate_timeout (0) ;

  if (max_wait_time)
  {
    ACE_NEW (this->qtime_,
             QTimer);

    QObject::connect (qtime_,
                      SIGNAL (timeout ()),
                      this,
                      SLOT (timeout_event ()));

#if QT_VERSION >= 0x040000
    qtime_->setSingleShot (1);
    qtime_->start(max_wait_time->msec());
#else
    qtime_->start(max_wait_time->msec(), 1);
#endif
  }

}

long ACE_QtReactor::schedule_timer ( ACE_Event_Handler *  event_handler,
const void *  arg,
const ACE_Time_Value &  delay,
const ACE_Time_Value &  interval
) [virtual]

Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:
cancel_timer()
reset_timer_interval()
Parameters:
event_handler Event handler to schedule on reactor
arg Argument passed to the handle_timeout() method of event_handler
delay Time interval after which the timer will expire
interval Time interval after which the timer will be automatically rescheduled
Returns:
-1 on failure, a timer_id value on success

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 510 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::schedule_timer");
  ACE_MT (ACE_GUARD_RETURN (ACE_Select_Reactor_Token,
                            ace_mon,
                            this->token_,
                            -1));

  long result;
  if ((result = ACE_Select_Reactor::schedule_timer(handler,
                                                   arg,
                                                   delay_time,
                                                   interval)) == -1 )
    return -1;
  else
  {
    this->reset_timeout ();
    return result;
  }
}

int ACE_QtReactor::set_enable_flag_by_mask ( int  flag_value,
ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
) [protected]

Definition at line 220 of file QtReactor.cpp.

{
  QSocketNotifier *qs_not;

  if (ACE_BIT_ENABLED(mask, ACE_Event_Handler::READ_MASK) ||
      ACE_BIT_ENABLED( mask, ACE_Event_Handler::ACCEPT_MASK))
    {
      // Find the current notifier
      qs_not = 0;
      if ((this->read_notifier_.find (handle, qs_not) == -1))
        return -1;

      qs_not->setEnabled (flag_value);
    }

  if (ACE_BIT_ENABLED( mask, ACE_Event_Handler::WRITE_MASK) ||
      ACE_BIT_ENABLED( mask, ACE_Event_Handler::ACCEPT_MASK) ||
      ACE_BIT_ENABLED( mask, ACE_Event_Handler::CONNECT_MASK))
    {
      qs_not = 0;
      if ((this->write_notifier_.find (handle, qs_not) == -1))
        return -1;

      qs_not->setEnabled (flag_value);
    }

  if (ACE_BIT_ENABLED( mask,
                       ACE_Event_Handler::EXCEPT_MASK))
    {
      qs_not = 0;
      if ((this->exception_notifier_.find (handle, qs_not) == -1))
        return -1;

      qs_not->setEnabled (flag_value);
    }

  return 0;
}

void ACE_QtReactor::timeout_event ( void   )  [private, slot]

Dispach a timeout event.

Definition at line 120 of file QtReactor.cpp.

{
  // Deal with any timer events
  ACE_Select_Reactor_Handle_Set handle_set;
  this->dispatch (0, handle_set );

  // Set next timeout signal
  this->reset_timeout ();
}

int ACE_QtReactor::wait_for_multiple_events ( ACE_Select_Reactor_Handle_Set &  handle_set,
ACE_Time_Value *  max_wait_time
) [protected, virtual]

Wait for events to occur.

Reimplemented from ACE_Select_Reactor_T< ACE_Select_Reactor_Token >.

Definition at line 610 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::wait_for_multiple_events");

  int nfound = 0;
  do
  {
    max_wait_time = this->timer_queue_->calculate_timeout (max_wait_time);
    size_t width = this->handler_rep_.max_handlep1 ();
    handle_set.rd_mask_ = this->wait_set_.rd_mask_;
    handle_set.wr_mask_ = this->wait_set_.wr_mask_;
    handle_set.ex_mask_ = this->wait_set_.ex_mask_;

    nfound = QtWaitForMultipleEvents (width,
                                      handle_set,
                                      max_wait_time);

  } while( nfound == -1 && this->handle_error () > 0 );

  if (nfound > 0)
  {
#if !defined (ACE_WIN32)
    handle_set.rd_mask_.sync (this->handler_rep_.max_handlep1 ());
    handle_set.wr_mask_.sync (this->handler_rep_.max_handlep1 ());
    handle_set.ex_mask_.sync (this->handler_rep_.max_handlep1 ());
#endif /* ACE_WIN32 */
  }

  return nfound;
  // Timed out or input available
}

void ACE_QtReactor::write_event ( int  FD  )  [private, slot]

Dispatch a Write Event.

Definition at line 161 of file QtReactor.cpp.

{
  ACE_TRACE ("ACE_QtReactor::write_event");

  ACE_HANDLE handle = ACE_HANDLE( p_handle );

#ifdef ACE_QTREACTOR_CLEAR_PENDING_EVENTS
  // disable socket notifier to clear pending events
  QSocketNotifier *qsock_notifier = 0;
  if ( ( this->write_notifier_.find( handle, qsock_notifier) != -1) )
    qsock_notifier->setEnabled( false );
#endif /* ACE_QTREACTOR_CLEAR_PENDING_EVENTS  */

  // The core of write event handling
  ACE_Select_Reactor_Handle_Set dispatch_set;

  dispatch_set.wr_mask_.set_bit( handle );
  this->dispatch (1, dispatch_set);

#ifdef ACE_QTREACTOR_CLEAR_PENDING_EVENTS
  // enable socket notifier according to current mask
  ACE_Reactor_Mask mask = 0;
  mask = mask_ops( handle, mask, ACE_Reactor::GET_MASK );
  if ( -1 != mask )
        set_enable_flag_by_mask ( 1, handle, mask);
#endif /* ACE_QTREACTOR_CLEAR_PENDING_EVENTS  */
}

Member Data Documentation

MAP ACE_QtReactor::exception_notifier_ [protected]

An exception notifier.

Definition at line 201 of file QtReactor.h.

QApplication* ACE_QtReactor::qapp_ [protected]

Some Qt stuff that we need to have.

Definition at line 189 of file QtReactor.h.

QTimer* ACE_QtReactor::qtime_ [protected]

The timer class that would provide timer-sgnals & single-shot timers.

Definition at line 204 of file QtReactor.h.

MAP ACE_QtReactor::read_notifier_ [protected]

A notifier for a read.

Definition at line 195 of file QtReactor.h.

MAP ACE_QtReactor::write_notifier_ [protected]

A write notifier.

Definition at line 198 of file QtReactor.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on Thu Dec 9 2010 11:57:54 for ACE by  doxygen 1.7.0
