TAO::SSLIOP::Connector Class Reference

SSLIOP-specific Connector bridge for pluggable protocols. More...

#include <SSLIOP_Connector.h>

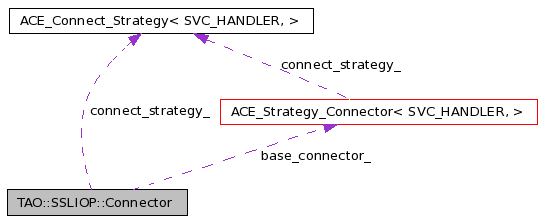

Collaboration diagram for TAO::SSLIOP::Connector:

[legend]List of all members.

Public Types
typedef TAO_Connect_Concurrency_Strategy< Connection_Handler >	CONNECT_CONCURRENCY_STRATEGY
typedef TAO_Connect_Creation_Strategy< Connection_Handler >	CONNECT_CREATION_STRATEGY
typedef ACE_Connect_Strategy< Connection_Handler, ACE_SSL_SOCK_CONNECTOR >	CONNECT_STRATEGY
typedef ACE_Strategy_Connector< Connection_Handler, ACE_SSL_SOCK_CONNECTOR >	BASE_CONNECTOR
Public Member Functions
	Connector (::Security::QOP qop)
	Constructor.
The TAO_Connector methods
Please check the documentation in Transport_Connector.h
virtual int	open (TAO_ORB_Core *orb_core)
virtual int	close (void)
virtual TAO_Transport *	connect (TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *timeout)
virtual TAO_Profile *	create_profile (TAO_InputCDR &cdr)
virtual int	check_prefix (const char *endpoint)
virtual TAO_Profile *	corbaloc_scan (const char *ior, size_t &len)
Protected Member Functions
TAO_Profile *	make_secure_profile (void)
	SSL-specific profile.
TAO_Transport *	iiop_connect (TAO_SSLIOP_Endpoint *ssliop_endpoint, TAO::Profile_Transport_Resolver *r, ACE_Time_Value *timeout)
	IIOP-specific connection establishment.
TAO_Transport *	ssliop_connect (TAO_SSLIOP_Endpoint *ssliop_endpoint,::Security::QOP qop, const ::Security::EstablishTrust &trust, TAO::Profile_Transport_Resolver *r, TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *timeout)
	SSLIOP-specific connection establishment.
TAO::SSLIOP::OwnCredentials *	retrieve_credentials (TAO_Stub *stub, SSL *ssl)
@c TAO_Connector Methods
Methods required by the TAO_Connector base class. See also: TAO_Connector
virtual TAO_Profile *	make_profile (void)
virtual int	cancel_svc_handler (TAO_Connection_Handler *svc_handler)
Private Attributes
::Security::QOP	qop_
CONNECT_STRATEGY	connect_strategy_
	Our connect strategy.
BASE_CONNECTOR	base_connector_
	The connector initiating connection requests for IIOP.

---

Detailed Description

SSLIOP-specific Connector bridge for pluggable protocols.

Concrete instance of the TAO_Connector class. Responsible for establishing a connection with a server and is called from the Connector_Registry.

Definition at line 55 of file SSLIOP_Connector.h.

---

Member Typedef Documentation

typedef ACE_Strategy_Connector<Connection_Handler, ACE_SSL_SOCK_CONNECTOR> TAO::SSLIOP::Connector::BASE_CONNECTOR

Definition at line 132 of file SSLIOP_Connector.h.

typedef TAO_Connect_Concurrency_Strategy<Connection_Handler> TAO::SSLIOP::Connector::CONNECT_CONCURRENCY_STRATEGY

Definition at line 121 of file SSLIOP_Connector.h.

typedef TAO_Connect_Creation_Strategy<Connection_Handler> TAO::SSLIOP::Connector::CONNECT_CREATION_STRATEGY

Definition at line 124 of file SSLIOP_Connector.h.

typedef ACE_Connect_Strategy<Connection_Handler, ACE_SSL_SOCK_CONNECTOR> TAO::SSLIOP::Connector::CONNECT_STRATEGY

Definition at line 128 of file SSLIOP_Connector.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO::SSLIOP::Connector::Connector

(

::Security::QOP

qop

)

Constructor.

Definition at line 28 of file SSLIOP_Connector.cpp.

  : TAO::IIOP_SSL_Connector (),
    qop_ (qop),
    connect_strategy_ (),
    base_connector_ ()
{
}

---

Member Function Documentation

int TAO::SSLIOP::Connector::cancel_svc_handler

(

TAO_Connection_Handler *

svc_handler

)

[protected, virtual]

Definition at line 845 of file SSLIOP_Connector.cpp.

References base_connector_, and ACE_Connector< SVC_HANDLER, >::cancel().

{
  TAO::SSLIOP::Connection_Handler* handler=
    dynamic_cast<TAO::SSLIOP::Connection_Handler*> (svc_handler);

  if (handler)
    // Cancel from the connector
    return this->base_connector_.cancel (handler);

  return -1;
}

int TAO::SSLIOP::Connector::check_prefix

(

const char *

endpoint

)

[virtual]

Definition at line 317 of file SSLIOP_Connector.cpp.

References ACE_OS::strchr(), ACE_OS::strlen(), and ACE_OS::strncmp().

{
  // Check for a valid string
  if (!endpoint || !*endpoint) return -1;  // Failure

  const char *protocol[] = { "ssliop", "sslioploc" };

  size_t first_slot = ACE_OS::strchr (endpoint, ':') - endpoint;

  size_t len0 = ACE_OS::strlen (protocol[0]);
  size_t len1 = ACE_OS::strlen (protocol[1]);

  // Check for the proper prefix in the IOR.  If the proper prefix
  // isn't in the IOR then it is not an IOR we can use.
  if (first_slot == len0 && ACE_OS::strncmp (endpoint, protocol[0], len0) == 0)
    return 0;

  if (first_slot == len1 && ACE_OS::strncmp (endpoint, protocol[1], len1) == 0)
    return 0;

  // Failure: not an SSLIOP IOR
  // DO NOT throw an exception here.
  return -1;
}

int TAO::SSLIOP::Connector::close

(

void

)

[virtual]

Definition at line 75 of file SSLIOP_Connector.cpp.

References base_connector_, ACE_Strategy_Connector< SVC_HANDLER, >::close(), ACE_Strategy_Connector< SVC_HANDLER, >::concurrency_strategy(), and ACE_Strategy_Connector< SVC_HANDLER, >::creation_strategy().

{
  (void) this->TAO::IIOP_SSL_Connector::close ();

  delete this->base_connector_.creation_strategy ();
  delete this->base_connector_.concurrency_strategy ();
  return this->base_connector_.close ();
}

TAO_Transport * TAO::SSLIOP::Connector::connect	(	TAO::Profile_Transport_Resolver *	r,
		TAO_Transport_Descriptor_Interface *	desc,
		ACE_Time_Value *	timeout
	)			[virtual]

Definition at line 85 of file SSLIOP_Connector.cpp.

References ACE_DEBUG, ACE_ERROR, ACE_TEXT(), TAO_Transport_Descriptor_Interface::endpoint(), TAO_Objref_Var_T< T >::in(), CORBA::is_nil(), LM_DEBUG, LM_ERROR, SSLIOP::SSL::port, qop_, Security::SecEstablishTrustPolicy, Security::SecQOPNoProtection, Security::SecQOPPolicy, TAO_SSLIOP_Endpoint::ssl_component(), ssliop_connect(), TAO_Endpoint::tag(), and TAO_debug_level.

{
  if (TAO_debug_level > 0)
      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("TAO_SSLIOP (%P|%t) - Connector::connect, ")
                  ACE_TEXT ("looking for SSLIOP connection.\n")));

  TAO_Endpoint *endpoint = desc->endpoint ();

  if (endpoint->tag () != IOP::TAG_INTERNET_IOP)
    return 0;

  TAO_SSLIOP_Endpoint *ssl_endpoint =
    dynamic_cast<TAO_SSLIOP_Endpoint *> (endpoint);

  if (ssl_endpoint == 0)
    return 0;

  // @@ TODO:  The EstablishTrust policy should be evaluated once per
  //           connection, not once per invocation.  This should
  //           improve performance.
  //
  // Check if the user overrode the default establishment of trust
  // policy for the current object.
  CORBA::Policy_var policy =
    resolver->stub ()->get_policy (::Security::SecEstablishTrustPolicy);

  SecurityLevel2::EstablishTrustPolicy_var trust_policy =
    SecurityLevel2::EstablishTrustPolicy::_narrow (policy.in ());

  // We use a pointer and temporary to make it obvious to determine
  // if no establishment of trust policy was set.  Specifically, if
  // the "trust" pointer below is zero, then the SSLIOP pluggable
  // protocol default value will be used.
  ::Security::EstablishTrust trust = { 0 , 0 };
  if (!CORBA::is_nil (trust_policy.in ()))
    {
      trust = trust_policy->trust ();
    }

  // Flag that states whether any form of establishment of trust
  // should occur.
  CORBA::Boolean const establish_trust =
    trust.trust_in_target || trust.trust_in_client;

  // @@ Should this be in a "policy validator?"
  //
  // If the SSL port is zero, then no SSLIOP tagged component was
  // available in the IOR, meaning that there is no way to establish
  // trust.  Throw an exception.
  if (ssl_endpoint->ssl_component ().port == 0
      && establish_trust)
    {
      if (TAO_debug_level > 0)
        {
          ACE_ERROR ((LM_ERROR,
                      ACE_TEXT ("TAO_SSLIOP (%P|%t) ERROR: ")
                      ACE_TEXT ("Cannot establish trust since ")
                      ACE_TEXT ("no SSLIOP tagged component was ")
                      ACE_TEXT ("found in the IOR.\n")));
        }

      throw CORBA::INV_POLICY ();
    }

  // Check if the user overrode the default Quality-of-Protection for
  // the current object.
  policy = resolver->stub ()->get_policy (::Security::SecQOPPolicy);

  SecurityLevel2::QOPPolicy_var qop_policy =
    SecurityLevel2::QOPPolicy::_narrow (policy.in ());

  // Temporary variable used to avoid overwriting the default value
  // set when the ORB was initialized.
  ::Security::QOP qop = this->qop_;

  if (!CORBA::is_nil (qop_policy.in ()))
    {
      qop = qop_policy->qop ();
    }

  // If the SSL port is zero, then no SSLIOP tagged component was
  // available in the IOR, meaning that there is no way to make a
  // secure invocation.  Throw an exception.
  if (qop != ::Security::SecQOPNoProtection
      && ssl_endpoint->ssl_component ().port == 0)
    {
      if (TAO_debug_level > 0)
        {
          ACE_ERROR ((LM_ERROR,
                      ACE_TEXT ("TAO_SSLIOP (%P|%t) ERROR: ")
                      ACE_TEXT ("Cannot make secure invocation since ")
                      ACE_TEXT ("no SSLIOP tagged component was ")
                      ACE_TEXT ("found in the IOR.\n")));
        }

      throw CORBA::INV_POLICY ();
    }

  if ((!establish_trust && qop == ::Security::SecQOPNoProtection)
      || ssl_endpoint->ssl_component ().port == 0)
    {
      return this->iiop_connect (ssl_endpoint, resolver, timeout);
    }

  return this->ssliop_connect (ssl_endpoint,
                               qop,
                               trust,
                               resolver,
                               desc,
                               timeout);
}

TAO_Profile * TAO::SSLIOP::Connector::corbaloc_scan	(	const char *	ior,
		size_t &	len
	)			[virtual]

Definition at line 264 of file SSLIOP_Connector.cpp.

References ACE_DEBUG, ACE_TEXT(), LM_DEBUG, make_profile(), make_secure_profile(), ACE_OS::strchr(), ACE_OS::strlen(), and TAO_debug_level.

{
   int ssl_only = 0;
   if (this->check_prefix (endpoint) == 0)
   {
       ssl_only = 1;
   }
   else
   {
       if (this->TAO_IIOP_Connector::check_prefix (endpoint) != 0)
         return 0;
   }

   // Determine the (first in a list of possibly > 1) endpoint address
   const char *comma_pos = ACE_OS::strchr (endpoint,',');
   const char *slash_pos = ACE_OS::strchr (endpoint,'/');
   if (comma_pos == 0 && slash_pos == 0)
   {
       if (TAO_debug_level)
       {
            ACE_DEBUG ((LM_DEBUG,
                        ACE_TEXT("(%P|%t) SSLIOP_Connector::corbaloc_scan warning: ")
                        ACE_TEXT("supplied string contains no comma or slash: %s\n"),
                        endpoint));
       }
       len = ACE_OS::strlen (endpoint);
   }
   else if (slash_pos != 0 || comma_pos > slash_pos)
   {
       // The endpoint address does not extend past the first '/' or ','
       len = slash_pos - endpoint;
   }
   else
   {
       len = comma_pos - endpoint;
   }

   //Create the corresponding profile
   TAO_Profile *ptmp = 0;
   if (ssl_only)
     {
       ptmp = this->make_secure_profile ();
     }
   else
     {
       ptmp = this->make_profile ();
     }

   return ptmp;
}

TAO_Profile * TAO::SSLIOP::Connector::create_profile

(

TAO_InputCDR &

cdr

)

[virtual]

Definition at line 202 of file SSLIOP_Connector.cpp.

References TAO_Profile::_decr_refcnt(), ACE_NEW_RETURN, and TAO_Profile::decode().

{
  TAO_Profile *pfile = 0;
  ACE_NEW_RETURN (pfile,
                  TAO_SSLIOP_Profile (this->orb_core ()),
                  0);

  if (pfile->decode (cdr) == -1)
    {
      pfile->_decr_refcnt ();
      pfile = 0;
    }

  return pfile;
}

TAO_Transport * TAO::SSLIOP::Connector::iiop_connect	(	TAO_SSLIOP_Endpoint *	ssliop_endpoint,
		TAO::Profile_Transport_Resolver *	r,
		ACE_Time_Value *	timeout
	)			[protected]

IIOP-specific connection establishment.

Note:

The IIOP endpoint is extracted from the SSLIOP endpoint.

Definition at line 344 of file SSLIOP_Connector.cpp.

References CORBA::SystemException::_tao_minor_code(), ACE_BIT_DISABLED, CORBA::COMPLETED_NO, connect(), TAO_SSLIOP_Endpoint::iiop_endpoint(), Security::NoProtection, TAO_SSLIOP_Endpoint::ssl_component(), and TAO::VMCID.

{
#if 0
  const ::SSLIOP::SSL &ssl_component = ssl_endpoint->ssl_component ();

  // Only allow connection to the insecure IIOP port if the endpoint
  // explicitly allows it, i.e. if the Security::NoProtection security
  // association bit is set in the SSLIOP::SSL::target_supports field.
  // The server performs the same permission check, so this check is
  // an optimization since a connection will not be established
  // needlessly, i.e. rejected due to lack of permission.
  //
  // Note that it is still possible for the standard non-SSLIOP aware
  // IIOP pluggable protocol to attempt to connect to the insecure
  // port.  In that case, the server will have to prevent the
  // connection, and subsequently the request, from completing.
  if (ACE_BIT_DISABLED (ssl_component.target_supports,
                        ::Security::NoProtection))
    throw CORBA::NO_PERMISSION (
      CORBA::SystemException::_tao_minor_code (
        TAO::VMCID,
        EPERM),
      CORBA::COMPLETED_NO);
#endif

  TAO_IIOP_Endpoint *iiop_endpoint = ssl_endpoint->iiop_endpoint ();

  // An IIOP-only transport descriptor must be used instead of the one
  // passed to this method since the latter is used for SSLIOP
  // connections.  Doing so prevents an IIOP-only cached transport
  // from being associated with an SSLIOP connection.
  TAO_Base_Transport_Property iiop_desc (iiop_endpoint);

  // Note that the IIOP-only transport descriptor is used!
  return
    this->TAO::IIOP_SSL_Connector::connect (resolver, &iiop_desc, timeout);
}

TAO_Profile * TAO::SSLIOP::Connector::make_profile

(

void

)

[protected, virtual]

Definition at line 219 of file SSLIOP_Connector.cpp.

References CORBA::SystemException::_tao_minor_code(), ACE_NEW_THROW_EX, CORBA::COMPLETED_NO, and TAO::VMCID.

Referenced by corbaloc_scan().

{
  // The endpoint should be of the form:
  //    N.n@host:port/object_key
  // or:
  //    host:port/object_key

  TAO_Profile *profile = 0;
  ACE_NEW_THROW_EX (profile,
                    TAO_SSLIOP_Profile (this->orb_core (),
                                          0), // SSL component
                    CORBA::NO_MEMORY (
                      CORBA::SystemException::_tao_minor_code (
                        TAO::VMCID,
                        ENOMEM),
                      CORBA::COMPLETED_NO));

  return profile;
}

TAO_Profile * TAO::SSLIOP::Connector::make_secure_profile

(

void

)

[protected]

SSL-specific profile.

Definition at line 241 of file SSLIOP_Connector.cpp.

References CORBA::SystemException::_tao_minor_code(), ACE_NEW_THROW_EX, CORBA::COMPLETED_NO, and TAO::VMCID.

Referenced by corbaloc_scan().

{
  // The endpoint should be of the form:
  //    N.n@host:port/object_key
  // or:
  //    host:port/object_key

  TAO_Profile *profile = 0;
  ACE_NEW_THROW_EX (profile,
                    TAO_SSLIOP_Profile (this->orb_core (),
                                          1), // SSL component
                    CORBA::NO_MEMORY (
                      CORBA::SystemException::_tao_minor_code (
                        TAO::VMCID,
                        ENOMEM),
                      CORBA::COMPLETED_NO));

  return profile;
}

int TAO::SSLIOP::Connector::open

(

TAO_ORB_Core *

orb_core

)

[virtual]

Definition at line 37 of file SSLIOP_Connector.cpp.

References ACE_NEW_RETURN, base_connector_, ACE_Strategy_Connector< SVC_HANDLER, >::open(), and TAO_ORB_Core::thr_mgr().

{
  // Since the ACE_Strategy_Connector (and ACE_Connector) cannot
  // handle non-blocking connections with protocols that have more
  // than one handshake, such as SSL, force blocking connections for
  // SSLIOP.  This deficiency will be addressed soon.
  ACE_NEW_RETURN (this->active_connect_strategy_,
                  TAO_Blocked_Connect_Strategy (orb_core),
                  -1);

  if (this->TAO::IIOP_SSL_Connector::open (orb_core) == -1)
    return -1;

  // Our connect creation strategy
  CONNECT_CREATION_STRATEGY *connect_creation_strategy = 0;

  ACE_NEW_RETURN (connect_creation_strategy,
                  CONNECT_CREATION_STRATEGY
                      (orb_core->thr_mgr (),
                       orb_core),
                  -1);

  // Our activation strategy
  CONNECT_CONCURRENCY_STRATEGY *concurrency_strategy = 0;

  ACE_NEW_RETURN (concurrency_strategy,
                  CONNECT_CONCURRENCY_STRATEGY (orb_core),
                  -1);

  ACE_Reactor *r = this->orb_core ()->reactor ();

  return this->base_connector_.open (r,
                                     connect_creation_strategy,
                                     &this->connect_strategy_,
                                     concurrency_strategy);
}

TAO::SSLIOP::OwnCredentials * TAO::SSLIOP::Connector::retrieve_credentials	(	TAO_Stub *	stub,
		SSL *	ssl
	)			[protected]

Retrieve SSLIOP credentials from the policy overrides list and set up the underlying SSL connection to use the X.509 certificates stored within them.

Todo:

Check if the CredentialsCurator contains a default set of SSLIOP OwnCredentials.

Definition at line 776 of file SSLIOP_Connector.cpp.

References TAO::SSLIOP::OwnCredentials::_narrow(), TAO::SSLIOP::OwnCredentials::_nil(), ACE_NEW_THROW_EX, TAO_Stub::get_policy(), TAO::SSLIOP::OpenSSL_st_var< T >::in(), TAO_Objref_Var_T< T >::in(), and CORBA::is_nil().

Referenced by ssliop_connect().

{
  // Check if the user overrode the default invocation credentials.
  CORBA::Policy_var policy =
    stub->get_policy (::SecurityLevel3::ContextEstablishmentPolicyType);

  SecurityLevel3::ContextEstablishmentPolicy_var creds_policy =
    SecurityLevel3::ContextEstablishmentPolicy::_narrow (
      policy.in ());

  TAO::SSLIOP::OwnCredentials_var ssliop_credentials;

  // Set the Credentials (X.509 certificates and corresponding private
  // keys) to be used for this invocation.
  if (!CORBA::is_nil (creds_policy.in ()))
    {
      SecurityLevel3::OwnCredentialsList_var creds_list =
        creds_policy->creds_list ();

      if (creds_list->length () > 0)
        {
          // Assume that we've got an SSLIOP credential.
          SecurityLevel3::Credentials_ptr credentials =
            creds_list[0u];

          ssliop_credentials =
            TAO::SSLIOP::OwnCredentials::_narrow (credentials);

          if (!CORBA::is_nil (ssliop_credentials.in ()))
            {
              TAO::SSLIOP::X509_var x509 = ssliop_credentials->x509 ();
              if (::SSL_use_certificate (ssl, x509.in ()) != 1)
                return TAO::SSLIOP::OwnCredentials::_nil ();

              TAO::SSLIOP::EVP_PKEY_var evp = ssliop_credentials->evp ();
              if (evp.in () != 0
                  && ::SSL_use_PrivateKey (ssl, evp.in ()) != 1)
                {
                  // Invalidate the certificate we just set.
                  (void) ::SSL_use_certificate (ssl, 0);
                  return TAO::SSLIOP::OwnCredentials::_nil ();
                }
            }
        }
    }
  else
    {
      // Use the default certificate and private key, i.e. the one set
      // in the SSL_CTX that was used when creating the SSL data
      // structure.

      /**
       * @todo Check if the CredentialsCurator contains a default set
       *       of SSLIOP OwnCredentials.
       */

      TAO::SSLIOP::OwnCredentials_ptr & c = ssliop_credentials.out ();
      ACE_NEW_THROW_EX (c,
                        TAO::SSLIOP::OwnCredentials (
                          ::SSL_get_certificate (ssl),
                          ::SSL_get_privatekey (ssl)),
                        CORBA::NO_MEMORY ());
    }

  return ssliop_credentials._retn ();
}

TAO_Transport * TAO::SSLIOP::Connector::ssliop_connect	(	TAO_SSLIOP_Endpoint *	ssliop_endpoint,
		::Security::QOP	qop,
		const ::Security::EstablishTrust &	trust,
		TAO::Profile_Transport_Resolver *	r,
		TAO_Transport_Descriptor_Interface *	desc,
		ACE_Time_Value *	timeout
	)			[protected]

SSLIOP-specific connection establishment.

Definition at line 386 of file SSLIOP_Connector.cpp.

References CORBA::SystemException::_tao_minor_code(), ACE_BIT_DISABLED, ACE_BIT_ENABLED, ACE_DEBUG, ACE_ERROR, ACE_TEXT(), TAO_SSLIOP_Endpoint::addr_to_string(), AF_INET, base_connector_, TAO_Connection_Handler::cancel_pending_connection(), TAO::SSLIOP::Connection_Handler::close(), TAO_Transport::close_connection(), CORBA::COMPLETED_NO, ACE_Connector< SVC_HANDLER, >::connect(), TAO_Connection_Handler::connection_pending(), TAO_SSLIOP_Endpoint::credentials_set(), TAO_LF_CH_Event::error_detected(), ACE_INET_Addr::get_port_number(), ACE_Addr::get_type(), TAO_Transport::id(), TAO_Pseudo_Var_T< T >::in(), TAO_Transport::is_connected(), TAO_LF_Event::keep_waiting(), LM_DEBUG, LM_ERROR, MAXHOSTNAMELEN, Security::NoProtection, TAO_SSLIOP_Endpoint::object_addr(), ACE_Svc_Handler<, >::peer(), TAO_Transport::purge_entry(), TAO_Wait_Strategy::register_handler(), ACE_Event_Handler_var::release(), ACE_Event_Handler::remove_reference(), retrieve_credentials(), Security::SecQOPIntegrity, Security::SecQOPNoProtection, TAO_SSLIOP_Endpoint::set_sec_attrs(), TAO_SSLIOP_Endpoint::ssl_component(), TAO_debug_level, TAO_Connection_Handler::transport(), TAO::VMCID, and TAO_Transport::wait_strategy().

Referenced by connect().

{
  const ::SSLIOP::SSL &ssl_component = ssl_endpoint->ssl_component ();

  // @@ The following check for "required insecurity" seems odd, but
  //    I haven't seen anything in the Security spec that says this
  //    policy isn't possible.
  //      -Ossama

  // If the endpoint requires an insecure connection, i.e. the
  // Security::NoProtection security association bit in the
  // SSLIOP::SSL::target_requires field is enabled, then prevent an
  // SSL connection from occuring.
  if (ACE_BIT_ENABLED (ssl_component.target_requires,
                       ::Security::NoProtection))
    throw CORBA::NO_PERMISSION (
      CORBA::SystemException::_tao_minor_code (
        TAO::VMCID,
        EPERM),
      CORBA::COMPLETED_NO);

  // If the invocation wants integrity without confidentiality but the
  // server does not support "no protection," then it won't be
  // possible to provide integrity.  In order to support integrity
  // without confidentiality, encryption must be disabled but secure
  // hashes must remain enabled.  This is achieved using the "eNULL"
  // cipher.  However, the "eNULL" cipher is only enabled on the
  // server side if "no protection" is enabled.
  if (ACE_BIT_DISABLED (ssl_component.target_supports,
                        ::Security::NoProtection)
      && qop == ::Security::SecQOPIntegrity)
    throw CORBA::INV_POLICY ();

  const ACE_INET_Addr &remote_address = ssl_endpoint->object_addr ();

  // Verify that the remote ACE_INET_Addr was initialized
  // properly.  Failure can occur if hostname lookup failed when
  // initializing the remote ACE_INET_Addr.
  if (remote_address.get_type () != AF_INET
#if defined (ACE_HAS_IPV6)
      && remote_address.get_type () != AF_INET6
#endif /* ACE_HAS_IPV6 */
      )
    {
      if (TAO_debug_level > 0)
        {
          ACE_DEBUG ((LM_DEBUG,
                      ACE_TEXT ("TAO (%P|%t) SSLIOP connection failed.\n")
                      ACE_TEXT ("TAO (%P|%t) This is most likely ")
                      ACE_TEXT ("due to a hostname lookup ")
                      ACE_TEXT ("failure.\n")));
        }

      return 0;
    }

  int result = 0;
  TAO::SSLIOP::Connection_Handler *svc_handler = 0;
  TAO_Transport *transport = 0;

  // Before we can check the cache to find an existing connection, we
  // need to make sure the ssl_endpoint is fully initialized with the
  // local security information. This endpoint initalized by the
  // profile does not (and cannot) contain the desired QOP, trust, or
  // credential information which is necesary to uniquely identify
  // this connection.
  if (!ssl_endpoint->credentials_set ())
    {
      if (TAO_debug_level > 2)
        ACE_DEBUG ((LM_DEBUG,
                    ACE_TEXT ("TAO (%P|%t) Initializing SSLIOP_Endpoint \n")
                    ));

      if (this->base_connector_.creation_strategy ()->make_svc_handler (
               svc_handler) != 0)
        {
          if (TAO_debug_level > 0)
            ACE_DEBUG ((LM_ERROR,
                        ACE_TEXT ("TAO (%P|%t) Unable to create SSLIOP ")
                        ACE_TEXT ("service handler.\n")));

          return 0;
        }

      ACE_Event_Handler_var
        safe_handler (svc_handler);
      TAO::SSLIOP::OwnCredentials_var credentials =
        this->retrieve_credentials (resolver->stub (),
                                    svc_handler->peer ().ssl ());

      safe_handler.release ();

      ssl_endpoint->set_sec_attrs (qop, trust, credentials.in());
    }

  // Check the Cache first for connections
  if (this->orb_core ()->lane_resources ().transport_cache ().find_transport (
        desc,
        transport) == 0)
    {
      // ...eliminate svc_handle memory leak...
      // The make_svc_handler() method creates the service handler and
      // bumps the #REFCOUNT# up one extra.  The extra reference count
      // in TAO_Connect_Creation_Strategy::make_svc_handler() is
      // needed in the case when connection completion is pending and
      // we are going to wait on a variable in the handler to changes,
      // signifying success or failure.  Note, that this increment
      // cannot be done once the connect() returns since this might be
      // too late if another thread pick up the completion and
      // potentially deletes the handler before we get a chance to
      // increment the reference count.
      if (svc_handler)
          svc_handler->remove_reference();

      ACE_Event_Handler_var
        safe_handler (svc_handler);

      if (TAO_debug_level > 2)
        ACE_DEBUG ((LM_DEBUG,
                    ACE_TEXT ("TAO (%P|%t) - SSLIOP_Connector::ssliop_connect, ")
                    ACE_TEXT ("got existing transport[%d]\n"),
                    transport->id ()));

      // When the transport is not connected wait for completion
      if (!transport->is_connected())
        {
          if (!this->wait_for_connection_completion (resolver,
                                                     transport,
                                                     max_wait_time))
            {
              ACE_ERROR ((LM_ERROR,
                          ACE_TEXT ("TAO (%P|%t) - SSLIOP_Connector::ssliop_connect,")
                          ACE_TEXT ("wait for completion failed\n")));

            }
        }
    }
  else
    {
      if (TAO_debug_level > 4)
        ACE_DEBUG ((LM_DEBUG,
                    ACE_TEXT ("TAO (%P|%t) - SSLIOP_Connector::ssliop_connect, ")
                    ACE_TEXT ("making a new connection \n")));

      // Purge connections (if necessary)
      this->orb_core ()->lane_resources ().transport_cache ().purge ();

      // The svc_handler is created beforehand so that we can get
      // access to the underlying ACE_SSL_SOCK_Stream (the peer) and
      // its SSL pointer member prior to descending into the
      // ACE_Strategy_Connector (the "base_connector_").  This is
      // thread-safe and reentrant, hence no synchronization is
      // necessary.
      //
      // The make_svc_handler() method creates the service handler and
      // bumps the #REFCOUNT# up one extra.  The extra reference count
      // in TAO_Connect_Creation_Strategy::make_svc_handler() is
      // needed in the case when connection completion is pending and
      // we are going to wait on a variable in the handler to changes,
      // signifying success or failure.  Note, that this increment
      // cannot be done once the connect() returns since this might be
      // too late if another thread pick up the completion and
      // potentially deletes the handler before we get a chance to
      // increment the reference count.
      if (svc_handler == 0 &&
          this->base_connector_.creation_strategy ()->make_svc_handler (
               svc_handler) != 0)
        {
          if (TAO_debug_level > 0)
            ACE_DEBUG ((LM_ERROR,
                        ACE_TEXT ("TAO (%P|%t) Unable to create SSLIOP ")
                        ACE_TEXT ("service handler.\n")));

          return 0;
        }

      ACE_Event_Handler_var
        safe_handler (svc_handler);

      // Setup the establishment of trust connection properties, if
      // any.
      int verify_mode = 0;

      // On the server side, "trust_in_client" requires that a peer
      // (client) certificate exist.  Fail if one doesn't exist.
      //
      // In SSLIOP's case, trust_in_client also implies
      // trust_in_target.
      if (trust.trust_in_client)
        verify_mode = SSL_VERIFY_PEER | SSL_VERIFY_FAIL_IF_NO_PEER_CERT;

      // Require verification of the target's certificate.
      else if (trust.trust_in_target)
        verify_mode = SSL_VERIFY_PEER;

      // Trust in neither the client nor the target is explicitly
      // specified.  Use the default setting.
      else
        verify_mode = ACE_SSL_Context::instance ()->default_verify_mode ();

      ::SSL_set_verify (svc_handler->peer ().ssl (), verify_mode, 0);

      // The "eNULL" cipher disables encryption but still uses a
      // secure hash (e.g. SHA1 or MD5) to ensure integrity.  (Try the
      // command "openssl ciphers -v eNULL".)
      //
      // Note that it is not possible to completely disable protection
      // here.
      if ((qop == ::Security::SecQOPNoProtection
          || qop == ::Security::SecQOPIntegrity)
          && ::SSL_set_cipher_list (svc_handler->peer ().ssl (),
                                    "eNULL") == 0)
        {
          if (TAO_debug_level > 0)
            ACE_DEBUG ((LM_ERROR,
                        ACE_TEXT ("(%P|%t) Unable to set eNULL ")
                        ACE_TEXT ("SSL cipher.\n")));

          throw CORBA::INV_POLICY ();
        }

      // svc_handler is never reset..it still has the value
      (void)safe_handler.release ();

      // Get the right synch options
      ACE_Synch_Options synch_options;

      this->active_connect_strategy_->synch_options (max_wait_time,
                                                     synch_options);

      // The code used to set the timeout to zero, with the intent of
      // polling the reactor for connection completion. However, the side-effect
      // was to cause the connection to timeout immediately.

      // We obtain the transport in the <svc_handler> variable.  As we
      // know now that the connection is not available in Cache we can
      // make a new connection
      result = this->base_connector_.connect (svc_handler,
                                              remote_address,
                                              synch_options);

      // base_connector_.connect() will increment the handler's
      // #REFCOUNT# once more. This is not required as we already hold
      // a reference to the handler, so we discard this second
      // reference.
      svc_handler->remove_reference ();

      // There are three possibilities from calling connect(): (a)
      // connection succeeds immediately - in this case, the
      // #REFCOUNT# on the handler is two; (b) connection completion
      // is pending - in this case, the #REFCOUNT# on the handler is
      // also two; (c) connection fails immediately - in this case,
      // the #REFCOUNT# on the handler is one since close() gets
      // called on the handler.

      // Make sure that we always do a remove_reference
      ACE_Event_Handler_var svc_handler_auto_ptr (svc_handler);

      transport =
        svc_handler->transport ();

      if (result == -1)
        {
          // No immediate result, wait for completion
          if (errno == EWOULDBLOCK)
            {
              // Try to wait until connection completion. Incase we block, then we
              // get a connected transport or not. In case of non block we get
              // a connected or not connected transport
              if (!this->wait_for_connection_completion (resolver,
                                                         transport,
                                                         max_wait_time))
                {
                  if (TAO_debug_level > 2)
                    ACE_ERROR ((LM_ERROR, "TAO (%P|%t) - SSLIOP_Connector::"
                                          "ssliop_connect, "
                                          "wait for completion failed\n"));
                }
            }
          else
            {
              // Transport is not usable
              transport = 0;
            }
        }

      // In case of errors transport is zero
      if (transport == 0)
        {
          // Give users a clue to the problem.
          if (TAO_debug_level)
            {
              char buffer [MAXHOSTNAMELEN + 6 + 1];
              ssl_endpoint->addr_to_string (buffer,
                                            sizeof (buffer) - 1);
              ACE_DEBUG ((LM_ERROR,
                          ACE_TEXT ("TAO (%P|%t) - SSL connection to ")
                          ACE_TEXT ("<%s:%d> failed (%p)\n"),
                          buffer,
                          remote_address.get_port_number (),
                          ACE_TEXT ("errno")));
            }

          return 0;
        }

      // fix for bug 2654
      if (svc_handler->keep_waiting ())
        {
          svc_handler->connection_pending ();
        }

      // fix for bug 2654
      if (svc_handler->error_detected ())
        {
          svc_handler->cancel_pending_connection ();
        }

      // At this point, the connection has be successfully connected.
      // #REFCOUNT# is one.
      if (TAO_debug_level > 2)
        ACE_DEBUG ((LM_DEBUG,
                    "TAO (%P|%t) - SSLIOP_Connector::ssliop_connect, "
                    "new SSL connection to port %d on transport[%d]\n",
                    remote_address.get_port_number (),
                    svc_handler->peer ().get_handle ()));

      // Add the handler to Cache
      int retval =
        this->orb_core ()->
          lane_resources ().transport_cache ().cache_transport (desc,
                                                                transport);

      // Failure in adding to cache.
      if (retval != 0)
        {
          // Close the handler.
          svc_handler->close ();

          if (TAO_debug_level > 0)
            {
              ACE_ERROR ((LM_ERROR,
                          "TAO (%P|%t) - SLIIOP_Connector::ssliop_connect, "
                          "could not add the new connection to cache\n"));
            }

          return 0;
        }

      // fix for bug 2654
      if (svc_handler->error_detected ())
        {
          svc_handler->cancel_pending_connection ();
          transport->purge_entry();
          return 0;
        }

      if (transport->is_connected () &&
          transport->wait_strategy ()->register_handler () != 0)
        {
          // Registration failures.

          // Purge from the connection cache, if we are not in the cache, this
          // just does nothing.
          (void) transport->purge_entry ();

          // Close the handler.
          (void) transport->close_connection ();

          if (TAO_debug_level > 0)
            ACE_ERROR ((LM_ERROR,
                        "TAO (%P|%t) - SSLIOP_Connector [%d]::ssliop_connect, "
                        "could not register the transport "
                        "in the reactor.\n",
                        transport->id ()));

          return 0;
        }
    }

  return transport;
}

---

Member Data Documentation

BASE_CONNECTOR TAO::SSLIOP::Connector::base_connector_ [private]

The connector initiating connection requests for IIOP.

Definition at line 144 of file SSLIOP_Connector.h.

Referenced by cancel_svc_handler(), close(), open(), and ssliop_connect().

CONNECT_STRATEGY TAO::SSLIOP::Connector::connect_strategy_ [private]

Our connect strategy.

Definition at line 141 of file SSLIOP_Connector.h.

::Security::QOP TAO::SSLIOP::Connector::qop_ [private]

If zero, connect to IIOP over SSL port by default. Otherwise, connect to the insecure IIOP port.

Definition at line 138 of file SSLIOP_Connector.h.

Referenced by connect().

---

The documentation for this class was generated from the following files:

• SSLIOP_Connector.h
• SSLIOP_Connector.cpp

---
