TAO::SSLIOP::Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <SSLIOP_Connection_Handler.h>

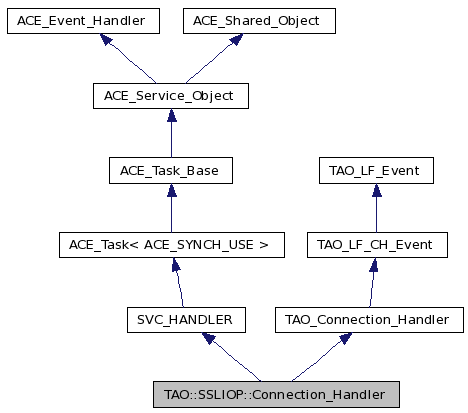

Inheritance diagram for TAO::SSLIOP::Connection_Handler:

[legend]Collaboration diagram for TAO::SSLIOP::Connection_Handler:

[legend]List of all members.

Public Member Functions
	Connection_Handler (ACE_Thread_Manager *t=0)
	Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor.
	~Connection_Handler (void)
	Destructor.
int	close (u_long=0)
int	add_transport_to_cache (void)
	Add ourselves to cache.
int	process_listen_point_list (IIOP::ListenPointList &listen_list)
	Process the listen_list.
int	setup_ssl_state (TAO::SSLIOP::Current_Impl *&previous_current_impl, TAO::SSLIOP::Current_Impl *new_current_impl, bool &setup_done)
void	teardown_ssl_state (TAO::SSLIOP::Current_Impl *previous_current_impl, bool &setup_done)
	Teardown the SSL session state.
Connection Handler overloads
Connection Handler overloads.
virtual int	open_handler (void *)
Event Handler overloads
virtual int	resume_handler (void)
virtual int	close_connection (void)
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	open (void *)
Protected Member Functions
TAO_Connection Handler overloads
virtual int	release_os_resources (void)
virtual void	pos_io_hook (int &return_value)
Protected Attributes
TAO::SSLIOP::Current_var	current_
Private Attributes
TAO_IIOP_Properties *	tcp_properties_
	TCP configuration for this connection.

---

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

Definition at line 51 of file SSLIOP_Connection_Handler.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO::SSLIOP::Connection_Handler::Connection_Handler

(

ACE_Thread_Manager *

t = 0

)

Definition at line 29 of file SSLIOP_Connection_Handler.cpp.

References ACE_ASSERT.

  : SVC_HANDLER (t, 0 , 0),
    TAO_Connection_Handler (0),
    current_ ()
{
  // This constructor should *never* get called, it is just here to
  // make the compiler happy: the default implementation of the
  // Creation_Strategy requires a constructor with that signature, we
  // don't use that implementation, but some (most?) compilers
  // instantiate it anyway.
  ACE_ASSERT (0);
}

TAO::SSLIOP::Connection_Handler::Connection_Handler

(

TAO_ORB_Core *

orb_core

)

Constructor.

Definition at line 43 of file SSLIOP_Connection_Handler.cpp.

References ACE_NEW, TAO::SSLIOP::Util::current(), current_, TAO_Connection_Handler::orb_core(), and TAO_Connection_Handler::transport().

  : SVC_HANDLER (orb_core->thr_mgr (), 0, 0),
    TAO_Connection_Handler (orb_core),
    current_ ()
{
  this->current_ = TAO::SSLIOP::Util::current (orb_core);

  TAO::SSLIOP::Transport* specific_transport = 0;
  ACE_NEW (specific_transport,
          TAO::SSLIOP::Transport (this, orb_core));

  // store this pointer (indirectly increment ref count)
  this->transport (specific_transport);
}

TAO::SSLIOP::Connection_Handler::~Connection_Handler

(

void

)

Destructor.

Definition at line 58 of file SSLIOP_Connection_Handler.cpp.

References ACE_ERROR, ACE_TEXT(), LM_ERROR, release_os_resources(), TAO_debug_level, and TAO_Connection_Handler::transport().

{
  delete this->transport ();
  int const result =
    this->release_os_resources ();

  if (result == -1 && TAO_debug_level)
    {
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT("TAO (%P|%t) - SSLIOP_Connection_Handler::")
                  ACE_TEXT("~SSLIOP_Connection_Handler, ")
                  ACE_TEXT("release_os_resources() failed %m\n")));
    }
}

---

Member Function Documentation

int TAO::SSLIOP::Connection_Handler::add_transport_to_cache

(

void

)

Add ourselves to cache.

Definition at line 317 of file SSLIOP_Connection_Handler.cpp.

References ACE_INET_Addr::get_port_number(), TAO_ORB_Core::lane_resources(), TAO_Connection_Handler::orb_core(), and TAO_Thread_Lane_Resources::transport_cache().

{
  ACE_INET_Addr addr;

  // Get the peername.
  //
  // Note that the port set in the ACE_INET_Addr is actually the SSL
  // port!
  if (this->peer ().get_remote_addr (addr) == -1)
    return -1;

  // Construct an  IIOP_Endpoint object
  TAO_IIOP_Endpoint tmpoint (
      addr,
      this->orb_core()->orb_params()->use_dotted_decimal_addresses());

  // @@ This is broken.  We need to include the SecurityAssociation
  //    options to be able to truly distinguish cached SSLIOP
  //    transports.
  const ::SSLIOP::SSL ssl =
    {
      0,                        // target_supports
      0,                        // target_requires
      addr.get_port_number ()   // port
    };

  TAO_SSLIOP_Endpoint endpoint (&ssl, &tmpoint);

  // Construct a property object
  TAO_Base_Transport_Property prop (&endpoint);

  TAO::Transport_Cache_Manager &cache =
    this->orb_core ()->lane_resources ().transport_cache ();

  // Add the handler to Cache
  return cache.cache_idle_transport (&prop, this->transport ());
}

int TAO::SSLIOP::Connection_Handler::close

(

u_long

= 0

)

[virtual]

Close called by the Acceptor or Connector when connection establishment fails.

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

Definition at line 298 of file SSLIOP_Connection_Handler.cpp.

References TAO_Connection_Handler::close_handler().

Referenced by handle_timeout(), and TAO::SSLIOP::Connector::ssliop_connect().

{
  return this->close_handler ();
}

int TAO::SSLIOP::Connection_Handler::close_connection

(

void

)

[virtual]

Implements TAO_Connection_Handler.

Definition at line 242 of file SSLIOP_Connection_Handler.cpp.

References TAO_Connection_Handler::close_connection_eh().

Referenced by handle_output().

{
  return this->close_connection_eh (this);
}

int TAO::SSLIOP::Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)			[virtual]

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

Definition at line 291 of file SSLIOP_Connection_Handler.cpp.

References ACE_ASSERT.

{
  ACE_ASSERT (0);
  return 0;
}

int TAO::SSLIOP::Connection_Handler::handle_input

(

ACE_HANDLE

)

[virtual]

Implements TAO_Connection_Handler.

Definition at line 248 of file SSLIOP_Connection_Handler.cpp.

References TAO_Connection_Handler::handle_input_eh().

{
  return this->handle_input_eh (h, this);
}

int TAO::SSLIOP::Connection_Handler::handle_output

(

ACE_HANDLE

)

[virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 254 of file SSLIOP_Connection_Handler.cpp.

References close_connection(), and TAO_Connection_Handler::handle_output_eh().

{
  int const result = this->handle_output_eh (handle, this);

  if (result == -1)
    {
      this->close_connection ();
      return 0;
    }

  return result;
}

int TAO::SSLIOP::Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = 0
	)			[virtual]

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

Definition at line 268 of file SSLIOP_Connection_Handler.cpp.

References close(), TAO_LF_Event::LFS_TIMEOUT, and TAO_LF_Event::reset_state().

{
  // Using this to ensure this instance will be deleted (if necessary)
  // only after reset_state(). Without this, when this refcount==1 -
  // the call to close() will cause a call to remove_reference() which
  // will delete this. At that point this->reset_state() is in no
  // man's territory and that causes SEGV on some platforms (Windows!)

  TAO_Auto_Reference<TAO::SSLIOP::Connection_Handler> safeguard (*this);

  // NOTE: Perhaps not the best solution, as it feels like the upper
  // layers should be responsible for this?

  // We don't use this upcall for I/O.  This is only used by the
  // Connector to indicate that the connection timedout.  Therefore,
  // we should call close().
  int const ret = this->close ();
  this->reset_state (TAO_LF_Event::LFS_TIMEOUT);
  return ret;
}

int TAO::SSLIOP::Connection_Handler::open

(

void *

)

[virtual]

Reimplemented from ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >.

Definition at line 80 of file SSLIOP_Connection_Handler.cpp.

References ACE_DEBUG, ACE_ERROR, ACE_IPPROTO_TCP, ACE_NONBLOCK, ACE_TEXT(), ACE_INET_Addr::addr_to_string(), TAO_Protocols_Hooks::client_protocol_properties_at_orb_level(), TAO_ORB_Core::get_protocols_hooks(), TAO_LF_Event::LFS_SUCCESS, LM_DEBUG, LM_ERROR, MAXHOSTNAMELEN, TAO_IIOP_Protocol_Properties::no_delay_, TAO_ORB_Parameters::nodelay(), TAO_Connection_Handler::orb_core(), TAO_ORB_Core::orb_params(), TAO_IIOP_Protocol_Properties::recv_buffer_size_, TAO_IIOP_Protocol_Properties::send_buffer_size_, TAO_Protocols_Hooks::server_protocol_properties_at_orb_level(), TAO_ORB_Parameters::sock_rcvbuf_size(), TAO_ORB_Parameters::sock_sndbuf_size(), TAO_LF_Event::state_changed(), ACE_OS::strcpy(), TAO::TAO_CLIENT_ROLE, TAO_debug_level, and TCP_NODELAY.

Referenced by open_handler().

{
  if (this->shared_open() == -1)
    return -1;

  TAO_IIOP_Protocol_Properties protocol_properties;

  // Initialize values from ORB params.
  protocol_properties.send_buffer_size_ =
    this->orb_core ()->orb_params ()->sock_sndbuf_size ();
  protocol_properties.recv_buffer_size_ =
    this->orb_core ()->orb_params ()->sock_rcvbuf_size ();
  protocol_properties.no_delay_ =
    this->orb_core ()->orb_params ()->nodelay ();

  TAO_Protocols_Hooks *tph = this->orb_core ()->get_protocols_hooks ();

  if (tph != 0)
    {
      try
        {
          if (this->transport ()->opened_as () == TAO::TAO_CLIENT_ROLE)
            {
              tph->client_protocol_properties_at_orb_level (protocol_properties);
            }
          else
            {
              tph->server_protocol_properties_at_orb_level (protocol_properties);
            }
        }
      catch (const CORBA::Exception&)
        {
          return -1;
        }
    }

  if (this->set_socket_option (this->peer (),
                               protocol_properties.send_buffer_size_,
                               protocol_properties.recv_buffer_size_) == -1)
    return -1;

#if !defined (ACE_LACKS_TCP_NODELAY)
  if (this->peer ().set_option (ACE_IPPROTO_TCP,
                                TCP_NODELAY,
                                (void *) &protocol_properties.no_delay_,
                                sizeof (protocol_properties.no_delay_)) == -1)
    return -1;
#endif /* ! ACE_LACKS_TCP_NODELAY */

  if (this->transport ()->wait_strategy ()->non_blocking ())
    {
      if (this->peer ().enable (ACE_NONBLOCK) == -1)
        return -1;

      // Enable partial SSL writes.
      //
      // By default, OpenSSL attempts to send the entire chunk of
      // data.  This is fine for relatively small chunks of data.
      // However, if SSL_write() returns with an SSL_ERROR_WANT_WRITE
      // (basically an EWOULDBLOCK) when using non-blocking I/O, TAO
      // may attempt to resend the same data with a potentially
      // different buffer address.  Such a scenario is prone to happen
      // when sending large chunks of data that cause flow control to
      // occur.  For most protocol implementations this is fine.
      // OpenSSL, on the other hand, requires that the same arguments
      // be passed to SSL_write() if an SSL_ERROR_WANT_WRITE error
      // occured on a previous SSL_write() attempt, which cannot be
      // guaranteed by TAO's current message queuing/construction
      // code, often resulting in a "bad write retry" OpenSSL error.
      // To work around this issue, we enable partial SSL_write()s in
      // SSL/TLS connections created by TAO's SSLIOP pluggable
      // protocol.  Doing so makes SSL_write() behave like write(2).
      //
      // This isn't an issue when using blocking I/O.
      (void) ::SSL_set_mode (this->peer ().ssl (),
                             SSL_MODE_ENABLE_PARTIAL_WRITE);
      (void) ::SSL_set_mode (this->peer ().ssl (),
                             SSL_MODE_ACCEPT_MOVING_WRITE_BUFFER);
    }

  // Called by the <Strategy_Acceptor> when the handler is
  // completely connected.
  ACE_INET_Addr remote_addr;
  if (this->peer ().get_remote_addr (remote_addr) == -1)
    return -1;

  ACE_INET_Addr local_addr;
  if (this->peer ().get_local_addr (local_addr) == -1)
    return -1;

  if (local_addr == remote_addr)
    {
      if (TAO_debug_level > 0)
        {
          char remote_as_string[MAXHOSTNAMELEN + 16];
          char local_as_string[MAXHOSTNAMELEN + 16];

          (void) remote_addr.addr_to_string (remote_as_string,
                                             sizeof (remote_as_string));
          (void) local_addr.addr_to_string (local_as_string,
                                            sizeof (local_as_string));
          ACE_ERROR ((LM_ERROR,
                      "TAO(%P|%t) - TAO::SSLIOP::Connection_Handler::open, "
                      "Holy Cow! The remote addr and "
                      "local addr are identical (%s == %s)\n",
                      remote_as_string, local_as_string));
        }

      return -1;
    }

  if (TAO_debug_level > 0)
    {
      char client[MAXHOSTNAMELEN + 16];

      // Verify that we can resolve the peer hostname.
      if (remote_addr.addr_to_string (client,
                                      sizeof (client)) == -1)
      {
        ACE_OS::strcpy (client, "*unable to obtain*");
      }

      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("TAO (%P|%t) SSLIOP connection from ")
                  ACE_TEXT ("client <%s> on [%d]\n"),
                  client,
                  this->peer ().get_handle ()));

      // Verify that we can resolve our hostname.
      if (local_addr.addr_to_string (client,
                                      sizeof (client)) == -1)
      {
        ACE_OS::strcpy (client, "*unable to obtain*");
      }

      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("TAO (%P|%t) SSLIOP connection accepted from ")
                  ACE_TEXT ("server <%s> on [%d]\n"),
                  client,
                  this->get_handle ()));
    }

  // Set that the transport is now connected, if fails we return -1
  // Use C-style cast b/c otherwise we get warnings on lots of
  // compilers
  if (!this->transport ()->post_open ((size_t) this->get_handle ()))
    return -1;

  // @@ Not needed
  this->state_changed (TAO_LF_Event::LFS_SUCCESS,
           this->orb_core ()->leader_follower ());

  return 0;
}

int TAO::SSLIOP::Connection_Handler::open_handler

(

void *

)

[virtual]

Implements TAO_Connection_Handler.

Definition at line 74 of file SSLIOP_Connection_Handler.cpp.

References open().

{
  return this->open (v);
}

void TAO::SSLIOP::Connection_Handler::pos_io_hook

(

int &

return_value

)

[protected, virtual]

Reimplemented from TAO_Connection_Handler.

Definition at line 310 of file SSLIOP_Connection_Handler.cpp.

{
  if (return_value == 0 && ::SSL_pending (this->peer ().ssl ()))
    return_value = 1;
}

int TAO::SSLIOP::Connection_Handler::process_listen_point_list

(

IIOP::ListenPointList &

listen_list

)

Process the listen_list.

Definition at line 356 of file SSLIOP_Connection_Handler.cpp.

References ACE_DEBUG, LM_DEBUG, TAO_Transport::make_idle(), TAO_Transport_Descriptor_Interface::set_bidir_flag(), TAO_debug_level, and TAO_Connection_Handler::transport().

Referenced by TAO::SSLIOP::Transport::tear_listen_point_list().

{
  // Get the size of the list
  CORBA::ULong const len = listen_list.length ();

  for (CORBA::ULong i = 0; i < len; ++i)
    {
      IIOP::ListenPoint listen_point = listen_list[i];
      ACE_INET_Addr addr (listen_point.port,
                          listen_point.host.in ());


      if (TAO_debug_level > 0)
        {
          ACE_DEBUG ((LM_DEBUG,
                      "(%P|%t) Listening port [%d] on [%s]\n",
                      listen_point.port,
                      listen_point.host.in ()));
        }

      // Construct an IIOP_Endpoint object using the host as provided
      // in the listen point list.  We must use the host in that form
      // because that's also how the ORB on the other side will
      // advertise the host in an IOR.
      //
      // Note that the port in the ACE_INET_Addr is actually the SSL
      // port!
      TAO_IIOP_Endpoint tmpoint (listen_point.host.in (),
                                 listen_point.port,
                                 addr);

      // @@ This is broken.  Instead of just using the default CORBA
      // SecurityAssociation options, by not supplying SSLIOP::SSL
      // instance in the endpoint constructor, we need to include the
      // actual SecurityAssociation options so that the invocation to
      // the originator is attempted with the appropriate security
      // settings. Unfortunately, there is currently no portable way to
      // send the SecurityAssociation options with the
      //    IIOP::ListenPointList.  Presumably the new Firewall
      //    specification will address this deficiency.
      TAO_SSLIOP_Synthetic_Endpoint endpoint (&tmpoint);

      // Construct a property object
      TAO_Base_Transport_Property prop (&endpoint);

      // Mark the connection as bidirectional
      prop.set_bidir_flag (1);

      // The property for this handler has changed. Recache the
      // handler with this property
      if (this->transport ()->recache_transport (&prop) == -1)
        return -1;

      // Make the handler idle and ready for use
      this->transport ()->make_idle ();
    }

  return 0;
}

int TAO::SSLIOP::Connection_Handler::release_os_resources

(

void

)

[protected, virtual]

Reimplemented from TAO_Connection_Handler.

Definition at line 304 of file SSLIOP_Connection_Handler.cpp.

References ACE_Svc_Handler< ACE_SSL_SOCK_STREAM, ACE_NULL_SYNCH >::peer().

Referenced by ~Connection_Handler().

{
  return this->peer().close ();
}

int TAO::SSLIOP::Connection_Handler::resume_handler

(

void

)

[virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 236 of file SSLIOP_Connection_Handler.cpp.

References ACE_Event_Handler::ACE_APPLICATION_RESUMES_HANDLER.

{
  return ACE_Event_Handler::ACE_APPLICATION_RESUMES_HANDLER;
}

int TAO::SSLIOP::Connection_Handler::setup_ssl_state	(	TAO::SSLIOP::Current_Impl *&	previous_current_impl,
		TAO::SSLIOP::Current_Impl *	new_current_impl,
		bool &	setup_done
	)

Make the SSL session state available to the SSLIOP::Current object.

Definition at line 418 of file SSLIOP_Connection_Handler.cpp.

References current_, and TAO::SSLIOP::Current_Impl::ssl().

Referenced by TAO::SSLIOP::State_Guard::State_Guard().

{
  // Make the SSL session state available to the SSLIOP::Current
  // TSS object.
  new_current_impl->ssl (this->peer ().ssl ());

  // The following call is reentrant and thread-safe
  this->current_->setup (previous_current_impl,
                         new_current_impl,
                         setup_done);

  return 0;
}

void TAO::SSLIOP::Connection_Handler::teardown_ssl_state	(	TAO::SSLIOP::Current_Impl *	previous_current_impl,
		bool &	setup_done
	)

Teardown the SSL session state.

Definition at line 436 of file SSLIOP_Connection_Handler.cpp.

References current_.

Referenced by TAO::SSLIOP::State_Guard::~State_Guard().

{
  this->current_->teardown (previous_current_impl, setup_done);
}

---

Member Data Documentation

TAO::SSLIOP::Current_var TAO::SSLIOP::Connection_Handler::current_ [protected]

Reference to the SSLIOP::Current object (downcast to gain access to the low-level management methods).

Definition at line 122 of file SSLIOP_Connection_Handler.h.

Referenced by Connection_Handler(), setup_ssl_state(), and teardown_ssl_state().

TAO_IIOP_Properties* TAO::SSLIOP::Connection_Handler::tcp_properties_ [private]

TCP configuration for this connection.

Definition at line 127 of file SSLIOP_Connection_Handler.h.

---

The documentation for this class was generated from the following files:

• SSLIOP_Connection_Handler.h
• SSLIOP_Connection_Handler.cpp

---
