TAO_SSLIOP_Profile Class Reference

#include <SSLIOP_Profile.h>

Inheritance diagram for TAO_SSLIOP_Profile:

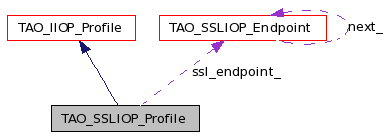

[legend]Collaboration diagram for TAO_SSLIOP_Profile:

[legend]List of all members.

Public Member Functions
	TAO_SSLIOP_Profile (const ACE_INET_Addr &addr, const TAO::ObjectKey &object_key, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core, const ::SSLIOP::SSL *ssl_component)
	TAO_SSLIOP_Profile (const char *host, CORBA::UShort port, const TAO::ObjectKey &object_key, const ACE_INET_Addr &addr, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core, const ::SSLIOP::SSL *ssl_component)
	TAO_SSLIOP_Profile (TAO_ORB_Core *orb_core, const ::SSLIOP::SSL *ssl_component)
	Create profile with the given SSLIOP tagged component.
	TAO_SSLIOP_Profile (TAO_ORB_Core *orb_core, int ssl_only=0)
virtual int	decode (TAO_InputCDR &cdr)
virtual int	encode_endpoints (void)
virtual TAO_Endpoint *	endpoint (void)
virtual void	parse_string (const char *string)
void	add_endpoint (TAO_SSLIOP_Endpoint *endp)
void	remove_endpoint (TAO_SSLIOP_Endpoint *endp)
void	remove_generic_endpoint (TAO_Endpoint *ep)
Protected Member Functions
	~TAO_SSLIOP_Profile (void)
	Destructor.
virtual CORBA::Boolean	do_is_equivalent (const TAO_Profile *other_profile)
	Profile equivalence template method.
Private Member Functions
int	decode_tagged_endpoints (void)
Private Attributes
TAO_SSLIOP_Endpoint	ssl_endpoint_
int	ssl_only_

---

Detailed Description

Definition at line 48 of file SSLIOP_Profile.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_SSLIOP_Profile::TAO_SSLIOP_Profile	(	const ACE_INET_Addr &	addr,
		const TAO::ObjectKey &	object_key,
		const TAO_GIOP_Message_Version &	version,
		TAO_ORB_Core *	orb_core,
		const ::SSLIOP::SSL *	ssl_component
	)

Profile constructor, same as above except the object_key has already been marshaled.

Definition at line 13 of file SSLIOP_Profile.cpp.

  : TAO_IIOP_Profile (addr,
                      object_key,
                      version,
                      orb_core),
  ssl_endpoint_ (ssl_component, 0),
  ssl_only_ (0)
{
  this->ssl_endpoint_.iiop_endpoint (&this->endpoint_, true);
}

TAO_SSLIOP_Profile::TAO_SSLIOP_Profile	(	const char *	host,
		CORBA::UShort	port,
		const TAO::ObjectKey &	object_key,
		const ACE_INET_Addr &	addr,
		const TAO_GIOP_Message_Version &	version,
		TAO_ORB_Core *	orb_core,
		const ::SSLIOP::SSL *	ssl_component
	)

Profile constructor, this is the most efficient since it doesn't require any address resolution processing.

Definition at line 28 of file SSLIOP_Profile.cpp.

References TAO_SSLIOP_Endpoint::iiop_endpoint(), and ssl_endpoint_.

  : TAO_IIOP_Profile (host,
                      port,
                      object_key,
                      addr,
                      version,
                      orb_core),
  ssl_endpoint_ (ssl_component, 0),
  ssl_only_ (0)
{
  this->ssl_endpoint_.iiop_endpoint (&this->endpoint_, true);
}

TAO_SSLIOP_Profile::TAO_SSLIOP_Profile	(	TAO_ORB_Core *	orb_core,
		const ::SSLIOP::SSL *	ssl_component
	)

Create profile with the given SSLIOP tagged component.

Definition at line 47 of file SSLIOP_Profile.cpp.

References TAO_SSLIOP_Endpoint::iiop_endpoint(), and ssl_endpoint_.

  : TAO_IIOP_Profile (orb_core),
    ssl_endpoint_ (ssl_component, 0),
    ssl_only_ (0)
{
  this->ssl_endpoint_.iiop_endpoint (&this->endpoint_, true);
}

TAO_SSLIOP_Profile::TAO_SSLIOP_Profile	(	TAO_ORB_Core *	orb_core,
		int	ssl_only = 0
	)

Profile constructor. ssl_only != 0 will force secure connections, pnly.

Definition at line 56 of file SSLIOP_Profile.cpp.

References TAO_SSLIOP_Endpoint::iiop_endpoint(), and ssl_endpoint_.

  : TAO_IIOP_Profile (orb_core),
    ssl_endpoint_ (0, 0),
    ssl_only_ (ssl_only)
{
  this->ssl_endpoint_.iiop_endpoint (&this->endpoint_, true);
}

TAO_SSLIOP_Profile::~TAO_SSLIOP_Profile

(

void

)

[protected]

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

Definition at line 64 of file SSLIOP_Profile.cpp.

References TAO_Endpoint::next().

{
  // Clean up the list of endpoints since we own it.
  // Skip the head, since it is not dynamically allocated.
  TAO_Endpoint *tmp = 0;

  for (TAO_Endpoint *next = this->ssl_endpoint_.next ();
       next != 0;
       next = tmp)
    {
      tmp = next->next ();
      delete next;
    }
}

---

Member Function Documentation

void TAO_SSLIOP_Profile::add_endpoint

(

TAO_SSLIOP_Endpoint *

endp

)

Add endp to this profile's list of endpoints (it is inserted next to the head of the list). This profiles takes ownership of endp. If endp's iiop_endpoint_ member is not 0, it is added to our parent's class endpoint list.

Definition at line 204 of file SSLIOP_Profile.cpp.

References TAO_SSLIOP_Endpoint::iiop_endpoint(), TAO_SSLIOP_Endpoint::next_, and ssl_endpoint_.

Referenced by TAO::SSLIOP::Acceptor::create_shared_profile(), decode(), and decode_tagged_endpoints().

{
  endp->next_ = this->ssl_endpoint_.next_;
  this->ssl_endpoint_.next_ = endp;

  // We do not want to add our IIOP endpoint counterpart when we are
  // decoding a profile, and IIOP endpoints have been added before we
  // even get to SSLIOP-specific decoding.
  if (endp->iiop_endpoint () != 0)
    this->TAO_IIOP_Profile::add_endpoint (endp->iiop_endpoint ());
}

int TAO_SSLIOP_Profile::decode

(

TAO_InputCDR &

cdr

)

[virtual]

Reimplemented from TAO_Profile.

Definition at line 84 of file SSLIOP_Profile.cpp.

References ACE_NEW_RETURN, add_endpoint(), TAO_IIOP_Profile::count_, TAO_Profile::decode(), endpoint(), TAO_IIOP_Profile::endpoint_, TAO_SSLIOP_Endpoint::iiop_endpoint(), TAO_IIOP_Endpoint::next_, TAO_Endpoint::priority(), ACE_InputCDR::reset_byte_order(), ssl_endpoint_, and SSLIOP::TAG_SSL_SEC_TRANS.

{
  int r = this->TAO_IIOP_Profile::decode (cdr);
  if (r != 1)
    return r;

  // Attempt to decode SSLIOP::SSL tagged component.  It may not be
  // there if we are dealing with pure IIOP profile.
  int ssl_component_found = 0;
  IOP::TaggedComponent component;
  component.tag = ::SSLIOP::TAG_SSL_SEC_TRANS;

  if (this->tagged_components ().get_component (component))
    {
      TAO_InputCDR cdr (reinterpret_cast<const char*> (
                          component.component_data.get_buffer ()),
                        component.component_data.length ());
      CORBA::Boolean byte_order;
      if ((cdr >> ACE_InputCDR::to_boolean (byte_order)) == 0)
        return -1;
      cdr.reset_byte_order (static_cast<int> (byte_order));

      if (cdr >> this->ssl_endpoint_.ssl_component_)
        ssl_component_found = 1;
      else
        return -1;
    }

  // Since IIOP portion of the profile has already been decoded, we
  // know how many endpoints it should contain and can finish
  // initialization accordingly.
  if (this->count_ < 2)
    {
      // This profile contains only one endpoint.  Finish initializing
      // it.
      this->ssl_endpoint_.iiop_endpoint (&this->endpoint_, true);
      this->ssl_endpoint_.priority (this->endpoint_.priority ());
      return 1;
    }
  else
    {
      // This profile contains more than one endpoint.
      if (ssl_component_found)
        {
          // It is true ssl profile, i.e., not just IIOP, so must have
          // ssl endpoints encoded.

          if (this->decode_tagged_endpoints () == -1)
            return -1;

          return 1;
        }
      else
        {
          // IIOP profile - doesn't have ssl endpoints encoded.  We
          // must create 'dummy' ssl endpoint list anyways, in order to
          // make iiop endpoints accessable and usable. Since we've
          // already got one ssliop endpoint, only add the extra
          // endpoints (count_ - 1).
          for (size_t i = 0;
               i < this->count_ -1;
               ++i)
            {
              TAO_SSLIOP_Endpoint *endpoint = 0;
              ACE_NEW_RETURN (endpoint,
                              TAO_SSLIOP_Endpoint (0, 0),
                              -1);
              this->add_endpoint (endpoint);
            }

          // Now that we have a complete list of ssl endpoins, we can
          // connect them with their iiop counterparts.
          TAO_IIOP_Endpoint *iiop_endp = &this->endpoint_;

          for (TAO_SSLIOP_Endpoint * ssl_endp = &this->ssl_endpoint_;
               ssl_endp != 0;
               ssl_endp = ssl_endp->next_)
            {
              ssl_endp->iiop_endpoint (iiop_endp, true);
              ssl_endp->priority (iiop_endp->priority ());
              iiop_endp = iiop_endp->next_;
            }

          return 1;
        }
    }
}

int TAO_SSLIOP_Profile::decode_tagged_endpoints

(

void

)

[private]

Helper for decode. Decodes TAO_TAG_SSL_ENDPOINTS from a tagged component. Decode only if RTCORBA is enabled.

Returns:

0 on success and -1 on failure.

Note:

This should be enabled only when RTCORBA is enabled, but sadly others pay the price (of footprint) under normal operations.

Definition at line 274 of file SSLIOP_Profile.cpp.

References ACE_NEW_RETURN, add_endpoint(), endpoint(), TAO_IIOP_Profile::endpoint_, TAO_IIOP_Endpoint::next_, and TAO_Endpoint::priority().

{
  IOP::TaggedComponent tagged_component;
  tagged_component.tag = TAO::TAG_SSL_ENDPOINTS;

  if (this->tagged_components_.get_component (tagged_component))
    {
      const CORBA::Octet *buf =
        tagged_component.component_data.get_buffer ();

      TAO_InputCDR in_cdr (reinterpret_cast<const char* > (buf),
                           tagged_component.component_data.length ());

      // Extract the Byte Order.
      CORBA::Boolean byte_order;
      if ((in_cdr >> ACE_InputCDR::to_boolean (byte_order)) == 0)
        return -1;
      in_cdr.reset_byte_order (static_cast<int> (byte_order));

      // Extract endpoints sequence.
      TAO_SSLEndpointSequence endpoints;
      if ((in_cdr >> endpoints) == 0)
        return -1;

      // Use information extracted from the tagged component to
      // populate the profile.  Begin from the end of the sequence to
      // preserve endpoint order, since <add_endpoint> method reverses
      // the order of endpoints in the list.
      for (CORBA::ULong i = endpoints.length () - 1;
           (i + 1) != 0;
           --i)
        {
          TAO_SSLIOP_Endpoint *endpoint = 0;
          ACE_NEW_RETURN (endpoint,
                          TAO_SSLIOP_Endpoint (0, 0),
                          -1);
          endpoint->ssl_component_ = endpoints[i];
          this->add_endpoint (endpoint);
        }

      // Now that we have a complete list of ssl endpoins, we can
      // connect them with their iiop counterparts, which have been
      // extracted/chained during the IIOP profile decoding.
      TAO_IIOP_Endpoint *iiop_endp = &this->endpoint_;

      for (TAO_SSLIOP_Endpoint * ssl_endp = &this->ssl_endpoint_;
           ssl_endp != 0;
           ssl_endp = ssl_endp->next_)
        {
          ssl_endp->iiop_endpoint (iiop_endp, true);
          ssl_endp->priority (iiop_endp->priority ());
          iiop_endp = iiop_endp->next_;
        }

      return 0;
    }

  // Since this method is only called if we are expecting
  // TAO_TAG_SSL_ENDPOINTS component, failure to find it is an error.
  return -1;
}

CORBA::Boolean TAO_SSLIOP_Profile::do_is_equivalent

(

const TAO_Profile *

other_profile

)

[protected, virtual]

Profile equivalence template method.

See also:

TAO_Profile::do_is_equivalent()

Reimplemented from TAO_IIOP_Profile.

Definition at line 173 of file SSLIOP_Profile.cpp.

References TAO_SSLIOP_Endpoint::next_, and ssl_endpoint_.

{
  const TAO_SSLIOP_Profile *op =
    dynamic_cast<const TAO_SSLIOP_Profile *> (other_profile);

  // Make sure we have a TAO_SSLIOP_Profile.
  if (op == 0)
    return 0;

  // Now verify TAO_SSLIOP_Endpoint equivalence.
  const TAO_SSLIOP_Endpoint *other_endp = &op->ssl_endpoint_;
  for (TAO_SSLIOP_Endpoint *endp = &this->ssl_endpoint_;
       endp != 0;
       endp = endp->next_)
    {
      if (endp->is_equivalent (other_endp))
        other_endp = other_endp->next_;
      else
        return 0;
    }

  return 1;
}

int TAO_SSLIOP_Profile::encode_endpoints

(

void

)

[virtual]

Reimplemented from TAO_IIOP_Profile.

Definition at line 217 of file SSLIOP_Profile.cpp.

References ACE_OutputCDR::begin(), ACE_Message_Block::cont(), TAO_IIOP_Profile::count_, TAO_IIOP_Profile::encode_endpoints(), endpoint(), ACE_OS::memcpy(), TAO_SSLIOP_Endpoint::next_, TAO_Tagged_Components::set_component(), ssl_endpoint_, TAO_Profile::tagged_components_, TAO_ENCAP_BYTE_ORDER, and ACE_OutputCDR::total_length().

{
  // If we have more than one endpoint, we encode info about others
  // into a tagged component for wire transfer.
  if (this->count_ > 1)
    {
      // Encode all endpoints except the first one, since it is always
      // transferred through standard profile component.

      // Create a data structure and fill it with endpoint info for wire
      // transfer.
      TAO_SSLEndpointSequence endpoints;
      endpoints.length (this->count_ - 1);

      const TAO_SSLIOP_Endpoint *endpoint = this->ssl_endpoint_.next_;
      for (size_t i = 0;
           i < this->count_ - 1;
           ++i)
        {
          endpoints[i] = endpoint->ssl_component ();
          endpoint = endpoint->next_;
        }

      // Encode the data structure.
      TAO_OutputCDR out_cdr;
      if ((out_cdr << ACE_OutputCDR::from_boolean (TAO_ENCAP_BYTE_ORDER)
           == 0)
          || (out_cdr << endpoints) == 0)
        return -1;

      const CORBA::ULong length = out_cdr.total_length ();

      IOP::TaggedComponent tagged_component;
      tagged_component.tag = TAO::TAG_SSL_ENDPOINTS;
      tagged_component.component_data.length (length);
      CORBA::Octet *buf =
        tagged_component.component_data.get_buffer ();

      for (const ACE_Message_Block *iterator = out_cdr.begin ();
           iterator != 0;
           iterator = iterator->cont ())
        {
          CORBA::ULong i_length = iterator->length ();
          ACE_OS::memcpy (buf, iterator->rd_ptr (), i_length);

          buf += i_length;
        }

      // Add component with encoded endpoint data to this profile's
      // TaggedComponents.
      tagged_components_.set_component (tagged_component);
    }

  return this->TAO_IIOP_Profile::encode_endpoints ();
}

TAO_Endpoint * TAO_SSLIOP_Profile::endpoint

(

void

)

[virtual]

Reimplemented from TAO_IIOP_Profile.

Definition at line 198 of file SSLIOP_Profile.cpp.

References ssl_endpoint_.

Referenced by TAO::SSLIOP::Acceptor::create_shared_profile(), decode(), decode_tagged_endpoints(), and encode_endpoints().

{
  return &this->ssl_endpoint_;
}

void TAO_SSLIOP_Profile::parse_string

(

const char *

string

)

[virtual]

Override parse_string() from the base class to update the SSL endpoint's iiop endpoint once the base class has completed parsing the string.

Initialize this object using the given input string. URL-style string contain only one endpoint.

Reimplemented from TAO_Profile.

Definition at line 337 of file SSLIOP_Profile.cpp.

References ACE_CLR_BITS, TAO_IIOP_Profile::endpoint_, TAO_SSLIOP_Endpoint::iiop_endpoint(), Security::NoProtection, TAO_Profile::parse_string(), SSLIOP::SSL::port, TAO_IIOP_Endpoint::port_, TAO_SSLIOP_Endpoint::ssl_component_, ssl_endpoint_, and ssl_only_.

{
   TAO_IIOP_Profile::parse_string (ior);

   this->ssl_endpoint_.iiop_endpoint (&this->endpoint_, true);

   if( ssl_only_)
   {
      this->ssl_endpoint_.ssl_component_.port = this->endpoint_.port_;

      // Note that the Security::NoProtection bit is cleared since we
      // are sure the server supports SSL (we're told so)
      ACE_CLR_BITS (this->ssl_endpoint_.ssl_component_.target_supports,
            Security::NoProtection);
   }
}

void TAO_SSLIOP_Profile::remove_endpoint

(

TAO_SSLIOP_Endpoint *

endp

)

Remove endp from this profile's list of endpoints.

Definition at line 356 of file SSLIOP_Profile.cpp.

References TAO_IIOP_Profile::count_, TAO_IIOP_Profile::endpoint_, TAO_SSLIOP_Endpoint::iiop_endpoint(), TAO_IIOP_Endpoint::next_, TAO_SSLIOP_Endpoint::next_, and ssl_endpoint_.

Referenced by remove_generic_endpoint().

{
  if (endp == 0)
    return;

  // special handling for the target matching the base endpoint
  if (endp == &this->ssl_endpoint_)
    {
      if (--this->count_ > 0)
        {
          TAO_SSLIOP_Endpoint* ssl_n = this->ssl_endpoint_.next_;
          this->ssl_endpoint_ = *ssl_n;
          // since the assignment operator does not copy the next_
          // pointer, we must do it by hand
          this->ssl_endpoint_.next_ = ssl_n->next_;
          delete ssl_n;
          TAO_IIOP_Endpoint *n = this->endpoint_.next_;
          this->endpoint_ = *n;
          this->endpoint_.next_ = n->next_;
          delete n;
        }
      return;
    }

  TAO_SSLIOP_Endpoint* last = &this->ssl_endpoint_;
  TAO_SSLIOP_Endpoint* cur = this->ssl_endpoint_.next_;

  while (cur != 0)
  {
    if (cur == endp)
      break;
    last = cur;
    cur = cur->next_;
  }

  if (cur != 0)
  {
    TAO_IIOP_Endpoint *base = cur->iiop_endpoint();
    last->iiop_endpoint(base->next_, true);
    last->next_ = cur->next_;
    cur->next_ = 0;
    --this->count_;
    delete cur;
  }
}

void TAO_SSLIOP_Profile::remove_generic_endpoint

(

TAO_Endpoint *

ep

)

[virtual]

Reimplemented from TAO_IIOP_Profile.

Definition at line 403 of file SSLIOP_Profile.cpp.

References remove_endpoint().

{
  this->remove_endpoint(dynamic_cast<TAO_SSLIOP_Endpoint *>(ep));
}

---

Member Data Documentation

TAO_SSLIOP_Endpoint TAO_SSLIOP_Profile::ssl_endpoint_ [private]

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint.

Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only when RTCORBA is enabled. However, in the near future, this will be used in non-RT mode as well, e.g., to support TAG_ALTERNATE_IIOP_ADDRESS feature.

Since SSLIOP profile is an extension of IIOP profile, its addressing info is contained in two places: IIOP parent class contains all iiop addressing while this class contains SSL-specific addressing additions to iiop. This means that there are two lists of endpoints: one maintained in the parent class and one maintained here. Each ssl endpoint maintains a pointer to its counterpart in the parent class endpoint list.

For transmission of IIOP addressing information, see TAO_IIOP_Profile. Addressing info of the default SSL endpoint, i.e., head of the list, is transmitted using standard SSLIOP::TAG_SSL_SEC_TRANS tagged component. See encode_endpoints method documentation above for how the rest of the SSL endpoint list is transmitted.

Definition at line 166 of file SSLIOP_Profile.h.

Referenced by add_endpoint(), decode(), do_is_equivalent(), encode_endpoints(), endpoint(), parse_string(), remove_endpoint(), and TAO_SSLIOP_Profile().

int TAO_SSLIOP_Profile::ssl_only_ [private]

Allways treat this endpoint as secure, even if the constructor did not explicitely specify a tagged component for SSL.

Most likely the parse_string() will supply a subset of the attributes - port number, for instance.

Definition at line 175 of file SSLIOP_Profile.h.

Referenced by parse_string().

---

The documentation for this class was generated from the following files:

• SSLIOP_Profile.h
• SSLIOP_Profile.cpp

---
