CORBA::NVList Class Reference

CORBA::NVList implementation. More...

#include <NVList.h>

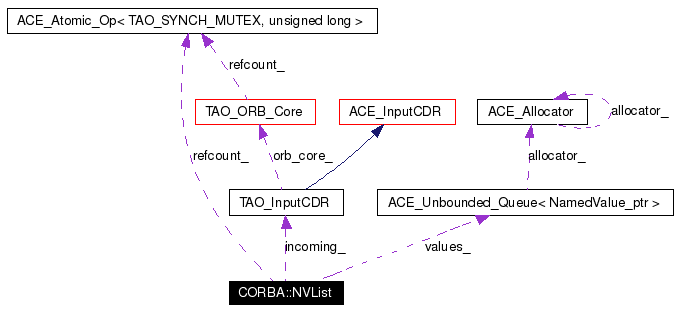

Collaboration diagram for CORBA::NVList:

Collaboration graph
[legend]
List of all members.

Public Types

typedef NVList_ptr _ptr_type
typedef NVList_var _var_type
typedef NVList_out _out_type

Public Member Functions

ULong count (void) const
 return the current number of elements in the list

NamedValue_ptr add (Flags)
 add an element and just initialize the flags

NamedValue_ptr add_item (const char *, Flags)
 add an element and initialize its name and flags

NamedValue_ptr add_value (const char *, const Any &, Flags)
 initializes a value, name, and flags

NamedValue_ptr add_item_consume (char *, Flags)
NamedValue_ptr add_value_consume (char *, Any_ptr, Flags)
NamedValue_ptr item (ULong n)
 retrieve the item at the nth location. Raises Bounds

void remove (ULong n)
 remove element at index n. Raises Bounds

ULong _incr_refcnt (void)
ULong _decr_refcnt (void)
void _tao_incoming_cdr (TAO_InputCDR &cdr, int flag, bool &lazy_evaluation)
void _tao_encode (TAO_OutputCDR &cdr, int flag)
void _tao_decode (TAO_InputCDR &cdr, int flag)
 Decode the NVList arguments from the cdr stream.

ptrdiff_t _tao_target_alignment (void)
Boolean _lazy_has_arguments (void) const

Static Public Member Functions

NVList * _duplicate (NVList *)
NVList * _nil (void)

Protected Member Functions

 ~NVList (void)
 Destructor.


Private Member Functions

 NVList (void)
NamedValue_ptr add_element (Flags)
void evaluate (void)

Private Attributes

ACE_Unbounded_Queue< NamedValue_ptr > values_
 Internal list of parameters stored as NamedValues.

ULong max_
 Maximum length of list.

ACE_Atomic_Op< TAO_SYNCH_MUTEX,
unsigned long > 		refcount_
 Reference counter.

TAO_SYNCH_MUTEX lock_
 Protects the incoming pointer.

TAO_InputCDR * incoming_
int incoming_flag_

Friends

class ::TAO_NVList_Adapter_Impl
class Request

Detailed Description

CORBA::NVList implementation.

This is used in the (client side) DII (Dynamic Invocation Interface) to hold parameters, except for the return parameter. It's used in the same role in the (server side) DSI (Dynamic Skeleton Interface).

Each user (client, server) provides the typecode and memory for each parameter using an NVList, then talks to the ORB using a Request or ServerRequest pseudo-object. The ORB copies data to/from the IPC messages (e.g. IIOP::Request, IIOP::Response) as appropriate.

Definition at line 159 of file NVList.h.

Member Typedef Documentation

typedef NVList_out CORBA::NVList::_out_type


Definition at line 237 of file NVList.h.

typedef NVList_ptr CORBA::NVList::_ptr_type


Definition at line 235 of file NVList.h.

typedef NVList_var CORBA::NVList::_var_type


Definition at line 236 of file NVList.h.

Constructor & Destructor Documentation

CORBA::NVList::~NVList (  void   )  [protected]


Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

Definition at line 79 of file NVList.cpp.

References ACE_Unbounded_Queue_Iterator< T >::advance(), ACE_Unbounded_Queue_Iterator< T >::done(), ACE_Unbounded_Queue_Iterator< T >::first(), and ACE_Unbounded_Queue_Iterator< T >::next().

00080 {
00081   // initialize an iterator and delete each NamedValue
00082   ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> iter (this->values_);
00083
00084   for (iter.first (); !iter.done (); iter.advance ())
00085     {
00086       CORBA::NamedValue_ptr *nv = 0;
00087       (void) iter.next (nv);
00088       delete *nv;
00089     }
00090
00091   this->max_ = 0;
00092
00093   // Remove the CDR stream if it is present.
00094   delete this->incoming_;
00095 }

ACE_INLINE CORBA::NVList::NVList (  void   )  [private]


Constructor - cannot be instantiated directly other than through the CORBA::ORB::create_list method

Definition at line 92 of file NVList.inl.

00093   : max_ (0),
00094     refcount_ (1),
00095     incoming_ (0),
00096     incoming_flag_ (0)
00097 {
00098 }

Member Function Documentation

CORBA::ULong CORBA::NVList::_decr_refcnt (  void   )


Definition at line 69 of file NVList.cpp.

00070 {
00071   const CORBA::ULong new_count = --this->refcount_;
00072
00073   if (new_count == 0)
00074     delete this;
00075
00076   return new_count;
00077 }

ACE_INLINE CORBA::NVList * CORBA::NVList::_duplicate (  NVList *   )  [static]


Definition at line 111 of file NVList.inl.

References _incr_refcnt().

00112 {
00113   if (x != 0)
00114     {
00115       x->_incr_refcnt ();
00116     }
00117
00118   return x;
00119 }

CORBA::ULong CORBA::NVList::_incr_refcnt (  void   )


Definition at line 63 of file NVList.cpp.

Referenced by _duplicate().

00064 {
00065   return ++this->refcount_;
00066 }

CORBA::Boolean CORBA::NVList::_lazy_has_arguments (  void   )  const


If this list is used by a DII request, this will tell us if our CDR stream contains any marshaled arguments (needed for GIOP 1.2).

Definition at line 456 of file NVList.cpp.

References count(), and ACE_InputCDR::length().

00457 {
00458   if (this->incoming_ != 0)
00459     {
00460       return this->incoming_->length () <= 1 ? false : true;
00461     }
00462   else
00463     {
00464       return this->count () <= 1 ? false : true;
00465     }
00466 }

ACE_INLINE CORBA::NVList * CORBA::NVList::_nil (  void   )  [static]


Definition at line 123 of file NVList.inl.

00124 {
00125   return 0;
00126 }

void CORBA::NVList::_tao_decode (  TAO_InputCDR &  cdr,
int  flag
)


Decode the NVList arguments from the cdr stream.

Definition at line 373 of file NVList.cpp.

References ACE_BIT_DISABLED, ACE_DEBUG, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, ACE_Unbounded_Queue_Iterator< T >::advance(), ACE_Unbounded_Queue_Iterator< T >::done(), ACE_Unbounded_Queue_Iterator< T >::first(), LM_DEBUG, ACE_Unbounded_Queue_Iterator< T >::next(), and TAO_debug_level.

Referenced by _tao_incoming_cdr(), and evaluate().

00374 {
00375   if (TAO_debug_level > 3)
00376     {
00377       ACE_DEBUG ((LM_DEBUG,
00378                   ACE_TEXT ("TAO (%P|%t) : NVList::_tao_decode\n")));
00379     }
00380
00381   // Then unmarshal each "in" and "inout" parameter.
00382   ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> i (this->values_);
00383
00384   for (i.first (); !i.done (); i.advance ())
00385     {
00386       CORBA::NamedValue_ptr *item = 0;
00387       (void) i.next (item);
00388
00389       CORBA::NamedValue_ptr nv = *item;
00390
00391       // check if it is an in or inout parameter
00392       // @@ this is where we assume that the NVList is coming from
00393       //    a Server-side request, we could probably handle both
00394       //    cases with a flag, but there is no clear need for that.
00395       if (ACE_BIT_DISABLED (nv->flags (), flag))
00396         {
00397           continue;
00398         }
00399
00400       if (TAO_debug_level > 3)
00401         {
00402           ACE_DEBUG ((LM_DEBUG,
00403                       ACE_TEXT ("TAO (%P|%t) : NVList::_tao_decode - %s\n"),
00404                       ACE_TEXT_CHAR_TO_TCHAR (nv->name ()? nv->name () : "(no name given)" )));
00405         }
00406
00407       CORBA::Any_ptr any = nv->value ();
00408       any->impl ()->_tao_decode (incoming
00409                                 );
00410     }
00411 }

void CORBA::NVList::_tao_encode (  TAO_OutputCDR &  cdr,
int  flag
)


Encode the NVList into the CDR stream. flag masks the type of arguments (IN, OUT or INOUT) that are to be marshaled.

Definition at line 292 of file NVList.cpp.

References ACE_BIT_DISABLED, ACE_DEBUG, ACE_GUARD, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, ACE_Unbounded_Queue_Iterator< T >::advance(), ACE_Unbounded_Queue_Iterator< T >::done(), ACE_Unbounded_Queue_Iterator< T >::first(), LM_DEBUG, ACE_Unbounded_Queue_Iterator< T >::next(), TAO_Marshal_Object::perform_append(), TAO_debug_level, TAO_SYNCH_MUTEX, and ACE_OutputCDR::write_octet_array_mb().

00293 {
00294   ACE_GUARD (TAO_SYNCH_MUTEX,
00295              ace_mon,
00296              this->lock_);
00297
00298   if (this->incoming_ != 0)
00299     {
00300       if (this->max_ == 0)
00301         {
00302           // The list is empty aggresively reduce copies and just send
00303           // the CDR stream, we assume that
00304           // TAO_Server_Request::init_reply
00305           // has inserted appropiated padding already to make this
00306           // operation correct
00307           cdr.write_octet_array_mb (this->incoming_->start ());
00308           return;
00309         }
00310
00311       // Then unmarshal each "in" and "inout" parameter.
00312       ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> i (this->values_);
00313
00314       for (i.first (); !i.done (); i.advance ())
00315         {
00316           CORBA::NamedValue_ptr *item = 0;
00317           (void) i.next (item);
00318
00319           CORBA::NamedValue_ptr nv = *item;
00320
00321           if (ACE_BIT_DISABLED (nv->flags (), flag))
00322             {
00323               continue;
00324             }
00325
00326           if (TAO_debug_level > 3)
00327             {
00328               const char* arg = nv->name ();
00329
00330               if (arg == 0)
00331                 {
00332                   arg = "(nil)";
00333                 }
00334
00335               ACE_DEBUG ((LM_DEBUG,
00336                           ACE_TEXT ("NVList::_tao_encode - parameter <%s>\n"),
00337                           ACE_TEXT_CHAR_TO_TCHAR (arg)));
00338             }
00339           CORBA::TypeCode_ptr tc = nv->value ()->_tao_get_typecode ();
00340           (void) TAO_Marshal_Object::perform_append (tc,
00341                                                      this->incoming_,
00342                                                      &cdr);
00343         }
00344
00345       delete this->incoming_;
00346       this->incoming_ = 0;
00347       return;
00348     }
00349
00350   // The list is already evaluated, we cannot optimize the copies, go
00351   // ahead with the slow way to do things.
00352
00353   // Then marshal each "in" and "inout" parameter.
00354   ACE_Unbounded_Queue_Iterator<CORBA::NamedValue_ptr> i (this->values_);
00355
00356   for (i.first (); !i.done (); i.advance ())
00357     {
00358       CORBA::NamedValue_ptr *item = 0;
00359       (void) i.next (item);
00360
00361       CORBA::NamedValue_ptr nv = *item;
00362
00363       if (ACE_BIT_DISABLED (nv->flags (), flag))
00364         {
00365           continue;
00366         }
00367
00368       nv->value ()->impl ()->marshal_value (cdr);
00369     }
00370 }

void CORBA::NVList::_tao_incoming_cdr (  TAO_InputCDR &  cdr,
int  flag,
bool &  lazy_evaluation
)


Set the incoming CDR stream, this is used by TAO to perform lazy evaluation of the NVList in an incoming ServerRequest. The is used to check which parameters (IN, OUT and/or INOUT) are to be extracted

Definition at line 259 of file NVList.cpp.

References _tao_decode(), ACE_GUARD, ACE_NEW, incoming_flag_, and TAO_SYNCH_MUTEX.

00262 {
00263   // If the list is empty then using lazy evaluation is the only
00264   // choice.
00265   // @@ There are other cases where we can use lazy evaluation, for
00266   //    example if the list is not empty but the anys own all their
00267   //    objects.
00268   if (lazy_evaluation == false && this->max_ == 0)
00269     {
00270       lazy_evaluation = true;
00271     }
00272
00273   if (lazy_evaluation == false)
00274     {
00275       this->_tao_decode (cdr, flag);
00276       return;
00277     }
00278
00279   ACE_GUARD (TAO_SYNCH_MUTEX, ace_mon, this->lock_);
00280
00281   if (this->incoming_ != 0)
00282     {
00283       delete this->incoming_;
00284       this->incoming_ = 0;
00285     }
00286
00287   ACE_NEW (this->incoming_, TAO_InputCDR (cdr));
00288   this->incoming_flag_ = flag;
00289 }

ptrdiff_t CORBA::NVList::_tao_target_alignment (  void   )


Return the required alignment to marshal the NVList without any re-alignment. It returns ACE_CDR::MAX_ALIGNMENT to indicate errors.

Definition at line 414 of file NVList.cpp.

References ACE_GUARD_RETURN, ACE_Message_Block::rd_ptr(), ACE_InputCDR::start(), and TAO_SYNCH_MUTEX.

00415 {
00416   ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
00417                     ace_mon,
00418                     this->lock_,
00419                     ACE_CDR::MAX_ALIGNMENT);
00420
00421   if (this->incoming_ == 0)
00422     {
00423       return ACE_CDR::MAX_ALIGNMENT;
00424     }
00425
00426   const char* rd = this->incoming_->start ()->rd_ptr ();
00427   ptrdiff_t t = ptrdiff_t (rd) % ACE_CDR::MAX_ALIGNMENT;
00428
00429   if (t < 0)
00430     {
00431       t += ACE_CDR::MAX_ALIGNMENT;
00432     }
00433
00434   return t;
00435 }

CORBA::NamedValue_ptr CORBA::NVList::add (  Flags   )


add an element and just initialize the flags

Definition at line 99 of file NVList.cpp.

References add_element().

00100 {
00101   // call the helper to allocate a NamedValue element (if necessary)
00102   return this->add_element (flags);
00103 }

CORBA::NamedValue_ptr CORBA::NVList::add_element (  Flags   )  [private]


Helper to increase the list size. This is used by all the add_ methods of the NVList class

Definition at line 211 of file NVList.cpp.

References ACE_BIT_DISABLED, ACE_NEW_THROW_EX, ACE_Unbounded_Queue< NamedValue_ptr >::enqueue_tail(), evaluate(), and values_.

Referenced by add(), add_item(), add_item_consume(), and add_value().

00212 {
00213   this->evaluate ();
00214
00215   if (ACE_BIT_DISABLED (flags,
00216                         CORBA::ARG_IN | CORBA::ARG_OUT | CORBA::ARG_INOUT))
00217     {
00218       throw ::CORBA::BAD_PARAM ();
00219     }
00220
00221   CORBA::NamedValue_ptr nv;
00222
00223   // allocate a new NamedValue
00224   ACE_NEW_THROW_EX (nv,
00225                     CORBA::NamedValue,
00226                     CORBA::NO_MEMORY ());
00227
00228   // set the flags and enqueue in the queue
00229   nv->flags_ = flags;
00230
00231   if (this->values_.enqueue_tail (nv) == -1)
00232     {
00233       delete nv;
00234       return 0;
00235     }
00236
00237   this->max_++;
00238   return nv; // success
00239 }

CORBA::NamedValue_ptr CORBA::NVList::add_item (  const char *  ,
Flags
)


add an element and initialize its name and flags

Definition at line 107 of file NVList.cpp.

References add_element(), and CORBA::string_dup().

00108 {
00109   // call the helper to allocate a NamedValue element
00110   CORBA::NamedValue_ptr nv = this->add_element (flags);
00111
00112   if (nv)
00113     {
00114       // now initialize the fields
00115       nv->name_ = CORBA::string_dup (name);
00116       return nv;
00117     }
00118   else
00119     {
00120       return 0;
00121     }
00122 }

CORBA::NamedValue_ptr CORBA::NVList::add_item_consume (  char *  ,
Flags
)


just like add_item. In addition, memory management of char * name is taken over by the NVList

Definition at line 154 of file NVList.cpp.

References add_element().

00155 {
00156
00157   // call the helper to allocate a NamedValue element
00158   CORBA::NamedValue_ptr nv = this->add_element (flags);
00159
00160   if (nv)
00161     {
00162       // now initialize the fields
00163
00164       // consume the name
00165       nv->name_ = name;
00166       return nv;
00167     }
00168   else
00169     {
00170       return 0;
00171     }
00172 }

CORBA::NamedValue_ptr CORBA::NVList::add_value (  const char *  ,
const Any &  ,
Flags
)


initializes a value, name, and flags

Definition at line 126 of file NVList.cpp.

References add_element(), and CORBA::string_dup().

00129 {
00130   // Call the helper to allocate a NamedValue element.
00131   CORBA::NamedValue_ptr nv = this->add_element (flags);
00132
00133   if (nv)
00134     {
00135       nv->name_ = CORBA::string_dup (name);
00136
00137       // With the original Any implementation, we had alternate
00138       // paths for the assignment based on the IN_COPY_VALUE flag.
00139       // Now that the Any's contained Any_Impl is refcounted, the
00140       // distinction between the ORB "copying" or "borrowing" the
00141       // memory is irrelevant. The IN_COPY_VALUE flag was not
00142       // checked anywhere else in the ORB anyway.
00143       nv->any_ = value;
00144       return nv;
00145     }
00146   else
00147     {
00148       return 0;
00149     }
00150 }

NamedValue_ptr CORBA::NVList::add_value_consume (  char *  ,
Any_ptr  ,
Flags
)


just like add_value. In addition, the NVList controls the memory management of the char *name and Any *value parameter

ACE_INLINE CORBA::ULong CORBA::NVList::count (  void   )  const


return the current number of elements in the list

Definition at line 102 of file NVList.inl.

Referenced by _lazy_has_arguments().

00103 {
00104   (const_cast<CORBA::NVList *> (this))->evaluate ();
00105
00106   return this->max_;
00107 }

void CORBA::NVList::evaluate (  void   )  [private]


Lazy evaluation routine to fill up the Anys in the NVList from the CDR stream.

Definition at line 438 of file NVList.cpp.

References _tao_decode(), ACE_GUARD, ACE_Auto_Basic_Ptr< X >::get(), incoming_flag_, and TAO_SYNCH_MUTEX.

Referenced by add_element(), and item().

00439 {
00440   ACE_GUARD (TAO_SYNCH_MUTEX, ace_mon, this->lock_);
00441
00442   if (this->incoming_ == 0)
00443     {
00444       return;
00445     }
00446
00447   auto_ptr<TAO_InputCDR> incoming (this->incoming_);
00448   this->incoming_ = 0;
00449
00450   this->_tao_decode (*(incoming.get ()),
00451                      this->incoming_flag_
00452                     );
00453 }

CORBA::NamedValue_ptr CORBA::NVList::item (  ULong  n  )


retrieve the item at the nth location. Raises Bounds

Definition at line 243 of file NVList.cpp.

References evaluate(), ACE_Unbounded_Queue< NamedValue_ptr >::get(), and values_.

00244 {
00245   this->evaluate ();
00246
00247   if (n >= this->max_)
00248     {
00249       throw ::CORBA::Bounds ();
00250     }
00251
00252   CORBA::NamedValue_ptr *nv = 0;
00253
00254   this->values_.get (nv, n);
00255   return *nv;
00256 }

void CORBA::NVList::remove (  ULong  n  )


remove element at index n. Raises Bounds

Definition at line 203 of file NVList.cpp.

00204 {
00205   // not implemented
00206   // @@ (ASG) - TODO
00207 }

Friends And Related Function Documentation

friend class ::TAO_NVList_Adapter_Impl [friend]


Definition at line 161 of file NVList.h.

friend class Request [friend]


Definition at line 162 of file NVList.h.

Member Data Documentation

TAO_InputCDR* CORBA::NVList::incoming_ [private]


When the NVList is used as part of a Server Request we can simply store the CDR buffer and perform lazy evaluation to compute the Anys.

Definition at line 279 of file NVList.h.

int CORBA::NVList::incoming_flag_ [private]


The flags used to check which parameters are actually extracted from the buffer

Definition at line 283 of file NVList.h.

Referenced by _tao_incoming_cdr(), and evaluate().

TAO_SYNCH_MUTEX CORBA::NVList::lock_ [private]


Protects the incoming pointer.

Definition at line 272 of file NVList.h.

ULong CORBA::NVList::max_ [private]


Maximum length of list.

Definition at line 266 of file NVList.h.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, unsigned long> CORBA::NVList::refcount_ [private]


Reference counter.

Definition at line 269 of file NVList.h.

ACE_Unbounded_Queue<NamedValue_ptr> CORBA::NVList::values_ [private]


Internal list of parameters stored as NamedValues.

Definition at line 263 of file NVList.h.

Referenced by add_element(), and item().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:22:01 2008 for TAO_AnyTypeCode by doxygen 1.3.6
