TAO::Remote_Invocation Class Reference

Base class for remote invocations. More...

#include <Remote_Invocation.h>

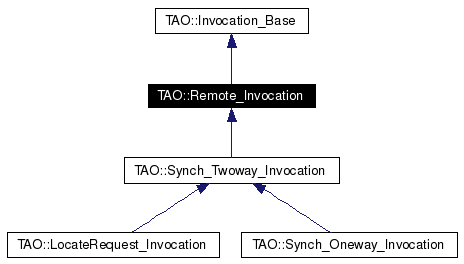

Inheritance diagram for TAO::Remote_Invocation:

Inheritance graph
[legend]

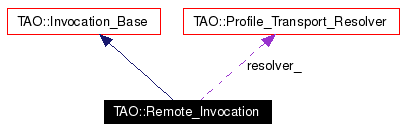

Collaboration diagram for TAO::Remote_Invocation:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)

Protected Member Functions

void init_target_spec (TAO_Target_Specification &spec)
 Initialize the spec.

void write_header (TAO_Target_Specification &spec, TAO_OutputCDR &out_stream)
 Write the GIOP header into the stream.

void marshal_data (TAO_OutputCDR &cdr)
 Marshal the arguments into the stream.

Invocation_Status send_message (TAO_OutputCDR &cdr, short message_semantics, ACE_Time_Value *max_wait_time)
 Write the message onto the socket.


Protected Attributes

Profile_Transport_Resolver & resolver_
 Our resolver.

Detailed Description

Base class for remote invocations.

This class encapulates some of the common functionalities used by synchronous, asynchronous, DII and DSI invocations.

Definition at line 45 of file Remote_Invocation.h.

Constructor & Destructor Documentation

TAO::Remote_Invocation::Remote_Invocation (  CORBA::Object_ptr  otarget,
Profile_Transport_Resolver &  resolver,
TAO_Operation_Details &  detail,
bool  response_expected
)


Parameters:
otarget The original target on which this invocation was started. This is there to be passed up to its parent class.
resolver The profile and transport holder.
detail Pperation details of the invocation on the target
response_expected Flag to indicate whether the operation encapsulated by op returns a response or not.

Definition at line 24 of file Remote_Invocation.cpp.

References CORBA::Object_ptr.

00029     : Invocation_Base (otarget,
00030                        resolver.object (),
00031                        resolver.stub (),
00032                        detail,
00033                        response_expected,
00034                        true /* request_is_remote */ )
00035     , resolver_ (resolver)
00036   {
00037   }

Member Function Documentation

void TAO::Remote_Invocation::init_target_spec (  TAO_Target_Specification &  spec  )  [protected]


Initialize the spec.

Mega hack for RTCORBA start. I don't think that PortableInterceptor would work here esp. for RTCORBA. PI needs to be improved to help our cause.

Mega hack for RTCORBA END

Definition at line 40 of file Remote_Invocation.cpp.

References ACE_ERROR, ACE_TEXT, TAO_Profile::addressing_mode(), TAO_Stub::create_ior_info(), TAO_Profile::create_tagged_profile(), LM_ERROR, TAO_Profile::object_key(), TAO_Stub::orb_core(), TAO::Profile_Transport_Resolver::profile(), TAO_Operation_Details::request_service_context(), resolver_, TAO_ORB_Core::service_context_list(), TAO::Profile_Transport_Resolver::stub(), TAO_debug_level, and TAO_Target_Specification::target_specifier().

Referenced by TAO::LocateRequest_Invocation::invoke(), TAO::Synch_Oneway_Invocation::remote_oneway(), and TAO::Synch_Twoway_Invocation::remote_twoway().

00041   {
00042     /**
00043      * Mega hack for RTCORBA start. I don't think that
00044      * PortableInterceptor  would work here esp. for RTCORBA. PI needs
00045      * to be improved to  help our cause.
00046      */
00047     this->resolver_.stub ()->orb_core ()->service_context_list (
00048       this->resolver_.stub (),
00049       this->details_.request_service_context (),
00050       0);
00051     /**
00052      * Mega hack for RTCORBA END
00053      */
00054
00055     TAO_Profile *pfile = this->resolver_.profile ();
00056
00057     // Set the target specification mode
00058     switch (pfile->addressing_mode ())
00059       {
00060       case TAO_Target_Specification::Key_Addr:
00061         target_spec.target_specifier (pfile->object_key ());
00062         break;
00063       case TAO_Target_Specification::Profile_Addr:
00064         {
00065           IOP::TaggedProfile *tp =
00066             pfile->create_tagged_profile ();
00067
00068           if (tp)
00069             {
00070               target_spec.target_specifier (*tp);
00071             }
00072         }
00073         break;
00074
00075     case TAO_Target_Specification::Reference_Addr:
00076       // We need to call the method seperately. If there is no
00077       // IOP::IOR info, the call would create the info and return the
00078       // index that we need.
00079       CORBA::ULong index = 0;
00080       IOP::IOR *ior_info = 0;
00081       int const retval =
00082         this->resolver_.stub ()->create_ior_info (ior_info, index);
00083
00084       if (retval == -1)
00085         {
00086           if (TAO_debug_level > 0)
00087             {
00088               ACE_ERROR ((LM_ERROR,
00089                           ACE_TEXT ("TAO (%P|%t) - ")
00090                           ACE_TEXT ("Remote_Invocation::init_target_spec, ")
00091                           ACE_TEXT ("Error in finding index for ")
00092                           ACE_TEXT ("IOP::IOR \n")));
00093             }
00094
00095           return;
00096         }
00097
00098       target_spec.target_specifier (*ior_info, index);
00099       break;
00100     }
00101   }

void TAO::Remote_Invocation::marshal_data (  TAO_OutputCDR &  cdr  )  [protected]


Marshal the arguments into the stream.

Definition at line 122 of file Remote_Invocation.cpp.

References TAO_Operation_Details::marshal_args().

Referenced by TAO::Synch_Oneway_Invocation::remote_oneway(), and TAO::Synch_Twoway_Invocation::remote_twoway().

00123   {
00124     if (this->details_.marshal_args (out_stream) == false)
00125       {
00126         throw ::CORBA::MARSHAL ();
00127       }
00128   }

Invocation_Status TAO::Remote_Invocation::send_message (  TAO_OutputCDR &  cdr,
short  message_semantics,
ACE_Time_Value *  max_wait_time
)  [protected]


Write the message onto the socket.

Definition at line 131 of file Remote_Invocation.cpp.

References ACE_DEBUG, ACE_TEXT, TAO_Transport::close_connection(), TAO_Transport::connection_handler(), ETIME, TAO_Network_Priority_Protocols_Hooks::get_dscp_codepoint(), TAO_ORB_Core::get_protocols_hooks(), LM_DEBUG, TAO::Profile_Transport_Resolver::object(), TAO_Stub::orb_core(), TAO_Stub::reset_profiles(), resolver_, TAO_Transport::send_request(), TAO_Protocols_Hooks::set_client_network_priority(), TAO_Connection_Handler::set_dscp_codepoint(), TAO_Stub::set_valid_profile(), TAO::Profile_Transport_Resolver::stub(), TAO_debug_level, TAO::TAO_INVOKE_RESTART, TAO::TAO_INVOKE_SUCCESS, TAO_TIMEOUT_SEND_MINOR_CODE, and TAO::Profile_Transport_Resolver::transport().

Referenced by TAO::LocateRequest_Invocation::invoke(), TAO::Synch_Oneway_Invocation::remote_oneway(), and TAO::Synch_Twoway_Invocation::remote_twoway().

00134   {
00135     TAO_Protocols_Hooks *tph =
00136       this->resolver_.stub ()->orb_core ()->get_protocols_hooks ();
00137
00138     TAO_Network_Priority_Protocols_Hooks *nph =
00139       this->resolver_.stub ()->orb_core ()->
00140         get_network_priority_protocols_hooks ();
00141
00142     TAO_Connection_Handler *connection_handler =
00143       this->resolver_.transport ()->connection_handler ();
00144
00145     if (nph != 0)
00146       {
00147         // nph = 0, means DiffServ library is not used
00148         // nph = 0, means DiffServ library is used, and
00149         // request DSCP and reply DSCP are set.
00150         // Note that the application could still be using
00151         // RTCORBA, but still setting DIffServ codepoints
00152         // using the DiffServ library takes precedence.
00153         //
00154         CORBA::Long dscp = nph->get_dscp_codepoint (this->resolver_.stub (),
00155           this->resolver_.object ());
00156         connection_handler->set_dscp_codepoint (dscp);
00157       }
00158     else if (tph != 0)
00159       {
00160         // If we execute this code, DiffServ library is not used,
00161         // but RTCORBA could be used.
00162         // Which means that using the enable_network_priority flag,
00163         // the application might want to set DiffServ codepoints.
00164         // Check if that is the case.
00165         //
00166         CORBA::Boolean const set_client_network_priority =
00167           tph->set_client_network_priority (
00168             this->resolver_.transport ()->tag (),
00169             this->resolver_.stub ());
00170         connection_handler->set_dscp_codepoint (set_client_network_priority);
00171       }
00172
00173     // Note that if noth nph and tph are 0, then we do not make any
00174     // virtual calls any more, because we have removed the default
00175     // implementations.
00176
00177     int const retval =
00178       this->resolver_.transport ()->send_request (
00179         this->resolver_.stub (),
00180         this->resolver_.stub ()->orb_core (),
00181         cdr,
00182         message_semantics,
00183         max_wait_time);
00184
00185     if (retval == -1)
00186       {
00187         if (errno == ETIME)
00188           {
00189             // We sent a message already and we haven't gotten a
00190             // reply.  Just throw TIMEOUT with *COMPLETED_MAYBE*.
00191             throw ::CORBA::TIMEOUT (
00192               CORBA::SystemException::_tao_minor_code (
00193                 TAO_TIMEOUT_SEND_MINOR_CODE,
00194                 errno),
00195               CORBA::COMPLETED_MAYBE);
00196           }
00197
00198         if (TAO_debug_level > 2)
00199           {
00200             ACE_DEBUG ((LM_DEBUG,
00201                         ACE_TEXT ("TAO (%P|%t) - ")
00202                         ACE_TEXT ("Remote_Invocation::send_message, ")
00203                         ACE_TEXT ("failure while sending message \n")));
00204           }
00205
00206         // Close the transport and all the associated stuff along with
00207         // it.
00208         this->resolver_.transport ()->close_connection ();
00209         this->resolver_.stub ()->reset_profiles ();
00210         return TAO_INVOKE_RESTART;
00211       }
00212
00213     this->resolver_.stub ()->set_valid_profile ();
00214     return TAO_INVOKE_SUCCESS;
00215   }

void TAO::Remote_Invocation::write_header (  TAO_Target_Specification &  spec,
TAO_OutputCDR &  out_stream
)  [protected]


Write the GIOP header into the stream.

Definition at line 104 of file Remote_Invocation.cpp.

References TAO_Transport::assign_translators(), TAO_Transport::clear_translators(), TAO_Transport::generate_request_header(), resolver_, and TAO::Profile_Transport_Resolver::transport().

Referenced by TAO::Synch_Oneway_Invocation::remote_oneway(), and TAO::Synch_Twoway_Invocation::remote_twoway().

00106   {
00107     this->resolver_.transport ()->clear_translators (0, &out_stream);
00108
00109     // Send the request for the header
00110     if (this->resolver_.transport ()->generate_request_header (this->details_,
00111                                                                spec,
00112                                                                out_stream)
00113         == -1)
00114       {
00115         throw ::CORBA::MARSHAL ();
00116       }
00117
00118     this->resolver_.transport ()->assign_translators (0, &out_stream);
00119   }

Member Data Documentation

Profile_Transport_Resolver& TAO::Remote_Invocation::resolver_ [protected]


Our resolver.

Definition at line 84 of file Remote_Invocation.h.

Referenced by init_target_spec(), send_message(), and write_header().

The documentation for this class was generated from the following files:
