TAO_IIOP_Acceptor Class Reference

TAO_IIOP_Acceptor. More...

#include <IIOP_Acceptor.h>

Inheritance diagram for TAO_IIOP_Acceptor:

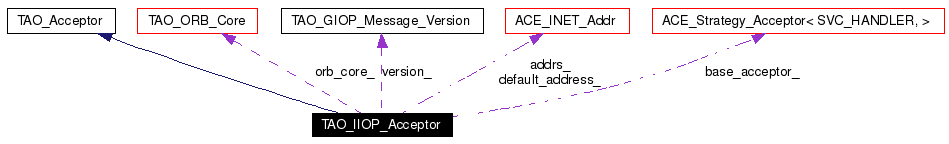

[legend]Collaboration diagram for TAO_IIOP_Acceptor:

[legend]List of all members.

Public Types
typedef ACE_Strategy_Acceptor< TAO_IIOP_Connection_Handler, ACE_SOCK_ACCEPTOR >	BASE_ACCEPTOR
typedef TAO_Creation_Strategy< TAO_IIOP_Connection_Handler >	CREATION_STRATEGY
typedef TAO_Concurrency_Strategy< TAO_IIOP_Connection_Handler >	CONCURRENCY_STRATEGY
typedef TAO_Accept_Strategy< TAO_IIOP_Connection_Handler, ACE_SOCK_ACCEPTOR >	ACCEPT_STRATEGY
Public Member Functions
	TAO_IIOP_Acceptor (void)
	Constructor.
	~TAO_IIOP_Acceptor (void)
	Destructor.
const ACE_INET_Addr &	address (void) const
const ACE_INET_Addr *	endpoints (void)
	Returns the array of endpoints in this acceptor.
const ACE_INET_Addr &	default_address (void) const
	Returns address for default endpoint.
void	set_default_address (const ACE_INET_Addr &addr)
	Set address for default endpoint.
virtual int	open (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *address, const char *options=0)
virtual int	open_default (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *options=0)
virtual int	close (void)
	Closes the acceptor.
virtual int	create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
virtual int	is_collocated (const TAO_Endpoint *endpoint)
	Return 1 if the endpoint has the same address as the acceptor.
virtual CORBA::ULong	endpoint_count (void)
virtual int	object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)
virtual int	hostname (TAO_ORB_Core *orb_core, ACE_INET_Addr &addr, char *&host, const char *specified_hostname=0)
Protected Member Functions
int	parse_address (const char *address, ACE_INET_Addr &addr, ACE_CString &specified_hostname, int *def_type=0)
int	dotted_decimal_address (ACE_INET_Addr &addr, char *&host)
virtual int	open_i (const ACE_INET_Addr &addr, ACE_Reactor *reactor)
int	probe_interfaces (TAO_ORB_Core *orb_core, int def_type=AF_UNSPEC)
int	parse_options (const char *options)
virtual int	parse_options_i (int &argc, ACE_CString **argv)
int	create_new_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
int	create_shared_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
Protected Attributes
ACE_INET_Addr *	addrs_
unsigned short	port_span_
char **	hosts_
char *	hostname_in_ior_
CORBA::ULong	endpoint_count_
TAO_GIOP_Message_Version	version_
TAO_ORB_Core *	orb_core_
	ORB Core.
int	reuse_addr_
	Enable socket option SO_REUSEADDR to be set.
ACE_INET_Addr	default_address_
	Address for default endpoint.
Private Attributes
BASE_ACCEPTOR	base_acceptor_
	The concrete acceptor, as a pointer to it's base class.
CREATION_STRATEGY *	creation_strategy_
	Acceptor strategies.
CONCURRENCY_STRATEGY *	concurrency_strategy_
ACCEPT_STRATEGY *	accept_strategy_

---

Detailed Description

TAO_IIOP_Acceptor.

The IIOP-specific bridge class for the concrete acceptor.

Definition at line 48 of file IIOP_Acceptor.h.

---

Member Typedef Documentation

typedef TAO_Accept_Strategy<TAO_IIOP_Connection_Handler, ACE_SOCK_ACCEPTOR> TAO_IIOP_Acceptor::ACCEPT_STRATEGY

Definition at line 80 of file IIOP_Acceptor.h.

typedef ACE_Strategy_Acceptor<TAO_IIOP_Connection_Handler, ACE_SOCK_ACCEPTOR> TAO_IIOP_Acceptor::BASE_ACCEPTOR

Definition at line 77 of file IIOP_Acceptor.h.

typedef TAO_Concurrency_Strategy<TAO_IIOP_Connection_Handler> TAO_IIOP_Acceptor::CONCURRENCY_STRATEGY

Definition at line 79 of file IIOP_Acceptor.h.

typedef TAO_Creation_Strategy<TAO_IIOP_Connection_Handler> TAO_IIOP_Acceptor::CREATION_STRATEGY

Definition at line 78 of file IIOP_Acceptor.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_IIOP_Acceptor::TAO_IIOP_Acceptor (  void   )

Constructor. Definition at line 32 of file IIOP_Acceptor.cpp. References INADDR_ANY, TAO_DEF_GIOP_MAJOR, and TAO_DEF_GIOP_MINOR. : TAO_Acceptor (IOP::TAG_INTERNET_IOP), addrs_ (0), port_span_ (1), hosts_ (0), hostname_in_ior_ (0), endpoint_count_ (0), version_ (TAO_DEF_GIOP_MAJOR, TAO_DEF_GIOP_MINOR), orb_core_ (0), reuse_addr_ (1), #if defined (ACE_HAS_IPV6) default_address_ (static_cast<unsigned short> (0), ACE_IPV6_ANY, AF_INET6), #else default_address_ (static_cast<unsigned short> (0), static_cast<ACE_UINT32> (INADDR_ANY)), #endif /* ACE_HAS_IPV6 */ base_acceptor_ (), creation_strategy_ (0), concurrency_strategy_ (0), accept_strategy_ (0) { }

TAO_IIOP_Acceptor::~TAO_IIOP_Acceptor (  void   )

Destructor. Definition at line 56 of file IIOP_Acceptor.cpp. References addrs_, close(), endpoint_count_, hostname_in_ior_, hosts_, and CORBA::string_free(). { // Make sure we are closed before we start destroying the // strategies. this->close (); delete this->creation_strategy_; delete this->concurrency_strategy_; delete this->accept_strategy_; delete [] this->addrs_; for (CORBA::ULong i = 0; i < this->endpoint_count_; ++i) CORBA::string_free (this->hosts_[i]); delete [] this->hosts_; delete [] this->hostname_in_ior_; }

---

Member Function Documentation

const ACE_INET_Addr& TAO_IIOP_Acceptor::address (  void   )  const

@ Helper method for the implementation repository, should go away

int TAO_IIOP_Acceptor::close (  void   )  [virtual]

Closes the acceptor. Implements TAO_Acceptor. Definition at line 260 of file IIOP_Acceptor.cpp. References base_acceptor_, and ACE_Acceptor< SVC_HANDLER, ACE_PEER_ACCEPTOR_2 >::close(). Referenced by ~TAO_IIOP_Acceptor(). { return this->base_acceptor_.close (); }

int TAO_IIOP_Acceptor::create_new_profile (  const TAO::ObjectKey &  object_key, TAO_MProfile &  mprofile, CORBA::Short  priority )  [protected]

Helper method to add a new profile to the mprofile for each endpoint. Definition at line 99 of file IIOP_Acceptor.cpp. References TAO_Profile::_decr_refcnt(), ACE_NEW_RETURN, addrs_, TAO_ORB_Core::codeset_manager(), TAO_IIOP_Profile::endpoint(), endpoint_count_, ACE_INET_Addr::get_port_number(), TAO_MProfile::give_profile(), TAO_MProfile::grow(), TAO_ORB_Core::orb_params(), TAO_Endpoint::priority(), TAO_MProfile::profile_count(), TAO_Codeset_Manager::set_codeset(), TAO_Tagged_Components::set_orb_type(), TAO_MProfile::size(), TAO_ORB_Parameters::std_profile_components(), ACE_OS::strcmp(), TAO_Profile::tagged_components(), TAO_ORB_TYPE, and version_. Referenced by create_profile(). { // Adding this->endpoint_count_ to the TAO_MProfile. int const count = mprofile.profile_count (); if ((mprofile.size () - count) < this->endpoint_count_ && mprofile.grow (count + this->endpoint_count_) == -1) return -1; // Create a profile for each acceptor endpoint. for (CORBA::ULong i = 0; i < this->endpoint_count_; ++i) { // Skip if the host name if (i > 0 && (this->addrs_[i].get_port_number() == this->addrs_[0].get_port_number()) && ACE_OS::strcmp(this->hosts_[i], this->hosts_[0]) == 0) continue; TAO_IIOP_Profile *pfile = 0; ACE_NEW_RETURN (pfile, TAO_IIOP_Profile (this->hosts_[i], this->addrs_[i].get_port_number (), object_key, this->addrs_[i], this->version_, this->orb_core_), -1); pfile->endpoint ()->priority (priority); if (mprofile.give_profile (pfile) == -1) { pfile->_decr_refcnt (); pfile = 0; return -1; } // Do not add any tagged components to the profile if configured // by the user not to do so, or if an IIOP 1.0 endpoint is being // created (IIOP 1.0 did not support tagged components). if (this->orb_core_->orb_params ()->std_profile_components () == 0 || (this->version_.major == 1 && this->version_.minor == 0)) continue; pfile->tagged_components ().set_orb_type (TAO_ORB_TYPE); TAO_Codeset_Manager *csm = this->orb_core_->codeset_manager(); if (csm) csm->set_codeset(pfile->tagged_components()); } return 0; }

int TAO_IIOP_Acceptor::create_profile (  const TAO::ObjectKey &  object_key, TAO_MProfile &  mprofile, CORBA::Short  priority )  [virtual]

Create the corresponding profile for this endpoint. If share_profile is set to true, the pluggable protocol implementation should try to add the endpoint to a profile in the mprofile that is of the same type. Currently, this is used when RT CORBA is enabled. Implements TAO_Acceptor. Definition at line 81 of file IIOP_Acceptor.cpp. References create_new_profile(), create_shared_profile(), endpoint_count_, TAO_ORB_Core::orb_params(), TAO_ORB_Parameters::shared_profile(), and TAO_INVALID_PRIORITY. { // Sanity check. if (this->endpoint_count_ == 0) return -1; // Check if multiple endpoints should be put in one profile or // if they should be spread across multiple profiles. if (priority == TAO_INVALID_PRIORITY && this->orb_core_->orb_params ()->shared_profile () == 0) return this->create_new_profile (object_key, mprofile, priority); else return this->create_shared_profile (object_key, mprofile, priority); }

int TAO_IIOP_Acceptor::create_shared_profile (  const TAO::ObjectKey &  object_key, TAO_MProfile &  mprofile, CORBA::Short  priority )  [protected]

Helper method to create a profile that contains all of our endpoints. Definition at line 154 of file IIOP_Acceptor.cpp. References TAO_Profile::_decr_refcnt(), ACE_NEW_RETURN, TAO_IIOP_Profile::add_endpoint(), addrs_, TAO_ORB_Core::codeset_manager(), TAO_IIOP_Profile::endpoint(), endpoint_count_, ACE_INET_Addr::get_port_number(), TAO_MProfile::get_profile(), TAO_MProfile::give_profile(), TAO_ORB_Core::orb_params(), TAO_Endpoint::priority(), TAO_MProfile::profile_count(), TAO_Codeset_Manager::set_codeset(), TAO_Tagged_Components::set_orb_type(), TAO_ORB_Parameters::std_profile_components(), ACE_OS::strcmp(), TAO_Profile::tag(), TAO_Profile::tagged_components(), TAO_ORB_TYPE, TAO_PHandle, and version_. Referenced by create_profile(). { CORBA::ULong index = 0; TAO_Profile *pfile = 0; TAO_IIOP_Profile *iiop_profile = 0; // First see if <mprofile> already contains a IIOP profile. for (TAO_PHandle i = 0; i != mprofile.profile_count (); ++i) { pfile = mprofile.get_profile (i); if (pfile->tag () == IOP::TAG_INTERNET_IOP) { iiop_profile = dynamic_cast<TAO_IIOP_Profile *> (pfile); break; } } // If <mprofile> doesn't contain a IIOP_Profile, we need to create // one. if (iiop_profile == 0) { ACE_NEW_RETURN (iiop_profile, TAO_IIOP_Profile (this->hosts_[0], this->addrs_[0].get_port_number (), object_key, this->addrs_[0], this->version_, this->orb_core_), -1); iiop_profile->endpoint ()->priority (priority); if (mprofile.give_profile (iiop_profile) == -1) { iiop_profile->_decr_refcnt (); iiop_profile = 0; return -1; } // Do not add any tagged components to the profile if configured // by the user not to do so, or if an IIOP 1.0 endpoint is being // created (IIOP 1.0 did not support tagged components). if (this->orb_core_->orb_params ()->std_profile_components () != 0 && (this->version_.major >= 1 && this->version_.minor >= 1)) { iiop_profile->tagged_components ().set_orb_type (TAO_ORB_TYPE); TAO_Codeset_Manager *csm = this->orb_core_->codeset_manager(); if (csm) csm->set_codeset(iiop_profile->tagged_components()); } index = 1; } // Add any remaining acceptor endpoints to the IIOP_Profile. for (; index < this->endpoint_count_; ++index) { if (index > 0 && this->addrs_[index].get_port_number() == this->addrs_[0].get_port_number() && ACE_OS::strcmp(this->hosts_[index], this->hosts_[0]) == 0) continue; TAO_IIOP_Endpoint *endpoint = 0; ACE_NEW_RETURN (endpoint, TAO_IIOP_Endpoint (this->hosts_[index], this->addrs_[index].get_port_number (), this->addrs_[index]), -1); endpoint->priority (priority); iiop_profile->add_endpoint (endpoint); } return 0; }

const ACE_INET_Addr& TAO_IIOP_Acceptor::default_address (  void   )  const

Returns address for default endpoint. Referenced by TAO_Acceptor_Registry::open_default(), and TAO_Acceptor_Registry::open_i().

int TAO_IIOP_Acceptor::dotted_decimal_address (  ACE_INET_Addr &  addr, char *&  host )  [protected]

Set the host name for the given address using the dotted decimal format. Definition at line 787 of file IIOP_Acceptor.cpp. References ACE_ERROR, ACE_TEXT, ACE_INET_Addr::get_host_addr(), ACE_INET_Addr::get_host_name(), ACE_INET_Addr::get_port_number(), ACE_Addr::get_type(), ACE_INET_Addr::is_any(), LM_ERROR, ACE_INET_Addr::set(), CORBA::string_dup(), and TAO_debug_level. Referenced by hostname(). { int result = 0; const char *tmp = 0; // If the IP address in the INET_Addr is the IN(6)ADDR_ANY address, // then force the actual IP address to be used by initializing a new // INET_Addr with the hostname from the original one. If that fails // then something is seriously wrong with the systems networking // setup. if (addr.is_any ()) { ACE_INET_Addr new_addr; #if defined (ACE_HAS_IPV6) result = new_addr.set (addr.get_port_number (), addr.get_host_name (), 1, /* encode */ addr.get_type ()); #else /* ACE_HAS_IPV6 */ result = new_addr.set (addr.get_port_number (), addr.get_host_name ()); #endif /* !ACE_HAS_IPV6 */ tmp = new_addr.get_host_addr (); } else tmp = addr.get_host_addr (); if (tmp == 0 || result != 0) { if (TAO_debug_level > 0) ACE_ERROR ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::dotted_decimal_address, ") ACE_TEXT ("- %p, "), ACE_TEXT ("cannot determine hostname\n"))); return -1; } host = CORBA::string_dup (tmp); return 0; }

CORBA::ULong TAO_IIOP_Acceptor::endpoint_count (  void   )  [virtual]

Returns the number of endpoints this acceptor is listening on. This is used for determining how many profiles will be generated for this acceptor. Implements TAO_Acceptor. Definition at line 1040 of file IIOP_Acceptor.cpp. References endpoint_count_. Referenced by TAO_IIOP_Transport::get_listen_point(). { return this->endpoint_count_; }

const ACE_INET_Addr* TAO_IIOP_Acceptor::endpoints (  void   )

Returns the array of endpoints in this acceptor. Referenced by TAO_IIOP_Transport::get_listen_point().

int TAO_IIOP_Acceptor::hostname (  TAO_ORB_Core *  orb_core, ACE_INET_Addr &  addr, char *&  host, const char *  specified_hostname = 0 )  [virtual]

Set the host name for the given addr. A hostname may be forced by using specified_hostname. This is useful if the given address corresponds to more than one hostname and the desired one cannot be determined in any other way. This method is used both when constructing IOR endpoints and LPL (listen point lists). The algorithm used is: If hostname_in_ior_ has been set, it is used "as is"; else if use_dotted_decimal_addresses_ is set, the text representaion of the IP is used; else if specified_hostname is given, it used "as is"; else a reverse (address to name) lookup is used to obtain the hostname or the IP if no reverse mapping exists. Definition at line 592 of file IIOP_Acceptor.cpp. References ACE_DEBUG, ACE_TEXT, dotted_decimal_address(), ACE_INET_Addr::get_host_name(), hostname_in_ior_, ACE_INET_Addr::is_ipv4_compat_ipv6(), LM_DEBUG, MAXHOSTNAMELEN, TAO_ORB_Core::orb_params(), CORBA::string_dup(), TAO_debug_level, and TAO_ORB_Parameters::use_dotted_decimal_addresses(). Referenced by TAO_IIOP_Transport::get_listen_point(), open(), and probe_interfaces(). { if (this->hostname_in_ior_ != 0) { if (TAO_debug_level >= 5) ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) IIOP_Acceptor - ") ACE_TEXT ("Overriding the hostname with <%s>\n"), this->hostname_in_ior_)); host = CORBA::string_dup (this->hostname_in_ior_); } else if (orb_core->orb_params ()->use_dotted_decimal_addresses ()) { // If dotted decimal addresses are enabled, // just return ours. return this->dotted_decimal_address (addr, host); } else if (specified_hostname != 0) { // If the user specified a hostname, pass it back // blindly as it overrides our choice of hostname. host = CORBA::string_dup (specified_hostname); } else { char tmp_host[MAXHOSTNAMELEN + 1]; // Get the hostname associated with our address #if defined (ACE_HAS_IPV6) // If we have a IPv4-compatible IPv6 address don't do hostname lookup // because that gets us into trouble. Most likely we get the same hostname // returned as for the actual IPv4 address but resolving that into an IPv6 // address at the client will fail. if (addr.is_ipv4_compat_ipv6 () || addr.get_host_name (tmp_host, sizeof (tmp_host)) != 0) #else /* ACE_HAS_IPV6 */ if (addr.get_host_name (tmp_host, sizeof (tmp_host)) != 0) #endif /* !ACE_HAS_IPV6 */ { // On failure, just return the decimal address. return this->dotted_decimal_address (addr, host); } else { host = CORBA::string_dup (tmp_host); } } return 0; }

int TAO_IIOP_Acceptor::is_collocated (  const TAO_Endpoint *  endpoint  )  [virtual]

Return 1 if the endpoint has the same address as the acceptor. Implements TAO_Acceptor. Definition at line 234 of file IIOP_Acceptor.cpp. References addrs_, endpoint_count_, ACE_INET_Addr::get_port_number(), TAO_IIOP_Endpoint::host(), hosts_, TAO_IIOP_Endpoint::port(), and ACE_OS::strcmp(). { const TAO_IIOP_Endpoint *endp = dynamic_cast<const TAO_IIOP_Endpoint *> (endpoint); // Make sure the dynamically cast pointer is valid. if (endp == 0) return 0; for (CORBA::ULong i = 0; i < this->endpoint_count_; ++i) { // compare the port and host name. Please do *NOT* optimize // this code by comparing the IP address instead. That would // trigger the following bug: // // http://deuce.doc.wustl.edu/bugzilla/show_bug.cgi?id=1220 // if (endp->port() == this->addrs_[i].get_port_number() && ACE_OS::strcmp(endp->host(), this->hosts_[i]) == 0) return 1; } return 0; }

int TAO_IIOP_Acceptor::object_key (  IOP::TaggedProfile &  profile, TAO::ObjectKey &  key )  [virtual]

This method fetches the key from the profile. Protocols that are pluggable can send data that are specific in the profile_data field encapsulated as a octet stream. This method allows those protocols to get the object key from the encapsulation. Implements TAO_Acceptor. Definition at line 1046 of file IIOP_Acceptor.cpp. References ACE_DEBUG, ACE_TEXT, LM_DEBUG, CORBA::Octet, TAO::String_var< charT >::out(), IOP::TaggedProfile::profile_data, ACE_InputCDR::read_octet(), ACE_InputCDR::read_string(), ACE_InputCDR::read_ushort(), CORBA::String_var, and TAO_debug_level. { // Create the decoding stream from the encapsulation in the buffer, #if (TAO_NO_COPY_OCTET_SEQUENCES == 1) TAO_InputCDR cdr (profile.profile_data.mb ()); #else TAO_InputCDR cdr (reinterpret_cast<char*> (profile.profile_data.get_buffer ()), profile.profile_data.length ()); #endif /* TAO_NO_COPY_OCTET_SEQUENCES == 1 */ CORBA::Octet major; CORBA::Octet minor = CORBA::Octet(); // Read the version. We just read it here. We don't*do any* // processing. if (!(cdr.read_octet (major) && cdr.read_octet (minor))) { if (TAO_debug_level > 0) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - TAO_IIOP_Acceptor::object_key, v%d.%d\n"), major, minor)); } return -1; } CORBA::String_var host; CORBA::UShort port = 0; // Get host and port. No processing here too.. if (cdr.read_string (host.out ()) == 0 || cdr.read_ushort (port) == 0) { if (TAO_debug_level > 0) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - TAO_IIOP_Acceptor::object_key, ") ACE_TEXT ("error while decoding host/port\n"))); } return -1; } // ... and object key. if ((cdr >> object_key) == 0) return -1; // We are NOT bothered about the rest. return 1; }

int TAO_IIOP_Acceptor::open (  TAO_ORB_Core *  orb_core, ACE_Reactor *  reactor, int  version_major, int  version_minor, const char *  address, const char *  options = 0 )  [virtual]

The TAO_Acceptor methods, check the documentation in Transport_Acceptor.h for details. Implements TAO_Acceptor. Definition at line 266 of file IIOP_Acceptor.cpp. References ACE_CString, ACE_DEBUG, ACE_ERROR_RETURN, ACE_NEW_RETURN, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, addrs_, AF_UNSPEC, TAO_ORB_Parameters::connect_ipv6_only(), endpoint_count_, ACE_INET_Addr::get_port_number(), ACE_Addr::get_type(), hostname(), hostname_in_ior_, hosts_, ACE_INET_Addr::is_ipv4_mapped_ipv6(), LM_DEBUG, LM_ERROR, open_i(), TAO_ORB_Core::orb_params(), parse_address(), parse_options(), probe_interfaces(), ACE_INET_Addr::set(), TAO_GIOP_Message_Version::set_version(), TAO_debug_level, and version_. { if (TAO_debug_level > 2) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::open, address==%s, options=%s\n"), address, options)); } this->orb_core_ = orb_core; if (this->hosts_ != 0) { // The hostname cache has already been set! // This is bad mojo, i.e. an internal TAO error. ACE_ERROR_RETURN ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::open, ") ACE_TEXT ("hostname already set\n\n")), -1); } if (address == 0) return -1; if (major >=0 && minor >= 0) this->version_.set_version (static_cast<CORBA::Octet> (major), static_cast<CORBA::Octet> (minor)); // Parse options if (this->parse_options (options) == -1) return -1; ACE_CString specified_hostname; ACE_INET_Addr addr; int def_type = AF_UNSPEC; if (this->parse_address (address, addr, specified_hostname, &def_type) == -1) return -1; if (specified_hostname.length() == 0) { // The address is a port number or port name. No hostname was // specified. The hostname for each network interface and the // fully qualified domain name must be obtained. // Check for multiple network interfaces. if (this->probe_interfaces (orb_core, def_type) == -1) return -1; // Probe interfaces has a side effect of potentially modifying // the default address, since that is where the address family // is considered. addr.set(this->default_address_); return this->open_i (addr, reactor); } #if defined (ACE_HAS_IPV6) // Check for violation of ORBConnectIPV6Only option if (this->orb_core_->orb_params ()->connect_ipv6_only () && (addr.get_type () != AF_INET6 || addr.is_ipv4_mapped_ipv6 ())) { ACE_ERROR_RETURN ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::open, ") ACE_TEXT ("non-IPv6 endpoints not allowed when ") ACE_TEXT ("connect_ipv6_only is set\n\n")), -1); } #endif /* ACE_HAS_IPV6 */ if (TAO_debug_level > 2) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::open, specified host=%s:%d\n"), (specified_hostname.length() == 0 ? "<null>" : specified_hostname.c_str()), addr.get_port_number ())); } this->endpoint_count_ = 1; // Only one hostname to store ACE_NEW_RETURN (this->addrs_, ACE_INET_Addr[this->endpoint_count_], -1); ACE_NEW_RETURN (this->hosts_, char *[this->endpoint_count_], -1); this->hosts_[0] = 0; if (this->hostname_in_ior_ != 0) { if (TAO_debug_level > 2) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::open, ") ACE_TEXT ("Overriding address in IOR with %s\n"), ACE_TEXT_CHAR_TO_TCHAR (this->hostname_in_ior_))); } specified_hostname = this->hostname_in_ior_; } if (this->hostname (orb_core, addr, this->hosts_[0], specified_hostname.c_str()) != 0) return -1; // Copy the addr. The port is (re)set in // TAO_IIOP_Acceptor::open_i(). if (this->addrs_[0].set (addr) != 0) return -1; return this->open_i (addr, reactor); }

int TAO_IIOP_Acceptor::open_default (  TAO_ORB_Core *  orb_core, ACE_Reactor *  reactor, int  version_major, int  version_minor, const char *  options = 0 )  [virtual]

Open an acceptor with the given protocol version on a default endpoint Implements TAO_Acceptor. Definition at line 397 of file IIOP_Acceptor.cpp. References ACE_ERROR_RETURN, ACE_TEXT, hosts_, LM_ERROR, open_i(), parse_options(), probe_interfaces(), ACE_INET_Addr::set(), TAO_GIOP_Message_Version::set_version(), and version_. { this->orb_core_ = orb_core; if (this->hosts_ != 0) { // The hostname cache has already been set! // This is bad mojo, i.e. an internal TAO error. ACE_ERROR_RETURN ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::open_default, ") ACE_TEXT ("hostname already set\n\n")), -1); } if (major >= 0 && minor >= 0) this->version_.set_version (static_cast<CORBA::Octet> (major), static_cast<CORBA::Octet> (minor)); // Parse options if (this->parse_options (options) == -1) return -1; // Check for multiple network interfaces. if (this->probe_interfaces (orb_core) == -1) return -1; // Now that each network interface's hostname has been cached, open // an endpoint on each network interface using the INADDR_ANY // address. ACE_INET_Addr addr; if (addr.set (this->default_address_) != 0) return -1; return this->open_i (addr, reactor); }

int TAO_IIOP_Acceptor::open_i (  const ACE_INET_Addr &  addr, ACE_Reactor *  reactor )  [protected, virtual]

Implement the common part of the open*() methods. This method is virtual to allow a derived class implementation to be invoked instead. Definition at line 440 of file IIOP_Acceptor.cpp. References ACE_Strategy_Acceptor< SVC_HANDLER, >::acceptor(), ACE_CLOEXEC, ACE_DEBUG, ACE_ERROR, ACE_MAX_DEFAULT_PORT, ACE_NEW_RETURN, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, addrs_, base_acceptor_, TAO_ORB_Parameters::connect_ipv6_only(), default_address_, endpoint_count_, ACE_INET_Addr::get_port_number(), ACE_INET_Addr::is_any(), LM_DEBUG, LM_ERROR, ACE_Strategy_Acceptor< SVC_HANDLER, >::open(), TAO_ORB_Core::orb_params(), port_span_, ACE_INET_Addr::set_port_number(), and TAO_debug_level. Referenced by open(), and open_default(). { ACE_NEW_RETURN (this->creation_strategy_, CREATION_STRATEGY (this->orb_core_), -1); ACE_NEW_RETURN (this->concurrency_strategy_, CONCURRENCY_STRATEGY (this->orb_core_), -1); ACE_NEW_RETURN (this->accept_strategy_, ACCEPT_STRATEGY (this->orb_core_), -1); unsigned short requested_port = addr.get_port_number (); if (requested_port == 0) { // don't care, i.e., let the OS choose an ephemeral port if (this->base_acceptor_.open (addr, reactor, this->creation_strategy_, this->accept_strategy_, this->concurrency_strategy_, 0, 0, 0, 1, this->reuse_addr_) == -1) { if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - IIOP_Acceptor::open_i, ") ACE_TEXT ("%p, "), ACE_TEXT ("cannot open acceptor\n"))); return -1; } } else { ACE_INET_Addr a(addr); bool found_a_port = false; ACE_UINT32 last_port = requested_port + this->port_span_ - 1; if (last_port > ACE_MAX_DEFAULT_PORT) { last_port = ACE_MAX_DEFAULT_PORT; } for (ACE_UINT32 p = requested_port; p <= last_port; p++) { if (TAO_debug_level > 5) ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - IIOP_Acceptor::open_i, ") ACE_TEXT ("trying to listen on port %d\n"), p)); // Now try to actually open on that port a.set_port_number ((u_short)p); if (this->base_acceptor_.open (a, reactor, this->creation_strategy_, this->accept_strategy_, this->concurrency_strategy_, 0, 0, 0, 1, this->reuse_addr_) != -1) { found_a_port = true; break; } } // Now, if we couldn't locate a port, we punt if (! found_a_port) { if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - IIOP_Acceptor::open_i, ") ACE_TEXT ("cannot open acceptor in port range (%d,%d)") ACE_TEXT ("- %p\n"), requested_port, last_port, ACE_TEXT(""))); return -1; } } #if defined (ACE_HAS_IPV6) && defined (ACE_HAS_IPV6_V6ONLY) // Check if need to prevent this acceptor from accepting connections // from IPv4 mapped IPv6 addresses if (this->orb_core_->orb_params ()->connect_ipv6_only () && addr.is_any ()) { if (TAO_debug_level > 5) ACE_DEBUG ((LM_DEBUG, ACE_TEXT("TAO (%P|%t) - IIOP_Acceptor::open_i, ") ACE_TEXT("setting IPV6_V6ONLY\n"))); // Prevent server from accepting connections from IPv4-mapped addresses. int on = 1; if (this->base_acceptor_.acceptor ().set_option (IPPROTO_IPV6, IPV6_V6ONLY, (void *) &on, sizeof (on)) == -1) { ACE_ERROR ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - IIOP_Acceptor::open_i, ") ACE_TEXT ("%p\n"), ACE_TEXT ("cannot set IPV6_V6ONLY"))); } } #endif /* ACE_HAS_IPV6 && ACE_HAS_IPV6_V6ONLY */ ACE_INET_Addr address; // We do this make sure the port number the endpoint is listening on // gets set in the addr. if (this->base_acceptor_.acceptor ().get_local_addr (address) != 0) { if (TAO_debug_level > 0) ACE_ERROR ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - IIOP_Acceptor::open_i, ") ACE_TEXT ("%p"), ACE_TEXT ("cannot get local addr\n"))); return -1; } // Set the port for each addr. If there is more than one network // interface then the endpoint created on each interface will be on // the same port. This is how a wildcard socket bind() is supposed // to work. unsigned short port = address.get_port_number (); for (CORBA::ULong j = 0; j < this->endpoint_count_; ++j) this->addrs_[j].set_port_number (port, 1); this->default_address_.set_port_number (port); (void) this->base_acceptor_.acceptor().enable (ACE_CLOEXEC); // This avoids having child processes acquire the listen socket thereby // denying the server the opportunity to restart on a well-known endpoint. // This does not affect the aberrent behavior on Win32 platforms. if (TAO_debug_level > 5) { for (CORBA::ULong i = 0; i < this->endpoint_count_; ++i) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - IIOP_Acceptor::open_i, ") ACE_TEXT ("listening on: <%s:%u>\n"), ACE_TEXT_CHAR_TO_TCHAR(this->hosts_[i]), this->addrs_[i].get_port_number ())); } } return 0; }

int TAO_IIOP_Acceptor::parse_address (  const char *  address, ACE_INET_Addr &  addr, ACE_CString &  specified_hostname, int *  def_type = 0 )  [protected]

Helper method Clear out 'addr' & 'specified_hostname' and initialize them based upon 'address'. If a non-zero pointer is passed in for def_type, this will be set to AF_INET6 if IPv6 support is enabled and supplied hostname is either [] or [::]. It will be set to AF_INET if the hostname is 0.0.0.0, otherwise it is set to AF_UNSPEC. This value is then passed to probe_interfaces by open. Definition at line 649 of file IIOP_Acceptor.cpp. References ACE_ERROR_RETURN, ACE_TEXT, AF_INET, AF_UNSPEC, ACE_OS::atoi(), default_address_, ACE_INET_Addr::is_any(), LM_ERROR, TAO_GIOP_Message_Version::major, MAXHOSTNAMELEN, ACE_OS::memcpy(), TAO_GIOP_Message_Version::minor, ACE_INET_Addr::set(), ACE_INET_Addr::set_port_number(), ACE_OS::strchr(), ACE_OS::strcpy(), TAO_MIN_IPV6_IIOP_MAJOR, TAO_MIN_IPV6_IIOP_MINOR, and version_. Referenced by open(). { { ACE_INET_Addr tmp; addr.set (tmp); specified_hostname.clear(); } const char *port_separator_loc = ACE_OS::strchr (address, ':'); char tmp_host[MAXHOSTNAMELEN + 1]; tmp_host[0] = '\0'; bool host_defaulted = port_separator_loc == address; bool ipv6_in_host = false; if (def_type) *def_type = AF_UNSPEC; #if defined (ACE_HAS_IPV6) // Check if this is a (possibly) IPv6 supporting profile containing a // numeric IPv6 address representation. if ((this->version_.major > TAO_MIN_IPV6_IIOP_MAJOR || this->version_.minor >= TAO_MIN_IPV6_IIOP_MINOR) && address[0] == '[') { // In this case we have to find the end of the numeric address and // start looking for the port separator from there. char const * const cp_pos = ACE_OS::strchr (address, ']'); if (cp_pos == 0) { // No valid IPv6 address specified. ACE_ERROR_RETURN ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - ") ACE_TEXT ("IIOP_Acceptor::open, ") ACE_TEXT ("Invalid IPv6 decimal address specified\n\n")), -1); } else { // Extract out just the host part of the address. size_t const len = cp_pos - (address + 1); if (len >= sizeof (tmp_host)) return -1; ipv6_in_host = true; host_defaulted = (cp_pos == address+1) || (cp_pos == address+3 && address[1] == ':' && address[2] == ':'); if (cp_pos[1] == ':') // Look for a port port_separator_loc = cp_pos + 1; else port_separator_loc = 0; if (def_type) *def_type = AF_INET6; ACE_OS::memcpy (tmp_host, address + 1, len); tmp_host[len] = '\0'; } } else #endif /* ACE_HAS_IPV6 */ if (!host_defaulted) { if (port_separator_loc != 0) { // Extract out just the host part of the address. size_t const len = port_separator_loc - address; if (len >= sizeof (tmp_host)) return -1; ACE_OS::memcpy (tmp_host, address, len); tmp_host[len] = '\0'; } else ACE_OS::strcpy (tmp_host, address); } if (!ipv6_in_host && !host_defaulted) { if (addr.set((unsigned short)0,tmp_host) != 0) return -1; this->default_address_.set(addr); host_defaulted = addr.is_any(); if (def_type) *def_type = AF_INET; } if (host_defaulted) { // First convert the port into a usable form. unsigned short portno = 0; if (port_separator_loc != 0) { portno = static_cast<u_short> (ACE_OS::atoi (port_separator_loc + sizeof (':'))); } this->default_address_.set_port_number (portno); // Now reset the port and set the host. if (addr.set (this->default_address_) != 0) return -1; } else if (port_separator_loc == 0) { // The address is a hostname. No port was specified, so assume // port zero (port will be chosen for us). specified_hostname = tmp_host[0] == '\0' ? address : tmp_host; if (addr.set ((unsigned short) 0, specified_hostname.c_str()) != 0) return -1; } else { // Host and port were specified. if (addr.set (address) != 0) return -1; if (tmp_host[0] == '\0') { // Extract out just the host part of the address. size_t const len = port_separator_loc - address; if (len >= sizeof (tmp_host)) return -1; ACE_OS::memcpy (tmp_host, address, len); tmp_host[len] = '\0'; } specified_hostname = tmp_host; } return 1; }

int TAO_IIOP_Acceptor::parse_options (  const char *  options  )  [protected]

Parse protocol specific options. Currently supported: portspan -- specifies the range of ports over which the acceptor should scan looking for a free port (this is convenient for situations where you might normally use an ephemeral port but can't because you're behind a firewall and don't want to permit passage on all ephemeral ports) Definition at line 1101 of file IIOP_Acceptor.cpp. References ACE_CString, ACE_ERROR, ACE_NEW_RETURN, ACE_TEXT, LM_ERROR, and parse_options_i(). Referenced by open(), and open_default(). { if (str == 0) return 0; // No options to parse. Not a problem. // Use an option format similar to the one used for CGI scripts in // HTTP URLs. // e.g.: option1=foo&option2=bar const ACE_CString options (str); const size_t len = options.length (); static const char option_delimiter = '&'; // Count the number of options. int argc = 1; for (size_t i = 0; i < len; ++i) if (options[i] == option_delimiter) argc++; // The idea behind the following loop is to split the options into // (option, name) pairs. // For example, // `option1=foo&option2=bar' // will be parsed into: // `option1=foo' // `option2=bar' ACE_CString *argv_base = 0; ACE_NEW_RETURN (argv_base, ACE_CString[argc],-1); ACE_CString **argv = 0; ACE_NEW_RETURN (argv, ACE_CString*[argc],-1); ACE_CString::size_type begin = 0; ACE_CString::size_type end = 0; int result = 0; for (int j = 0; j < argc; ++j) { if (j < argc - 1) end = options.find (option_delimiter, begin); else end = len; if (end == begin) { ACE_ERROR ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - Zero length IIOP option.\n"))); result = -1; break; } else if (end != options.npos) { argv_base[j] = options.substring (begin, end - begin); argv[j] = &argv_base[j]; begin = end + 1; } else { break; // No other options. } } if (result == 0) result = this->parse_options_i (argc,argv); if (argc > 0) { ACE_ERROR ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - IIOP") ACE_TEXT (" endpoint has %d unknown options:\n"), argc)); for (int i = 0; i < argc; i++) ACE_ERROR ((LM_ERROR, ACE_TEXT("\t%s\n"), argv[i]->c_str())); result = -1; } delete [] argv; delete [] argv_base; return result; }

int TAO_IIOP_Acceptor::parse_options_i (  int &  argc, ACE_CString **  argv )  [protected, virtual]

Parse options splits the options list in to an argv array. This allows manipulation of the list in a manner similar to orb_init. By moving the consumed args to the tail of the list and reducing the argc count, the base parse_options_i can be called by derived parse_options_i. Method returns -1 if an ill-formed or otherwise bogus arg is encountered. The only strictly bogus arg was priority, which was a holdover from the early RT IIOP implementations. an ill-formed option is one which is missing an equal sign or something to the left of it. Definition at line 1186 of file IIOP_Acceptor.cpp. References ACE_CString, ACE_ERROR_RETURN, ACE_MAX_DEFAULT_PORT, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, ACE_OS::atoi(), hostname_in_ior_, LM_ERROR, and port_span_. Referenced by parse_options(). { int i = 0; while (i < argc) { ACE_CString::size_type const len = argv[i]->length (); ACE_CString::size_type const slot = argv[i]->find ('='); if (slot == len - 1 || slot == ACE_CString::npos) ACE_ERROR_RETURN ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - IIOP option <%s> is ") ACE_TEXT ("missing a value.\n"), ACE_TEXT_CHAR_TO_TCHAR(argv[i]->c_str ())), -1); ACE_CString name = argv[i]->substring (0, slot); ACE_CString value = argv[i]->substring (slot + 1); if (name.length () == 0) ACE_ERROR_RETURN ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) Zero length IIOP ") ACE_TEXT ("option name.\n")), -1); if (name == "portspan") { int range = static_cast <int> (ACE_OS::atoi (value.c_str ())); // @@ What's the lower bound on the range? zero, or one? if (range < 1 || range > ACE_MAX_DEFAULT_PORT) ACE_ERROR_RETURN ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) Invalid IIOP endpoint ") ACE_TEXT ("portspan: <%s>\n") ACE_TEXT ("Valid range 1 -- %d\n"), value.c_str (), ACE_MAX_DEFAULT_PORT), -1); this->port_span_ = static_cast <u_short> (range); } else if (name == "hostname_in_ior") { this->hostname_in_ior_ = value.rep (); } else if (name == "reuse_addr") { this->reuse_addr_ = ACE_OS::atoi (value.c_str ()); } else { // the name is not known, skip to the next option ++i; continue; } // at the end, we've consumed this argument. Shift the list and // put this one on the end. This technique has the effect of // putting them in reverse order, but that doesn't matter, since // these arguments are only whole strings. --argc; ACE_CString *temp = argv[i]; for (int j = i; j <= argc-1; ++j) argv[j] = argv[j+1]; argv[argc] = temp; } return 0; }

int TAO_IIOP_Acceptor::probe_interfaces (  TAO_ORB_Core *  orb_core, int  def_type = AF_UNSPEC )  [protected]

Probe the system for available network interfaces, and initialize the array with an ACE_INET_Addr for each network interface. The port for each initialized ACE_INET_Addr will be set in the open_i() method. This method only gets invoked when no explicit hostname is provided in the specified endpoint. The optional argument def_type is used to constrain the resulting list of interfaces to be either only IPv6 or IPv4, or both, when ACE_HAS_IPV6 is enabled and the source endpoint was an explicitly declared wildcard. Definition at line 831 of file IIOP_Acceptor.cpp. References ACE_DEBUG, ACE_NEW_RETURN, ACE_TEXT, addrs_, AF_INET, TAO_ORB_Parameters::connect_ipv6_only(), default_address_, endpoint_count_, ENOTSUP, ACE::get_ip_interfaces(), ACE_Addr::get_type(), hostname(), ACE_INET_Addr::is_ipv4_mapped_ipv6(), ACE_INET_Addr::is_linklocal(), ACE_INET_Addr::is_loopback(), LM_DEBUG, LM_WARNING, ACE_OS::memset(), TAO_ORB_Core::orb_params(), ACE_INET_Addr::set(), TAO_debug_level, and TAO_ORB_Parameters::use_ipv6_link_local(). Referenced by open(), and open_default(). { // Extract the hostname for each network interface, and then cache // it. The hostnames will then be used when creating a // TAO_IIOP_Profile for each endpoint setup on the probed // network interfaces. ACE_INET_Addr *if_addrs = 0; size_t if_cnt = 0; if (ACE::get_ip_interfaces (if_cnt, if_addrs) != 0 && errno != ENOTSUP) { // In the case where errno == ENOTSUP, if_cnt and if_addrs will // not be modified, and will each remain equal to zero. This // causes the default interface to be used. return -1; } if (if_cnt == 0 || if_addrs == 0) { if (TAO_debug_level > 0) { ACE_DEBUG ((LM_WARNING, ACE_TEXT ("TAO (%P|%t) - Unable to probe network ") ACE_TEXT ("interfaces. Using default.\n"))); } if_cnt = 1; // Force the network interface count to be one. delete [] if_addrs; ACE_NEW_RETURN (if_addrs, ACE_INET_Addr[if_cnt], -1); } // Scan for the loopback interface since it shouldn't be included in // the list of cached hostnames unless it is the only interface. size_t lo_cnt = 0; // Loopback interface count for (size_t j = 0; j < if_cnt; ++j) if (if_addrs[j].is_loopback ()) ++lo_cnt; #if defined (ACE_HAS_IPV6) size_t ipv4_cnt = 0; size_t ipv4_lo_cnt = 0; size_t ipv6_ll = 0; bool ipv6_non_ll = false; // Scan for IPv4 interfaces since these should not be included // when IPv6-only is selected. for (size_t j = 0; j < if_cnt; ++j) if (if_addrs[j].get_type () != AF_INET6 || if_addrs[j].is_ipv4_mapped_ipv6 ()) { ++ipv4_cnt; if (if_addrs[j].is_loopback ()) ++ipv4_lo_cnt; // keep track of IPv4 loopback ifs } else if (!if_addrs[j].is_linklocal () && !if_addrs[j].is_loopback()) { ipv6_non_ll = true; // we have at least 1 non-local IPv6 if } else if (!orb_core->orb_params ()->use_ipv6_link_local () && if_addrs[j].is_linklocal ()) { ++ipv6_ll; // count link local addrs to exclude them afterwards } #endif /* ACE_HAS_IPV6 */ // The instantiation for this template is in // tao/IIOP_Connector.cpp. ACE_Auto_Basic_Array_Ptr<ACE_INET_Addr> safe_if_addrs (if_addrs); #if defined (ACE_HAS_IPV6) bool ipv4_only = def_type == AF_INET; bool ipv6_only = (def_type == AF_INET6) || orb_core->orb_params ()->connect_ipv6_only (); #if defined (ACE_WIN32) if (this->default_address_.get_type () == AF_INET) ipv4_only = true; else ipv6_only = true; #endif /* ACE_WIN32 */ // If the loopback interface is the only interface then include it // in the list of interfaces to query for a hostname, otherwise // exclude it from the list. bool ignore_lo; if (ipv6_only) // only exclude loopback if non-local if exists ignore_lo = ipv6_non_ll; else if (ipv4_only) ignore_lo = ipv4_cnt != ipv4_lo_cnt; else ignore_lo = if_cnt != lo_cnt; // Adjust counts for IPv6 only if required size_t if_ok_cnt = if_cnt; if (ipv6_only) { if_ok_cnt -= ipv4_cnt; lo_cnt -= ipv4_lo_cnt; ipv4_lo_cnt = 0; } else if (ipv4_only) { if_ok_cnt = ipv4_cnt; lo_cnt = ipv4_lo_cnt; ipv6_ll = 0; } // In case there are no non-local IPv6 ifs in the list only exclude // IPv4 loopback. // IPv6 loopback will be needed to successfully connect IPv6 clients // in a localhost environment. if (!ipv4_only && !ipv6_non_ll) lo_cnt = ipv4_lo_cnt; if (!ignore_lo) this->endpoint_count_ = static_cast<CORBA::ULong> (if_ok_cnt - ipv6_ll); else this->endpoint_count_ = static_cast<CORBA::ULong> (if_ok_cnt - ipv6_ll - lo_cnt); #else /* ACE_HAS_IPV6 */ // If the loopback interface is the only interface then include it // in the list of interfaces to query for a hostname, otherwise // exclude it from the list. bool ignore_lo; ignore_lo = if_cnt != lo_cnt; if (!ignore_lo) this->endpoint_count_ = static_cast<CORBA::ULong> (if_cnt); else this->endpoint_count_ = static_cast<CORBA::ULong> (if_cnt - lo_cnt); #endif /* !ACE_HAS_IPV6 */ if (this->endpoint_count_ == 0) { if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG, ACE_TEXT("(%P|%t) TAO_IIOP_Acceptor::probe_interfaces ") ACE_TEXT("found no usable addresses, def_type = %d\n"), def_type)); return -1; } ACE_NEW_RETURN (this->addrs_, ACE_INET_Addr[this->endpoint_count_], -1); ACE_NEW_RETURN (this->hosts_, char *[this->endpoint_count_], -1); ACE_OS::memset (this->hosts_, 0, sizeof (char*) * this->endpoint_count_); // The number of hosts/interfaces we want to cache may not be the // same as the number of detected interfaces so keep a separate // count. size_t host_cnt = 0; for (size_t i = 0; i < if_cnt; ++i) { #if defined (ACE_HAS_IPV6) // Ignore any loopback interface if there are other // non-loopback interfaces. if (ignore_lo && if_addrs[i].is_loopback () && (ipv4_only || ipv6_non_ll || if_addrs[i].get_type () != AF_INET6)) continue; // Ignore any non-IPv4 interfaces when so required. if (ipv4_only && (if_addrs[i].get_type () != AF_INET)) continue; // Ignore any non-IPv6 interfaces when so required. if (ipv6_only && (if_addrs[i].get_type () != AF_INET6 || if_addrs[i].is_ipv4_mapped_ipv6 ())) continue; // Ignore all IPv6 link local interfaces when so required. if (!orb_core->orb_params ()->use_ipv6_link_local () && if_addrs[i].is_linklocal ()) continue; #else /* ACE_HAS_IPV6 */ // Ignore any loopback interface if there are other // non-loopback interfaces. if (ignore_lo && if_addrs[i].is_loopback ()) continue; #endif /* !ACE_HAS_IPV6 */ if (this->hostname (orb_core, if_addrs[i], this->hosts_[host_cnt]) != 0) return -1; // Copy the addr. The port is (re)set in // TAO_IIOP_Acceptor::open_i(). if (this->addrs_[host_cnt].set (if_addrs[i]) != 0) return -1; ++host_cnt; } return 0; }

void TAO_IIOP_Acceptor::set_default_address (  const ACE_INET_Addr &  addr  )

Set address for default endpoint. Referenced by TAO_Acceptor_Registry::open_default(), and TAO_Acceptor_Registry::open_i().

---

Member Data Documentation

ACCEPT_STRATEGY* TAO_IIOP_Acceptor::accept_strategy_ [private]

Definition at line 272 of file IIOP_Acceptor.h.

ACE_INET_Addr* TAO_IIOP_Acceptor::addrs_ [protected]

Array of ACE_INET_Addr instances, each one corresponding to a given network interface. Definition at line 221 of file IIOP_Acceptor.h. Referenced by create_new_profile(), create_shared_profile(), is_collocated(), open(), open_i(), probe_interfaces(), and ~TAO_IIOP_Acceptor().

BASE_ACCEPTOR TAO_IIOP_Acceptor::base_acceptor_ [private]

The concrete acceptor, as a pointer to it's base class. Definition at line 267 of file IIOP_Acceptor.h. Referenced by close(), and open_i().

CONCURRENCY_STRATEGY* TAO_IIOP_Acceptor::concurrency_strategy_ [private]

Definition at line 271 of file IIOP_Acceptor.h.

CREATION_STRATEGY* TAO_IIOP_Acceptor::creation_strategy_ [private]

Acceptor strategies. Definition at line 270 of file IIOP_Acceptor.h.

ACE_INET_Addr TAO_IIOP_Acceptor::default_address_ [protected]

Address for default endpoint. Definition at line 262 of file IIOP_Acceptor.h. Referenced by open_i(), parse_address(), and probe_interfaces().

CORBA::ULong TAO_IIOP_Acceptor::endpoint_count_ [protected]

The number of host names cached in the hosts_ array (equivalent to the number of endpoints opened by this Acceptor). Definition at line 246 of file IIOP_Acceptor.h. Referenced by create_new_profile(), create_profile(), create_shared_profile(), endpoint_count(), is_collocated(), open(), open_i(), probe_interfaces(), and ~TAO_IIOP_Acceptor().

char* TAO_IIOP_Acceptor::hostname_in_ior_ [protected]

Override the hostname used in the ORBEndPoint. Definition at line 242 of file IIOP_Acceptor.h. Referenced by hostname(), open(), parse_options_i(), and ~TAO_IIOP_Acceptor().

char** TAO_IIOP_Acceptor::hosts_ [protected]

Cache the information about the endpoints serviced by this acceptor. There may in fact be multiple hostnames for this endpoint. For example, if the IP address is INADDR_ANY (0.0.0.0) then there will be possibly a different hostname for each interface. Definition at line 237 of file IIOP_Acceptor.h. Referenced by is_collocated(), open(), open_default(), and ~TAO_IIOP_Acceptor().

TAO_ORB_Core* TAO_IIOP_Acceptor::orb_core_ [protected]

ORB Core. Definition at line 256 of file IIOP_Acceptor.h.

unsigned short TAO_IIOP_Acceptor::port_span_ [protected]

The number of ports over which the acceptor should search (starting at the port specified in each element of addrs_) for an available port. This is specified via the "portspan=" option to the endpoint. Definition at line 228 of file IIOP_Acceptor.h. Referenced by open_i(), and parse_options_i().

int TAO_IIOP_Acceptor::reuse_addr_ [protected]

Enable socket option SO_REUSEADDR to be set. Definition at line 259 of file IIOP_Acceptor.h.

TAO_GIOP_Message_Version TAO_IIOP_Acceptor::version_ [protected]

The GIOP version for this endpoint @ Theoretically they shouldn't be here!! We need to look at a way to move this out Definition at line 253 of file IIOP_Acceptor.h. Referenced by create_new_profile(), create_shared_profile(), open(), open_default(), and parse_address().

---

The documentation for this class was generated from the following files:

• IIOP_Acceptor.h
• IIOP_Acceptor.cpp

---
