Timeprobe.h File Reference

#include "ace/config-lite.h"
#include "ace/Malloc_Allocator.h"
#include "ace/OS_NS_time.h"
#include "ace/OS_NS_Thread.h"
#include "ace/Timeprobe.inl"
#include "ace/Synch_Traits.h"
#include "ace/Null_Mutex.h"
#include "ace/Singleton.h"
#include "ace/Timeprobe_T.h"

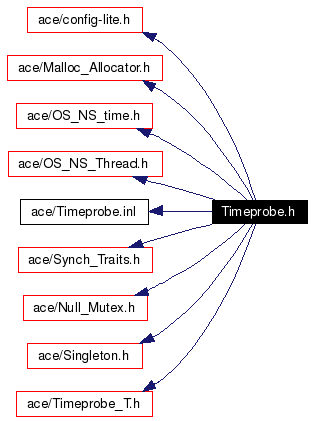

Include dependency graph for Timeprobe.h:

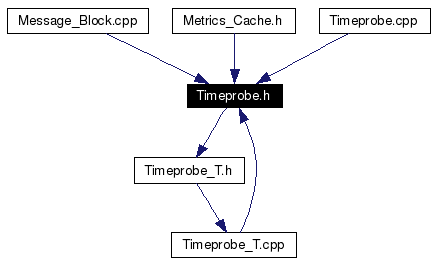

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ACE_Event_Descriptions
	Event Descriptions. More...
class	ACE_timeprobe_t
	Time probe record. More...
union	ACE_timeprobe_t::event
	Events are record as strings or numbers. More...
Defines
#define	ACE_TIMEPROBE_SINGLETON_TYPE   ACE_Singleton
#define	ACE_TIMEPROBE_SINGLETON_LOCK_TYPE   ACE_SYNCH_MUTEX
#define	ACE_TIMEPROBE_RESET
#define	ACE_TIMEPROBE(id)
#define	ACE_TIMEPROBE_PRINT
#define	ACE_TIMEPROBE_PRINT_ABSOLUTE
#define	ACE_TIMEPROBE_EVENT_DESCRIPTIONS(descriptions, minimum_id)
#define	ACE_FUNCTION_TIMEPROBE(X)
Typedefs
typedef ACE_New_Allocator	ACE_TIMEPROBE_ALLOCATOR
typedef ACE_Timeprobe_Ex< ACE_TIMEPROBE_MUTEX, ACE_TIMEPROBE_ALLOCATOR >	ACE_TIMEPROBE_WITH_LOCKING
Functions
	ACE_SINGLETON_DECLARE (ACE_TIMEPROBE_SINGLETON_TYPE,\ACE_TIMEPROBE_WITH_LOCKING,\ACE_TIMEPROBE_SINGLETON_LOCK_TYPE) typedef ACE_TIMEPROBE_SINGLETON_TYPE< ACE_TIMEPROBE_WITH_LOCKING
Variables
ACE_END_VERSIONED_NAMESPACE_DECL ACE_BEGIN_VERSIONED_NAMESPACE_DECL typedef ACE_SYNCH_NULL_MUTEX	ACE_TIMEPROBE_MUTEX
ACE_TIMEPROBE_SINGLETON_LOCK_TYPE	ACE_TIMEPROBE_SINGLETON

---

Detailed Description

Id

Timeprobe.h 78047 2007-04-16 23:05:00Z shuston

Author:

Irfan Pyarali

If users want to use time probes, the ACE_COMPILE_TIMEPROBES flag must be defined when compiling ACE. This can be achieved by doing one of the following:

. Use make probe = 1, if you are using the make utility.

. Define ACE_COMPILE_TIMEPROBES in config.h

. Define ACE_COMPILE_TIMEPROBES in the VC project file.

. Other regular methods will also work.

It is not necessary to define ACE_COMPILE_TIMEPROBES when using time probes, you simply need ACE_ENABLE_TIMEPROBES. You can use the ACE_TIMEPROBE_* macros to program the time probes, and use the ACE_ENABLE_TIMEPROBE to enable the time probes. If you define ACE_ENABLE_TIMEPROBE in your code, but forget to compile ACE with ACE_COMPILE_TIMEPROBES, you will end up with linker errors.

Remember that ACE_COMPILE_TIMEPROBES means that the ACE library will contain code for time probes. This is only useful when compiling ACE. ACE_ENABLE_TIMEPROBES means that the ACE_TIMEPROBE_* macros should spring to life.

Definition in file Timeprobe.h.

---

Define Documentation

#define ACE_FUNCTION_TIMEPROBE (  X   )

Definition at line 197 of file Timeprobe.h. Referenced by ACE_Data_Block::ACE_Data_Block(), ACE_Data_Block::clone_nocopy(), and ACE_Message_Block::init_i().

#define ACE_TIMEPROBE (  id   )

Definition at line 193 of file Timeprobe.h. Referenced by ACE_Message_Block::init_i().

#define ACE_TIMEPROBE_EVENT_DESCRIPTIONS (  descriptions, minimum_id   )

Definition at line 196 of file Timeprobe.h.

#define ACE_TIMEPROBE_PRINT

Definition at line 194 of file Timeprobe.h.

#define ACE_TIMEPROBE_PRINT_ABSOLUTE

Definition at line 195 of file Timeprobe.h.

#define ACE_TIMEPROBE_RESET

Definition at line 192 of file Timeprobe.h.

#define ACE_TIMEPROBE_SINGLETON_LOCK_TYPE   ACE_SYNCH_MUTEX

Definition at line 154 of file Timeprobe.h.

#define ACE_TIMEPROBE_SINGLETON_TYPE   ACE_Singleton

Definition at line 153 of file Timeprobe.h.

---

Typedef Documentation

typedef ACE_New_Allocator ACE_TIMEPROBE_ALLOCATOR

Definition at line 139 of file Timeprobe.h.

typedef ACE_Timeprobe_Ex<ACE_TIMEPROBE_MUTEX, ACE_TIMEPROBE_ALLOCATOR> ACE_TIMEPROBE_WITH_LOCKING

Definition at line 142 of file Timeprobe.h.

---

Function Documentation

ACE_SINGLETON_DECLARE (  ACE_TIMEPROBE_SINGLETON_TYPE  , \  ACE_TIMEPROBE_WITH_LOCKING, \  ACE_TIMEPROBE_SINGLETON_LOCK_TYPE )

---

Variable Documentation

ACE_END_VERSIONED_NAMESPACE_DECL ACE_BEGIN_VERSIONED_NAMESPACE_DECL typedef ACE_SYNCH_NULL_MUTEX ACE_TIMEPROBE_MUTEX

Definition at line 136 of file Timeprobe.h.

ACE_TIMEPROBE_SINGLETON_LOCK_TYPE ACE_TIMEPROBE_SINGLETON

Definition at line 162 of file Timeprobe.h.

---
