ACE_Buffered_Svc_Handler<, > Class Template Reference

Defines the interface for a service that exchanges data with its connected peer and supports buffering. More...

#include <Svc_Handler.h>

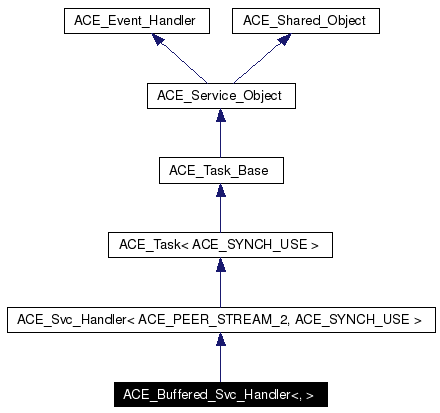

Inheritance diagram for ACE_Buffered_Svc_Handler<, >:

Inheritance graph
[legend]

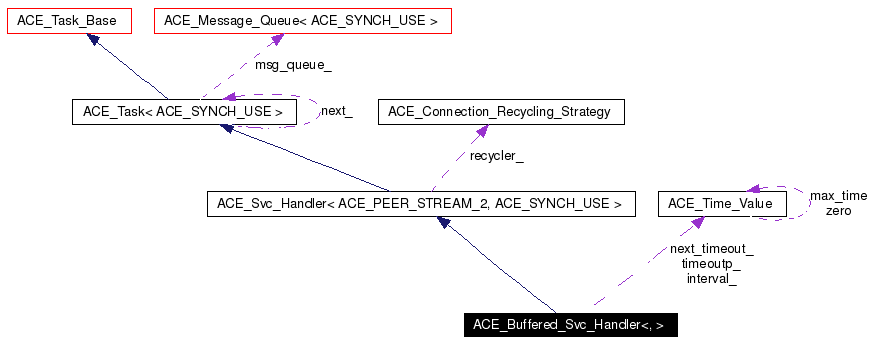

Collaboration diagram for ACE_Buffered_Svc_Handler<, >:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Buffered_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance(), size_t max_buffer_size=0, ACE_Time_Value *relative_timeout=0)
virtual ~ACE_Buffered_Svc_Handler (void)
 Destructor, which calls .

virtual int put (ACE_Message_Block *message_block, ACE_Time_Value *timeout=0)
virtual int flush (void)
virtual int handle_timeout (const ACE_Time_Value &time, const void *)
void dump (void) const
 Dump the state of an object.


Protected Member Functions

virtual int flush_i (void)

Protected Attributes

size_t maximum_buffer_size_
size_t current_buffer_size_
 Current size in bytes of the contents.

ACE_Time_Value next_timeout_
 Timeout value used to control when the buffer is flushed.

ACE_Time_Value interval_
 Interval of the timeout.

ACE_Time_Valuetimeoutp_
 Timeout pointer.


Detailed Description

template<ACE_PEER_STREAM_1, ACE_SYNCH_DECL>
class ACE_Buffered_Svc_Handler<, >

Defines the interface for a service that exchanges data with its connected peer and supports buffering.

The buffering feature makes it possible to queue up in an ACE_Message_Queue until (1) the queue is "full" or (2) a period of time elapses, at which point the queue is "flushed" via to the peer.

Definition at line 260 of file Svc_Handler.h.


Constructor & Destructor Documentation

template<PR_ST_1 , ACE_SYNCH_DECL >
ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler ACE_Thread_Manager thr_mgr = 0,
ACE_Message_Queue< ACE_SYNCH_USE > *  mq = 0,
ACE_Reactor reactor = ACE_Reactor::instance(),
size_t  max_buffer_size = 0,
ACE_Time_Value relative_timeout = 0


Constructor initializes the and by passing them down to the ACE_Task base class. The is passed to the ACE_Event_Handler. The and are used to determine at what point to flush the . By default, there's no buffering at all. The value is interpreted to be in a unit that's relative to the current time returned by <ACE_OS::gettimeofday>.

Definition at line 413 of file Svc_Handler.cpp.

References ACE_SYNCH_USE, ACE_TRACE, ACE_OS::gettimeofday(), ACE_Buffered_Svc_Handler<, >::next_timeout_, PR_ST_2, and ACE_Buffered_Svc_Handler<, >::timeoutp_.

00418   : ACE_Svc_Handler<PR_ST_2, ACE_SYNCH_USE> (tm, mq, reactor),
00419     maximum_buffer_size_ (maximum_buffer_size),
00420     current_buffer_size_ (0),
00421     timeoutp_ (timeout)
00422 {
00423   ACE_TRACE ("ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::ACE_Buffered_Svc_Handler");
00424
00425   if (this->timeoutp_ != 0)
00426     {
00427       this->interval_ = *timeout;
00428       this->next_timeout_ = ACE_OS::gettimeofday () + this->interval_;
00429     }
00430 }

template<PR_ST_1 , ACE_SYNCH_DECL >
ACE_Buffered_Svc_Handler<, >::~ACE_Buffered_Svc_Handler void   )  [virtual]


Destructor, which calls .

Definition at line 407 of file Svc_Handler.cpp.

References ACE_Buffered_Svc_Handler<, >::flush().

00408 {
00409   this->flush ();
00410 }


Member Function Documentation

template<PR_ST_1 , ACE_SYNCH_DECL >
void ACE_Buffered_Svc_Handler<, >::dump void   )  const


Dump the state of an object.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

Definition at line 493 of file Svc_Handler.cpp.

References ACE_DEBUG, ACE_TRACE, LM_DEBUG, ACE_Buffered_Svc_Handler<, >::next_timeout_, ACE_Buffered_Svc_Handler<, >::timeoutp_, and ACE_Time_Value::usec().

00494 {
00495 #if defined (ACE_HAS_DUMP)
00496   ACE_TRACE ("ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::dump");
00497
00498   ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::dump ();
00499   ACE_DEBUG ((LM_DEBUG,
00500               "maximum_buffer_size_ = %d\n",
00501               this->maximum_buffer_size_));
00502   ACE_DEBUG ((LM_DEBUG,
00503               "current_buffer_size_ = %d\n",
00504               this->current_buffer_size_));
00505   if (this->timeoutp_ != 0)
00506     ACE_DEBUG ((LM_DEBUG,
00507                 "next_timeout_.sec = %d, next_timeout_.usec = %d\n",
00508                 this->next_timeout_.sec (),
00509                 this->next_timeout_.usec ()));
00510 #endif /* ACE_HAS_DUMP */
00511 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::flush void   )  [virtual]


Flush the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the .

Definition at line 460 of file Svc_Handler.cpp.

References ACE_GUARD_RETURN, ACE_SYNCH_MUTEX_T, and ACE_Buffered_Svc_Handler<, >::flush_i().

Referenced by ACE_Buffered_Svc_Handler<, >::~ACE_Buffered_Svc_Handler().

00461 {
00462   ACE_GUARD_RETURN (ACE_SYNCH_MUTEX_T, m, this->msg_queue ()->lock (), -1);
00463
00464   return this->flush_i ();
00465 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::flush_i void   )  [protected, virtual]


Implement the flush operation on the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the . Assumes that the caller holds the lock.

Definition at line 468 of file Svc_Handler.cpp.

References ACE_Buffered_Svc_Handler<, >::current_buffer_size_, ACE_Message_Queue< ACE_SYNCH_USE >::flush_i(), ACE_Task< ACE_SYNCH_USE >::msg_queue(), ACE_Message_Queue_Iterator<>::next(), ACE_Buffered_Svc_Handler<, >::next_timeout_, ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >::peer(), ssize_t, and ACE_Buffered_Svc_Handler<, >::timeoutp_.

Referenced by ACE_Buffered_Svc_Handler<, >::flush(), and ACE_Buffered_Svc_Handler<, >::put().

00469 {
00470   ACE_Message_Queue_Iterator<ACE_SYNCH_USE> iterator (*this->msg_queue ());
00471   ACE_Message_Block *mblk = 0;
00472   ssize_t result = 0;
00473
00474   // Get the first <ACE_Message_Block> so that we can write everything
00475   // out via the <send_n>.
00476   if (iterator.next (mblk) != 0)
00477     result = this->peer ().send_n (mblk);
00478
00479   // This method assumes the caller holds the queue's lock!
00480   if (result != -1)
00481     this->msg_queue ()->flush_i ();
00482
00483   if (this->timeoutp_ != 0)
00484     // Update the next timeout period by adding the interval.
00485     this->next_timeout_ += this->interval_;
00486
00487   this->current_buffer_size_ = 0;
00488
00489   return result;
00490 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::handle_timeout const ACE_Time_Value time,
const void *
[virtual]


This method is not currently implemented -- this is where the integration with the would occur.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

Definition at line 514 of file Svc_Handler.cpp.

References ACE_TRACE.

00516 {
00517   ACE_TRACE ("ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::handle_timeout");
00518   return 0;
00519 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::put ACE_Message_Block message_block,
ACE_Time_Value timeout = 0
[virtual]


Insert the ACE_Message_Block chain rooted at into the ACE_Message_Queue with the designated timeout. The method will be called if this causes the number of bytes to exceed the maximum buffer size or if the timeout period has elapsed.

Reimplemented from ACE_Task_Base.

Definition at line 433 of file Svc_Handler.cpp.

References ACE_GUARD_RETURN, ACE_SYNCH_MUTEX_T, ACE_Buffered_Svc_Handler<, >::current_buffer_size_, ACE_Buffered_Svc_Handler<, >::flush_i(), ACE_OS::gettimeofday(), ACE_Buffered_Svc_Handler<, >::maximum_buffer_size_, ACE_Buffered_Svc_Handler<, >::next_timeout_, ACE_Task< ACE_SYNCH_USE >::putq(), ACE_Buffered_Svc_Handler<, >::timeoutp_, and ACE_Message_Block::total_size().

00435 {
00436   ACE_GUARD_RETURN (ACE_SYNCH_MUTEX_T, m, this->msg_queue ()->lock (), -1);
00437
00438   // Enqueue <mb> onto the message queue.
00439   if (this->putq (mb, tv) == -1)
00440     return -1;
00441   else
00442     {
00443       // Update the current number of bytes on the queue.
00444       this->current_buffer_size_ += mb->total_size ();
00445
00446       // Flush the buffer when the number of bytes exceeds the maximum
00447       // buffer size or when the timeout period has elapsed.
00448       if (this->current_buffer_size_ >= this->maximum_buffer_size_
00449           || (this->timeoutp_ != 0
00450               && this->next_timeout_ <= ACE_OS::gettimeofday ()))
00451         return this->flush_i ();
00452       else
00453         return 0;
00454     }
00455 }


Member Data Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
size_t ACE_Buffered_Svc_Handler<, >::current_buffer_size_ [protected]


Current size in bytes of the contents.

Definition at line 315 of file Svc_Handler.h.

Referenced by ACE_Buffered_Svc_Handler<, >::flush_i(), and ACE_Buffered_Svc_Handler<, >::put().

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value ACE_Buffered_Svc_Handler<, >::interval_ [protected]


Interval of the timeout.

Definition at line 321 of file Svc_Handler.h.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
size_t ACE_Buffered_Svc_Handler<, >::maximum_buffer_size_ [protected]


Maximum size the can be before we have to flush the buffer.

Definition at line 312 of file Svc_Handler.h.

Referenced by ACE_Buffered_Svc_Handler<, >::put().

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value ACE_Buffered_Svc_Handler<, >::next_timeout_ [protected]


Timeout value used to control when the buffer is flushed.

Definition at line 318 of file Svc_Handler.h.

Referenced by ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler(), ACE_Buffered_Svc_Handler<, >::dump(), ACE_Buffered_Svc_Handler<, >::flush_i(), and ACE_Buffered_Svc_Handler<, >::put().

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value* ACE_Buffered_Svc_Handler<, >::timeoutp_ [protected]


Timeout pointer.

Definition at line 324 of file Svc_Handler.h.

Referenced by ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler(), ACE_Buffered_Svc_Handler<, >::dump(), ACE_Buffered_Svc_Handler<, >::flush_i(), and ACE_Buffered_Svc_Handler<, >::put().


The documentation for this class was generated from the following files:
