TAO_EC_Priority_Dispatching Class Reference

Dispatching strategy that minimizes priority inversion. More...

#include <EC_Priority_Dispatching.h>

Inheritance diagram for TAO_EC_Priority_Dispatching:

Inheritance graph
[legend]

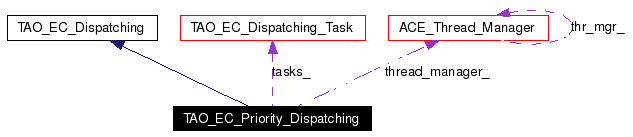

Collaboration diagram for TAO_EC_Priority_Dispatching:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_EC_Priority_Dispatching (TAO_EC_Event_Channel_Base *ec)
virtual void activate (void)
virtual void shutdown (void)
virtual void push (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info ACE_ENV_ARG_DECL)
virtual void push_nocopy (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info ACE_ENV_ARG_DECL)

Private Attributes

ACE_Thread_Manager thread_manager_
 Use our own thread manager.

int ntasks_
 The number of active tasks.

TAO_EC_Dispatching_Task ** tasks_
 The tasks..

RtecScheduler::Scheduler_var scheduler_
 The scheduler.

Detailed Description

Dispatching strategy that minimizes priority inversion.

This strategy uses multiple queues, each serviced by a thread at different priority. This minimizes priority inversion because the consumers at higher priority are serviced before consumers at lower priority. It is more flexible than using the supplier thread to dispatch because it allows high-priority suppliers to push events to low-priority consumers (and vice-versa). It also isolates the supplier threads from the time spent on upcalls to the consumer objects, making the system easier to analyze and schedule.

Definition at line 52 of file EC_Priority_Dispatching.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Priority_Dispatching::TAO_EC_Priority_Dispatching (  TAO_EC_Event_Channel_Base *  ec  )


The scheduler is used to find the range of priorities and similar info.

Definition at line 17 of file EC_Priority_Dispatching.cpp.

References TAO_EC_Event_Channel_Base::scheduler().

00018   :  ntasks_ (0),
00019      tasks_ (0)
00020 {
00021   CORBA::Object_var tmp = ec->scheduler ();
00022   this->scheduler_ = RtecScheduler::Scheduler::_narrow (tmp.in ());
00023 }

Member Function Documentation

void TAO_EC_Priority_Dispatching::activate (  void   )  [virtual]


Initialize all the data structures, activate any internal threads, etc.

Implements TAO_EC_Dispatching.

Definition at line 26 of file EC_Priority_Dispatching.cpp.

References ACE_CATCHANY, ACE_CU64_TO_CU32, ACE_DECLARE_NEW_CORBA_ENV, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_ERROR, ACE_NEW, ACE_SCHED_FIFO, ACE_SCHED_OTHER, ACE_Scheduler_MAX_PRIORITIES, ACE_Scheduler_Rates, ACE_SCOPE_THREAD, ACE_TRY, ACE_TRY_CHECK, ACE_Task_Base::activate(), LM_ERROR, ACE_Sched_Params::next_priority(), ntasks_, ACE_Sched_Params::priority_max(), ACE_Sched_Params::priority_min(), ACE_OS::sprintf(), and tasks_.

Referenced by push_nocopy().

00027 {
00028   if (this->tasks_ != 0)
00029     return;
00030
00031   // @@ Query the scheduler to obtain this....
00032   this->ntasks_ = ACE_Scheduler_MAX_PRIORITIES;
00033   ACE_NEW (this->tasks_, TAO_EC_Dispatching_Task*[this->ntasks_]);
00034
00035   // @@ Query the scheduler to obtain the priorities!
00036   int priority =
00037     (ACE_Sched_Params::priority_min (ACE_SCHED_FIFO) +
00038      ACE_Sched_Params::priority_max (ACE_SCHED_FIFO)) / 2;
00039   priority = ACE_Sched_Params::next_priority (ACE_SCHED_FIFO, priority);
00040
00041   ACE_DECLARE_NEW_CORBA_ENV;
00042   for (int i = 0; i < this->ntasks_; ++i)
00043     {
00044       ACE_TRY
00045         {
00046           RtecScheduler::Period_t period =
00047             ACE_CU64_TO_CU32 (ACE_Scheduler_Rates[i]);
00048           char buf[128];
00049           ACE_OS::sprintf (buf, "Dispatching_Task-%d.us", period);
00050
00051           RtecScheduler::handle_t rt_info =
00052             this->scheduler_->create (buf ACE_ENV_ARG_PARAMETER);
00053           ACE_TRY_CHECK;
00054
00055           this->scheduler_->set (rt_info,
00056                                  RtecScheduler::VERY_LOW_CRITICALITY,
00057                                  0, // worst_cast_execution_time
00058                                  0, // typical_cast_execution_time
00059                                  0, // cached_cast_execution_time
00060                                  period,
00061                                  RtecScheduler::VERY_LOW_IMPORTANCE,
00062                                  0, // quantum
00063                                  1, // threads
00064                                  RtecScheduler::OPERATION
00065                                   ACE_ENV_ARG_PARAMETER);
00066           ACE_TRY_CHECK;
00067         }
00068       ACE_CATCHANY
00069         {
00070           // Ignore exceptions..
00071         }
00072       ACE_ENDTRY;
00073
00074       ACE_NEW (this->tasks_[i],
00075                TAO_EC_Dispatching_Task (&this->thread_manager_));
00076
00077       // @@ Query the scheduler to obtain the priority...
00078       long flags = THR_BOUND | THR_SCHED_FIFO;
00079       if (this->tasks_[i]->activate (flags, 1, 1, priority) == -1)
00080         {
00081           flags = THR_BOUND;
00082           priority = ACE_Sched_Params::priority_min (ACE_SCHED_OTHER,
00083                                                      ACE_SCOPE_THREAD);
00084           if (this->tasks_[i]->activate (flags, 1, 1, priority) == -1)
00085             ACE_ERROR ((LM_ERROR,
00086                         "EC (%P|%t) cannot activate queue %d", i));
00087         }
00088     }
00089 }

void TAO_EC_Priority_Dispatching::push (  TAO_EC_ProxyPushSupplier *  proxy,
RtecEventComm::PushConsumer_ptr  consumer,
const RtecEventComm::EventSet &  event,
TAO_EC_QOS_Info &qos_info  ACE_ENV_ARG_DECL
)  [virtual]


The consumer represented by proxy should receive event. It can use the information in qos_info to determine the event priority (among other things).

Implements TAO_EC_Dispatching.

Definition at line 110 of file EC_Priority_Dispatching.cpp.

References ACE_ENV_ARG_PARAMETER, RtecEventComm::EventSet, and push_nocopy().

00115 {
00116   RtecEventComm::EventSet event_copy = event;
00117   this->push_nocopy (proxy, consumer, event_copy, qos_info ACE_ENV_ARG_PARAMETER);
00118 }

void TAO_EC_Priority_Dispatching::push_nocopy (  TAO_EC_ProxyPushSupplier *  proxy,
RtecEventComm::PushConsumer_ptr  consumer,
RtecEventComm::EventSet &  event,
TAO_EC_QOS_Info &qos_info  ACE_ENV_ARG_DECL
)  [virtual]


Implements TAO_EC_Dispatching.

Definition at line 121 of file EC_Priority_Dispatching.cpp.

References ACE_ENV_ARG_PARAMETER, activate(), RtecEventComm::EventSet, ntasks_, TAO_EC_Dispatching_Task::push(), and tasks_.

Referenced by push().

00126 {
00127   if (this->tasks_ == 0)
00128     this->activate ();
00129
00130   int i = qos_info.preemption_priority;
00131   if (i < 0 || i >= this->ntasks_)
00132     {
00133       // @@ Throw something?
00134       i = 0;
00135     }
00136
00137
00138   this->tasks_[i]->push (proxy, consumer, event ACE_ENV_ARG_PARAMETER);
00139 }

void TAO_EC_Priority_Dispatching::shutdown (  void   )  [virtual]


Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_EC_Dispatching.

Definition at line 92 of file EC_Priority_Dispatching.cpp.

References ntasks_, ACE_Task< ACE_SYNCH >::putq(), tasks_, and ACE_Thread_Manager::wait().

00093 {
00094   if (this->tasks_ == 0)
00095     return;
00096
00097   for (int i = 0; i < this->ntasks_; ++i)
00098     this->tasks_[i]->putq (new TAO_EC_Shutdown_Task_Command);
00099
00100   this->thread_manager_.wait ();
00101
00102   for (int j = 0; j < this->ntasks_; ++j)
00103     delete this->tasks_[j];
00104
00105   delete[] this->tasks_;
00106   this->tasks_ = 0;
00107 }

Member Data Documentation

int TAO_EC_Priority_Dispatching::ntasks_ [private]


The number of active tasks.

Definition at line 78 of file EC_Priority_Dispatching.h.

Referenced by activate(), push_nocopy(), and shutdown().

RtecScheduler::Scheduler_var TAO_EC_Priority_Dispatching::scheduler_ [private]


The scheduler.

Definition at line 84 of file EC_Priority_Dispatching.h.

TAO_EC_Dispatching_Task** TAO_EC_Priority_Dispatching::tasks_ [private]


The tasks..

Definition at line 81 of file EC_Priority_Dispatching.h.

Referenced by activate(), push_nocopy(), and shutdown().

ACE_Thread_Manager TAO_EC_Priority_Dispatching::thread_manager_ [private]


Use our own thread manager.

Definition at line 75 of file EC_Priority_Dispatching.h.

The documentation for this class was generated from the following files:
