Event_Service_Constants.h File Reference

#include "ace/Message_Block.h"
#include "orbsvcs/Time_Utilities.h"

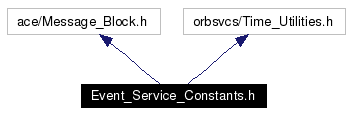

Include dependency graph for Event_Service_Constants.h:

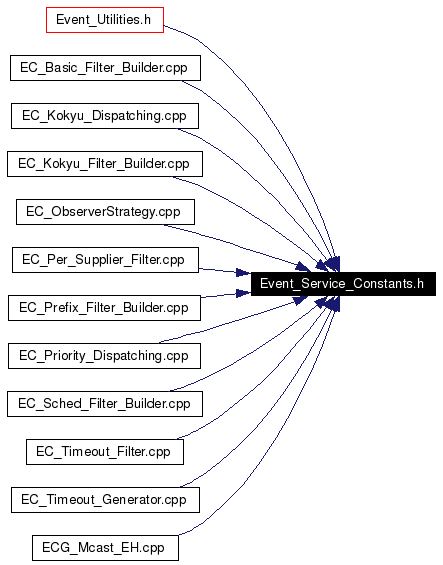

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Variables
TAO_BEGIN_VERSIONED_NAMESPACE_DECL const long	ACE_ES_EVENT_ANY = 0
const long	ACE_ES_EVENT_SHUTDOWN = 1
const long	ACE_ES_EVENT_ACT = 2
const long	ACE_ES_EVENT_NOTIFICATION = 3
const long	ACE_ES_EVENT_TIMEOUT = 4
const long	ACE_ES_EVENT_INTERVAL_TIMEOUT = 5
const long	ACE_ES_EVENT_DEADLINE_TIMEOUT = 6
const long	ACE_ES_GLOBAL_DESIGNATOR = 7
const long	ACE_ES_CONJUNCTION_DESIGNATOR = 8
const long	ACE_ES_DISJUNCTION_DESIGNATOR = 9
const long	ACE_ES_NEGATION_DESIGNATOR = 10
const long	ACE_ES_LOGICAL_AND_DESIGNATOR = 11
const long	ACE_ES_BITMASK_DESIGNATOR = 12
const long	ACE_ES_MASKED_TYPE_DESIGNATOR = 13
const long	ACE_ES_NULL_DESIGNATOR = 14
const long	ACE_ES_EVENT_UNDEFINED = 16
const long	ACE_ES_EVENT_SOURCE_ANY = 0
	Predefined event sources.
const long	ACE_Scheduler_MAX_PRIORITIES = 5
const TimeBase::TimeT	ACE_Scheduler_Rates [ACE_Scheduler_MAX_PRIORITIES]
const long	ACE_Scheduler_MIN_PREEMPTION_PRIORITY
	The minimum preemption priority.
const long	ACE_Scheduler_MAX_PREEMPTION_PRIORITY = 0
	Max preemption priority.
const u_long	ACE_Scheduler_MAX_SUB_PRIORITY
	This is the maximum sub priority.
const u_long	ACE_Scheduler_MIN_SUB_PRIORITY
	This is the minimum sub priority.

---

Detailed Description

Event_Service_Constants.h,v 1.21 2005/11/10 06:47:22 ossama Exp

Keep constants required by both Event Service implementation and the Scheduling Service implementation.

Author:

Carlos O'Ryan (coryan@cs.wustl.edu)

Definition in file Event_Service_Constants.h.

---

Variable Documentation

const long ACE_ES_BITMASK_DESIGNATOR = 12

Definition at line 44 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Basic_Filter_Builder::count_children(), designator(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), and ACE_ConsumerQOS_Factory::start_bitmask().

const long ACE_ES_CONJUNCTION_DESIGNATOR = 8

Definition at line 40 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Sched_Filter_Builder::count_children(), TAO_EC_Kokyu_Filter_Builder::count_children(), TAO_EC_Basic_Filter_Builder::count_children(), designator(), TAO_EC_Sched_Filter_Builder::recursive_build(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Kokyu_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), TAO_EC_Sched_Filter_Builder::recursive_name(), TAO_EC_Kokyu_Filter_Builder::recursive_name(), and ACE_ConsumerQOS_Factory::start_conjunction_group().

const long ACE_ES_DISJUNCTION_DESIGNATOR = 9

Definition at line 41 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Sched_Filter_Builder::count_children(), TAO_EC_Kokyu_Filter_Builder::count_children(), TAO_EC_Basic_Filter_Builder::count_children(), designator(), TAO_EC_Basic_ObserverStrategy::fill_qos(), TAO_EC_Sched_Filter_Builder::recursive_build(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Kokyu_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), TAO_EC_Sched_Filter_Builder::recursive_name(), TAO_EC_Kokyu_Filter_Builder::recursive_name(), and ACE_ConsumerQOS_Factory::start_disjunction_group().

const long ACE_ES_EVENT_ACT = 2

Definition at line 34 of file Event_Service_Constants.h. Referenced by ACE_ConsumerQOS_Factory::insert_act().

TAO_BEGIN_VERSIONED_NAMESPACE_DECL const long ACE_ES_EVENT_ANY = 0

Definition at line 32 of file Event_Service_Constants.h. Referenced by TAO_ECG_Mcast_Gateway::init_receiver(), TAO_ECG_Mcast_Gateway::init_sender(), and ACE_ConsumerQOS_Factory::insert_source().

const long ACE_ES_EVENT_DEADLINE_TIMEOUT = 6

Definition at line 38 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Timeout_Filter::clear(), TAO_EC_Sched_Filter_Builder::recursive_build(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Kokyu_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), TAO_EC_Sched_Filter_Builder::recursive_name(), TAO_EC_Kokyu_Filter_Builder::recursive_name(), and TAO_EC_Timeout_Filter::TAO_EC_Timeout_Filter().

const long ACE_ES_EVENT_INTERVAL_TIMEOUT = 5

Definition at line 37 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Sched_Filter_Builder::recursive_build(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Kokyu_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), TAO_EC_Sched_Filter_Builder::recursive_name(), TAO_EC_Kokyu_Filter_Builder::recursive_name(), and TAO_EC_Timeout_Filter::TAO_EC_Timeout_Filter().

const long ACE_ES_EVENT_NOTIFICATION = 3

Definition at line 35 of file Event_Service_Constants.h.

const long ACE_ES_EVENT_SHUTDOWN = 1

Definition at line 33 of file Event_Service_Constants.h.

const long ACE_ES_EVENT_SOURCE_ANY = 0

Predefined event sources. Definition at line 50 of file Event_Service_Constants.h. Referenced by TAO_ECG_Mcast_Gateway::init_receiver(), TAO_ECG_Mcast_Gateway::init_sender(), ACE_ConsumerQOS_Factory::insert_time(), and ACE_ConsumerQOS_Factory::insert_type().

const long ACE_ES_EVENT_TIMEOUT = 4

Definition at line 36 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Sched_Filter_Builder::recursive_build(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Kokyu_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), TAO_EC_Sched_Filter_Builder::recursive_name(), and TAO_EC_Kokyu_Filter_Builder::recursive_name().

const long ACE_ES_EVENT_UNDEFINED = 16

Definition at line 47 of file Event_Service_Constants.h. Referenced by TAO_ECG_Mcast_EH::compute_required_subscriptions(), TAO_EC_Accumulate_Consumer_Headers::work(), and TAO_EC_Accumulate_Supplier_Headers::work().

const long ACE_ES_GLOBAL_DESIGNATOR = 7

Definition at line 39 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), designator(), ACE_ConsumerQOS_Factory::insert(), and TAO_EC_Kokyu_Filter_Builder::recursive_build().

const long ACE_ES_LOGICAL_AND_DESIGNATOR = 11

Definition at line 43 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Basic_Filter_Builder::count_children(), designator(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), and ACE_ConsumerQOS_Factory::start_logical_and_group().

const long ACE_ES_MASKED_TYPE_DESIGNATOR = 13

Definition at line 45 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Basic_Filter_Builder::count_children(), designator(), ACE_ConsumerQOS_Factory::insert_bitmasked_value(), TAO_EC_Prefix_Filter_Builder::recursive_build(), and TAO_EC_Basic_Filter_Builder::recursive_build().

const long ACE_ES_NEGATION_DESIGNATOR = 10

Definition at line 42 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), TAO_EC_Basic_Filter_Builder::count_children(), designator(), TAO_EC_Prefix_Filter_Builder::recursive_build(), TAO_EC_Basic_Filter_Builder::recursive_build(), and ACE_ConsumerQOS_Factory::start_negation().

const long ACE_ES_NULL_DESIGNATOR = 14

Definition at line 46 of file Event_Service_Constants.h. Referenced by TAO_EC_Kokyu_Filter_Builder::build(), designator(), ACE_ConsumerQOS_Factory::insert_null_terminator(), TAO_EC_Prefix_Filter_Builder::recursive_build(), and TAO_EC_Basic_Filter_Builder::recursive_build().

const long ACE_Scheduler_MAX_PREEMPTION_PRIORITY = 0

Max preemption priority. Definition at line 70 of file Event_Service_Constants.h.

const long ACE_Scheduler_MAX_PRIORITIES = 5

The max number of priorities provided by the target platform. Todo: This should be defined in ACE (somehow) and only mapped here to some variables (and even that is doubtful). Definition at line 55 of file Event_Service_Constants.h. Referenced by TAO_EC_Priority_Dispatching::activate().

const u_long ACE_Scheduler_MAX_SUB_PRIORITY

Initial value: ACE_Message_Block::MB_USER - 1 This is the maximum sub priority. Definition at line 73 of file Event_Service_Constants.h.

const long ACE_Scheduler_MIN_PREEMPTION_PRIORITY

Initial value: ACE_Scheduler_MAX_PRIORITIES - 1 The minimum preemption priority. Definition at line 66 of file Event_Service_Constants.h.

const u_long ACE_Scheduler_MIN_SUB_PRIORITY

Initial value: ACE_Message_Block::MB_NORMAL This is the minimum sub priority. Definition at line 77 of file Event_Service_Constants.h.

const TimeBase::TimeT ACE_Scheduler_Rates[ACE_Scheduler_MAX_PRIORITIES]

Initial value: { 250000, 500000, 1000000, 2000000, 10000000 } Definition at line 57 of file Event_Service_Constants.h. Referenced by TAO_EC_Priority_Dispatching::activate().

---
