TAO_EC_Basic_ObserverStrategy Class Reference

A simple observer strategy. More...

#include <EC_ObserverStrategy.h>

Inheritance diagram for TAO_EC_Basic_ObserverStrategy:

Inheritance graph
[legend]

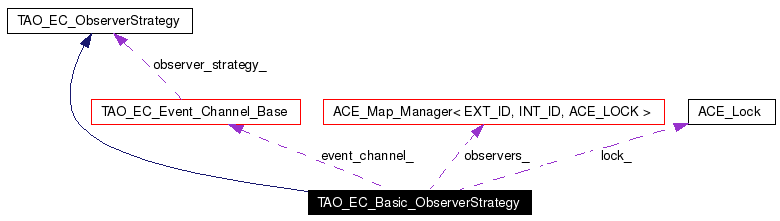

Collaboration diagram for TAO_EC_Basic_ObserverStrategy:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Map_Manager< RtecEventChannelAdmin::Observer_Handle,
Observer_Entry, ACE_Null_Mutex > 		Observer_Map
typedef ACE_Map_Iterator<
RtecEventChannelAdmin::Observer_Handle,
Observer_Entry, ACE_Null_Mutex > 		Observer_Map_Iterator
typedef ACE_RB_Tree< RtecEventComm::EventHeader,
int, Header_Compare, ACE_Null_Mutex > 		Headers
typedef ACE_RB_Tree_Iterator<
RtecEventComm::EventHeader,
int, Header_Compare, ACE_Null_Mutex > 		HeadersIterator

Public Member Functions

 TAO_EC_Basic_ObserverStrategy (TAO_EC_Event_Channel_Base *ec, ACE_Lock *lock)
 Constructor.

virtual ~TAO_EC_Basic_ObserverStrategy (void)
 Destructor.

virtual RtecEventChannelAdmin::Observer_Handle append_observer (RtecEventChannelAdmin::Observer_ptr) throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_APPEND_OBSERVER)
 The basic methods to support the EC strategies.

virtual void remove_observer (RtecEventChannelAdmin::Observer_Handle) throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_REMOVE_OBSERVER)
virtual void connected (TAO_EC_ProxyPushConsumer *)
virtual void disconnected (TAO_EC_ProxyPushConsumer *)
virtual void connected (TAO_EC_ProxyPushSupplier *)
virtual void disconnected (TAO_EC_ProxyPushSupplier *)

Protected Member Functions

virtual void consumer_qos_update (TAO_EC_ProxyPushSupplier *supplier)
 Recompute EC consumer subscriptions and send them out to all observers.

virtual void supplier_qos_update (TAO_EC_ProxyPushConsumer *consumer)
 Recompute EC supplier publications and send them out to all observers.

void fill_qos (RtecEventChannelAdmin::ConsumerQOS &qos)
 Compute consumer QOS.

void fill_qos (RtecEventChannelAdmin::SupplierQOS &qos)
 Compute supplier QOS.

int create_observer_list (RtecEventChannelAdmin::Observer_var *&lst)

Protected Attributes

TAO_EC_Event_Channel_Base * event_channel_
 The event channel.

ACE_Lock * lock_
 The lock.

RtecEventChannelAdmin::Observer_Handle handle_generator_
Observer_Map observers_
 Keep the set of Observers.

Detailed Description

A simple observer strategy.

This class simply keeps the information about the current list of observers, whenever the list of consumers and/or suppliers changes in queries the EC, computes the global subscription and/or publication list and sends the update message to all the observers.

Memory Management

It assumes ownership of the lock, but not of the Event_Channel.

Definition at line 156 of file EC_ObserverStrategy.h.

Member Typedef Documentation

typedef ACE_RB_Tree<RtecEventComm::EventHeader,int,Header_Compare,ACE_Null_Mutex> TAO_EC_Basic_ObserverStrategy::Headers


Definition at line 226 of file EC_ObserverStrategy.h.

Referenced by fill_qos(), TAO_EC_Accumulate_Consumer_Headers::TAO_EC_Accumulate_Consumer_Headers(), and TAO_EC_Accumulate_Supplier_Headers::TAO_EC_Accumulate_Supplier_Headers().

typedef ACE_RB_Tree_Iterator<RtecEventComm::EventHeader,int,Header_Compare,ACE_Null_Mutex> TAO_EC_Basic_ObserverStrategy::HeadersIterator


Definition at line 227 of file EC_ObserverStrategy.h.

Referenced by fill_qos().

typedef ACE_Map_Manager<RtecEventChannelAdmin::Observer_Handle,Observer_Entry,ACE_Null_Mutex> TAO_EC_Basic_ObserverStrategy::Observer_Map


Definition at line 222 of file EC_ObserverStrategy.h.

typedef ACE_Map_Iterator<RtecEventChannelAdmin::Observer_Handle,Observer_Entry,ACE_Null_Mutex> TAO_EC_Basic_ObserverStrategy::Observer_Map_Iterator


Definition at line 223 of file EC_ObserverStrategy.h.

Referenced by create_observer_list().

Constructor & Destructor Documentation

ACE_INLINE TAO_EC_Basic_ObserverStrategy::TAO_EC_Basic_ObserverStrategy (  TAO_EC_Event_Channel_Base *  ec,
ACE_Lock *  lock
)


Constructor.

Definition at line 45 of file EC_ObserverStrategy.i.

References handle_generator_.

00047   :  event_channel_ (ec),
00048      lock_ (lock),
00049      handle_generator_ (1)
00050 {
00051 }

TAO_EC_Basic_ObserverStrategy::~TAO_EC_Basic_ObserverStrategy (  void   )  [virtual]


Destructor.

Definition at line 78 of file EC_ObserverStrategy.cpp.

00079 {
00080   delete this->lock_;
00081   this->lock_ = 0;
00082 }

Member Function Documentation

RtecEventChannelAdmin::Observer_Handle TAO_EC_Basic_ObserverStrategy::append_observer (  RtecEventChannelAdmin::Observer_ptr   )  throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_APPEND_OBSERVER) [virtual]


The basic methods to support the EC strategies.

Implements TAO_EC_ObserverStrategy.

Definition at line 85 of file EC_ObserverStrategy.cpp.

References ACE_CHECK_RETURN, ACE_ENV_ARG_PARAMETER, ACE_GUARD_THROW_EX, ACE_THROW_RETURN, and TAO_EC_Basic_ObserverStrategy::Observer_Entry::handle.

00092 {
00093   {
00094     ACE_GUARD_THROW_EX (
00095         ACE_Lock, ace_mon, *this->lock_,
00096         RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR());
00097     ACE_CHECK_RETURN (0);
00098
00099     this->handle_generator_++;
00100     Observer_Entry entry (this->handle_generator_,
00101                           RtecEventChannelAdmin::Observer::_duplicate (obs));
00102
00103     if (this->observers_.bind (entry.handle, entry) == -1)
00104       ACE_THROW_RETURN (
00105           RtecEventChannelAdmin::EventChannel::CANT_APPEND_OBSERVER(),
00106           0);
00107   }
00108
00109   RtecEventChannelAdmin::ConsumerQOS c_qos;
00110   this->fill_qos (c_qos ACE_ENV_ARG_PARAMETER);
00111   ACE_CHECK_RETURN (0);
00112   obs->update_consumer (c_qos ACE_ENV_ARG_PARAMETER);
00113   ACE_CHECK_RETURN (0);
00114
00115   RtecEventChannelAdmin::SupplierQOS s_qos;
00116   this->fill_qos (s_qos ACE_ENV_ARG_PARAMETER);
00117   ACE_CHECK_RETURN (0);
00118   obs->update_supplier (s_qos ACE_ENV_ARG_PARAMETER);
00119   ACE_CHECK_RETURN (0);
00120
00121   return this->handle_generator_;
00122 }

void TAO_EC_Basic_ObserverStrategy::connected (  TAO_EC_ProxyPushSupplier *   )  [virtual]


Used by the EC to inform the ObserverStrategy that a Supplier has connected or disconnected from it.

Implements TAO_EC_ObserverStrategy.

Definition at line 226 of file EC_ObserverStrategy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, and consumer_qos_update().

00229 {
00230   this->consumer_qos_update (supplier ACE_ENV_ARG_PARAMETER);
00231   ACE_CHECK;
00232 }

void TAO_EC_Basic_ObserverStrategy::connected (  TAO_EC_ProxyPushConsumer *   )  [virtual]


Used by the EC to inform the ObserverStrategy that a Consumer has connected or disconnected from it.

Implements TAO_EC_ObserverStrategy.

Definition at line 175 of file EC_ObserverStrategy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, and supplier_qos_update().

00178 {
00179   this->supplier_qos_update (consumer ACE_ENV_ARG_PARAMETER);
00180   ACE_CHECK;
00181 }

void TAO_EC_Basic_ObserverStrategy::consumer_qos_update (  TAO_EC_ProxyPushSupplier *  supplier  )  [protected, virtual]


Recompute EC consumer subscriptions and send them out to all observers.

Reimplemented in TAO_EC_Reactive_ObserverStrategy.

Definition at line 244 of file EC_ObserverStrategy.cpp.

References ACE_CATCHANY, ACE_CHECK, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_TRY, ACE_TRY_CHECK, create_observer_list(), and fill_qos().

Referenced by connected(), and disconnected().

00247 {
00248   if (supplier->subscriptions ().is_gateway)
00249     return;
00250
00251   RtecEventChannelAdmin::ConsumerQOS c_qos;
00252   this->fill_qos (c_qos ACE_ENV_ARG_PARAMETER);
00253   ACE_CHECK;
00254
00255   RtecEventChannelAdmin::Observer_var *tmp = 0;
00256   int size = this->create_observer_list (tmp ACE_ENV_ARG_PARAMETER);
00257   ACE_CHECK;
00258   ACE_Auto_Basic_Array_Ptr<RtecEventChannelAdmin::Observer_var> copy (tmp);
00259
00260   for (int i = 0; i != size; ++i)
00261     {
00262       ACE_TRY
00263         {
00264           copy[i]->update_consumer (c_qos ACE_ENV_ARG_PARAMETER);
00265           ACE_TRY_CHECK;
00266         }
00267       ACE_CATCHANY
00268         {
00269           // Ignore exceptions, we must isolate other observers from
00270           // failures on this one.
00271         }
00272       ACE_ENDTRY;
00273     }
00274 }

int TAO_EC_Basic_ObserverStrategy::create_observer_list (  RtecEventChannelAdmin::Observer_var *&  lst  )  [protected]


Copies all current observers into an array and passes it back to the caller through lst. Returns the size of the array.

Definition at line 144 of file EC_ObserverStrategy.cpp.

References ACE_CHECK_RETURN, ACE_GUARD_THROW_EX, ACE_NEW_RETURN, ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::begin(), ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::current_size(), ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::end(), TAO_EC_Basic_ObserverStrategy::Observer_Entry::observer, Observer_Map_Iterator, observers_, and ACE_Auto_Basic_Array_Ptr< X >::release().

Referenced by consumer_qos_update(), and supplier_qos_update().

00147 {
00148   ACE_GUARD_THROW_EX (ACE_Lock, ace_mon, *this->lock_,
00149                  RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR());
00150   ACE_CHECK_RETURN (0);
00151
00152   int size = static_cast<int> (this->observers_.current_size ());
00153   RtecEventChannelAdmin::Observer_var *tmp;
00154   ACE_NEW_RETURN (tmp,
00155                   RtecEventChannelAdmin::Observer_var[size],
00156                   0);
00157   ACE_Auto_Basic_Array_Ptr<RtecEventChannelAdmin::Observer_var> copy (tmp);
00158
00159   Observer_Map_Iterator end = this->observers_.end ();
00160   int j = 0;
00161   for (Observer_Map_Iterator i  = this->observers_.begin ();
00162        i != end;
00163        ++i)
00164     {
00165       Observer_Entry& entry = (*i).int_id_;
00166       copy[j++] =
00167         RtecEventChannelAdmin::Observer::_duplicate (entry.observer.in ());
00168     }
00169
00170   lst = copy.release ();
00171   return size;
00172 }

void TAO_EC_Basic_ObserverStrategy::disconnected (  TAO_EC_ProxyPushSupplier *   )  [virtual]


Implements TAO_EC_ObserverStrategy.

Definition at line 235 of file EC_ObserverStrategy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, and consumer_qos_update().

00238 {
00239   this->consumer_qos_update (supplier ACE_ENV_ARG_PARAMETER);
00240   ACE_CHECK;
00241 }

void TAO_EC_Basic_ObserverStrategy::disconnected (  TAO_EC_ProxyPushConsumer *   )  [virtual]


Implements TAO_EC_ObserverStrategy.

Definition at line 184 of file EC_ObserverStrategy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, and supplier_qos_update().

00187 {
00188   this->supplier_qos_update (consumer ACE_ENV_ARG_PARAMETER);
00189   ACE_CHECK;
00190 }

void TAO_EC_Basic_ObserverStrategy::fill_qos (  RtecEventChannelAdmin::SupplierQOS &  qos  )  [protected]


Compute supplier QOS.

Definition at line 305 of file EC_ObserverStrategy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::begin(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::current_size(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::end(), TAO_EC_Event_Channel_Base::for_each_supplier(), Headers, HeadersIterator, and ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::key().

00308 {
00309   Headers headers;
00310
00311   TAO_EC_Accumulate_Consumer_Headers worker (headers);
00312   this->event_channel_->for_each_supplier (&worker
00313                                            ACE_ENV_ARG_PARAMETER);
00314   ACE_CHECK;
00315
00316   qos.publications.length (static_cast<CORBA::ULong> (headers.current_size ()));
00317
00318   CORBA::ULong count = 0;
00319   for (HeadersIterator i = headers.begin (); i != headers.end (); ++i)
00320     {
00321       qos.publications[count++].event.header = (*i).key ();
00322     }
00323 }

void TAO_EC_Basic_ObserverStrategy::fill_qos (  RtecEventChannelAdmin::ConsumerQOS &  qos  )  [protected]


Compute consumer QOS.

Definition at line 277 of file EC_ObserverStrategy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, ACE_ES_DISJUNCTION_DESIGNATOR, ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::begin(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::current_size(), RtecEventChannelAdmin::DependencySet, ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::end(), TAO_EC_Event_Channel_Base::for_each_consumer(), Headers, HeadersIterator, and ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::key().

Referenced by TAO_EC_Reactive_ObserverStrategy::consumer_qos_update(), consumer_qos_update(), TAO_EC_Reactive_ObserverStrategy::supplier_qos_update(), and supplier_qos_update().

00280 {
00281   Headers headers;
00282
00283   TAO_EC_Accumulate_Supplier_Headers worker (headers);
00284   this->event_channel_->for_each_consumer (&worker
00285                                            ACE_ENV_ARG_PARAMETER);
00286   ACE_CHECK;
00287
00288   RtecEventChannelAdmin::DependencySet& dep = qos.dependencies;
00289
00290   dep.length (static_cast<CORBA::ULong> (headers.current_size () + 1));
00291
00292   dep[0].event.header.type = ACE_ES_DISJUNCTION_DESIGNATOR;
00293   dep[0].event.header.source = static_cast<CORBA::ULong> (headers.current_size ());
00294   dep[0].event.header.creation_time = ORBSVCS_Time::zero ();
00295   dep[0].rt_info = 0;
00296
00297   CORBA::ULong count = 1;
00298   for (HeadersIterator i = headers.begin (); i != headers.end (); ++i)
00299     {
00300       dep[count++].event.header = (*i).key ();
00301     }
00302 }

void TAO_EC_Basic_ObserverStrategy::remove_observer (  RtecEventChannelAdmin::Observer_Handle   )  throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_REMOVE_OBSERVER) [virtual]


Implements TAO_EC_ObserverStrategy.

Definition at line 126 of file EC_ObserverStrategy.cpp.

References ACE_CHECK, ACE_GUARD_THROW_EX, ACE_THROW, and RtecEventChannelAdmin::Observer_Handle.

Referenced by TAO_EC_Reactive_ObserverStrategy::observer_not_exists().

00133 {
00134   ACE_GUARD_THROW_EX (ACE_Lock, ace_mon, *this->lock_,
00135       RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR());
00136   ACE_CHECK;
00137
00138   if (this->observers_.unbind (handle) == -1)
00139     ACE_THROW (
00140         RtecEventChannelAdmin::EventChannel::CANT_REMOVE_OBSERVER());
00141 }

void TAO_EC_Basic_ObserverStrategy::supplier_qos_update (  TAO_EC_ProxyPushConsumer *  consumer  )  [protected, virtual]


Recompute EC supplier publications and send them out to all observers.

Reimplemented in TAO_EC_Reactive_ObserverStrategy.

Definition at line 193 of file EC_ObserverStrategy.cpp.

References ACE_CATCHANY, ACE_CHECK, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_TRY, ACE_TRY_CHECK, create_observer_list(), and fill_qos().

Referenced by connected(), and disconnected().

00196 {
00197   if (consumer->publications ().is_gateway)
00198     return;
00199
00200   RtecEventChannelAdmin::SupplierQOS s_qos;
00201   this->fill_qos (s_qos ACE_ENV_ARG_PARAMETER);
00202   ACE_CHECK;
00203
00204   RtecEventChannelAdmin::Observer_var *tmp = 0;
00205   int size = this->create_observer_list (tmp ACE_ENV_ARG_PARAMETER);
00206   ACE_CHECK;
00207   ACE_Auto_Basic_Array_Ptr<RtecEventChannelAdmin::Observer_var> copy (tmp);
00208
00209   for (int i = 0; i != size; ++i)
00210     {
00211       ACE_TRY
00212         {
00213           copy[i]->update_supplier (s_qos ACE_ENV_ARG_PARAMETER);
00214           ACE_TRY_CHECK;
00215         }
00216       ACE_CATCHANY
00217         {
00218           // Ignore exceptions, we must isolate other observers from
00219           // failures on this one.
00220         }
00221       ACE_ENDTRY;
00222     }
00223 }

Member Data Documentation

TAO_EC_Event_Channel_Base* TAO_EC_Basic_ObserverStrategy::event_channel_ [protected]


The event channel.

Definition at line 255 of file EC_ObserverStrategy.h.

RtecEventChannelAdmin::Observer_Handle TAO_EC_Basic_ObserverStrategy::handle_generator_ [protected]


The handles are generated in sequential order, but are opaque to the client.

Definition at line 262 of file EC_ObserverStrategy.h.

Referenced by TAO_EC_Basic_ObserverStrategy().

ACE_Lock* TAO_EC_Basic_ObserverStrategy::lock_ [protected]


The lock.

Definition at line 258 of file EC_ObserverStrategy.h.

Observer_Map TAO_EC_Basic_ObserverStrategy::observers_ [protected]


Keep the set of Observers.

Definition at line 265 of file EC_ObserverStrategy.h.

Referenced by create_observer_list().

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 13:14:24 2006 for TAO_RTEvent by doxygen 1.3.6
