TAO::Synch_Twoway_Invocation Class Reference

All the action for a synchronous twoway invocation happen here. More...

#include <Synch_Invocation.h>

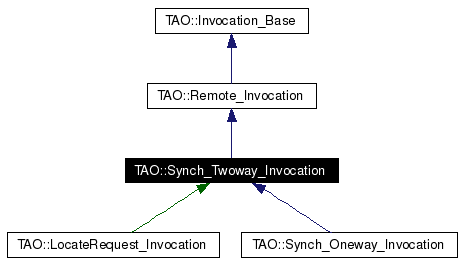

Inheritance diagram for TAO::Synch_Twoway_Invocation:

[legend]Collaboration diagram for TAO::Synch_Twoway_Invocation:

[legend]List of all members.

Public Member Functions
	Synch_Twoway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected=true)
	Constructor used by TAO::Invocation_Adapter.
Invocation_Status	remote_twoway (ACE_Time_Value *max_wait_time) throw (CORBA::Exception)
Protected Member Functions
virtual Invocation_Status	handle_user_exception (TAO_InputCDR &cdr) throw (CORBA::Exception)
Invocation_Status	location_forward (TAO_InputCDR &cdr) throw (CORBA::SystemException)
	Helper method used to handle location forwarded replies.
Invocation_Status	handle_system_exception (TAO_InputCDR &cdr) throw (CORBA::SystemException)
Invocation_Status	wait_for_reply (ACE_Time_Value *max_wait_time, TAO_Synch_Reply_Dispatcher &rd, TAO_Bind_Dispatcher_Guard &bd) throw (CORBA::SystemException)
	As the name suggests waits for a reply from the remote ORB.
Private Member Functions
Invocation_Status	check_reply_status (TAO_Synch_Reply_Dispatcher &rd)

---

Detailed Description

All the action for a synchronous twoway invocation happen here.

An object of this type is created by TAO::Invocation_Adapter and invokes a method on this class. The method takes care of creating and sending a request, waiting for a reply and demarshalling the reply for the client.

Definition at line 52 of file Synch_Invocation.h.

---

Constructor & Destructor Documentation

TAO::Synch_Twoway_Invocation::Synch_Twoway_Invocation (  CORBA::Object_ptr  otarget, Profile_Transport_Resolver &  resolver, TAO_Operation_Details &  detail, bool  response_expected = true )

Constructor used by TAO::Invocation_Adapter. Parameters: otarget  The original target on which this invocation was started. This is there to be passed up to its parent class. resolver  The profile and transport holder. detail  Operation details of the invocation on the target response_expected  Flag to indicate whether the operation encapsulated by op returns a response or not. Definition at line 40 of file Synch_Invocation.cpp. References CORBA::Object_ptr. : Remote_Invocation (otarget, resolver, detail, response_expected) { }

---

Member Function Documentation

Invocation_Status TAO::Synch_Twoway_Invocation::check_reply_status (  TAO_Synch_Reply_Dispatcher &  rd  )  [private]

This method returns an exception when there is an error. Definition at line 368 of file Synch_Invocation.cpp. References ACE_CHECK_RETURN, ACE_DEBUG, ACE_ENV_ARG_PARAMETER, ACE_THROW_RETURN, TAO_Transport::assign_translators(), TAO_Operation_Details::demarshal_args(), handle_system_exception(), handle_user_exception(), TAO_Pseudo_Var_T< T >::in(), TAO::Invocation_Status, TAO_ORB_Core::is_permanent_forward_condition(), LM_DEBUG, location_forward(), TAO::Invocation_Base::orb_core(), TAO::Profile_Transport_Resolver::profile(), ACE_InputCDR::read_short(), TAO::Invocation_Base::request_service_context(), TAO::Reply_Guard::set_status(), TAO_debug_level, TAO::TAO_INVOKE_FAILURE, TAO::TAO_INVOKE_RESTART, TAO::TAO_INVOKE_SUCCESS, TAO_PLUGGABLE_MESSAGE_LOCATION_FORWARD, TAO_PLUGGABLE_MESSAGE_LOCATION_FORWARD_PERM, TAO_PLUGGABLE_MESSAGE_NEEDS_ADDRESSING_MODE, TAO_PLUGGABLE_MESSAGE_NO_EXCEPTION, TAO_PLUGGABLE_MESSAGE_SYSTEM_EXCEPTION, TAO_PLUGGABLE_MESSAGE_USER_EXCEPTION, and TAO::Profile_Transport_Resolver::transport(). { /* * Precondition: We probably got a reply. <ACE_Thread::self> is * checking the status of the reply * * Postcondition: Any error while reading the reply is marked by * raising an exception. LOCATION_FORWARDED replies are marked by * returning a restart since that is what needed to be done by the * callee. */ TAO_InputCDR &cdr = rd.reply_cdr (); // Set the translators this->resolver_.transport ()->assign_translators (&cdr, 0); // At this point it can be assumed that the GIOP/whatever protocol // header and the reply header are already handled. Further it // can be assumed that the reply body contains the details // required for further processing. All the other details should // have been handled in the reply dispatcher/protocol framework. switch (rd.reply_status ()) { case TAO_PLUGGABLE_MESSAGE_NO_EXCEPTION: { Reply_Guard mon (this, TAO_INVOKE_FAILURE); if (this->details_.demarshal_args (cdr) == false) { ACE_THROW_RETURN (CORBA::MARSHAL (), TAO_INVOKE_FAILURE); } mon.set_status (TAO_INVOKE_SUCCESS); } break; case TAO_PLUGGABLE_MESSAGE_LOCATION_FORWARD: return this->location_forward (cdr ACE_ENV_ARG_PARAMETER); case TAO_PLUGGABLE_MESSAGE_LOCATION_FORWARD_PERM: { // Unmarshal the location forward object and set the // variable this->forward_to_. const Invocation_Status s = this->location_forward (cdr ACE_ENV_ARG_PARAMETER); if (s != TAO_INVOKE_FAILURE) { // de-marshalling of permanent object reference was successfull const CORBA::Boolean permanent_forward_condition = this->orb_core ()->is_permanent_forward_condition (this->forwarded_to_.in (), this->request_service_context ()); if (!permanent_forward_condition) { // permanent condition not given if (TAO_debug_level > 3) ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Synch_Twoway_Invocation::" "check_reply_status: unexpected LOCATION_FORWARD_PERM reply\n")); ACE_THROW_RETURN (CORBA::INTERNAL (0, CORBA::COMPLETED_NO), TAO_INVOKE_FAILURE); } } return s; } case TAO_PLUGGABLE_MESSAGE_USER_EXCEPTION: return this->handle_user_exception (cdr ACE_ENV_ARG_PARAMETER); case TAO_PLUGGABLE_MESSAGE_SYSTEM_EXCEPTION: return this->handle_system_exception (cdr ACE_ENV_ARG_PARAMETER); case TAO_PLUGGABLE_MESSAGE_NEEDS_ADDRESSING_MODE: { Reply_Guard mon (this, TAO_INVOKE_FAILURE); // We have received a message with a request to change the // addressing mode. First let us read the mode that the // server/agent asks for. CORBA::Short addr_mode = 0; if (cdr.read_short (addr_mode) == 0) { // Could not demarshal the addressing disposition, raise an local // CORBA::MARSHAL ACE_THROW_RETURN (CORBA::MARSHAL (0, CORBA::COMPLETED_MAYBE), TAO_INVOKE_FAILURE); } // Now set this addressing mode in the profile, so that // the next invocation need not go through this. this->resolver_.profile ()->addressing_mode (addr_mode ACE_ENV_ARG_PARAMETER); ACE_CHECK_RETURN (TAO_INVOKE_FAILURE); mon.set_status (TAO_INVOKE_RESTART); // Now restart the invocation return TAO_INVOKE_RESTART; } } return TAO_INVOKE_SUCCESS; }

Invocation_Status TAO::Synch_Twoway_Invocation::handle_system_exception (  TAO_InputCDR &  cdr  )  throw (CORBA::SystemException) [protected]

Helper method used to handle system exceptions from the remote objects. There has been a unanimous view that this is not the right way to do things. But a need to be compliant is forcing us into this. Note: A location forwarding loop may occur where a client is bounced from the original target to the forwarded target and back if the application is not equipped to handle retries of previously called targets. TAO may be able to help in this case but it ultimately ends up being an application issue. Definition at line 575 of file Synch_Invocation.cpp. References ACE_CHECK_RETURN, ACE_DEBUG, ACE_ENV_ARG_PARAMETER, ACE_ENV_RAISE, ACE_NEW_RETURN, ACE_THROW_RETURN, CORBA::SystemException::completed(), TAO::create_system_exception(), TAO::String_var< charT >::in(), TAO::String_var< charT >::inout(), TAO::Invocation_Status, LM_DEBUG, CORBA::SystemException::minor(), TAO::Reply_Guard::set_status(), CORBA::String_var, TAO_debug_level, TAO::TAO_INVOKE_FAILURE, TAO::TAO_INVOKE_RESTART, and TAO::TAO_INVOKE_SYSTEM_EXCEPTION. Referenced by check_reply_status(). { Reply_Guard mon (this, TAO_INVOKE_FAILURE); if (TAO_debug_level > 3) ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Synch_Twoway_Invocation::" "handle_system_exception \n")); CORBA::String_var type_id; if ((cdr >> type_id.inout ()) == 0) { // Could not demarshal the exception id, raise an local // CORBA::MARSHAL ACE_THROW_RETURN (CORBA::MARSHAL (0, CORBA::COMPLETED_MAYBE), TAO_INVOKE_FAILURE); } CORBA::ULong minor = 0; CORBA::ULong completion = 0; if ((cdr >> minor) == 0 || (cdr >> completion) == 0) { ACE_THROW_RETURN (CORBA::MARSHAL (0, CORBA::COMPLETED_MAYBE), TAO_INVOKE_FAILURE); } // Special handling for non-fatal system exceptions. // // Note that we are careful to retain "at most once" semantics. if ((ACE_OS_String::strcmp (type_id.in (), "IDL:omg.org/CORBA/TRANSIENT:1.0") == 0 || ACE_OS_String::strcmp (type_id.in (), "IDL:omg.org/CORBA/OBJ_ADAPTER:1.0") == 0 || ACE_OS_String::strcmp (type_id.in (), "IDL:omg.org/CORBA/NO_RESPONSE:1.0") == 0 || ACE_OS_String::strcmp (type_id.in (), "IDL:omg.org/CORBA/COMM_FAILURE:1.0") == 0) && (CORBA::CompletionStatus) completion != CORBA::COMPLETED_YES) { { // Start the special case for FTCORBA. /** * There has been a unanimous view that this is not the * right way to do things. But a need to be compliant is * forcing us into this. */ const Invocation_Status s = this->orb_core ()->service_raise_transient_failure ( this->details_.request_service_context ().service_info (), this->resolver_.profile () ACE_ENV_ARG_PARAMETER); ACE_CHECK_RETURN (TAO_INVOKE_FAILURE); if (s == TAO_INVOKE_RESTART) return s; } // Attempt profile retry. /** * @note A location forwarding loop may occur where a client * is bounced from the original target to the forwarded * target and back if the application is not equipped to * handle retries of previously called targets. TAO may * be able to help in this case but it ultimately ends * up being an application issue. */ if (this->resolver_.stub ()->next_profile_retry ()) { return TAO_INVOKE_RESTART; } // Fall through and raise an exception. } CORBA::SystemException *ex = TAO::create_system_exception (type_id.in ()); if (ex == 0) { // @@ We should raise a CORBA::NO_MEMORY, but we ran out // of memory already. We need a pre-allocated, TSS, // CORBA::NO_MEMORY instance ACE_NEW_RETURN (ex, CORBA::UNKNOWN, TAO_INVOKE_FAILURE); } #if defined (TAO_HAS_EXCEPTIONS) // Without this, the call to create_system_exception() above // causes a memory leak. On platforms without native exceptions, // the CORBA::Environment class manages the memory. auto_ptr<CORBA::SystemException> safety (ex); #endif ex->minor (minor); ex->completed (CORBA::CompletionStatus (completion)); if (TAO_debug_level > 4) ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Synch_Twoway_Invocation::" "handle_system_exception, about to raise\n")); mon.set_status (TAO_INVOKE_SYSTEM_EXCEPTION); // Raise the exception. ACE_ENV_RAISE (ex); return TAO_INVOKE_SYSTEM_EXCEPTION; }

Invocation_Status TAO::Synch_Twoway_Invocation::handle_user_exception (  TAO_InputCDR &  cdr  )  throw (CORBA::Exception) [protected, virtual]

This method is selectively made virtual, so that inherited classes can overload the user exception handling type. For example the DII needs a totally different method of user exception exception handling Definition at line 514 of file Synch_Invocation.cpp. References CORBA::Exception::_raise(), CORBA::Exception::_tao_decode(), ACE_CHECK_RETURN, ACE_DEBUG, ACE_ENV_ARG_PARAMETER, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, ACE_THROW_RETURN, ACE_TRY_ENV, TAO::String_var< charT >::in(), TAO::String_var< charT >::inout(), LM_DEBUG, TAO::Reply_Guard::set_status(), CORBA::String_var, TAO_debug_level, TAO::TAO_INVOKE_FAILURE, and TAO::TAO_INVOKE_USER_EXCEPTION. Referenced by check_reply_status(). { Reply_Guard mon (this, TAO_INVOKE_FAILURE); if (TAO_debug_level > 3) ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Synch_Twoway_Invocation::" "handle_user_exception \n")); // Pull the exception from the stream. CORBA::String_var buf; if ((cdr >> buf.inout ()) == 0) { // Could not demarshal the exception id, raise an local // CORBA::MARSHAL ACE_THROW_RETURN (CORBA::MARSHAL (0, CORBA::COMPLETED_MAYBE), TAO_INVOKE_FAILURE); } CORBA::Exception *exception = this->details_.corba_exception (buf.in () ACE_ENV_ARG_PARAMETER); ACE_CHECK_RETURN (TAO_INVOKE_FAILURE); exception->_tao_decode (cdr ACE_ENV_ARG_PARAMETER); ACE_CHECK_RETURN (TAO_INVOKE_FAILURE); if (TAO_debug_level > 5) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - Synch_Twoway_Invocation::") ACE_TEXT ("handle_user_exception - ") ACE_TEXT ("raising exception %s\n"), ACE_TEXT_CHAR_TO_TCHAR (buf.in ()))); } mon.set_status (TAO_INVOKE_USER_EXCEPTION); #if defined (TAO_HAS_EXCEPTIONS) // If we have native exceptions, we must manage the memory allocated // by the call above to alloc(). Otherwise the Environment class // manages the memory. auto_ptr<CORBA::Exception> safety (exception); // Direct throw because we don't have the ACE_TRY_ENV. exception->_raise (); #else // We can not use ACE_THROW here. ACE_TRY_ENV.exception (exception); #endif return TAO_INVOKE_USER_EXCEPTION; }

Invocation_Status TAO::Synch_Twoway_Invocation::location_forward (  TAO_InputCDR &  cdr  )  throw (CORBA::SystemException) [protected]

Helper method used to handle location forwarded replies. Definition at line 480 of file Synch_Invocation.cpp. References ACE_DEBUG, ACE_TEXT, ACE_THROW_RETURN, TAO_Pseudo_Var_T< T >::in(), LM_DEBUG, CORBA::Object_var, TAO::Reply_Guard::set_status(), TAO_debug_level, TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE, TAO::TAO_INVOKE_FAILURE, and TAO::TAO_INVOKE_RESTART. Referenced by TAO::LocateRequest_Invocation::check_reply(), and check_reply_status(). { Reply_Guard mon (this, TAO_INVOKE_FAILURE); if (TAO_debug_level > 3) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - Synch_Twoway_Invocation::location_forward ") ACE_TEXT ("being handled \n"))); } CORBA::Object_var fwd; if ((inp_stream >> fwd) == 0) { ACE_THROW_RETURN (CORBA::MARSHAL ( CORBA::SystemException::_tao_minor_code ( TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE, errno), CORBA::COMPLETED_NO), TAO_INVOKE_FAILURE); } this->forwarded_reference (fwd.in ()); mon.set_status (TAO_INVOKE_RESTART); return TAO_INVOKE_RESTART; }

Invocation_Status TAO::Synch_Twoway_Invocation::remote_twoway (  ACE_Time_Value *  max_wait_time  )  throw (CORBA::Exception)

There is a exception declaration in this method which ensures that the exceptions propogated by the remote objects are converted a CORBA exceptions for the clients. This method does a bunch of things necessary to create and send the invocation. This method is also nerve centre for the interceptor invocation points. Definition at line 53 of file Synch_Invocation.cpp. References ACE_ANY_EXCEPTION, ACE_CATCHALL, ACE_CATCHANY, ACE_CHECK_RETURN, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_ENV_SINGLE_ARG_PARAMETER, ACE_RE_THROW, ACE_THROW_RETURN, ACE_TRY, ACE_TRY_CHECK, TAO::Invocation_Status, TAO_OutputCDR::message_attributes(), PortableInterceptor::ReplyStatus, TAO_Bind_Dispatcher_Guard::status(), TAO::TAO_INVOKE_FAILURE, TAO::TAO_INVOKE_RESTART, TAO::TAO_INVOKE_SUCCESS, and ACE_Countdown_Time::update(). Referenced by TAO::Invocation_Adapter::invoke_twoway(). { ACE_Countdown_Time countdown (max_wait_time); TAO_Synch_Reply_Dispatcher rd (this->resolver_.stub ()->orb_core (), this->details_.reply_service_info ()); TAO_Target_Specification tspec; this->init_target_spec (tspec ACE_ENV_ARG_PARAMETER); ACE_CHECK_RETURN (TAO_INVOKE_FAILURE); Invocation_Status s = TAO_INVOKE_FAILURE; #if TAO_HAS_INTERCEPTORS == 1 // Start the interception point here.. s = this->send_request_interception (ACE_ENV_SINGLE_ARG_PARAMETER); ACE_CHECK_RETURN (TAO_INVOKE_FAILURE); if (s != TAO_INVOKE_SUCCESS) return s; #endif /*TAO_HAS_INTERCEPTORS */ // We have started the interception flow. We need to call the // ending interception flow if things go wrong. The purpose of the // try block is to do just this. ACE_TRY { TAO_OutputCDR &cdr = this->resolver_.transport ()->out_stream (); cdr.message_attributes (this->details_.request_id (), this->resolver_.stub (), TAO_Transport::TAO_TWOWAY_REQUEST, max_wait_time); this->write_header (tspec, cdr ACE_ENV_ARG_PARAMETER); ACE_TRY_CHECK; this->marshal_data (cdr ACE_ENV_ARG_PARAMETER); ACE_TRY_CHECK; // Register a reply dispatcher for this invocation. Use the // preallocated reply dispatcher. TAO_Bind_Dispatcher_Guard dispatch_guard ( this->details_.request_id (), &rd, this->resolver_.transport ()->tms ()); if (dispatch_guard.status () != 0) { // @@ What is the right way to handle this error? Why should // we close the connection? this->resolver_.transport ()->close_connection (); ACE_THROW_RETURN ( CORBA::INTERNAL ( 0, CORBA::COMPLETED_NO), s); } countdown.update (); s = this->send_message (cdr, TAO_Transport::TAO_TWOWAY_REQUEST, max_wait_time ACE_ENV_ARG_PARAMETER); ACE_TRY_CHECK; #if TAO_HAS_INTERCEPTORS == 1 // @@NOTE: Too much code repetition. // If the above call returns a restart due to connection // failure then call the receive_other interception point // before we leave. if (s == TAO_INVOKE_RESTART) { const Invocation_Status tmp = this->receive_other_interception (ACE_ENV_SINGLE_ARG_PARAMETER); ACE_TRY_CHECK; if (tmp != TAO_INVOKE_SUCCESS) s = tmp; } #endif /*TAO_HAS_INTERCEPTORS */ if (s != TAO_INVOKE_SUCCESS) return s; countdown.update (); // For some strategies one may want to release the transport // back to cache. If the idling is successfull let the // resolver about that. if (this->resolver_.transport ()->idle_after_send ()) this->resolver_.transport_released (); // @@ In all MT environments, there's a cancellation point lurking // here; need to investigate. Client threads would frequently be // canceled sometime during recv_request ... the correct action to // take on being canceled is to issue a CancelRequest message to the // server and then imediately let other client-side cancellation // handlers do their jobs. // // In C++, that basically means to unwind the stack using almost // normal procedures: all destructors should fire, and some "catch" // blocks should probably be able to handle things like releasing // pointers. (Without unwinding the C++ stack, resources that must // be freed by thread cancellation won't be freed, and the process // won't continue to function correctly.) The tricky part is that // according to POSIX, all C stack frames must also have their // (explicitly coded) handlers called. We assume a POSIX.1c/C/C++ // environment. s = this->wait_for_reply (max_wait_time, rd, dispatch_guard ACE_ENV_ARG_PARAMETER); ACE_TRY_CHECK; #if TAO_HAS_INTERCEPTORS == 1 if (s == TAO_INVOKE_RESTART) { Invocation_Status tmp = this->receive_other_interception (ACE_ENV_SINGLE_ARG_PARAMETER); ACE_TRY_CHECK; // Push the latest values for the return.. if (tmp != TAO_INVOKE_SUCCESS) s = tmp; } #endif /*TAO_HAS_INTERCEPTORS */ if (s != TAO_INVOKE_SUCCESS) return s; // What happens when the above call returns an error through // the return value? That would be bogus as per the contract // in the interface. The call violated the contract s = this->check_reply_status (rd ACE_ENV_ARG_PARAMETER); ACE_TRY_CHECK; // For some strategies one may want to release the transport // back to cache after receiving the reply. if (this->resolver_.transport ()->idle_after_reply ()) this->resolver_.transport_released (); #if TAO_HAS_INTERCEPTORS == 1 Invocation_Status tmp = TAO_INVOKE_FAILURE; if (s == TAO_INVOKE_RESTART) { tmp = this->receive_other_interception (ACE_ENV_SINGLE_ARG_PARAMETER); ACE_TRY_CHECK; } else if (s == TAO_INVOKE_SUCCESS) { tmp = this->receive_reply_interception (ACE_ENV_SINGLE_ARG_PARAMETER); ACE_TRY_CHECK; } if (tmp != TAO_INVOKE_SUCCESS) s = tmp; #endif /*TAO_HAS_INTERCEPTORS */ if (s != TAO_INVOKE_SUCCESS) return s; } ACE_CATCHANY { #if TAO_HAS_INTERCEPTORS == 1 const PortableInterceptor::ReplyStatus status = this->handle_any_exception (&ACE_ANY_EXCEPTION ACE_ENV_ARG_PARAMETER); ACE_TRY_CHECK; if (status == PortableInterceptor::LOCATION_FORWARD || status == PortableInterceptor::TRANSPORT_RETRY) s = TAO_INVOKE_RESTART; else if (status == PortableInterceptor::SYSTEM_EXCEPTION || status == PortableInterceptor::USER_EXCEPTION) #endif /*TAO_HAS_INTERCEPTORS*/ ACE_RE_THROW; } # if defined (ACE_HAS_EXCEPTIONS) \ && defined (ACE_HAS_BROKEN_UNEXPECTED_EXCEPTIONS) ACE_CATCHALL { #if TAO_HAS_INTERCEPTORS == 1 const PortableInterceptor::ReplyStatus st = this->handle_all_exception (ACE_ENV_SINGLE_ARG_PARAMETER); ACE_TRY_CHECK; if (st == PortableInterceptor::LOCATION_FORWARD || st == PortableInterceptor::TRANSPORT_RETRY) s = TAO_INVOKE_RESTART; else #endif /*TAO_HAS_INTERCEPTORS == 1*/ ACE_RE_THROW; } # endif /* ACE_HAS_EXCEPTIONS && ACE_HAS_BROKEN_UNEXPECTED_EXCEPTION*/ ACE_ENDTRY; ACE_CHECK_RETURN (TAO_INVOKE_FAILURE); return s; }

Invocation_Status TAO::Synch_Twoway_Invocation::wait_for_reply (  ACE_Time_Value *  max_wait_time, TAO_Synch_Reply_Dispatcher &  rd, TAO_Bind_Dispatcher_Guard &  bd )  throw (CORBA::SystemException) [protected]

As the name suggests waits for a reply from the remote ORB. This method returns an exception when there is an error. Definition at line 269 of file Synch_Invocation.cpp. References ACE_CATCHANY, ACE_DEBUG, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_RE_THROW, ACE_THROW_RETURN, ACE_TRY, ACE_TRY_CHECK, ETIME, LM_DEBUG, TAO_debug_level, TAO::TAO_INVOKE_FAILURE, TAO::TAO_INVOKE_SUCCESS, and TAO_TIMEOUT_RECV_MINOR_CODE. { /* * Precondition: The call went to the remote * peer. <ACE_Thread::self> is waiting for the reply. * * Postcondition: Any error during a wait is marked by raising an * exception. Success alone is returned through the return value. */ const int reply_error = this->resolver_.transport ()->wait_strategy ()->wait (max_wait_time, rd); if (TAO_debug_level > 0 && max_wait_time != 0) { const CORBA::ULong msecs = max_wait_time->msec (); ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Synch_Twoway_Invocation::wait_for_reply, " "timeout after recv is <%u> status <%d>\n", msecs, reply_error)); } // Check the reply error. if (reply_error == -1) { // Unbind the dispatcher, since its of no use at this point of // time if (TAO_debug_level > 3) { ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Synch_Twoway_Invocation::wait_for_reply, " "recovering after an error \n")); } // You the smarty, don't try to moving the unbind_dispatcher // () call since it looks like it is repeated twice. That // could land you in trouble. If you don't believe this // warning go ahead and try. Try running tests to see what is // going on ;) if (errno == ETIME) { // If the unbind succeeds then thrown an exception to the // application, else just collect the reply and dispatch // that to the application. // // NOTE: A fragile synchronization is provided when using // the Muxed Transport strategy. We could infact be a // follower thread getting timedout in the LF whereas the // dispatching thread could be on the reply_dispatcher // that we created. This would lead bad crashes. To get // around that, the call to unbind_dispatcher () will wait // on the lock on the Muxed_Transport_Strategy if // dispatching has started. This is fragile. if (bd.unbind_dispatcher () == 0) { // Just a timeout with completed_maybe, don't close // the connection or anything ACE_THROW_RETURN (CORBA::TIMEOUT ( CORBA::SystemException::_tao_minor_code ( TAO_TIMEOUT_RECV_MINOR_CODE, errno), CORBA::COMPLETED_MAYBE), TAO_INVOKE_FAILURE); } } else { (void) bd.unbind_dispatcher (); this->resolver_.transport ()->close_connection (); ACE_TRY { return this->orb_core ()->service_raise_comm_failure ( this->details_.request_service_context ().service_info (), this->resolver_.profile () ACE_ENV_ARG_PARAMETER); ACE_TRY_CHECK; } ACE_CATCHANY { this->resolver_.stub ()->reset_profiles (); ACE_RE_THROW; } ACE_ENDTRY; } } return TAO_INVOKE_SUCCESS; }

---

The documentation for this class was generated from the following files:

• Synch_Invocation.h
• Synch_Invocation.cpp

---
