TAO_Synch_Reply_Dispatcher Class Reference

Reply dispatcher for Synchronous Method Invocation (SMI)s. More...

#include <Synch_Reply_Dispatcher.h>

Inheritance diagram for TAO_Synch_Reply_Dispatcher:

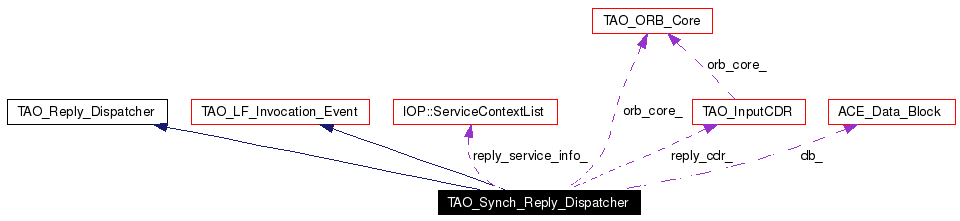

[legend]Collaboration diagram for TAO_Synch_Reply_Dispatcher:

[legend]List of all members.

Public Member Functions
	TAO_Synch_Reply_Dispatcher (TAO_ORB_Core *orb_core, IOP::ServiceContextList &sc)
	Constructor.
virtual	~TAO_Synch_Reply_Dispatcher (void)
	Destructor.
TAO_InputCDR &	reply_cdr (void)
	Return the reply CDR.
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual void	connection_closed (void)
Protected Attributes
IOP::ServiceContextList &	reply_service_info_
	The service context list.
Private Attributes
TAO_ORB_Core *	orb_core_
	Cache the ORB Core pointer.
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block.
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_

---

Detailed Description

Reply dispatcher for Synchronous Method Invocation (SMI)s.

Definition at line 44 of file Synch_Reply_Dispatcher.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Synch_Reply_Dispatcher::TAO_Synch_Reply_Dispatcher (  TAO_ORB_Core *  orb_core, IOP::ServiceContextList &  sc )

Constructor. Definition at line 16 of file Synch_Reply_Dispatcher.cpp. References TAO_LF_Invocation_Event::state_changed_i(), TAO_DEF_GIOP_MAJOR, TAO_DEF_GIOP_MINOR, and TAO_ENCAP_BYTE_ORDER. : reply_service_info_ (sc), orb_core_ (orb_core), db_ (sizeof buf_, ACE_Message_Block::MB_DATA, this->buf_, this->orb_core_->input_cdr_buffer_allocator (), this->orb_core_->locking_strategy (), ACE_Message_Block::DONT_DELETE, this->orb_core_->input_cdr_dblock_allocator ()), reply_cdr_ (&db_, ACE_Message_Block::DONT_DELETE, TAO_ENCAP_BYTE_ORDER, TAO_DEF_GIOP_MAJOR, TAO_DEF_GIOP_MINOR, orb_core) { // As a TAO_LF_Event we start in the active state.... this->state_changed_i (TAO_LF_Event::LFS_ACTIVE); }

TAO_Synch_Reply_Dispatcher::~TAO_Synch_Reply_Dispatcher (  void   )  [virtual]

Destructor. Definition at line 41 of file Synch_Reply_Dispatcher.cpp. { }

---

Member Function Documentation

void TAO_Synch_Reply_Dispatcher::connection_closed (  void   )  [virtual]

The used for the pending reply has been closed. No reply is expected. Todo: If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function. Implements TAO_Reply_Dispatcher. Definition at line 114 of file Synch_Reply_Dispatcher.cpp. References TAO_LF_Event::state_changed(). { this->state_changed (TAO_LF_Event::LFS_CONNECTION_CLOSED, this->orb_core_->leader_follower ()); }

int TAO_Synch_Reply_Dispatcher::dispatch_reply (  TAO_Pluggable_Reply_Params &  params  )  [virtual]

Dispatch the reply. Return 1 on sucess, -1 on error. Todo: Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class. Implements TAO_Reply_Dispatcher. Definition at line 52 of file Synch_Reply_Dispatcher.cpp. References ACE_BIT_DISABLED, ACE_ERROR, ACE_InputCDR::clone_from(), TAO_InputCDR::clr_mb_flags(), ACE_Data_Block::flags(), TAO::unbounded_value_sequence< ServiceContext >::get_buffer(), TAO_Pluggable_Reply_Params::input_cdr_, TAO::unbounded_value_sequence< ServiceContext >::length(), LM_ERROR, TAO::unbounded_value_sequence< ServiceContext >::maximum(), ACE_Data_Block::release(), TAO::unbounded_value_sequence< ServiceContext >::replace(), TAO_Pluggable_Reply_Params_Base::reply_status_, TAO_LF_Event::state_changed(), TAO_Pluggable_Reply_Params_Base::svc_ctx_, and TAO_debug_level. { if (params.input_cdr_ == 0) return -1; this->reply_status_ = params.reply_status_; // Steal the buffer, that way we don't do any unnecesary copies of // this data. CORBA::ULong const max = params.svc_ctx_.maximum (); CORBA::ULong const len = params.svc_ctx_.length (); IOP::ServiceContext* context_list = params.svc_ctx_.get_buffer (1); this->reply_service_info_.replace (max, len, context_list, 1); // Must reset the message state, it is possible that the same reply // dispatcher is used because the request must be re-sent. //this->message_state_.reset (0); // Transfer the <params.input_cdr_>'s content to this->reply_cdr_ if (ACE_BIT_DISABLED ((*params.input_cdr_).start()->data_block()->flags(), ACE_Message_Block::DONT_DELETE)) { // Data block is on the heap, so just duplicate it. this->reply_cdr_ = *params.input_cdr_; this->reply_cdr_.clr_mb_flags( ACE_Message_Block::DONT_DELETE ); } else { ACE_Data_Block *db = this->reply_cdr_.clone_from (*params.input_cdr_); if (db == 0) { if (TAO_debug_level > 2) { ACE_ERROR ((LM_ERROR, "TAO (%P|%t) - Synch_Reply_Dispatcher::dispatch_reply " "clone_from failed \n")); } return -1; } // See whether we need to delete the data block by checking the // flags. We cannot be happy that we initally allocated the // datablocks of the stack. If this method is called twice, as is in // some cases where the same invocation object is used to make two // invocations like forwarding, the release becomes essential. if (ACE_BIT_DISABLED (db->flags (), ACE_Message_Block::DONT_DELETE)) { db->release (); } } this->state_changed (TAO_LF_Event::LFS_SUCCESS, this->orb_core_->leader_follower ()); return 1; }

TAO_InputCDR & TAO_Synch_Reply_Dispatcher::reply_cdr (  void   )

Return the reply CDR. Definition at line 46 of file Synch_Reply_Dispatcher.cpp. { return this->reply_cdr_; }

---

Member Data Documentation

char TAO_Synch_Reply_Dispatcher::buf_[ACE_CDR::DEFAULT_BUFSIZE] [private]

The buffer that is used to initialise the data block. Definition at line 80 of file Synch_Reply_Dispatcher.h.

ACE_Data_Block TAO_Synch_Reply_Dispatcher::db_ [private]

datablock that is created on teh stack to initialise the CDR stream underneath. Definition at line 84 of file Synch_Reply_Dispatcher.h.

TAO_ORB_Core* TAO_Synch_Reply_Dispatcher::orb_core_ [private]

Cache the ORB Core pointer. Definition at line 70 of file Synch_Reply_Dispatcher.h.

TAO_InputCDR TAO_Synch_Reply_Dispatcher::reply_cdr_ [private]

CDR stream which has the reply information that needs to be demarshalled by the stubs Definition at line 88 of file Synch_Reply_Dispatcher.h.

IOP::ServiceContextList& TAO_Synch_Reply_Dispatcher::reply_service_info_ [protected]

The service context list. Definition at line 66 of file Synch_Reply_Dispatcher.h.

---

The documentation for this class was generated from the following files:

• Synch_Reply_Dispatcher.h
• Synch_Reply_Dispatcher.cpp

---
