ACE_WIN32_Asynch_Transmit_File_Result Class Reference

This class implements ACE_Asynch_Transmit_File::Result for WIN32 platforms. More...

#include <WIN32_Asynch_IO.h>

Inheritance diagram for ACE_WIN32_Asynch_Transmit_File_Result:

Inheritance graph
[legend]

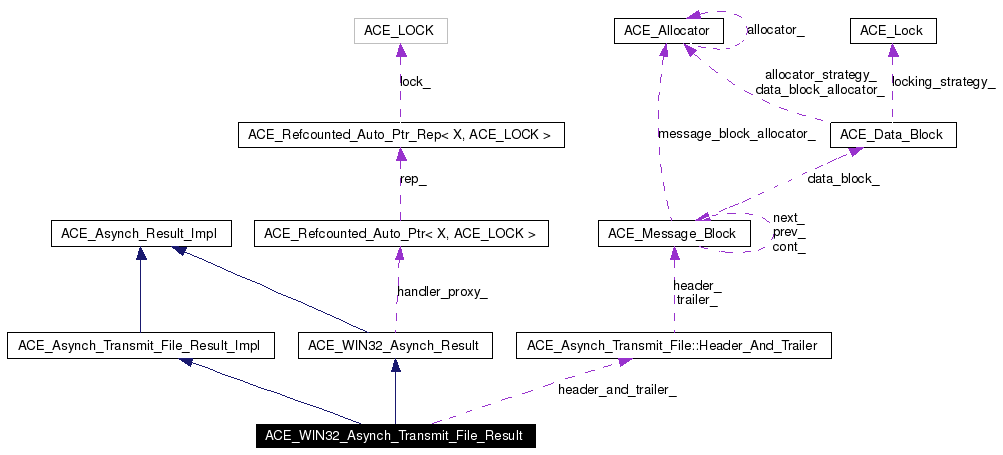

Collaboration diagram for ACE_WIN32_Asynch_Transmit_File_Result:

Collaboration graph
[legend]
List of all members.

Public Member Functions

ACE_HANDLE socket (void) const
 Socket used for transmitting the file.

ACE_HANDLE file (void) const
 File from which the data is read.

ACE_Asynch_Transmit_File::Header_And_Trailer * header_and_trailer (void) const
 Header and trailer data associated with this transmit file.

size_t bytes_to_write (void) const
size_t bytes_per_send (void) const
u_long flags (void) const
 Flags which were passed into transmit file.

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation.

const void * act (void) const
 ACT associated with the operation.

int success (void) const
 Did the operation succeed?

const void * completion_key (void) const
u_long error (void) const
 Error value if the operation fail.

ACE_HANDLE event (void) const
 Event associated with the OVERLAPPED structure.

u_long offset (void) const
 This really make sense only when doing file I/O.

u_long offset_high (void) const
 Offset_high associated with the OVERLAPPED structure.

int priority (void) const
int signal_number (void) const
 No-op. Returns 0.

int post_completion (ACE_Proactor_Impl *proactor)
 Post to the Proactor's completion port.


Protected Member Functions

 ACE_WIN32_Asynch_Transmit_File_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, size_t bytes_to_write, u_long offset, u_long offset_high, size_t bytes_per_send, u_long flags, const void *act, ACE_HANDLE event, int priority, int signal_number=0)
virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
 Proactor will call this method when the write completes.

virtual ~ACE_WIN32_Asynch_Transmit_File_Result (void)
 Destructor.


Protected Attributes

ACE_HANDLE socket_
 Network I/O handle.

ACE_HANDLE file_
 File I/O handle.

ACE_Asynch_Transmit_File::Header_And_Trailer * header_and_trailer_
 Header and trailer data associated with this transmit file.

size_t bytes_to_write_
size_t bytes_per_send_
u_long flags_
 Flags which were passed into transmit file.


Friends

class ACE_WIN32_Asynch_Transmit_File
 Factory class will have special permission.

class ACE_WIN32_Proactor
 Proactor class has special permission.

Detailed Description

This class implements ACE_Asynch_Transmit_File::Result for WIN32 platforms.

This class has all the information necessary for the to uniquiely identify the completion of the asynchronous transmit file.

Definition at line 1358 of file WIN32_Asynch_IO.h.

Constructor & Destructor Documentation

ACE_WIN32_Asynch_Transmit_File_Result::ACE_WIN32_Asynch_Transmit_File_Result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  socket,
ACE_HANDLE  file,
ACE_Asynch_Transmit_File::Header_And_Trailer *  header_and_trailer,
size_t  bytes_to_write,
u_long  offset,
u_long  offset_high,
size_t  bytes_per_send,
u_long  flags,
const void *  act,
ACE_HANDLE  event,
int  priority,
int  signal_number = 0
)  [protected]


Constructor is protected since creation is limited to ACE_Asynch_Transmit_File factory.

Definition at line 2793 of file WIN32_Asynch_IO.cpp.

References ACE_Handler::Proxy_Ptr.

02807   : ACE_Asynch_Result_Impl (),
02808     ACE_Asynch_Transmit_File_Result_Impl (),
02809     ACE_WIN32_Asynch_Result (handler_proxy,
02810                              act,
02811                              event,
02812                              offset,
02813                              offset_high,
02814                              priority,
02815                              signal_number),
02816     socket_ (socket),
02817     file_ (file),
02818     header_and_trailer_ (header_and_trailer),
02819     bytes_to_write_ (bytes_to_write),
02820     bytes_per_send_ (bytes_per_send),
02821     flags_ (flags)
02822 {
02823 }

ACE_WIN32_Asynch_Transmit_File_Result::~ACE_WIN32_Asynch_Transmit_File_Result (  void   )  [protected, virtual]


Destructor.

Definition at line 2862 of file WIN32_Asynch_IO.cpp.

02863 {
02864 }

Member Function Documentation

const void * ACE_WIN32_Asynch_Transmit_File_Result::act (  void   )  const [virtual]


ACT associated with the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2876 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::act().

02877 {
02878   return ACE_WIN32_Asynch_Result::act ();
02879 }

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_per_send (  void   )  const [virtual]


Number of bytes per send requested at the start of the transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

Definition at line 2782 of file WIN32_Asynch_IO.cpp.

02783 {
02784   return this->bytes_per_send_;
02785 }

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_to_write (  void   )  const [virtual]


The number of bytes which were requested at the start of the asynchronous transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

Definition at line 2776 of file WIN32_Asynch_IO.cpp.

02777 {
02778   return this->bytes_to_write_;
02779 }

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_transferred (  void   )  const [virtual]


Number of bytes transferred by the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2870 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::bytes_transferred().

02871 {
02872   return ACE_WIN32_Asynch_Result::bytes_transferred ();
02873 }

void ACE_WIN32_Asynch_Transmit_File_Result::complete (  size_t  bytes_transferred,
int  success,
const void *  completion_key,
u_long  error
)  [protected, virtual]


Proactor will call this method when the write completes.

Implements ACE_Asynch_Result_Impl.

Definition at line 2826 of file WIN32_Asynch_IO.cpp.

References ACE_Refcounted_Auto_Ptr< X, ACE_LOCK >::get(), and ACE_Handler::handle_transmit_file().

02830 {
02831   // Copy the data which was returned by GetQueuedCompletionStatus
02832   this->bytes_transferred_ = bytes_transferred;
02833   this->success_ = success;
02834   this->completion_key_ = completion_key;
02835   this->error_ = error;
02836
02837   // We will not do this because (a) the header and trailer blocks may
02838   // be the same message_blocks and (b) in cases of failures we have
02839   // no idea how much of what (header, data, trailer) was sent.
02840   /*
02841     if (this->success_ && this->header_and_trailer_ != 0)
02842     {
02843     ACE_Message_Block *header = this->header_and_trailer_->header ();
02844     if (header != 0)
02845     header->rd_ptr (this->header_and_trailer_->header_bytes ());
02846
02847     ACE_Message_Block *trailer = this->header_and_trailer_->trailer ();
02848     if (trailer != 0)
02849     trailer->rd_ptr (this->header_and_trailer_->trailer_bytes ());
02850     }
02851   */
02852
02853   // Create the interface result class.
02854   ACE_Asynch_Transmit_File::Result result (this);
02855
02856   // Call the application handler.
02857   ACE_Handler *handler = this->handler_proxy_.get ()->handler ();
02858   if (handler != 0)
02859     handler->handle_transmit_file (result);
02860 }

const void * ACE_WIN32_Asynch_Transmit_File_Result::completion_key (  void   )  const [virtual]


This returns the ACT associated with the handle when it was registered with the I/O completion port. This ACT is not the same as the ACT associated with the asynchronous operation.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2888 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::completion_key().

02889 {
02890   return ACE_WIN32_Asynch_Result::completion_key ();
02891 }

u_long ACE_WIN32_Asynch_Transmit_File_Result::error (  void   )  const [virtual]


Error value if the operation fail.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2894 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::error().

02895 {
02896   return ACE_WIN32_Asynch_Result::error ();
02897 }

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::event (  void   )  const [virtual]


Event associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2900 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::event().

02901 {
02902   return ACE_WIN32_Asynch_Result::event ();
02903 }

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::file (  void   )  const [virtual]


File from which the data is read.

Implements ACE_Asynch_Transmit_File_Result_Impl.

Definition at line 2764 of file WIN32_Asynch_IO.cpp.

Referenced by ACE_WIN32_Asynch_Transmit_File::transmit_file().

02765 {
02766   return this->file_;
02767 }

u_long ACE_WIN32_Asynch_Transmit_File_Result::flags (  void   )  const [virtual]


Flags which were passed into transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

Definition at line 2788 of file WIN32_Asynch_IO.cpp.

Referenced by ACE_WIN32_Asynch_Transmit_File::transmit_file().

02789 {
02790   return this->flags_;
02791 }

ACE_Asynch_Transmit_File::Header_And_Trailer * ACE_WIN32_Asynch_Transmit_File_Result::header_and_trailer (  void   )  const [virtual]


Header and trailer data associated with this transmit file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

Definition at line 2770 of file WIN32_Asynch_IO.cpp.

Referenced by ACE_WIN32_Asynch_Transmit_File::transmit_file().

02771 {
02772   return this->header_and_trailer_;
02773 }

u_long ACE_WIN32_Asynch_Transmit_File_Result::offset (  void   )  const [virtual]


This really make sense only when doing file I/O.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2906 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::offset().

02907 {
02908   return ACE_WIN32_Asynch_Result::offset ();
02909 }

u_long ACE_WIN32_Asynch_Transmit_File_Result::offset_high (  void   )  const [virtual]


Offset_high associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2912 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::offset_high().

02913 {
02914   return ACE_WIN32_Asynch_Result::offset_high ();
02915 }

int ACE_WIN32_Asynch_Transmit_File_Result::post_completion (  ACE_Proactor_Impl *  proactor  )  [virtual]


Post to the Proactor's completion port.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2930 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::post_completion().

02931 {
02932   return ACE_WIN32_Asynch_Result::post_completion (proactor);
02933 }

int ACE_WIN32_Asynch_Transmit_File_Result::priority (  void   )  const [virtual]


The priority of the asynchronous operation. Currently, this is not supported on Win32.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2918 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::priority().

02919 {
02920   return ACE_WIN32_Asynch_Result::priority ();
02921 }

int ACE_WIN32_Asynch_Transmit_File_Result::signal_number (  void   )  const [virtual]


No-op. Returns 0.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2924 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::signal_number().

02925 {
02926   return ACE_WIN32_Asynch_Result::signal_number ();
02927 }

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::socket (  void   )  const [virtual]


Socket used for transmitting the file.

Implements ACE_Asynch_Transmit_File_Result_Impl.

Definition at line 2758 of file WIN32_Asynch_IO.cpp.

Referenced by ACE_WIN32_Asynch_Transmit_File::transmit_file().

02759 {
02760   return this->socket_;
02761 }

int ACE_WIN32_Asynch_Transmit_File_Result::success (  void   )  const [virtual]


Did the operation succeed?

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2882 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::success().

02883 {
02884   return ACE_WIN32_Asynch_Result::success ();
02885 }

Friends And Related Function Documentation

friend class ACE_WIN32_Asynch_Transmit_File [friend]


Factory class will have special permission.

Definition at line 1362 of file WIN32_Asynch_IO.h.

friend class ACE_WIN32_Proactor [friend]


Proactor class has special permission.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1365 of file WIN32_Asynch_IO.h.

Member Data Documentation

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_per_send_ [protected]


Number of bytes per send requested at the start of the transmit file.

Definition at line 1470 of file WIN32_Asynch_IO.h.

size_t ACE_WIN32_Asynch_Transmit_File_Result::bytes_to_write_ [protected]


The number of bytes which were requested at the start of the asynchronous transmit file.

Definition at line 1466 of file WIN32_Asynch_IO.h.

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::file_ [protected]


File I/O handle.

Definition at line 1459 of file WIN32_Asynch_IO.h.

u_long ACE_WIN32_Asynch_Transmit_File_Result::flags_ [protected]


Flags which were passed into transmit file.

Definition at line 1473 of file WIN32_Asynch_IO.h.

ACE_Asynch_Transmit_File::Header_And_Trailer* ACE_WIN32_Asynch_Transmit_File_Result::header_and_trailer_ [protected]


Header and trailer data associated with this transmit file.

Definition at line 1462 of file WIN32_Asynch_IO.h.

ACE_HANDLE ACE_WIN32_Asynch_Transmit_File_Result::socket_ [protected]


Network I/O handle.

Definition at line 1456 of file WIN32_Asynch_IO.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:33:12 2006 for ACE by doxygen 1.3.6
