ACE_WIN32_Asynch_Accept_Result Class Reference

This class implements ACE_Asynch_Accept::Result for WIN32 platform. More...

#include <WIN32_Asynch_IO.h>

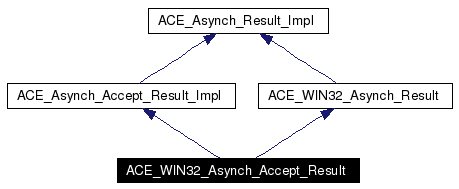

Inheritance diagram for ACE_WIN32_Asynch_Accept_Result:

Inheritance graph
[legend]
Collaboration diagram for ACE_WIN32_Asynch_Accept_Result:

Collaboration graph
[legend]
List of all members.

Public Member Functions

size_t bytes_to_read (void) const
ACE_Message_Block & message_block (void) const
 Message block which contains the read data.

ACE_HANDLE listen_handle (void) const
 I/O handle used for accepting new connections.

ACE_HANDLE accept_handle (void) const
 I/O handle for the new connection.

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation.

const void * act (void) const
 ACT associated with the operation.

int success (void) const
 Did the operation succeed?

const void * completion_key (void) const
u_long error (void) const
 Error value if the operation fail.

ACE_HANDLE event (void) const
 Event associated with the OVERLAPPED structure.

u_long offset (void) const
 This really make sense only when doing file I/O.

u_long offset_high (void) const
 Offset_high associated with the OVERLAPPED structure.

int priority (void) const
int signal_number (void) const
 No-op. Returns 0.

int post_completion (ACE_Proactor_Impl *proactor)
 Post to the Proactor's completion port.


Protected Member Functions

 ACE_WIN32_Asynch_Accept_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, ACE_HANDLE event, int priority, int signal_number=0)
virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
 ACE_Proactor will call this method when the accept completes.

virtual ~ACE_WIN32_Asynch_Accept_Result (void)
 Destructor.


Protected Attributes

size_t bytes_to_read_
 Bytes requested when the asynchronous read was initiated.

ACE_Message_Block & message_block_
 Message block for reading the data into.

ACE_HANDLE listen_handle_
 I/O handle used for accepting new connections.

ACE_HANDLE accept_handle_
 I/O handle for the new connection.


Friends

class ACE_WIN32_Asynch_Accept
 Factory will have special permission.

class ACE_WIN32_Proactor
 Proactor class has special permission.

Detailed Description

This class implements ACE_Asynch_Accept::Result for WIN32 platform.

This class has all the information necessary for the to uniquiely identify the completion of the asynchronous accept.

Definition at line 974 of file WIN32_Asynch_IO.h.

Constructor & Destructor Documentation

ACE_WIN32_Asynch_Accept_Result::ACE_WIN32_Asynch_Accept_Result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  listen_handle,
ACE_HANDLE  accept_handle,
ACE_Message_Block &  message_block,
size_t  bytes_to_read,
const void *  act,
ACE_HANDLE  event,
int  priority,
int  signal_number = 0
)  [protected]


Constructor is protected since creation is limited to ACE_Asynch_Accept factory.

Definition at line 1899 of file WIN32_Asynch_IO.cpp.

References ACE_Handler::Proxy_Ptr.

01909   : ACE_Asynch_Result_Impl (),
01910     ACE_Asynch_Accept_Result_Impl (),
01911     ACE_WIN32_Asynch_Result (handler_proxy,
01912                              act,
01913                              event,
01914                              0,
01915                              0,
01916                              priority,
01917                              signal_number),
01918     bytes_to_read_ (bytes_to_read),
01919     message_block_ (message_block),
01920     listen_handle_ (listen_handle),
01921     accept_handle_ (accept_handle)
01922 {
01923 }

ACE_WIN32_Asynch_Accept_Result::~ACE_WIN32_Asynch_Accept_Result (  void   )  [protected, virtual]


Destructor.

Definition at line 1955 of file WIN32_Asynch_IO.cpp.

01956 {
01957 }

Member Function Documentation

ACE_HANDLE ACE_WIN32_Asynch_Accept_Result::accept_handle (  void   )  const [virtual]


I/O handle for the new connection.

Implements ACE_Asynch_Accept_Result_Impl.

Definition at line 1894 of file WIN32_Asynch_IO.cpp.

References accept_handle_.

Referenced by ACE_WIN32_Asynch_Accept::accept().

01895 {
01896   return this->accept_handle_;
01897 }

const void * ACE_WIN32_Asynch_Accept_Result::act (  void   )  const [virtual]


ACT associated with the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1969 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::act().

01970 {
01971   return ACE_WIN32_Asynch_Result::act ();
01972 }

size_t ACE_WIN32_Asynch_Accept_Result::bytes_to_read (  void   )  const [virtual]


The number of bytes which were requested at the start of the asynchronous accept.

Implements ACE_Asynch_Accept_Result_Impl.

Definition at line 1876 of file WIN32_Asynch_IO.cpp.

01877 {
01878   return this->bytes_to_read_;
01879 }

size_t ACE_WIN32_Asynch_Accept_Result::bytes_transferred (  void   )  const [virtual]


Number of bytes transferred by the operation.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1963 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::bytes_transferred().

01964 {
01965   return ACE_WIN32_Asynch_Result::bytes_transferred ();
01966 }

void ACE_WIN32_Asynch_Accept_Result::complete (  size_t  bytes_transferred,
int  success,
const void *  completion_key,
u_long  error
)  [protected, virtual]


ACE_Proactor will call this method when the accept completes.

Implements ACE_Asynch_Result_Impl.

Definition at line 1926 of file WIN32_Asynch_IO.cpp.

References accept_handle_, ACE_OS::closesocket(), ACE_Refcounted_Auto_Ptr< X, ACE_LOCK >::get(), ACE_Handler::handle_accept(), and ACE_Message_Block::wr_ptr().

01930 {
01931   // Copy the data which was returned by GetQueuedCompletionStatus
01932   this->bytes_transferred_ = bytes_transferred;
01933   this->success_ = success;
01934   this->completion_key_ = completion_key;
01935   this->error_ = error;
01936
01937   // Appropriately move the pointers in the message block.
01938   this->message_block_.wr_ptr (bytes_transferred);
01939
01940   if (!success && this->accept_handle_ != ACE_INVALID_HANDLE)
01941     {
01942       ACE_OS::closesocket (this->accept_handle_);
01943       this->accept_handle_ = ACE_INVALID_HANDLE;
01944     }
01945
01946   // Create the interface result class.
01947   ACE_Asynch_Accept::Result result (this);
01948
01949   // Call the application handler.
01950   ACE_Handler *handler = this->handler_proxy_.get ()->handler ();
01951   if (handler != 0)
01952     handler->handle_accept (result);
01953 }

const void * ACE_WIN32_Asynch_Accept_Result::completion_key (  void   )  const [virtual]


This returns the ACT associated with the handle when it was registered with the I/O completion port. This ACT is not the same as the ACT associated with the asynchronous operation.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1981 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::completion_key().

01982 {
01983   return ACE_WIN32_Asynch_Result::completion_key ();
01984 }

u_long ACE_WIN32_Asynch_Accept_Result::error (  void   )  const [virtual]


Error value if the operation fail.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1987 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::error().

01988 {
01989   return ACE_WIN32_Asynch_Result::error ();
01990 }

ACE_HANDLE ACE_WIN32_Asynch_Accept_Result::event (  void   )  const [virtual]


Event associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1993 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::event().

01994 {
01995   return ACE_WIN32_Asynch_Result::event ();
01996 }

ACE_HANDLE ACE_WIN32_Asynch_Accept_Result::listen_handle (  void   )  const [virtual]


I/O handle used for accepting new connections.

Implements ACE_Asynch_Accept_Result_Impl.

Definition at line 1888 of file WIN32_Asynch_IO.cpp.

Referenced by ACE_WIN32_Asynch_Accept::accept().

01889 {
01890   return this->listen_handle_;
01891 }

ACE_Message_Block & ACE_WIN32_Asynch_Accept_Result::message_block (  void   )  const [virtual]


Message block which contains the read data.

Implements ACE_Asynch_Accept_Result_Impl.

Definition at line 1882 of file WIN32_Asynch_IO.cpp.

Referenced by ACE_WIN32_Asynch_Accept::accept().

01883 {
01884   return this->message_block_;
01885 }

u_long ACE_WIN32_Asynch_Accept_Result::offset (  void   )  const [virtual]


This really make sense only when doing file I/O.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1999 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::offset().

02000 {
02001   return ACE_WIN32_Asynch_Result::offset ();
02002 }

u_long ACE_WIN32_Asynch_Accept_Result::offset_high (  void   )  const [virtual]


Offset_high associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2005 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::offset_high().

02006 {
02007   return ACE_WIN32_Asynch_Result::offset_high ();
02008 }

int ACE_WIN32_Asynch_Accept_Result::post_completion (  ACE_Proactor_Impl *  proactor  )  [virtual]


Post to the Proactor's completion port.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2023 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::post_completion().

02024 {
02025   return ACE_WIN32_Asynch_Result::post_completion (proactor);
02026 }

int ACE_WIN32_Asynch_Accept_Result::priority (  void   )  const [virtual]


The priority of the asynchronous operation. Currently, this is not supported on Win32.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2011 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::priority().

02012 {
02013   return ACE_WIN32_Asynch_Result::priority ();
02014 }

int ACE_WIN32_Asynch_Accept_Result::signal_number (  void   )  const [virtual]


No-op. Returns 0.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 2017 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::signal_number().

02018 {
02019   return ACE_WIN32_Asynch_Result::signal_number ();
02020 }

int ACE_WIN32_Asynch_Accept_Result::success (  void   )  const [virtual]


Did the operation succeed?

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 1975 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Result::success().

01976 {
01977   return ACE_WIN32_Asynch_Result::success ();
01978 }

Friends And Related Function Documentation

friend class ACE_WIN32_Asynch_Accept [friend]


Factory will have special permission.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 978 of file WIN32_Asynch_IO.h.

friend class ACE_WIN32_Proactor [friend]


Proactor class has special permission.

Reimplemented from ACE_WIN32_Asynch_Result.

Definition at line 981 of file WIN32_Asynch_IO.h.

Member Data Documentation

ACE_HANDLE ACE_WIN32_Asynch_Accept_Result::accept_handle_ [protected]


I/O handle for the new connection.

Definition at line 1070 of file WIN32_Asynch_IO.h.

Referenced by accept_handle(), and complete().

size_t ACE_WIN32_Asynch_Accept_Result::bytes_to_read_ [protected]


Bytes requested when the asynchronous read was initiated.

Definition at line 1061 of file WIN32_Asynch_IO.h.

ACE_HANDLE ACE_WIN32_Asynch_Accept_Result::listen_handle_ [protected]


I/O handle used for accepting new connections.

Definition at line 1067 of file WIN32_Asynch_IO.h.

ACE_Message_Block& ACE_WIN32_Asynch_Accept_Result::message_block_ [protected]


Message block for reading the data into.

Definition at line 1064 of file WIN32_Asynch_IO.h.

The documentation for this class was generated from the following files:
