ACE_Service_Manager Class Reference

Provide a standard ACE service for managing all the services configured in an ACE_Service_Repository. More...

#include <Service_Manager.h>

Inheritance diagram for ACE_Service_Manager:

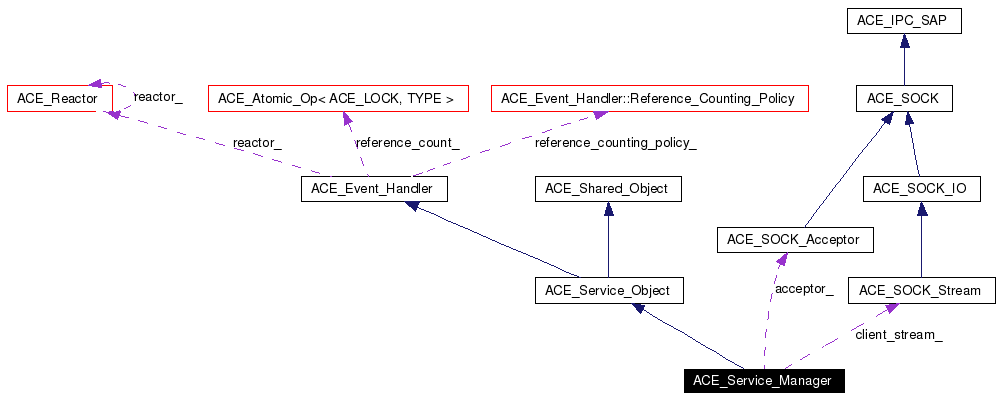

[legend]Collaboration diagram for ACE_Service_Manager:

[legend]List of all members.

Public Member Functions
	ACE_Service_Manager (void)
	Constructor.
	~ACE_Service_Manager (void)
	Destructor.
Protected Member Functions
virtual int	reconfigure_services (void)
virtual int	list_services (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs.
virtual int	info (ACE_TCHAR **info_string, size_t length) const
	Returns information on a service object.
virtual int	fini (void)
	Terminates object when dynamic unlinking occurs.
virtual int	suspend (void)
	Temporarily disable a service without removing it completely.
virtual int	resume (void)
	Re-enable a previously suspended service.
void	dump (void) const
	Dump the state of an object.
int	open (const ACE_INET_Addr &sia)
virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle.
virtual int	handle_input (ACE_HANDLE fd)
	Called when input events occur (e.g., connection or data).
virtual int	handle_close (ACE_HANDLE fd, ACE_Reactor_Mask)
virtual int	handle_signal (int signum, siginfo_t *, ucontext_t *)
virtual void	process_request (ACE_TCHAR *request)
	Handle one request.
Protected Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
ACE_SOCK_Stream	client_stream_
ACE_SOCK_Acceptor	acceptor_
	Acceptor instance.
int	debug_
	Keep track of the debugging level.
int	signum_
	The signal used to trigger reconfiguration.
Static Protected Attributes
u_short	DEFAULT_PORT_ = 10000
	Default port for the Acceptor to listen on.

---

Detailed Description

Provide a standard ACE service for managing all the services configured in an ACE_Service_Repository.

This implementation is simple and just handles each client request one at a time. There are currently 3 types of requests: + List services: If the string "help" is sent, return a list of all the services supported by the Service Configurator. + Reconfigure: If the string "reconfigure" is sent trigger a reconfiguration, which will re-read the local <svc.conf> file. + Process directive: If neither "help" nor "reconfigure" is sent, simply treat the incoming string as a process directive and pass it along to <ACE_Service_Config::process_directive>. This allows remote configuration via command-line instructions like echo suspend My_Remote_Service | telnet hostname 3911

Each request is associated with a new connection, which is closed when the request is processed. In addition, you must be using the singleton <ACE_Reactor::instance> in order to trigger reconfigurations.

Definition at line 52 of file Service_Manager.h.

---

Constructor & Destructor Documentation

ACE_Service_Manager::ACE_Service_Manager (  void   )

Constructor. Definition at line 35 of file Service_Manager.cpp. References ACE_TRACE, and SIGHUP. : debug_ (0), signum_ (SIGHUP) { ACE_TRACE ("ACE_Service_Manager::ACE_Service_Manager"); }

ACE_Service_Manager::~ACE_Service_Manager (  void   )

Destructor. Definition at line 42 of file Service_Manager.cpp. References ACE_TRACE. { ACE_TRACE ("ACE_Service_Manager::~ACE_Service_Manager"); }

---

Member Function Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_Service_Manager::dump (  void   )  const [protected]

Dump the state of an object. Definition at line 24 of file Service_Manager.cpp. References ACE_TRACE. { #if defined (ACE_HAS_DUMP) ACE_TRACE ("ACE_Service_Manager::dump"); #endif /* ACE_HAS_DUMP */ }

int ACE_Service_Manager::fini (  void   )  [protected, virtual]

Terminates object when dynamic unlinking occurs. Reimplemented from ACE_Shared_Object. Definition at line 139 of file Service_Manager.cpp. References ACE_TRACE, get_handle(), handle_close(), ACE_Reactor::instance(), and ACE_Reactor::remove_handler(). { ACE_TRACE ("ACE_Service_Manager::fini"); int retv = 0; if (this->get_handle () != ACE_INVALID_HANDLE) { retv = ACE_Reactor::instance ()->remove_handler (this, ACE_Event_Handler::ACCEPT_MASK | ACE_Event_Handler::DONT_CALL); this->handle_close (ACE_INVALID_HANDLE, ACE_Event_Handler::NULL_MASK); } return retv; }

ACE_HANDLE ACE_Service_Manager::get_handle (  void   )  const [protected, virtual]

Get the I/O handle. Reimplemented from ACE_Event_Handler. Definition at line 157 of file Service_Manager.cpp. References ACE_TRACE, and ACE_IPC_SAP::get_handle(). Referenced by fini(), and init(). { ACE_TRACE ("ACE_Service_Manager::get_handle"); return this->acceptor_.get_handle (); }

int ACE_Service_Manager::handle_close (  ACE_HANDLE  fd, ACE_Reactor_Mask  )  [protected, virtual]

Called when a <handle_*()> method returns -1 or when the method is called on an ACE_Reactor. The indicates which event has triggered the method callback on a particular . Reimplemented from ACE_Event_Handler. Definition at line 132 of file Service_Manager.cpp. References ACE_Reactor_Mask, ACE_TRACE, and ACE_SOCK_Acceptor::close(). Referenced by fini(). { ACE_TRACE ("ACE_Service_Manager::handle_close"); return this->acceptor_.close (); }

int ACE_Service_Manager::handle_input (  ACE_HANDLE  fd  )  [protected, virtual]

Called when input events occur (e.g., connection or data). Reimplemented from ACE_Event_Handler. Definition at line 273 of file Service_Manager.cpp. References ACE_SOCK_Acceptor::accept(), ACE_DEBUG, ACE_LIB_TEXT, ACE_TCHAR, ACE_TEXT_CHAR_TO_TCHAR, ACE_TRACE, client_stream_, ACE_SOCK_Stream::close(), EWOULDBLOCK, ACE_INET_Addr::get_host_name(), ACE_INET_Addr::get_port_number(), ACE_SOCK::get_remote_addr(), ACE_Reactor::instance(), LM_DEBUG, LM_ERROR, process_request(), ACE_SOCK_IO::recv(), ACE_Reactor::register_handler(), SIGPIPE, ssize_t, ACE_OS::strchr(), and ACE_Reactor::uses_event_associations(). { ACE_TRACE ("ACE_Service_Manager::handle_input"); // Try to find out if the implementation of the reactor that we are // using requires us to reset the event association for the newly // created handle. This is because the newly created handle will // inherit the properties of the listen handle, including its event // associations. int reset_new_handle = ACE_Reactor::instance ()->uses_event_associations (); if (this->acceptor_.accept (this->client_stream_, // stream 0, // remote address 0, // timeout 1, // restart reset_new_handle // reset new handler ) == -1) return -1; if (this->debug_) { ACE_DEBUG ((LM_DEBUG, ACE_LIB_TEXT ("client_stream fd = %d\n"), this->client_stream_.get_handle ())); ACE_INET_Addr sa; if (this->client_stream_.get_remote_addr (sa) == -1) return -1; ACE_DEBUG ((LM_DEBUG, ACE_LIB_TEXT ("accepted from host %s at port %d\n"), ACE_TEXT_CHAR_TO_TCHAR (sa.get_host_name ()), sa.get_port_number ())); } ACE_TCHAR request[BUFSIZ]; ACE_TCHAR* offset = request; ssize_t remaining = sizeof (request); // Read service request from client. ssize_t result; // Keep looping until we actually get the request. Note that Win32 // sets the socket into non-blocking mode, so we may need to loop if // the system is heavily loaded. Read bytes into the buffer until a // '\n' or '\r' is found in the buffer, otherwise the buffer // contains an incomplete string. int error; do { result = client_stream_.recv (offset, remaining); error = errno; if (result == 0 && error != EWOULDBLOCK) remaining = 0; if (result >= 0) { if ((remaining -= result) <= 0) { ACE_DEBUG ((LM_ERROR, ACE_LIB_TEXT ("Request buffer overflow.\n"))); result = 0; break; } offset += result; *offset = 0; if (ACE_OS::strchr (request, '\r') != 0 || ACE_OS::strchr (request, '\n') != 0) remaining = 0; } } while (result == -1 && error == EWOULDBLOCK || remaining > 0); switch (result) { case -1: if (this->debug_) ACE_DEBUG ((LM_ERROR, ACE_LIB_TEXT ("%p\n"), ACE_LIB_TEXT ("recv"))); break; case 0: return 0; /* NOTREACHED */ default: { ACE_Event_Handler *old_signal_handler = 0; ACE_Reactor::instance ()->register_handler (SIGPIPE, this, 0, &old_signal_handler); this->process_request (request); // Restore existing SIGPIPE handler ACE_Reactor::instance ()->register_handler (SIGPIPE, old_signal_handler); } } if (this->client_stream_.close () == -1 && this->debug_) ACE_DEBUG ((LM_ERROR, ACE_LIB_TEXT ("%p\n"), ACE_LIB_TEXT ("close"))); return 0; }

int ACE_Service_Manager::handle_signal (  int  signum, siginfo_t *  , ucontext_t *  )  [protected, virtual]

Called when object is signaled by OS (either via UNIX signals or when a Win32 object becomes signaled). Reimplemented from ACE_Event_Handler. Definition at line 164 of file Service_Manager.cpp. References ucontext_t. { return 0; }

int ACE_Service_Manager::info (  ACE_TCHAR **  info_string, size_t  length )  const [protected, virtual]

Returns information on a service object. Reimplemented from ACE_Shared_Object. Definition at line 73 of file Service_Manager.cpp. References ACE_LIB_TEXT, ACE_TCHAR, ACE_TRACE, ACE_SOCK::get_local_addr(), ACE_INET_Addr::get_port_number(), ACE_OS::sprintf(), ACE_OS::strdup(), ACE_OS::strlen(), and ACE_OS::strsncpy(). { ACE_TRACE ("ACE_Service_Manager::info"); ACE_INET_Addr sa; ACE_TCHAR buf[BUFSIZ]; if (this->acceptor_.get_local_addr (sa) == -1) return -1; ACE_OS::sprintf (buf, ACE_LIB_TEXT ("%d/%s %s"), sa.get_port_number (), ACE_LIB_TEXT ("tcp"), ACE_LIB_TEXT ("# lists all services in the daemon\n")); if (*strp == 0 && (*strp = ACE_OS::strdup (buf)) == 0) return -1; else ACE_OS::strsncpy (*strp, buf, length); return static_cast<int> (ACE_OS::strlen (buf)); }

int ACE_Service_Manager::init (  int  argc, ACE_TCHAR *  argv[] )  [protected, virtual]

Initializes object when dynamic linking occurs. Reimplemented from ACE_Shared_Object. Definition at line 95 of file Service_Manager.cpp. References ACE_ERROR_RETURN, ACE_LIB_TEXT, ACE_TCHAR, ACE_TRACE, ACE_OS::atoi(), DEFAULT_PORT_, get_handle(), ACE_Reactor::instance(), LM_ERROR, open(), ACE_Reactor::register_handler(), and ACE_INET_Addr::set(). { ACE_TRACE ("ACE_Service_Manager::init"); ACE_INET_Addr local_addr (ACE_Service_Manager::DEFAULT_PORT_); ACE_Get_Opt getopt (argc, argv, ACE_LIB_TEXT ("dp:s:"), 0); // Start at argv[0] for (int c; (c = getopt ()) != -1; ) switch (c) { case 'd': this->debug_ = 1; break; case 'p': local_addr.set ((u_short) ACE_OS::atoi (getopt.opt_arg ())); break; case 's': this->signum_ = ACE_OS::atoi (getopt.opt_arg ()); break; default: break; } if (this->get_handle () == ACE_INVALID_HANDLE && this->open (local_addr) == -1) ACE_ERROR_RETURN ((LM_ERROR, ACE_LIB_TEXT ("%p\n"), ACE_LIB_TEXT ("open")), -1); else if (ACE_Reactor::instance ()->register_handler (this, ACE_Event_Handler::ACCEPT_MASK) == -1) ACE_ERROR_RETURN ((LM_ERROR, ACE_LIB_TEXT ("registering service with ACE_Reactor\n")), -1); return 0; }

int ACE_Service_Manager::list_services (  void   )  [protected, virtual]

Determine all the services offered by this daemon and return the information back to the client. Definition at line 173 of file Service_Manager.cpp. References ACE_DEBUG, ACE_ERROR, ACE_LIB_TEXT, ACE_TCHAR, ACE_TRACE, ACE_Service_Type::active(), ACE_Service_Repository_Iterator::advance(), client_stream_, ACE_Service_Type_Impl::info(), LM_DEBUG, LM_ERROR, ACE_Service_Type::name(), ACE_Service_Repository_Iterator::next(), ACE_SOCK_Stream::send_n(), ssize_t, ACE_OS::strcat(), ACE_OS::strcpy(), ACE_OS::strlen(), and ACE_Service_Type::type(). Referenced by process_request(). { ACE_TRACE ("ACE_Service_Manager::list_services"); ACE_Service_Repository_Iterator sri (*ACE_Service_Repository::instance (), 0); for (const ACE_Service_Type *sr; sri.next (sr) != 0; sri.advance ()) { size_t len = ACE_OS::strlen (sr->name ()) + 11; ACE_TCHAR buf[BUFSIZ]; ACE_TCHAR *p = buf + len; ACE_OS::strcpy (buf, sr->name ()); ACE_OS::strcat (buf, (sr->active ()) ? ACE_LIB_TEXT (" (active) ") : ACE_LIB_TEXT (" (paused) ")); p[-1] = ' '; p[0] = '\0'; len += sr->type ()->info (&p, sizeof buf - len); if (this->debug_) ACE_DEBUG ((LM_DEBUG, ACE_LIB_TEXT ("len = %d, info = %s%s"), len, buf, buf[len - 1] == '\n' ? ACE_LIB_TEXT ("") : ACE_LIB_TEXT ("\n"))); if (len > 0) { ssize_t n = this->client_stream_.send_n (buf, len); if (n <= 0 && errno != EPIPE) ACE_ERROR ((LM_ERROR, ACE_LIB_TEXT ("%p\n"), ACE_LIB_TEXT ("send_n"))); } } return 0; }

int ACE_Service_Manager::open (  const ACE_INET_Addr &  sia  )  [protected]

Definition at line 62 of file Service_Manager.cpp. References ACE_TRACE, and ACE_SOCK_Acceptor::open(). Referenced by init(). { ACE_TRACE ("ACE_Service_Manager::open"); // Reuse the listening address, even if it's already in use! if (this->acceptor_.open (sia, 1) == -1) return -1; return 0; }

void ACE_Service_Manager::process_request (  ACE_TCHAR *  request  )  [protected, virtual]

Handle one request. Definition at line 242 of file Service_Manager.cpp. References ACE_LIB_TEXT, ACE_TCHAR, ACE_TRACE, list_services(), ACE_Service_Config::process_directive(), reconfigure_services(), and ACE_OS::strcmp(). Referenced by handle_input(). { ACE_TRACE("ACE_Service_Manager::process_request"); ACE_TCHAR *p; // Kill trailing newlines. for (p = request; (*p != '\0') && (*p != '\r') && (*p != '\n'); p++) continue; *p = '\0'; if (ACE_OS::strcmp (request, ACE_LIB_TEXT ("help")) == 0) // Return a list of the configured services. this->list_services (); else if (ACE_OS::strcmp (request, ACE_LIB_TEXT ("reconfigure") )== 0) // Trigger a reconfiguration by re-reading the local <svc.conf> file. this->reconfigure_services (); else // Just process a single request passed in via the socket // remotely. ACE_Service_Config::process_directive (request); // Additional management services may be handled here... }

int ACE_Service_Manager::reconfigure_services (  void   )  [protected, virtual]

Trigger a reconfiguration of the Service Configurator by re-reading its local <svc.conf> file. Definition at line 220 of file Service_Manager.cpp. References ACE_TRACE, client_stream_, ACE_Service_Config::reconfig_occurred(), ACE_SOCK_Stream::send_n(), and sig_atomic_t. Referenced by process_request(). { ACE_TRACE ("ACE_Service_Manager::reconfigure_services"); #if 0 // Send ourselves a signal! ACE_OS::kill (ACE_OS::getpid (), // this->signum_); #endif /* 0 */ // Flag the main event loop that a reconfiguration should occur. // The next trip through the <ACE_Reactor::run_event_loop> should // pick this up and cause a reconfiguration. Note that we can't // trigger the reconfiguration automatically since that might "pull // the rug" out from underneath the existing services in a // problematic way. ACE_Service_Config::reconfig_occurred ((sig_atomic_t) 1); return static_cast<int> (this->client_stream_.send_n ("done\n", sizeof ("done\n"))); }

int ACE_Service_Manager::resume (  void   )  [protected, virtual]

Re-enable a previously suspended service. Reimplemented from ACE_Service_Object. Definition at line 55 of file Service_Manager.cpp. References ACE_TRACE, ACE_Reactor::instance(), and ACE_Reactor::resume_handler(). { ACE_TRACE ("ACE_Service_Manager::resume"); return ACE_Reactor::instance ()->resume_handler (this); }

int ACE_Service_Manager::suspend (  void   )  [protected, virtual]

Temporarily disable a service without removing it completely. Reimplemented from ACE_Service_Object. Definition at line 48 of file Service_Manager.cpp. References ACE_TRACE, ACE_Reactor::instance(), and ACE_Reactor::suspend_handler(). { ACE_TRACE ("ACE_Service_Manager::suspend"); return ACE_Reactor::instance ()->suspend_handler (this); }

---

Member Data Documentation

ACE_SOCK_Acceptor ACE_Service_Manager::acceptor_ [protected]

Acceptor instance. Definition at line 105 of file Service_Manager.h.

ACE_Service_Manager::ACE_ALLOC_HOOK_DECLARE [protected]

Declare the dynamic allocation hooks. Definition at line 86 of file Service_Manager.h.

ACE_SOCK_Stream ACE_Service_Manager::client_stream_ [protected]

Connection to the client (we only support one client connection at a time). Definition at line 102 of file Service_Manager.h. Referenced by handle_input(), list_services(), and reconfigure_services().

int ACE_Service_Manager::debug_ [protected]

Keep track of the debugging level. Definition at line 108 of file Service_Manager.h.

u_short ACE_Service_Manager::DEFAULT_PORT_ = 10000 [static, protected]

Default port for the Acceptor to listen on. Definition at line 33 of file Service_Manager.cpp. Referenced by init().

int ACE_Service_Manager::signum_ [protected]

The signal used to trigger reconfiguration. Definition at line 111 of file Service_Manager.h.

---

The documentation for this class was generated from the following files:

• Service_Manager.h
• Service_Manager.cpp

---
