ACE_SOCK_IO Class Reference

Defines the methods for the ACE socket wrapper I/O routines (e.g., send/recv). More...

#include <SOCK_IO.h>

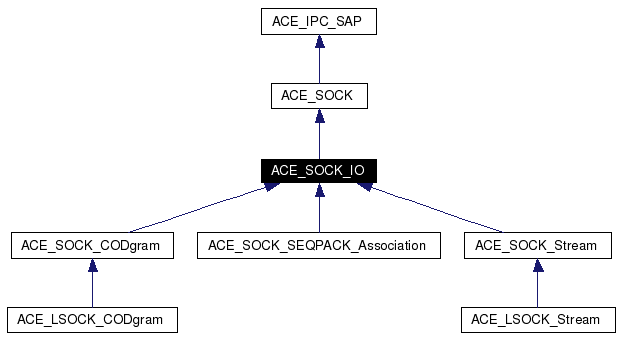

Inheritance diagram for ACE_SOCK_IO:

Inheritance graph
[legend]
Collaboration diagram for ACE_SOCK_IO:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_SOCK_IO (void)
 Constructor.

 ~ACE_SOCK_IO (void)
 Destructor.

ssize_t recv (void *buf, size_t n, int flags, const ACE_Time_Value *timeout=0) const
 Recv an byte buffer from the connected socket.

ssize_t recv (void *buf, size_t n, const ACE_Time_Value *timeout=0) const
 Recv an byte buffer from the connected socket.

ssize_t recvv (iovec iov[], size_t n, const ACE_Time_Value *timeout=0) const
 Recv an of size from the connected socket.

ssize_t recv (iovec iov[], size_t n, const ACE_Time_Value *timeout=0) const
ssize_t recvv (iovec *io_vec, const ACE_Time_Value *timeout=0) const
ssize_t recv (iovec *io_vec, const ACE_Time_Value *timeout=0) const
 Same as above. Deprecated.

ssize_t recv (size_t n,...) const
 Recv varargs messages to the connected socket.

ssize_t recv (void *buf, size_t n, ACE_OVERLAPPED *overlapped) const
 Recv bytes via Win32 using overlapped I/O.

ssize_t send (const void *buf, size_t n, int flags, const ACE_Time_Value *timeout=0) const
 Send an byte buffer to the connected socket.

ssize_t send (const void *buf, size_t n, const ACE_Time_Value *timeout=0) const
 Send an byte buffer to the connected socket.

ssize_t sendv (const iovec iov[], size_t n, const ACE_Time_Value *timeout=0) const
 Send an of size to the connected socket.

ssize_t send (const iovec iov[], size_t n, const ACE_Time_Value *timeout=0) const
 Same as above. Deprecated.

ssize_t send (size_t n,...) const
 Send varargs messages to the connected socket.

ssize_t send (const void *buf, size_t n, ACE_OVERLAPPED *overlapped) const
 Send bytes via Win32 using overlapped I/O.

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Detailed Description

Defines the methods for the ACE socket wrapper I/O routines (e.g., send/recv).

If == 0, then the call behaves as a normal send/recv call, i.e., for blocking sockets, the call will block until action is possible; for non-blocking sockets, EWOULDBLOCK will be returned if no action is immediately possible. If != 0, the call will wait until the relative time specified in * elapses. Errors are reported by -1 and 0 return values. If the operation times out, -1 is returned with <errno == ETIME>. If it succeeds the number of bytes transferred is returned. Methods with the extra argument will always result in getting called. Methods without the extra argument will result in getting called on Win32 platforms, and getting called on non-Win32 platforms.

Definition at line 50 of file SOCK_IO.h.

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_SOCK_IO::ACE_SOCK_IO (  void   )


Constructor.

Definition at line 13 of file SOCK_IO.inl.

00014 {
00015   // ACE_TRACE ("ACE_SOCK_IO::ACE_SOCK_IO");
00016 }

ACE_INLINE ACE_SOCK_IO::~ACE_SOCK_IO (  void   )


Destructor.

Definition at line 19 of file SOCK_IO.inl.

00020 {
00021   // ACE_TRACE ("ACE_SOCK_IO::~ACE_SOCK_IO");
00022 }

Member Function Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_SOCK_IO::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_LSOCK_CODgram, ACE_LSOCK_Stream, ACE_SOCK_CODgram, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

Definition at line 22 of file SOCK_IO.cpp.

References ACE_TRACE.

00023 {
00024 #if defined (ACE_HAS_DUMP)
00025   ACE_TRACE ("ACE_SOCK_IO::dump");
00026 #endif /* ACE_HAS_DUMP */
00027 }

ACE_INLINE ssize_t ACE_SOCK_IO::recv (  void *  buf,
size_t  n,
ACE_OVERLAPPED *  overlapped
)  const


Recv bytes via Win32 using overlapped I/O.

Definition at line 83 of file SOCK_IO.inl.

References ACE_OVERLAPPED, ACE_TRACE, and ACE_OS::read().

00086 {
00087   ACE_TRACE ("ACE_SOCK_IO::recv");
00088   return ACE_OS::read (this->get_handle (),
00089                        (char *) buf,
00090                        n,
00091                        overlapped);
00092 }

ssize_t ACE_SOCK_IO::recv (  size_t  n,
...
)  const


Recv varargs messages to the connected socket.

Definition at line 148 of file SOCK_IO.cpp.

References ACE_NEW_RETURN, ACE_TRACE, iovec::iov_base, iovec::iov_len, ACE_OS::recvv(), and ssize_t.

00149 {
00150   ACE_TRACE ("ACE_SOCK_IO::recv");
00151
00152   va_list argp;
00153   int total_tuples = ACE_Utils::Truncate<size_t> (n / 2);
00154   iovec *iovp;
00155 #if defined (ACE_HAS_ALLOCA)
00156   iovp = (iovec *) alloca (total_tuples * sizeof (iovec));
00157 #else
00158   ACE_NEW_RETURN (iovp,
00159                   iovec[total_tuples],
00160                   -1);
00161 #endif /* !defined (ACE_HAS_ALLOCA) */
00162
00163   va_start (argp, n);
00164
00165   for (int i = 0; i < total_tuples; i++)
00166     {
00167       iovp[i].iov_base = va_arg (argp, char *);
00168       iovp[i].iov_len = va_arg (argp, int);
00169     }
00170
00171   ssize_t result = ACE_OS::recvv (this->get_handle (),
00172                                   iovp,
00173                                   total_tuples);
00174 #if !defined (ACE_HAS_ALLOCA)
00175   delete [] iovp;
00176 #endif /* !defined (ACE_HAS_ALLOCA) */
00177   va_end (argp);
00178   return result;
00179 }

ACE_INLINE ssize_t ACE_SOCK_IO::recv (  iovec *  io_vec,
const ACE_Time_Value *  timeout = 0
)  const


Same as above. Deprecated.

Definition at line 74 of file SOCK_IO.inl.

References ACE_TRACE, and recvv().

00076 {
00077   ACE_TRACE ("ACE_SOCK_IO::recv");
00078   return this->recvv (io_vec,
00079                       timeout);
00080 }

ACE_INLINE ssize_t ACE_SOCK_IO::recv (  iovec  iov[],
size_t  n,
const ACE_Time_Value *  timeout = 0
)  const


Deprecated:
Same as above. Deprecated.

Definition at line 63 of file SOCK_IO.inl.

References ACE_TRACE, and recvv().

00066 {
00067   ACE_TRACE ("ACE_SOCK_IO::recv");
00068   return this->recvv (iov,
00069                       n,
00070                       timeout);
00071 }

ACE_INLINE ssize_t ACE_SOCK_IO::recv (  void *  buf,
size_t  n,
const ACE_Time_Value *  timeout = 0
)  const


Recv an byte buffer from the connected socket.

Definition at line 39 of file SOCK_IO.inl.

References ACE_TRACE, and ACE::recv().

00042 {
00043   ACE_TRACE ("ACE_SOCK_IO::recv");
00044   return ACE::recv (this->get_handle (),
00045                     buf,
00046                     len,
00047                     timeout);
00048 }

ACE_INLINE ssize_t ACE_SOCK_IO::recv (  void *  buf,
size_t  n,
int  flags,
const ACE_Time_Value *  timeout = 0
)  const


Recv an byte buffer from the connected socket.

Definition at line 25 of file SOCK_IO.inl.

References ACE_TRACE, and ACE::recv().

Referenced by ACE_Service_Manager::handle_input(), ACE_Name_Proxy::recv_reply(), recvv(), and ACE_Remote_Token_Proxy::request_reply().

00029 {
00030   ACE_TRACE ("ACE_SOCK_IO::recv");
00031   return ACE::recv (this->get_handle (),
00032                     buf,
00033                     len,
00034                     flags,
00035                     timeout);
00036 }

ssize_t ACE_SOCK_IO::recvv (  iovec *  io_vec,
const ACE_Time_Value *  timeout = 0
)  const


Allows a client to read from a socket without having to provide a buffer to read. This method determines how much data is in the socket, allocates a buffer of this size, reads in the data, and returns the number of bytes read. The caller is responsible for deleting the member in the field of using delete [] io_vec->iov_base.

Definition at line 35 of file SOCK_IO.cpp.

References ACE_NEW_RETURN, ACE_NOTSUP_RETURN, ACE_TRACE, ETIME, ACE_OS::ioctl(), iovec::iov_base, iovec::iov_len, recv(), ACE_Handle_Set::reset(), ACE_OS::select(), ACE_Handle_Set::set_bit(), and ssize_t.

00037 {
00038   ACE_TRACE ("ACE_SOCK_IO::recvv");
00039 #if defined (FIONREAD)
00040   ACE_Handle_Set handle_set;
00041   handle_set.reset ();
00042   handle_set.set_bit (this->get_handle ());
00043
00044   io_vec->iov_base = 0;
00045
00046   // Check the status of the current socket.
00047   int select_width;
00048 #  if defined (ACE_WIN32)
00049   // This arg is ignored on Windows and causes pointer truncation
00050   // warnings on 64-bit compiles.
00051   select_width = 0;
00052 #  else
00053   select_width = int (this->get_handle ()) + 1;
00054 #  endif /* ACE_WIN32 */
00055   switch (ACE_OS::select (select_width,
00056                           handle_set,
00057                           0, 0,
00058                           timeout))
00059     {
00060     case -1:
00061       return -1;
00062       /* NOTREACHED */
00063     case 0:
00064       errno = ETIME;
00065       return -1;
00066       /* NOTREACHED */
00067     default:
00068       // Goes fine, fallthrough to get data
00069       break;
00070     }
00071
00072   int inlen = 0;
00073
00074   if (ACE_OS::ioctl (this->get_handle (),
00075                      FIONREAD,
00076                      &inlen) == -1)
00077     return -1;
00078   else if (inlen > 0)
00079     {
00080       ACE_NEW_RETURN (io_vec->iov_base,
00081                       char[inlen],
00082                       -1);
00083       // It's ok to blindly cast this value since 'inlen' is an int and, thus,
00084       // we can't get more than that back. Besides, if the recv() fails, we
00085       // don't want that value cast to unsigned and returned.
00086       ssize_t recv_len = this->recv (io_vec->iov_base, inlen);
00087       if (recv_len > 0)
00088         // u_long is the Windows type; size_t is everyone else's. A u_long
00089         // should go into a size_t anywhere without an issue.
00090         io_vec->iov_len = static_cast<u_long> (recv_len);
00091       return recv_len;
00092     }
00093   else
00094     return 0;
00095 #else
00096   ACE_UNUSED_ARG (io_vec);
00097   ACE_UNUSED_ARG (timeout);
00098   ACE_NOTSUP_RETURN (-1);
00099 #endif /* FIONREAD */
00100 }

ACE_INLINE ssize_t ACE_SOCK_IO::recvv (  iovec  iov[],
size_t  n,
const ACE_Time_Value *  timeout = 0
)  const


Recv an of size from the connected socket.

Note:
The value of n will be silently reduced to the maximum value an int can hold if needed. This is due to the underlying system calls on many OSes limiting the number of iovec structures that can be passed in one call.

Definition at line 51 of file SOCK_IO.inl.

References ACE_TRACE, and ACE::recvv().

Referenced by recv().

00054 {
00055   ACE_TRACE ("ACE_SOCK_IO::recvv");
00056   return ACE::recvv (this->get_handle (),
00057                      iov,
00058                      ACE_Utils::Truncate<size_t> (n),
00059                      timeout);
00060 }

ACE_INLINE ssize_t ACE_SOCK_IO::send (  const void *  buf,
size_t  n,
ACE_OVERLAPPED *  overlapped
)  const


Send bytes via Win32 using overlapped I/O.

Definition at line 144 of file SOCK_IO.inl.

References ACE_OVERLAPPED, ACE_TRACE, and ACE_OS::write().

00147 {
00148   ACE_TRACE ("ACE_SOCK_IO::send");
00149   return ACE_OS::write (this->get_handle (),
00150                         buf,
00151                         n,
00152                         overlapped);
00153 }

ssize_t ACE_SOCK_IO::send (  size_t  n,
...
)  const


Send varargs messages to the connected socket.

Definition at line 108 of file SOCK_IO.cpp.

References ACE_NEW_RETURN, ACE_TRACE, iovec::iov_base, iovec::iov_len, ACE_OS::sendv(), and ssize_t.

00109 {
00110   ACE_TRACE ("ACE_SOCK_IO::send");
00111
00112   va_list argp;
00113   int total_tuples = ACE_Utils::Truncate<size_t> (n / 2);
00114   iovec *iovp = 0;
00115 #if defined (ACE_HAS_ALLOCA)
00116   iovp = (iovec *) alloca (total_tuples * sizeof (iovec));
00117 #else
00118   ACE_NEW_RETURN (iovp,
00119                   iovec[total_tuples],
00120                   -1);
00121 #endif /* !defined (ACE_HAS_ALLOCA) */
00122
00123   va_start (argp, n);
00124
00125   for (int i = 0; i < total_tuples; i++)
00126     {
00127       iovp[i].iov_base = va_arg (argp, char *);
00128       iovp[i].iov_len = va_arg (argp, int);
00129     }
00130
00131   ssize_t result = ACE_OS::sendv (this->get_handle (),
00132                                   iovp,
00133                                   total_tuples);
00134 #if !defined (ACE_HAS_ALLOCA)
00135   delete [] iovp;
00136 #endif /* !defined (ACE_HAS_ALLOCA) */
00137   va_end (argp);
00138   return result;
00139 }

ACE_INLINE ssize_t ACE_SOCK_IO::send (  const iovec  iov[],
size_t  n,
const ACE_Time_Value *  timeout = 0
)  const


Same as above. Deprecated.

Definition at line 133 of file SOCK_IO.inl.

References ACE_TRACE, and sendv().

00136 {
00137   ACE_TRACE ("ACE_SOCK_IO::send");
00138   return this->sendv (iov,
00139                       n,
00140                       timeout);
00141 }

ACE_INLINE ssize_t ACE_SOCK_IO::send (  const void *  buf,
size_t  n,
const ACE_Time_Value *  timeout = 0
)  const


Send an byte buffer to the connected socket.

Definition at line 109 of file SOCK_IO.inl.

References ACE_TRACE, and ACE::send().

00112 {
00113   ACE_TRACE ("ACE_SOCK_IO::send");
00114   return ACE::send (this->get_handle (),
00115                     buf,
00116                     len,
00117                     timeout);
00118 }

ACE_INLINE ssize_t ACE_SOCK_IO::send (  const void *  buf,
size_t  n,
int  flags,
const ACE_Time_Value *  timeout = 0
)  const


Send an byte buffer to the connected socket.

Definition at line 95 of file SOCK_IO.inl.

References ACE_TRACE, and ACE::send().

00099 {
00100   ACE_TRACE ("ACE_SOCK_IO::send");
00101   return ACE::send (this->get_handle (),
00102                     buf,
00103                     len,
00104                     flags,
00105                     timeout);
00106 }

ACE_INLINE ssize_t ACE_SOCK_IO::sendv (  const iovec  iov[],
size_t  n,
const ACE_Time_Value *  timeout = 0
)  const


Send an of size to the connected socket.

Note:
The value of n will be silently reduced to the maximum value an int can hold if needed. This is due to the underlying system calls on many OSes limiting the number of iovec structures that can be passed in one call.

Definition at line 121 of file SOCK_IO.inl.

References ACE_TRACE, and ACE::sendv().

Referenced by send().

00124 {
00125   ACE_TRACE ("ACE_SOCK_IO::sendv");
00126   return ACE::sendv (this->get_handle (),
00127                      iov,
00128                      ACE_Utils::Truncate<size_t> (n),
00129                      timeout);
00130 }

Member Data Documentation

ACE_SOCK_IO::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_LSOCK_CODgram, ACE_LSOCK_Stream, ACE_SOCK_CODgram, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

Definition at line 152 of file SOCK_IO.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:29:54 2006 for ACE by doxygen 1.3.6
