ACE_SOCK_Stream
object.
More...
#include <SOCK_Connector.h>

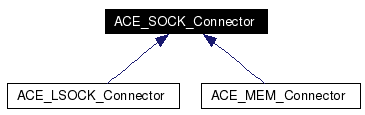

Inheritance diagram for ACE_SOCK_Connector:
Public Types | |
typedef ACE_INET_Addr | PEER_ADDR |
typedef ACE_SOCK_Stream | PEER_STREAM |
Public Member Functions | |
ACE_SOCK_Connector (void) | |
Default constructor. | |
ACE_SOCK_Connector (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0, int protocol=0) | |
ACE_SOCK_Connector (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, ACE_QoS_Params qos_params, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int perms=0) | |
int | connect (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0, int protocol=0) |
int | connect (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, ACE_QoS_Params qos_params, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int perms=0) |
~ACE_SOCK_Connector (void) | |
Default dtor. | |
int | complete (ACE_SOCK_Stream &new_stream, ACE_Addr *remote_sap=0, const ACE_Time_Value *timeout=0) |
int | reset_new_handle (ACE_HANDLE handle) |
Resets any event associations on this handle. | |
void | dump (void) const |
Dump the state of an object. | |
Public Attributes | |
ACE_ALLOC_HOOK_DECLARE | |
Declare the dynamic allocation hooks. | |
Protected Member Functions | |
int | shared_open (ACE_SOCK_Stream &new_stream, int protocol_family, int protocol, int reuse_addr) |
int | shared_open (ACE_SOCK_Stream &new_stream, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr) |
int | shared_connect_start (ACE_SOCK_Stream &new_stream, const ACE_Time_Value *timeout, const ACE_Addr &local_sap) |
Perform operations that must be called before <ACE_OS::connect>. | |
int | shared_connect_finish (ACE_SOCK_Stream &new_stream, const ACE_Time_Value *timeout, int result) |
Perform operations that must be called after <ACE_OS::connect>. |
ACE_SOCK_Stream
object.
The ACE_SOCK_Connector
doesn't have a socket of its own, i.e., it simply "borrows" the one from the ACE_SOCK_Stream
that's being connected. The reason for this is that the underlying socket API doesn't use a factory socket to connect data mode sockets. Therefore, there's no need to inherit ACE_SOCK_Connector
from ACE_SOCK
. A nice side-effect of this is that ACE_SOCK_Connector
objects do not store state so they can be used reentrantly in multithreaded programs.
Definition at line 43 of file SOCK_Connector.h.
|
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. Definition at line 284 of file SOCK_Connector.h. |
|
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. Definition at line 285 of file SOCK_Connector.h. |
|
Default constructor.
Definition at line 19 of file SOCK_Connector.inl. References ACE_TRACE.
00020 { 00021 ACE_TRACE ("ACE_SOCK_Connector::ACE_SOCK_Connector"); 00022 } |
|
Actively connect to a peer, producing a connected
Definition at line 272 of file SOCK_Connector.cpp. References ACE_ERROR, ACE_LIB_TEXT, ACE_TRACE, connect(), ETIME, ETIMEDOUT, EWOULDBLOCK, and LM_ERROR.
00280 { 00281 ACE_TRACE ("ACE_SOCK_Connector::ACE_SOCK_Connector"); 00282 00283 if (this->connect (new_stream, 00284 remote_sap, 00285 timeout, 00286 local_sap, 00287 reuse_addr, 00288 flags, 00289 perms, 00290 protocol) == -1 00291 && timeout != 0 00292 && !(errno == EWOULDBLOCK || errno == ETIME || errno == ETIMEDOUT)) 00293 ACE_ERROR ((LM_ERROR, 00294 ACE_LIB_TEXT ("%p\n"), 00295 ACE_LIB_TEXT ("ACE_SOCK_Connector::ACE_SOCK_Connector"))); 00296 } |
|
Actively connect to a peer, producing a connected
Definition at line 299 of file SOCK_Connector.cpp. References ACE_ERROR, ACE_LIB_TEXT, ACE_SOCK_GROUP, ACE_TRACE, connect(), ETIME, ETIMEDOUT, EWOULDBLOCK, and LM_ERROR.
00309 { 00310 ACE_TRACE ("ACE_SOCK_Connector::ACE_SOCK_Connector"); 00311 00312 if (this->connect (new_stream, 00313 remote_sap, 00314 qos_params, 00315 timeout, 00316 local_sap, 00317 protocolinfo, 00318 g, 00319 flags, 00320 reuse_addr, 00321 perms) == -1 00322 && timeout != 0 00323 && !(errno == EWOULDBLOCK || errno == ETIME || errno == ETIMEDOUT)) 00324 ACE_ERROR ((LM_ERROR, 00325 ACE_LIB_TEXT ("%p\n"), 00326 ACE_LIB_TEXT ("ACE_SOCK_Connector::ACE_SOCK_Connector"))); 00327 } |
|
Default dtor.
Definition at line 11 of file SOCK_Connector.inl. References ACE_TRACE.
00012 { 00013 ACE_TRACE ("ACE_SOCK_Connector::~ACE_SOCK_Connector"); 00014 } |
|
Try to complete a nonblocking connection that was begun by a previous call to connect with a {0, 0} ACE_Time_Value timeout.
Definition at line 221 of file SOCK_Connector.cpp. References ACE_NON_BLOCKING_BUG_DELAY, ACE_NONBLOCK, ACE_TRACE, ACE_SOCK_Stream::close(), ACE_IPC_SAP::disable(), ACE_Addr::get_addr(), ACE_IPC_SAP::get_handle(), ACE_Addr::get_size(), ACE_OS::getpeername(), ACE::handle_timed_complete(), and ACE_OS::sleep(). Referenced by shared_connect_finish().
00224 { 00225 ACE_TRACE ("ACE_SOCK_Connector::complete"); 00226 ACE_HANDLE h = ACE::handle_timed_complete (new_stream.get_handle (), 00227 tv); 00228 // We failed to get connected. 00229 if (h == ACE_INVALID_HANDLE) 00230 { 00231 #if defined (ACE_WIN32) 00232 // Win32 has a timing problem - if you check to see if the 00233 // connection has completed too fast, it will fail - so wait 00234 // <ACE_NON_BLOCKING_BUG_DELAY> microseconds to let it catch up 00235 // then retry to see if it's a real failure. 00236 ACE_Time_Value time (0, ACE_NON_BLOCKING_BUG_DELAY); 00237 ACE_OS::sleep (time); 00238 h = ACE::handle_timed_complete (new_stream.get_handle (), 00239 tv); 00240 if (h == ACE_INVALID_HANDLE) 00241 { 00242 #endif /* ACE_WIN32 */ 00243 // Save/restore errno. 00244 ACE_Errno_Guard error (errno); 00245 new_stream.close (); 00246 return -1; 00247 #if defined (ACE_WIN32) 00248 } 00249 #endif /* ACE_WIN32 */ 00250 } 00251 00252 if (remote_sap != 0) 00253 { 00254 int len = remote_sap->get_size (); 00255 sockaddr *addr = reinterpret_cast<sockaddr *> (remote_sap->get_addr ()); 00256 if (ACE_OS::getpeername (h, 00257 addr, 00258 &len) == -1) 00259 { 00260 // Save/restore errno. 00261 ACE_Errno_Guard error (errno); 00262 new_stream.close (); 00263 return -1; 00264 } 00265 } 00266 00267 // Start out with non-blocking disabled on the <new_stream>. 00268 new_stream.disable (ACE_NONBLOCK); 00269 return 0; 00270 } |
|
Actively connect to a peer, producing a connected
Definition at line 181 of file SOCK_Connector.cpp. References ACE_SOCK_GROUP, ACE_TRACE, ACE_OS::connect(), ACE_Addr::get_addr(), ACE_IPC_SAP::get_handle(), ACE_Addr::get_size(), ACE_Addr::get_type(), shared_connect_finish(), shared_connect_start(), and shared_open().
00191 { 00192 ACE_TRACE ("ACE_SOCK_Connector::connect"); 00193 00194 if (this->shared_open (new_stream, 00195 remote_sap.get_type (), 00196 0, 00197 protocolinfo, 00198 g, 00199 flags, 00200 reuse_addr) == -1) 00201 return -1; 00202 else if (this->shared_connect_start (new_stream, 00203 timeout, 00204 local_sap) == -1) 00205 return -1; 00206 00207 int result = ACE_OS::connect (new_stream.get_handle (), 00208 reinterpret_cast<sockaddr *> (remote_sap.get_addr ()), 00209 remote_sap.get_size (), 00210 qos_params); 00211 00212 return this->shared_connect_finish (new_stream, 00213 timeout, 00214 result); 00215 } |
|
Actively connect to a peer, producing a connected
Definition at line 149 of file SOCK_Connector.cpp. References ACE_TRACE, ACE_OS::connect(), ACE_Addr::get_addr(), ACE_IPC_SAP::get_handle(), ACE_Addr::get_size(), ACE_Addr::get_type(), shared_connect_finish(), shared_connect_start(), and shared_open(). Referenced by ACE_SOCK_Connector(), ACE_MEM_Connector::connect(), ACE_LSOCK_Connector::connect(), ACE_TSS_Connection::make_TSS_TYPE(), ACE_Pipe::open(), ACE_Name_Proxy::open(), and ACE_Log_Msg_IPC::open().
00157 { 00158 ACE_TRACE ("ACE_SOCK_Connector::connect"); 00159 00160 if (this->shared_open (new_stream, 00161 remote_sap.get_type (), 00162 protocol, 00163 reuse_addr) == -1) 00164 return -1; 00165 else if (this->shared_connect_start (new_stream, 00166 timeout, 00167 local_sap) == -1) 00168 return -1; 00169 00170 int result = ACE_OS::connect (new_stream.get_handle (), 00171 reinterpret_cast<sockaddr *> (remote_sap.get_addr ()), 00172 remote_sap.get_size ()); 00173 00174 return this->shared_connect_finish (new_stream, 00175 timeout, 00176 result); 00177 } |
|
Dump the state of an object.
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. Definition at line 25 of file SOCK_Connector.cpp. References ACE_TRACE. Referenced by ACE_Name_Proxy::dump().
00026 { 00027 #if defined (ACE_HAS_DUMP) 00028 ACE_TRACE ("ACE_SOCK_Connector::dump"); 00029 #endif /* ACE_HAS_DUMP */ 00030 } |
|
Resets any event associations on this handle.
Definition at line 25 of file SOCK_Connector.inl. References WSAEventSelect().
00026 { 00027 #if defined (ACE_HAS_WINSOCK2) && (ACE_HAS_WINSOCK2 != 0) 00028 // Reset the event association 00029 return ::WSAEventSelect ((SOCKET) handle, 00030 0, 00031 0); 00032 #else /* !defined ACE_HAS_WINSOCK2 */ 00033 ACE_UNUSED_ARG (handle); 00034 return 0; 00035 #endif /* ACE_WIN32 */ 00036 } |
|
Perform operations that must be called after <ACE_OS::connect>.
Definition at line 108 of file SOCK_Connector.cpp. References ACE_NONBLOCK, ACE_TRACE, ACE_SOCK_Stream::close(), complete(), ACE_IPC_SAP::disable(), EINPROGRESS, EISCONN, ETIMEDOUT, EWOULDBLOCK, ACE_Time_Value::sec(), and ACE_Time_Value::usec(). Referenced by connect().
00111 { 00112 ACE_TRACE ("ACE_SOCK_Connector::shared_connect_finish"); 00113 // Save/restore errno. 00114 ACE_Errno_Guard error (errno); 00115 00116 if (result == -1 && timeout != 0) 00117 { 00118 // Check whether the connection is in progress. 00119 if (error == EINPROGRESS || error == EWOULDBLOCK) 00120 { 00121 // This expression checks if we were polling. 00122 if (timeout->sec () == 0 00123 && timeout->usec () == 0) 00124 error = EWOULDBLOCK; 00125 // Wait synchronously using timeout. 00126 else if (this->complete (new_stream, 00127 0, 00128 timeout) == -1) 00129 error = errno; 00130 else 00131 return 0; 00132 } 00133 } 00134 00135 // EISCONN is treated specially since this routine may be used to 00136 // check if we are already connected. 00137 if (result != -1 || error == EISCONN) 00138 // Start out with non-blocking disabled on the <new_stream>. 00139 new_stream.disable (ACE_NONBLOCK); 00140 else if (!(error == EWOULDBLOCK || error == ETIMEDOUT)) 00141 new_stream.close (); 00142 00143 return result; 00144 } |
|
Perform operations that must be called before <ACE_OS::connect>.
Definition at line 77 of file SOCK_Connector.cpp. References ACE_NONBLOCK, ACE_TRACE, ACE_OS::bind(), ACE_SOCK_Stream::close(), ACE_IPC_SAP::enable(), ACE_Addr::get_addr(), ACE_IPC_SAP::get_handle(), and ACE_Addr::get_size(). Referenced by connect().
00080 { 00081 ACE_TRACE ("ACE_SOCK_Connector::shared_connect_start"); 00082 00083 if (local_sap != ACE_Addr::sap_any) 00084 { 00085 sockaddr *laddr = reinterpret_cast<sockaddr *> (local_sap.get_addr ()); 00086 int size = local_sap.get_size (); 00087 00088 if (ACE_OS::bind (new_stream.get_handle (), 00089 laddr, 00090 size) == -1) 00091 { 00092 // Save/restore errno. 00093 ACE_Errno_Guard error (errno); 00094 new_stream.close (); 00095 return -1; 00096 } 00097 } 00098 00099 // Enable non-blocking, if required. 00100 if (timeout != 0 00101 && new_stream.enable (ACE_NONBLOCK) == -1) 00102 return -1; 00103 else 00104 return 0; 00105 } |
|
Perform operations that ensure the socket is opened using QoS-enabled semantics. Definition at line 52 of file SOCK_Connector.cpp. References ACE_SOCK_GROUP, ACE_TRACE, ACE_IPC_SAP::get_handle(), and ACE_SOCK::open().
00059 { 00060 ACE_TRACE ("ACE_SOCK_Connector::shared_open"); 00061 00062 // Only open a new socket if we don't already have a valid handle. 00063 if (new_stream.get_handle () == ACE_INVALID_HANDLE 00064 && new_stream.open (SOCK_STREAM, 00065 protocol_family, 00066 protocol, 00067 protocolinfo, 00068 g, 00069 flags, 00070 reuse_addr) == -1) 00071 return -1; 00072 else 00073 return 0; 00074 } |
|
Perform operations that ensure the socket is opened using BSD-style semantics (no QoS). Definition at line 33 of file SOCK_Connector.cpp. References ACE_TRACE, ACE_IPC_SAP::get_handle(), and ACE_SOCK::open(). Referenced by connect().
00037 { 00038 ACE_TRACE ("ACE_SOCK_Connector::shared_open"); 00039 00040 // Only open a new socket if we don't already have a valid handle. 00041 if (new_stream.get_handle () == ACE_INVALID_HANDLE 00042 && new_stream.open (SOCK_STREAM, 00043 protocol_family, 00044 protocol, 00045 reuse_addr) == -1) 00046 return -1; 00047 else 00048 return 0; 00049 } |
|
Declare the dynamic allocation hooks.
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. Definition at line 291 of file SOCK_Connector.h. |
