Implementation of CosNotifyChannelAdmin::EventChannelFactory. More...

#include <EventChannelFactory.h>

Inheritance diagram for TAO_Notify_EventChannelFactory:

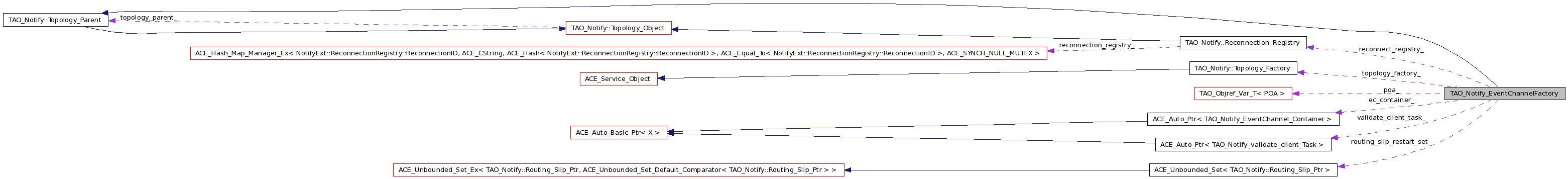

Collaboration diagram for TAO_Notify_EventChannelFactory:

Public Types
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_EventChannelFactory >	Ptr
Public Member Functions
	TAO_Notify_EventChannelFactory (void)
	Constructor.
void	init (PortableServer::POA_ptr poa)
	Init the factory.
virtual	~TAO_Notify_EventChannelFactory ()
	Destructor.
virtual void	_add_ref (void)
	= ServantBase Methods
virtual void	_remove_ref (void)
virtual void	remove (TAO_Notify_EventChannel *channel)
	Remove channel from the <ec_container_>
virtual CosNotifyChannelAdmin::EventChannel_ptr	create_named_channel (const CosNotification::QoSProperties &initial_qos, const CosNotification::AdminProperties &initial_admin, CosNotifyChannelAdmin::ChannelID_out id, const char *name)
void	load_topology (void)
void	set_topology_factory (TAO_Notify::Topology_Factory *sf)
virtual bool	is_persistent (void) const
	Should this object be saved?
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual bool	change_to_parent (void)
	Send change to parent.
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
CosNotifyChannelAdmin::EventChannelFactory_ptr	activate_self (void)
virtual void	reconnect (void)
virtual void	validate ()
void	stop_validator (void)
	at shutdown time, this causes the validator thread to exit.
bool	handle_change (void)
	Handle change notifications.
void	load_event_persistence (void)
virtual void	save_topology (void)
TAO_Notify_ProxyConsumer *	find_proxy_consumer (TAO_Notify::IdVec &id_path, size_t position)
TAO_Notify_ProxySupplier *	find_proxy_supplier (TAO_Notify::IdVec &id_path, size_t position)
TAO_Notify_Object *	follow_id_path (TAO_Notify::IdVec &id_path, size_t position)
virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object.
Protected Member Functions
virtual ::CosNotifyChannelAdmin::EventChannel_ptr	create_channel (const CosNotification::QoSProperties &initial_qos, const CosNotification::AdminProperties &initial_admin, CosNotifyChannelAdmin::ChannelID_out id)
	= CosNotifyChannelAdmin Methods
virtual ::CosNotifyChannelAdmin::ChannelIDSeq *	get_all_channels (void)
virtual ::CosNotifyChannelAdmin::EventChannel_ptr	get_event_channel (CosNotifyChannelAdmin::ChannelID id)
Private Types
typedef ACE_Unbounded_Set < TAO_Notify::Routing_Slip_Ptr >	Routing_Slip_Set
typedef TAO_Notify_Container_T < TAO_Notify_EventChannel >	TAO_Notify_EventChannel_Container
Private Member Functions
virtual void	destroy (void)
	= Data Members
virtual int	shutdown (void)
	shutdown
virtual NotifyExt::ReconnectionRegistry::ReconnectionID	register_callback (NotifyExt::ReconnectionCallback_ptr reconnection)
virtual void	unregister_callback (NotifyExt::ReconnectionRegistry::ReconnectionID id)
virtual CORBA::Boolean	is_alive (void)
TAO_Notify_EventChannel_Container &	ec_container ()
virtual void	release (void)
	Release this object.
Private Attributes
ACE_Auto_Ptr < TAO_Notify_EventChannel_Container >	ec_container_
	Container for Event Channels.
TAO_SYNCH_MUTEX	topology_save_lock_
CosNotifyChannelAdmin::EventChannelFactory_var	channel_factory_
short	topology_save_seq_
	Change-in-progress detector to avoid duplicates.
TAO_Notify::Topology_Factory *	topology_factory_
TAO_Notify::Reconnection_Registry	reconnect_registry_
bool	loading_topology_
Routing_Slip_Set	routing_slip_restart_set_
ACE_Auto_Ptr < TAO_Notify_validate_client_Task >	validate_client_task_
PortableServer::POA_var	poa_
Friends
class	TAO_Notify_Builder

Detailed Description

Implementation of CosNotifyChannelAdmin::EventChannelFactory.

Definition at line 52 of file EventChannelFactory.h.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannelFactory > TAO_Notify_EventChannelFactory::Ptr

Definition at line 60 of file EventChannelFactory.h.

typedef ACE_Unbounded_Set<TAO_Notify::Routing_Slip_Ptr> TAO_Notify_EventChannelFactory::Routing_Slip_Set [private]

Definition at line 57 of file EventChannelFactory.h.

typedef TAO_Notify_Container_T<TAO_Notify_EventChannel> TAO_Notify_EventChannelFactory::TAO_Notify_EventChannel_Container [private]

Definition at line 159 of file EventChannelFactory.h.

Constructor & Destructor Documentation

TAO_Notify_EventChannelFactory::TAO_Notify_EventChannelFactory ( void )

Constructor.

Definition at line 55 of file EventChannelFactory.cpp.

  : topology_save_seq_ (0)
  , topology_factory_(0)
  , reconnect_registry_(*this)
  , loading_topology_ (false)
{
}

TAO_Notify_EventChannelFactory::~TAO_Notify_EventChannelFactory ( ) [virtual]

Destructor.

Definition at line 63 of file EventChannelFactory.cpp.

{
}

Member Function Documentation

void TAO_Notify_EventChannelFactory::_add_ref ( void ) [virtual]

= ServantBase Methods

Definition at line 138 of file EventChannelFactory.cpp.

{
  this->_incr_refcnt ();
}

void TAO_Notify_EventChannelFactory::_remove_ref ( void ) [virtual]

Definition at line 144 of file EventChannelFactory.cpp.

{
  this->_decr_refcnt ();
}

CosNotifyChannelAdmin::EventChannelFactory_ptr TAO_Notify_EventChannelFactory::activate_self ( void )

Definition at line 508 of file EventChannelFactory.cpp.

{
  CORBA::Object_var obj = this->activate (this);
  this->channel_factory_
    = CosNotifyChannelAdmin::EventChannelFactory::_narrow (obj.in());

  try
  {
    if (DEBUG_LEVEL > 9)
    {
      ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("(%P|%t) TAO_Notify_EventChannelFactory::activate_self\n") ));
    }
    this->reconnect ();
  }
  catch (const CORBA::Exception&)
  {
    // ignore for now
  }
  return this->channel_factory_._retn();
}

bool TAO_Notify_EventChannelFactory::change_to_parent ( void ) [virtual]

Send change to parent.

Override this if you don't expect to have a parent (top level of tree) private virtual because this should only be called from send_change()

Returns:: false if save will never happen

Reimplemented from TAO_Notify::Topology_Object.

Definition at line 345 of file EventChannelFactory.cpp.

{
  bool saving = false;
  if (! this->loading_topology_)
  {
    // A null pointer means that saving of topology is disabled.
    if (this->topology_factory_ != 0)
    {
      saving = true;
      // seq is used to check save-in-progress
      // if it changes while we're waiting for the lock
      // then our change may have already been saved, so
      // just return.  Caller will signal change again if necessary.
      short seq = this->topology_save_seq_;
      ACE_GUARD_THROW_EX (TAO_SYNCH_MUTEX, ace_mon, this->topology_save_lock_, CORBA::INTERNAL ());
      if (seq == this->topology_save_seq_)
      {
        auto_ptr<TAO_Notify::Topology_Saver> saver(this->topology_factory_->create_saver());
        if (saver.get() != 0)
        {
          this->save_persistent(*saver);
          saver->close ();
        }
        this->topology_save_seq_ += 1;
      }
    }
  }
  return saving;
}

CosNotifyChannelAdmin::EventChannel_ptr TAO_Notify_EventChannelFactory::create_channel	(	const CosNotification::QoSProperties &	initial_qos,
		const CosNotification::AdminProperties &	initial_admin,
		CosNotifyChannelAdmin::ChannelID_out	id
	)			`[protected]`

= CosNotifyChannelAdmin Methods

Definition at line 188 of file EventChannelFactory.cpp.

{
  CosNotifyChannelAdmin::EventChannel_var ec =
    TAO_Notify_PROPERTIES::instance()->builder()->build_event_channel (this
                                                                        , initial_qos
                                                                        , initial_admin
                                                                        , id);
  this->self_change ();
  return ec._retn ();
}

CosNotifyChannelAdmin::EventChannel_ptr TAO_Notify_EventChannelFactory::create_named_channel	(	const CosNotification::QoSProperties &	initial_qos,
		const CosNotification::AdminProperties &	initial_admin,
		CosNotifyChannelAdmin::ChannelID_out	id,
		const char *	name
	)			`[virtual]`

This method is called by the Notify_Service when the event channel is automatically created and bound in the name service.

Definition at line 178 of file EventChannelFactory.cpp.

{
  return this->create_channel (initial_qos, initial_admin, id);
}

void TAO_Notify_EventChannelFactory::destroy ( void ) [private, virtual]

= Data Members

= NotifyExt methods

Definition at line 68 of file EventChannelFactory.cpp.

{
  if (this->shutdown () == 1)
    return;

  TAO_Notify_Properties* properties = TAO_Notify_PROPERTIES::instance();

  // Reset references to CORBA objects.
  properties->orb (CORBA::ORB::_nil ());
  properties->default_poa (PortableServer::POA::_nil ());

  ec_container_.reset( 0 );
}

TAO_Notify_EventChannelFactory::TAO_Notify_EventChannel_Container & TAO_Notify_EventChannelFactory::ec_container ( ) [private]

Definition at line 537 of file EventChannelFactory.cpp.

{
  ACE_ASSERT( this->ec_container_.get() != 0 );
  return *ec_container_;
}

TAO_Notify_ProxyConsumer * TAO_Notify_EventChannelFactory::find_proxy_consumer	(	TAO_Notify::IdVec &	id_path,
		size_t	position
	)

Definition at line 457 of file EventChannelFactory.cpp.

{
  TAO_Notify_ProxyConsumer * result = 0;
  size_t path_size = id_path.size ();

  // EventChannelFactory only:  The first id is proably for the ECF itself
  // if so, silently consume it.
  if (position < path_size && id_path[position] == this->id())
  {
    ++position;
  }
  if (position < path_size)
  {
    TAO_Notify_EventChannel_Find_Worker find_worker;

    TAO_Notify_EventChannel * ec = find_worker.find (id_path[position], this->ec_container());
    ++position;
    if (ec != 0)
    {
      result = ec->find_proxy_consumer (id_path, position);
    }
  }
  return result;
}

TAO_Notify_ProxySupplier * TAO_Notify_EventChannelFactory::find_proxy_supplier	(	TAO_Notify::IdVec &	id_path,
		size_t	position
	)

Definition at line 483 of file EventChannelFactory.cpp.

{
  TAO_Notify_ProxySupplier * result = 0;
  size_t path_size = id_path.size ();

  // EventChannelFactory only:  The first id is proably for the ECF itself
  // if so, silently consume it.
  if (position < path_size && id_path[position] == this->id())
  {
    ++position;
  }
  if (position < path_size)
  {
    TAO_Notify_EventChannel_Find_Worker find_worker;
    TAO_Notify_EventChannel * ec = find_worker.find (id_path[position], this->ec_container());
    ++position;
    if (ec != 0)
    {
      result = ec->find_proxy_supplier (id_path, position);
    }
  }
  return result;
}

TAO_Notify_Object* TAO_Notify_EventChannelFactory::follow_id_path	(	TAO_Notify::IdVec &	id_path,
		size_t	position
	)

CosNotifyChannelAdmin::ChannelIDSeq * TAO_Notify_EventChannelFactory::get_all_channels ( void ) [protected]

Definition at line 204 of file EventChannelFactory.cpp.

{
  TAO_Notify_EventChannel_Seq_Worker seq_worker;

  return seq_worker.create (this->ec_container());
}

CosNotifyChannelAdmin::EventChannel_ptr TAO_Notify_EventChannelFactory::get_event_channel ( CosNotifyChannelAdmin::ChannelID id ) [protected]

Definition at line 212 of file EventChannelFactory.cpp.

{
  TAO_Notify_EventChannel_Find_Worker find_worker;

  return find_worker.resolve (id, this->ec_container());
}

TAO_Notify_Object::ID TAO_Notify_EventChannelFactory::get_id ( void ) const [virtual]

Find the id associated with topology object.

A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us.

Reimplemented from TAO_Notify::Topology_Object.

Definition at line 531 of file EventChannelFactory.cpp.

{
  return id();
}

bool TAO_Notify_EventChannelFactory::handle_change ( void )

Handle change notifications.

void TAO_Notify_EventChannelFactory::init ( PortableServer::POA_ptr poa )

Init the factory.

Definition at line 83 of file EventChannelFactory.cpp.

{
  this->poa_ = PortableServer::POA::_duplicate (poa);

  ACE_ASSERT (this->ec_container_.get() == 0);

  // Init ec_container_
  TAO_Notify_EventChannel_Container* ecc = 0;
  ACE_NEW_THROW_EX (ecc,
                    TAO_Notify_EventChannel_Container (),
                    CORBA::INTERNAL ());
  this->ec_container_.reset( ecc );

  this->ec_container().init ();

  TAO_Notify_POA_Helper* object_poa = 0;

  // Bootstrap initial Object POA
  ACE_NEW_THROW_EX (object_poa,
                    TAO_Notify_POA_Helper (),
                    CORBA::NO_MEMORY ());

  ACE_Auto_Ptr<TAO_Notify_POA_Helper> auto_object_poa (object_poa);

  ACE_CString poa_name = object_poa->get_unique_id ();
#if defined (CORBA_E_MICRO)
  object_poa->init (poa, poa_name.c_str ());
#else
  object_poa->init_persistent (poa, poa_name.c_str ());
#endif /* CORBA_E_MICRO */

  this->adopt_poa (auto_object_poa.release ());

  // Note topology factory is configured separately from the "builder" mediated
  // objects since it is independant of the "style" of Notification Service.
  this->topology_factory_ =
    ACE_Dynamic_Service <TAO_Notify::Topology_Factory>::instance ("Topology_Factory");

  this->load_topology ();

  this->load_event_persistence ();

  if (TAO_Notify_PROPERTIES::instance()->validate_client() == true)
  {
    TAO_Notify_validate_client_Task* validate_client_task = 0;
    ACE_NEW_THROW_EX (validate_client_task,
      TAO_Notify_validate_client_Task (TAO_Notify_PROPERTIES::instance()->validate_client_delay (),
                                 TAO_Notify_PROPERTIES::instance()->validate_client_interval (),
                                 this),
      CORBA::INTERNAL ());
    this->validate_client_task_.reset (validate_client_task);
  }
}

CORBA::Boolean TAO_Notify_EventChannelFactory::is_alive ( void ) [private, virtual]

Definition at line 445 of file EventChannelFactory.cpp.

{
  return CORBA::Boolean (1);
}

bool TAO_Notify_EventChannelFactory::is_persistent ( void ) const [virtual]

Should this object be saved?

This is a way for send_change() and save_persistent() to find out if this object has a persistent QoS connection property.

Returns:: true (default) if object should be saved.

Reimplemented from TAO_Notify::Topology_Object.

Definition at line 270 of file EventChannelFactory.cpp.

{
  return true;
}

TAO_Notify::Topology_Object * TAO_Notify_EventChannelFactory::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const TAO_Notify::NVPList &	attrs
	)			`[virtual]`

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

Definition at line 376 of file EventChannelFactory.cpp.

{
  // ignore anything but our valid children (ie channel)
  TAO_Notify::Topology_Object * result = this;
  if (type == "channel")
  {
    if (DEBUG_LEVEL) ACE_DEBUG ((LM_DEBUG,
      ACE_TEXT ("(%P|%t) EventChannelFactory reload channel %d\n")
      , static_cast<int> (id)
      ));

    TAO_Notify_Builder* bld = TAO_Notify_PROPERTIES::instance()->builder();
    TAO_Notify_EventChannel * ec = bld->build_event_channel(
        this ,
        id);

    ec->load_attrs (attrs);

    result = ec;
  }
  else if (type == TAO_Notify::REGISTRY_TYPE)
  {
    result = & this->reconnect_registry_;
  }
  return result;
}

void TAO_Notify_EventChannelFactory::load_event_persistence ( void )

Definition at line 302 of file EventChannelFactory.cpp.

{
  TAO_Notify::Event_Persistence_Strategy * strategy =
    ACE_Dynamic_Service <TAO_Notify::Event_Persistence_Strategy>::instance ("Event_Persistence");
  if (strategy != 0)
  {
    if (this->topology_factory_ != 0)
    {
      TAO_Notify::Event_Persistence_Factory * factory = strategy->get_factory ();
      if (factory != 0)
      {
        for (
          TAO_Notify::Routing_Slip_Persistence_Manager * rspm = factory->first_reload_manager();
          rspm != 0;
          rspm = rspm->load_next ())
        {
          TAO_Notify::Routing_Slip_Ptr routing_slip = TAO_Notify::Routing_Slip::create (*this, rspm);
          if (!routing_slip.null ())
          {
            this->routing_slip_restart_set_.insert (routing_slip);
          }
          else
          {
            //@@todo: tell the rspm it's an orphan, but we can't during reload
            // we need collect these and come back later to remove them
            ACE_DEBUG ((LM_DEBUG,
              ACE_TEXT ("(%P|%t) Reload persistent event failed.\n")
              ));
          }
        }
      }
    }
    else
    {
      ACE_ERROR ((LM_ERROR,
        ACE_TEXT ("(%P|%t) Notify Service: Configuration error.  Event Persistence requires Topology Persistence.\n")
        ));
      throw CORBA::PERSIST_STORE();
    }
  }
}

void TAO_Notify_EventChannelFactory::load_topology ( void )

Use the registered Topology_Factory to create a loader, and load the topology. If no Topology_Factory is registered then nothing will be loaded.

Definition at line 232 of file EventChannelFactory.cpp.

{
  this->loading_topology_ = true;
  if (this->topology_factory_ != 0)
  {
    // create_loader will open and load the persistence file for validation
    auto_ptr<TAO_Notify::Topology_Loader> tl(this->topology_factory_->create_loader());
    if (tl.get () != 0)
    {
      tl->load (this);
    }
  }
  else
  {
    if (TAO_debug_level > 0)
      ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("(%P|%t) Topology persistence disabled.\n")));
  }
  this->loading_topology_ = false;
}

void TAO_Notify_EventChannelFactory::reconnect ( void ) [virtual]

Re-establish connections that we had before a shutdown.

After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.

Reimplemented from TAO_Notify::Topology_Savable.

Definition at line 407 of file EventChannelFactory.cpp.

{
  // Reconnect all children first
  TAO_Notify::Reconnect_Worker<TAO_Notify_EventChannel> wrk;

  this->ec_container().collection()->for_each(&wrk);

  // Then send reconnection announcement to registered clients
  ACE_ASSERT (!CORBA::is_nil (this->channel_factory_.in ()));
  this->reconnect_registry_.send_reconnect (this->channel_factory_.in ());

  // reactivate events in-progress
  Routing_Slip_Set::CONST_ITERATOR iter (this->routing_slip_restart_set_);
  TAO_Notify::Routing_Slip_Ptr * routing_slip;
  for (iter.first(); iter.next(routing_slip); iter.advance())
  {
    (*routing_slip)->reconnect();
  }
  this->routing_slip_restart_set_.reset ();
}

NotifyExt::ReconnectionRegistry::ReconnectionID TAO_Notify_EventChannelFactory::register_callback ( NotifyExt::ReconnectionCallback_ptr reconnection ) [private, virtual]

Definition at line 429 of file EventChannelFactory.cpp.

{
  return this->reconnect_registry_.register_callback (
    reconnection);
}

void TAO_Notify_EventChannelFactory::release ( void ) [private, virtual]

Release this object.

Definition at line 150 of file EventChannelFactory.cpp.

{
  delete this;
  //@@ inform factory
}

void TAO_Notify_EventChannelFactory::remove ( TAO_Notify_EventChannel * channel ) [virtual]

Remove channel from the <ec_container_>

Definition at line 157 of file EventChannelFactory.cpp.

{
  this->ec_container().remove (event_channel);
  this->self_change ();
}

void TAO_Notify_EventChannelFactory::save_persistent ( TAO_Notify::Topology_Saver & saver ) [virtual]

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

Definition at line 276 of file EventChannelFactory.cpp.

{
  bool changed = this->self_changed_;
  this->self_changed_ = false;
  this->children_changed_ = false;

  TAO_Notify::NVPList attrs; // ECF has no attributes

  bool want_all_children =
    saver.begin_object(0, "channel_factory", attrs, changed);

  // for each deleted child
  //  delete_child  // if the child has persistence.

  TAO_Notify::Save_Persist_Worker<TAO_Notify_EventChannel> wrk(saver, want_all_children);

  this->ec_container().collection()->for_each(&wrk);

  if (want_all_children || this->reconnect_registry_.is_changed ())
  {
    this->reconnect_registry_.save_persistent(saver);
  }
  saver.end_object(0, "channel_factory");
}

void TAO_Notify_EventChannelFactory::save_topology ( void ) [virtual]

Definition at line 451 of file EventChannelFactory.cpp.

{
  this->self_change ();
}

void TAO_Notify_EventChannelFactory::set_topology_factory ( TAO_Notify::Topology_Factory * sf )

Use the passed in saver factory to generate topology saver objects. Does not take ownership.

Definition at line 220 of file EventChannelFactory.cpp.

{
  ACE_DEBUG ((LM_DEBUG,
    ACE_TEXT ("(%P,%t) Debug Topology_Factory installed in EventChannelFactory.\n")
    ));
  // If the above meessage appears when you don't expect it
  // use svc.conf to install the topology factory rather
  // than calling this method.
  this->topology_factory_ = f;
}

int TAO_Notify_EventChannelFactory::shutdown ( void ) [private, virtual]

shutdown

Definition at line 164 of file EventChannelFactory.cpp.

{
  this->stop_validator();

  if (TAO_Notify_Object::shutdown () == 1)
    return 1;

  this->ec_container().shutdown ();

  return 0;
}

void TAO_Notify_EventChannelFactory::stop_validator ( void )

at shutdown time, this causes the validator thread to exit.

Definition at line 261 of file EventChannelFactory.cpp.

{
  if (this->validate_client_task_.get () != 0)
    {
      this->validate_client_task_->shutdown ();
    }
}

void TAO_Notify_EventChannelFactory::unregister_callback ( NotifyExt::ReconnectionRegistry::ReconnectionID id ) [private, virtual]

Definition at line 437 of file EventChannelFactory.cpp.

{
  this->reconnect_registry_.unregister_callback (
    id);
}

void TAO_Notify_EventChannelFactory::validate ( ) [virtual]

Definition at line 253 of file EventChannelFactory.cpp.

{
  TAO_Notify::Validate_Worker<TAO_Notify_EventChannel> wrk;

  this->ec_container().collection()->for_each(&wrk);
}

Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]

Definition at line 56 of file EventChannelFactory.h.

Member Data Documentation

CosNotifyChannelAdmin::EventChannelFactory_var TAO_Notify_EventChannelFactory::channel_factory_ [private]

Definition at line 168 of file EventChannelFactory.h.

ACE_Auto_Ptr< TAO_Notify_EventChannel_Container > TAO_Notify_EventChannelFactory::ec_container_ [private]

Container for Event Channels.

Definition at line 164 of file EventChannelFactory.h.

bool TAO_Notify_EventChannelFactory::loading_topology_ [private]

Definition at line 174 of file EventChannelFactory.h.

PortableServer::POA_var TAO_Notify_EventChannelFactory::poa_ [private]

Definition at line 183 of file EventChannelFactory.h.

TAO_Notify::Reconnection_Registry TAO_Notify_EventChannelFactory::reconnect_registry_ [private]

Definition at line 173 of file EventChannelFactory.h.

Routing_Slip_Set TAO_Notify_EventChannelFactory::routing_slip_restart_set_ [private]

Definition at line 176 of file EventChannelFactory.h.

TAO_Notify::Topology_Factory* TAO_Notify_EventChannelFactory::topology_factory_ [private]

Definition at line 172 of file EventChannelFactory.h.

TAO_SYNCH_MUTEX TAO_Notify_EventChannelFactory::topology_save_lock_ [private]

Definition at line 166 of file EventChannelFactory.h.

short TAO_Notify_EventChannelFactory::topology_save_seq_ [private]

Change-in-progress detector to avoid duplicates.

Definition at line 171 of file EventChannelFactory.h.

ACE_Auto_Ptr<TAO_Notify_validate_client_Task> TAO_Notify_EventChannelFactory::validate_client_task_ [private]

Definition at line 181 of file EventChannelFactory.h.

The documentation for this class was generated from the following files:

TAO_Notify_EventChannelFactory Class Reference

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
