Public Types | Public Member Functions | Protected Attributes

TAO_Notify_Event_Map_T< PROXY, ACE_LOCK > Class Template Reference

Template class for storing the collection of Proxys. More...

#include <Event_Map_T.h>

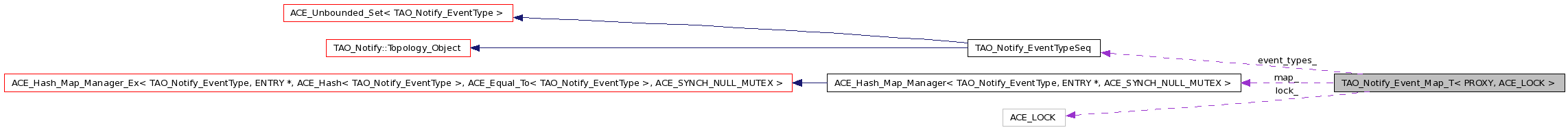

Collaboration diagram for TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >:
Collaboration graph
[legend]

List of all members.

Public Types

typedef
TAO_Notify_Event_Map_Entry_T
< PROXY > 		ENTRY

Public Member Functions

 TAO_Notify_Event_Map_T (void)
 Constructor.
 ~TAO_Notify_Event_Map_T ()
 Destructor.
void init (void)
 Init.
void connect (PROXY *proxy)
 Connect a PROXY.
void disconnect (PROXY *proxy)
 Disconnect a PROXY.
int insert (PROXY *proxy, const TAO_Notify_EventType &event_type)
int remove (PROXY *proxy, const TAO_Notify_EventType &event_type)
ENTRY * find (const TAO_Notify_EventType &event_type)
ENTRY::COLLECTION * broadcast_collection (void)
 Find the default broadcast list.
ENTRY::COLLECTION * updates_collection (void)
 Find the update list. This is all the PROXYS connected to this Map.
void release (ENTRY *entry)
 Release the usage count on this entry.
const TAO_Notify_EventTypeSeq & event_types (void)
 Access all the event types available.
int proxy_count (void)
 Access number of proxys connected in all.

Protected Attributes

ACE_Hash_Map_Manager
< TAO_Notify_EventType, ENTRY
*, ACE_SYNCH_NULL_MUTEX > 		map_
 The Map that stores eventtype to entry mapping.
ACE_LOCK lock_
 The lock to use.
int proxy_count_
 Count of proxys connected.
ENTRY broadcast_entry_
 The default broadcast list for EventType::special.
ENTRY updates_entry_
 Update Entry - Keeps a list of all PROXY's connected to this Map. Updates are send to this list.
TAO_Notify_EventTypeSeq event_types_
 The event types that are available in this map.

Detailed Description

template<class PROXY, class ACE_LOCK>
class TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >

Template class for storing the collection of Proxys.

Definition at line 38 of file Event_Map_T.h.

Member Typedef Documentation

template<class PROXY , class ACE_LOCK >
typedef TAO_Notify_Event_Map_Entry_T<PROXY> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::ENTRY

Definition at line 42 of file Event_Map_T.h.

Constructor & Destructor Documentation

template<class PROXY , class ACE_LOCK >
TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::TAO_Notify_Event_Map_T ( void   )

Constructor.

Definition at line 19 of file Event_Map_T.cpp.

  :proxy_count_ (0)
{

}

template<class PROXY , class ACE_LOCK >
TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::~TAO_Notify_Event_Map_T (  )

Destructor.

Definition at line 26 of file Event_Map_T.cpp.

{
}

Member Function Documentation

template<class PROXY , class ACE_LOCK >
TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::broadcast_collection ( void   )

Find the default broadcast list.

Definition at line 54 of file Event_Map_T.inl.

{
  return this->broadcast_entry_.collection ();
}

template<class PROXY , class ACE_LOCK >
void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::connect ( PROXY *  proxy  )

Connect a PROXY.

Definition at line 39 of file Event_Map_T.cpp.

{
  this->updates_entry_.connected (proxy);

  ACE_WRITE_GUARD (ACE_LOCK, ace_mon, this->lock_);
  ++this->proxy_count_;
}

template<class PROXY , class ACE_LOCK >
void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::disconnect ( PROXY *  proxy  )

Disconnect a PROXY.

Definition at line 48 of file Event_Map_T.cpp.

{
  this->updates_entry_.disconnected (proxy);

  ACE_WRITE_GUARD (ACE_LOCK, ace_mon, this->lock_);
  --this->proxy_count_;
}

template<class PROXY , class ACE_LOCK >
const TAO_Notify_EventTypeSeq & TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::event_types ( void   )

Access all the event types available.

Definition at line 72 of file Event_Map_T.inl.

{
  return this->event_types_;
}

template<class PROXY , class ACE_LOCK >
TAO_Notify_Event_Map_Entry_T< PROXY > * TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::find ( const TAO_Notify_EventType &  event_type  )

Find the collection mapped to the <event_type> The usage_count on the entry returned is incremented.

Definition at line 8 of file Event_Map_T.inl.

{
  TAO_Notify_Event_Map_Entry_T<PROXY>* entry = 0;

  ACE_READ_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, 0);

  if (map_.find (event_type, entry) == 0)
    {
      entry->_incr_refcnt ();
      return entry;
    }
  else
    {
      // The event_type that we have doesn't hash directly to a particular
      // entry.  So, we need to iterate through the map and see if any of
      // the event type keys are equivalent to event_type.
      typedef ACE_Hash_Map_Iterator_Ex <TAO_Notify_EventType, ENTRY*,
                                        ACE_Hash<TAO_Notify_EventType>,
                                        ACE_Equal_To<TAO_Notify_EventType>,
                                        ACE_SYNCH_NULL_MUTEX>
              Iterator_Type;
      Iterator_Type end = this->map_.end ();
      for(Iterator_Type i = this->map_.begin (); i != end; ++i)
        {
          if ((*i).ext_id_ == event_type)
            {
              entry = (*i).int_id_;
              entry->_incr_refcnt ();
              return entry;
            }
        }
    }

  return 0;
}

template<class PROXY , class ACE_LOCK >
void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::init ( void   )

Init.

Definition at line 31 of file Event_Map_T.cpp.

{
  this->broadcast_entry_.init ();

  this->updates_entry_.init ();
}

template<class PROXY , class ACE_LOCK >
int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::insert ( PROXY *  proxy,
const TAO_Notify_EventType &  event_type
)

Associate PROXY and event_type. Returns 1 if <event_type> is being seem for the 1st time otherwise returns 0. Returns -1 on error.

Definition at line 57 of file Event_Map_T.cpp.

{
  ENTRY* entry = 0;

  int result = -1;

  if (event_type.is_special () == 1)
    {
      entry = &this->broadcast_entry_;

      result = 0;
    }
  else
    {
      ACE_READ_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

      result = this->map_.find (event_type, entry);
    }

  if (result == -1) // This type is being seen for the first time.
  {
    ACE_NEW_THROW_EX (entry,
                      ENTRY (),
                      CORBA::NO_MEMORY ());

    entry->init ();

    entry->connected (proxy);

    ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

    if (map_.bind (event_type, entry) == -1)
      throw CORBA::NO_MEMORY ();

    if (this->event_types_.insert (event_type) == -1)
      return -1;

    return 1;
  }
  else // Add to existing entry or the broadcast entry.
    {
      entry->connected (proxy);
    }

  return 0;
}

template<class PROXY , class ACE_LOCK >
int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::proxy_count ( void   )

Access number of proxys connected in all.

Definition at line 66 of file Event_Map_T.inl.

{
  return this->proxy_count_;
}

template<class PROXY , class ACE_LOCK >
void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::release ( ENTRY *  entry  )

Release the usage count on this entry.

Definition at line 45 of file Event_Map_T.inl.

{
  ACE_WRITE_GUARD (ACE_LOCK, ace_mon, this->lock_);

  if (entry->_decr_refcnt () == 0)
    delete entry;
}

template<class PROXY , class ACE_LOCK >
int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::remove ( PROXY *  proxy,
const TAO_Notify_EventType &  event_type
)

Remove association of PROXY and event_type. Returns 1 if <event_type> is being seem for the last time otherwise returns 0. Returns -1 on error.

Exec a strategy for removing entries. Strategy 1: remove_immediately Strategy 2: remove a bunch_after crossing a threshold Strategy 3: use cached allocator and 1

Definition at line 105 of file Event_Map_T.cpp.

{
  ENTRY* entry = 0;

  if (event_type.is_special () == 1)
    {
      entry = &this->broadcast_entry_;

      entry->disconnected (proxy);
    }
  else
    {
      int result = -1;

      {
        ACE_READ_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

        result = this->map_.find (event_type, entry);
      }

      if (result == 0)
        {
          entry->disconnected (proxy);

          if (entry->count () == 0)
            {
              /// Exec a strategy for removing entries.
              /// Strategy 1: remove_immediately
              /// Strategy 2: remove a bunch_after crossing a threshold
              /// Strategy 3: use cached allocator and 1

              // Strategy 1:
              ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

              this->map_.unbind (event_type);

              if (entry->_decr_refcnt () == 0)
                delete entry;

              if (this->event_types_.remove (event_type) == -1)
                return -1;

              return 1;
            }
        }
    }

  return 0;
}

template<class PROXY , class ACE_LOCK >
TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::updates_collection ( void   )

Find the update list. This is all the PROXYS connected to this Map.

Definition at line 60 of file Event_Map_T.inl.

{
  return this->updates_entry_.collection ();
}

Member Data Documentation

template<class PROXY , class ACE_LOCK >
ENTRY TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::broadcast_entry_ [protected]

The default broadcast list for EventType::special.

Definition at line 99 of file Event_Map_T.h.

template<class PROXY , class ACE_LOCK >
TAO_Notify_EventTypeSeq TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::event_types_ [protected]

The event types that are available in this map.

Definition at line 105 of file Event_Map_T.h.

template<class PROXY , class ACE_LOCK >
ACE_LOCK TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::lock_ [protected]

The lock to use.

Definition at line 93 of file Event_Map_T.h.

template<class PROXY , class ACE_LOCK >
ACE_Hash_Map_Manager<TAO_Notify_EventType, ENTRY*, ACE_SYNCH_NULL_MUTEX> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::map_ [protected]

The Map that stores eventtype to entry mapping.

Definition at line 90 of file Event_Map_T.h.

template<class PROXY , class ACE_LOCK >
int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::proxy_count_ [protected]

Count of proxys connected.

Definition at line 96 of file Event_Map_T.h.

template<class PROXY , class ACE_LOCK >
ENTRY TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::updates_entry_ [protected]

Update Entry - Keeps a list of all PROXY's connected to this Map. Updates are send to this list.

Definition at line 102 of file Event_Map_T.h.

The documentation for this class was generated from the following files:
