TAO_Notify_Event_Map_Entry_T< PROXY > Class Template Reference

The entry stored in the event map. More...

#include <Event_Map_Entry_T.h>

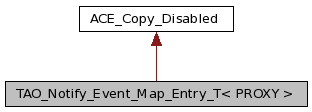

Inheritance diagram for TAO_Notify_Event_Map_Entry_T< PROXY >:

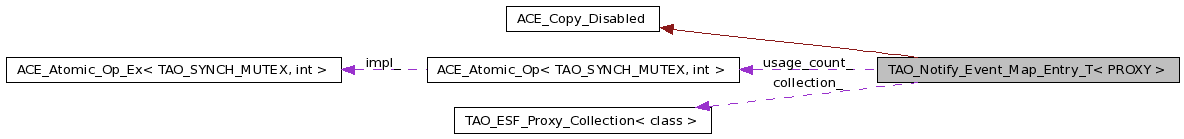

Collaboration diagram for TAO_Notify_Event_Map_Entry_T< PROXY >:

List of all members.

Public Types
typedef TAO_ESF_Proxy_Collection < PROXY >	COLLECTION
Public Member Functions
	TAO_Notify_Event_Map_Entry_T (void)
	Constructor.
	~TAO_Notify_Event_Map_Entry_T (void)
	Destructor.
void	init (void)
	Init - Allocates collection.
void	connected (PROXY *proxy)
	Connect.
void	disconnected (PROXY *proxy)
	Disconnect.
COLLECTION *	collection (void)
	Collection accessor.
int	count (void)
	Count accessor.
CORBA::ULong	_incr_refcnt (void)
	= Reference counting methods.
CORBA::ULong	_decr_refcnt (void)
Protected Attributes
COLLECTION *	collection_
	The Collection.
int	count_
	Count of PROXY's connected in the collection;.
ACE_Atomic_Op< TAO_SYNCH_MUTEX, int >	usage_count_
	Count of users accessing this entry.

---

Detailed Description

template<class PROXY>
class TAO_Notify_Event_Map_Entry_T< PROXY >

The entry stored in the event map.

Definition at line 41 of file Event_Map_Entry_T.h.

---

Member Typedef Documentation

template<class PROXY>

typedef TAO_ESF_Proxy_Collection<PROXY> TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION

Definition at line 44 of file Event_Map_Entry_T.h.

---

Constructor & Destructor Documentation

template<class PROXY >

TAO_Notify_Event_Map_Entry_T< PROXY >::TAO_Notify_Event_Map_Entry_T

(

void

)

Constructor.

Definition at line 23 of file Event_Map_Entry_T.cpp.

  : collection_ (0), count_ (0), usage_count_ (1)
{
}

template<class PROXY >

TAO_Notify_Event_Map_Entry_T< PROXY >::~TAO_Notify_Event_Map_Entry_T

(

void

)

Destructor.

Definition at line 29 of file Event_Map_Entry_T.cpp.

{
  delete collection_;
}

---

Member Function Documentation

template<class PROXY >

CORBA::ULong TAO_Notify_Event_Map_Entry_T< PROXY >::_decr_refcnt

(

void

)

Definition at line 26 of file Event_Map_Entry_T.inl.

{
  return --this->usage_count_;
}

template<class PROXY >

CORBA::ULong TAO_Notify_Event_Map_Entry_T< PROXY >::_incr_refcnt

(

void

)

= Reference counting methods.

Definition at line 20 of file Event_Map_Entry_T.inl.

{
  return ++this->usage_count_;
}

template<class PROXY >

TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_Entry_T< PROXY >::collection

(

void

)

Collection accessor.

Definition at line 9 of file Event_Map_Entry_T.inl.

                                                     {
  return collection_;
}

template<class PROXY >

void TAO_Notify_Event_Map_Entry_T< PROXY >::connected

(

PROXY *

proxy

)

Connect.

Definition at line 43 of file Event_Map_Entry_T.cpp.

{
  this->collection_->connected (proxy);
  ++count_;
}

template<class PROXY >

int TAO_Notify_Event_Map_Entry_T< PROXY >::count

(

void

)

Count accessor.

Definition at line 14 of file Event_Map_Entry_T.inl.

{
  return this->count_;
}

template<class PROXY >

void TAO_Notify_Event_Map_Entry_T< PROXY >::disconnected

(

PROXY *

proxy

)

Disconnect.

Definition at line 50 of file Event_Map_Entry_T.cpp.

{
  this->collection_->disconnected (proxy);
  --count_;
}

template<class PROXY >

void TAO_Notify_Event_Map_Entry_T< PROXY >::init

(

void

)

Init - Allocates collection.

Definition at line 35 of file Event_Map_Entry_T.cpp.

{
  TAO_Notify_Factory* factory = TAO_Notify_PROPERTIES::instance ()->factory ();

  factory->create (collection_);
}

---

Member Data Documentation

template<class PROXY>

COLLECTION* TAO_Notify_Event_Map_Entry_T< PROXY >::collection_ [protected]

The Collection.

Definition at line 76 of file Event_Map_Entry_T.h.

template<class PROXY>

int TAO_Notify_Event_Map_Entry_T< PROXY >::count_ [protected]

Count of PROXY's connected in the collection;.

Definition at line 79 of file Event_Map_Entry_T.h.

template<class PROXY>

ACE_Atomic_Op<TAO_SYNCH_MUTEX,int> TAO_Notify_Event_Map_Entry_T< PROXY >::usage_count_ [protected]

Count of users accessing this entry.

Definition at line 82 of file Event_Map_Entry_T.h.

---

The documentation for this class was generated from the following files:

• Event_Map_Entry_T.h
• Event_Map_Entry_T.cpp
• Event_Map_Entry_T.inl
