Base class abstraction for Events flowing through the EventChannel. More...

#include <Event.h>

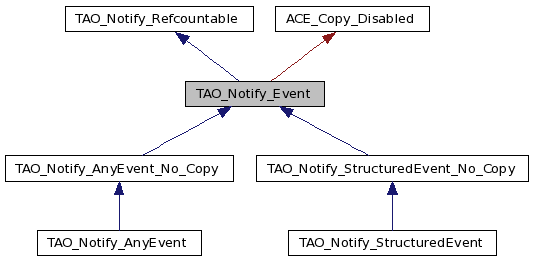

Inheritance diagram for TAO_Notify_Event:

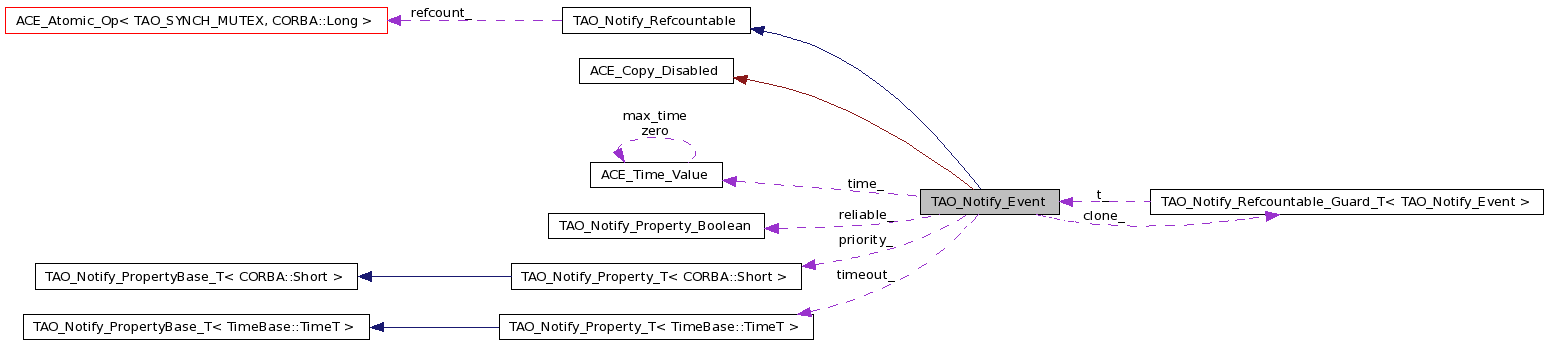

Collaboration diagram for TAO_Notify_Event:

Public Types
enum	{ MARSHAL_ANY = 1, MARSHAL_STRUCTURED = 2 }
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Event >	Ptr
Public Member Functions
	TAO_Notify_Event (void)
	Constructor.
virtual	~TAO_Notify_Event ()
	Destructor.
virtual const TAO_Notify_EventType &	type (void) const =0
	Get the event type.
virtual CORBA::Boolean	do_match (CosNotifyFilter::Filter_ptr filter) const =0
	Returns true if the filter matches.
virtual void	convert (CosNotification::StructuredEvent &notification) const =0
	Convert to CosNotification::Structured type.
virtual void	push (TAO_Notify_Consumer *consumer) const =0
	Push event to consumer.
virtual void	push (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface.
virtual void	push (Event_Forwarder::ProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::ProxyPushSupplier_ptr forwarder) const =0
	Push event to the Event_Forwarder interface.
TAO_Notify_Event *	queueable_copy (void) const
virtual void	marshal (TAO_OutputCDR &cdr) const =0
	marshal this event into a CDR buffer (for persistence)
const TAO_Notify_Property_Short &	priority (void) const
const TAO_Notify_Property_Time &	timeout (void) const
	Timeout.
const TAO_Notify_Property_Boolean &	reliable (void) const
	Reliable.
const ACE_Time_Value &	creation_time (void) const
	Event creation time.
Static Public Member Functions
static void	translate (const CORBA::Any &any, CosNotification::StructuredEvent &notification)
	Translate Any to Structured.
static void	translate (const CosNotification::StructuredEvent &notification, CORBA::Any &any)
	Translate Structured to Any.
static TAO_Notify_Event *	unmarshal (TAO_InputCDR &cdr)
	Unmarshal an event from a CDR. (for persistence).
Protected Attributes
TAO_Notify_Property_Short	priority_
	= QoS properties
TAO_Notify_Property_Time	timeout_
	Timeout.
TAO_Notify_Property_Boolean	reliable_
	Reliability.
Private Member Functions
virtual TAO_Notify_Event *	copy (void) const =0
	Return a pointer to a copy of this event on the heap.
virtual void	release (void)
Private Attributes
Ptr	clone_
bool	is_on_heap_
ACE_Time_Value	time_

Detailed Description

Base class abstraction for Events flowing through the EventChannel.

Definition at line 45 of file Event.h.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_Event> TAO_Notify_Event::Ptr

Definition at line 50 of file Event.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

MARSHAL_ANY
MARSHAL_STRUCTURED

Definition at line 53 of file Event.h.

{MARSHAL_ANY=1,MARSHAL_STRUCTURED=2};

Constructor & Destructor Documentation

TAO_Notify_Event::TAO_Notify_Event ( void )

Constructor.

Definition at line 22 of file Event.cpp.

: priority_ (CosNotification::Priority, CosNotification::DefaultPriority)
, timeout_ (CosNotification::Timeout)
, reliable_ (CosNotification::EventReliability, true)
, clone_ (0)
, is_on_heap_ (false)
, time_ (ACE_OS::gettimeofday ())
{
  //  if (TAO_debug_level > 0)
  //  ACE_DEBUG ((LM_DEBUG,"event:%x  created\n", this ));
}

TAO_Notify_Event::~TAO_Notify_Event ( ) [virtual]

Destructor.

Definition at line 34 of file Event.cpp.

{
  // if (TAO_debug_level > 1)
  //  ACE_DEBUG ((LM_DEBUG,"event:%x  destroyed\n", this ));
}

Member Function Documentation

virtual void TAO_Notify_Event::convert ( CosNotification::StructuredEvent & notification ) const [pure virtual]

Convert to CosNotification::Structured type.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual TAO_Notify_Event* TAO_Notify_Event::copy ( void ) const [private, pure virtual]

Return a pointer to a copy of this event on the heap.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

const ACE_Time_Value & TAO_Notify_Event::creation_time ( void ) const

Event creation time.

Definition at line 26 of file Event.inl.

{
  return this->time_;
}

virtual CORBA::Boolean TAO_Notify_Event::do_match ( CosNotifyFilter::Filter_ptr filter ) const [pure virtual]

Returns true if the filter matches.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::marshal ( TAO_OutputCDR & cdr ) const [pure virtual]

marshal this event into a CDR buffer (for persistence)

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

const TAO_Notify_Property_Short & TAO_Notify_Event::priority ( void ) const

= Accessors Priority

Definition at line 8 of file Event.inl.

{
  return this->priority_;
}

virtual void TAO_Notify_Event::push ( Event_Forwarder::ProxyPushSupplier_ptr forwarder ) const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push ( TAO_Notify_Consumer * consumer ) const [pure virtual]

Push event to consumer.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push ( Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ) const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push_no_filtering ( Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder ) const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push_no_filtering ( Event_Forwarder::ProxyPushSupplier_ptr forwarder ) const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

TAO_Notify_Event * TAO_Notify_Event::queueable_copy ( void ) const

Return a pointer to a copy of this event on the heap. The event is not owned by the caller, so it should not be deleted or released.

Definition at line 33 of file Event.inl.

{
  if ( is_on_heap_ )
  {
    return const_cast< TAO_Notify_Event* >( this );
  }
  else if (this->clone_.get() == 0)
  {
    TAO_Notify_Event* copied = this->copy ();
    copied->is_on_heap_ = true;
    this->clone_.reset( copied );
  }
  return this->clone_.get();
}

void TAO_Notify_Event::release ( void ) [private, virtual]

Definition at line 40 of file Event.cpp.

{
  delete this;
}

const TAO_Notify_Property_Boolean & TAO_Notify_Event::reliable ( void ) const

Reliable.

Definition at line 20 of file Event.inl.

{
  return this->reliable_;
}

const TAO_Notify_Property_Time & TAO_Notify_Event::timeout ( void ) const

Timeout.

Definition at line 14 of file Event.inl.

{
  return this->timeout_;
}

void TAO_Notify_Event::translate	(	const CORBA::Any &	any,
		CosNotification::StructuredEvent &	notification
	)			`[static]`

Translate Any to Structured.

Definition at line 46 of file Event.cpp.

{
  notification.remainder_of_body <<= any;
  notification.header.fixed_header.event_type.type_name = CORBA::string_dup ("%ANY");
  notification.header.fixed_header.event_type.domain_name = CORBA::string_dup ("");
}

void TAO_Notify_Event::translate	(	const CosNotification::StructuredEvent &	notification,
		CORBA::Any &	any
	)			`[static]`

Translate Structured to Any.

Definition at line 54 of file Event.cpp.

{
  any <<= notification;   // is the typecode set by this operation or do we need to set it explicity.
}

virtual const TAO_Notify_EventType& TAO_Notify_Event::type ( void ) const [pure virtual]

Get the event type.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

TAO_Notify_Event * TAO_Notify_Event::unmarshal ( TAO_InputCDR & cdr ) [static]

Unmarshal an event from a CDR. (for persistence).

Reimplemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

Definition at line 61 of file Event.cpp.

{
  TAO_Notify_Event * result = 0;
  ACE_CDR::Octet code = 0;
  if (cdr.read_octet (code))
  {
    switch (code)
    {
    case MARSHAL_ANY:
      result = TAO_Notify_AnyEvent::unmarshal (cdr);
      break;
    case MARSHAL_STRUCTURED:
      result = TAO_Notify_StructuredEvent::unmarshal (cdr);
      break;
    default:
      ACE_ERROR ((LM_ERROR,
        ACE_TEXT ("(%P|%t) TAO_Notify_Event::unmarshal: unknown event code %d\n"),
        code));
      break;
    }
  }
  return result;
}
