Base class for the ConsumerAdmin and SupplierAdmin. More...

#include <Admin.h>

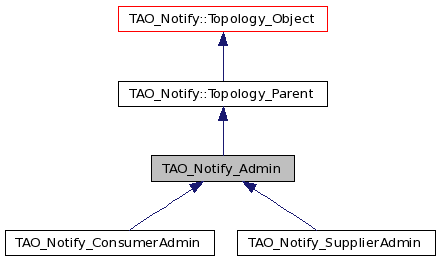

Inheritance diagram for TAO_Notify_Admin:

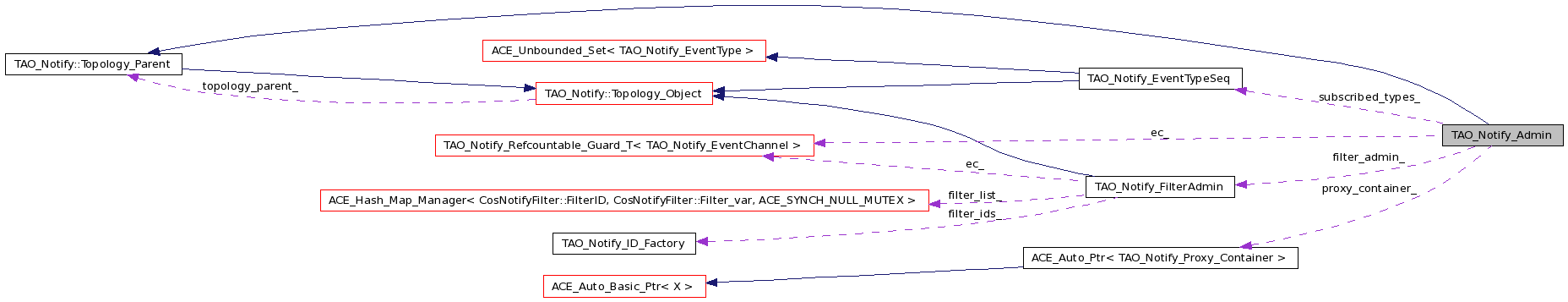

Collaboration diagram for TAO_Notify_Admin:

Public Types
typedef CosNotifyChannelAdmin::AdminIDSeq	SEQ
typedef CosNotifyChannelAdmin::AdminIDSeq_var	SEQ_VAR
Public Member Functions
	TAO_Notify_Admin ()
	Constructor.
virtual	~TAO_Notify_Admin ()
	Destructor.
void	init (TAO_Notify::Topology_Parent *parent)
	Init.
void	insert (TAO_Notify_Proxy *proxy)
	Insert the proxy in the <proxy_container_>.
void	cleanup_proxy (TAO_Notify_Proxy *proxy, bool is_supplier, bool experienced_timeout)
	Remove type from container_ and cleanup any EC resources.
TAO_Notify_FilterAdmin &	filter_admin (void)
	Access Admin FilterAdmin.
void	filter_operator (CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Set Filter operator.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator (void)
	Access Filter operator.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Admin's subscribed types.
TAO_Notify_EventChannel *	event_channel () const
virtual int	shutdown (void)
	Shutdown.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
virtual void	reconnect (void)
virtual void	validate ()
void	set_default (bool is_default)
bool	is_default () const
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
Protected Types
typedef TAO_Notify_Container_T < TAO_Notify_Proxy >	TAO_Notify_Proxy_Container
Protected Member Functions
void	save_attrs (TAO_Notify::NVPList &attrs)
virtual const char *	get_admin_type_name (void) const =0
TAO_Notify_Proxy_Container &	proxy_container ()
Protected Attributes
TAO_Notify_EventChannel::Ptr	ec_
	= Data Members
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we've subscribed our proxy objects with the event manager.
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator_
	Filter operator.
bool	is_default_
Private Member Functions
void	remove (TAO_Notify_Proxy *proxy)
	Remove type from container_.
Private Attributes
ACE_Auto_Ptr < TAO_Notify_Proxy_Container >	proxy_container_
	The Proxy Container.
Friends
class	TAO_Notify_Builder

Detailed Description

Base class for the ConsumerAdmin and SupplierAdmin.

Definition at line 40 of file Admin.h.

Member Typedef Documentation

typedef CosNotifyChannelAdmin::AdminIDSeq TAO_Notify_Admin::SEQ

Definition at line 44 of file Admin.h.

typedef CosNotifyChannelAdmin::AdminIDSeq_var TAO_Notify_Admin::SEQ_VAR

Definition at line 45 of file Admin.h.

typedef TAO_Notify_Container_T<TAO_Notify_Proxy> TAO_Notify_Admin::TAO_Notify_Proxy_Container [protected]

Definition at line 97 of file Admin.h.

Constructor & Destructor Documentation

TAO_Notify_Admin::TAO_Notify_Admin ( )

Constructor.

Definition at line 35 of file Admin.cpp.

  : ec_ (0)
  , filter_operator_ (CosNotifyChannelAdmin::OR_OP)
  , is_default_ (false)
{
  // Initialize all Admin objects to initially be subscribed for all
  // events.  This is a reasonable default and is required to allow
  // Cos Event consumers/suppliers to send/receive events,
  this->subscribed_types_.insert (TAO_Notify_EventType::special ());
}

TAO_Notify_Admin::~TAO_Notify_Admin ( ) [virtual]

Destructor.

Definition at line 46 of file Admin.cpp.

{
}

Member Function Documentation

void TAO_Notify_Admin::cleanup_proxy	(	TAO_Notify_Proxy *	proxy,
		bool	is_supplier,
		bool	experienced_timeout
	)

Remove type from container_ and cleanup any EC resources.

Definition at line 74 of file Admin.cpp.

{
  // We must clean up the proxy before calling remove.  Doing it in the
  // opposite order causes us to use invalid memory (through the call of
  // id() into the proxy).
  ec_->cleanup_proxy (proxy->id(), is_supplier, experienced_timeout);

  this->remove (proxy);
}

TAO_Notify_EventChannel * TAO_Notify_Admin::event_channel ( ) const

Definition at line 9 of file Admin.inl.

{
  return this->ec_.get();
}

TAO_Notify_FilterAdmin & TAO_Notify_Admin::filter_admin ( void )

Access Admin FilterAdmin.

Definition at line 16 of file Admin.inl.

{
  return this->filter_admin_;
}

void TAO_Notify_Admin::filter_operator ( CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator )

Set Filter operator.

Definition at line 22 of file Admin.inl.

{
  this->filter_operator_ = filter_operator;
}

CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator ( void )

Access Filter operator.

Definition at line 28 of file Admin.inl.

{
  return this->filter_operator_;
}

virtual const char* TAO_Notify_Admin::get_admin_type_name ( void ) const [protected, pure virtual]

Implemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.

void TAO_Notify_Admin::init ( TAO_Notify::Topology_Parent * parent )

Init.

Definition at line 51 of file Admin.cpp.

{
  ACE_ASSERT (this->ec_.get() == 0);

  this->ec_.reset (dynamic_cast<TAO_Notify_EventChannel *>(parent));
  ACE_ASSERT (this->ec_.get() != 0);

  filter_admin_.event_channel (this->ec_.get ());

  // this-> on the following line confuses VC6
  initialize (parent);

  TAO_Notify_Proxy_Container* proxy_container = 0;
  ACE_NEW_THROW_EX (proxy_container,
                    TAO_Notify_Proxy_Container (),
                    CORBA::INTERNAL ());
  this->proxy_container_.reset (proxy_container);

  this->proxy_container().init ();

}

void TAO_Notify_Admin::insert ( TAO_Notify_Proxy * proxy )

Insert the proxy in the <proxy_container_>.

Definition at line 118 of file Admin.cpp.

{
  this->proxy_container().insert (proxy);
}

bool TAO_Notify_Admin::is_default ( void ) const

Definition at line 42 of file Admin.inl.

{
  return this->is_default_;
}

void TAO_Notify_Admin::load_attrs ( const TAO_Notify::NVPList & attrs ) [virtual]

Definition at line 170 of file Admin.cpp.

{
  TAO_Notify_Object::load_attrs (attrs);
  const char* value = 0;
  if (attrs.find ("InterFilterGroupOperator", value))
    {
      this->filter_operator_ = static_cast <CosNotifyChannelAdmin::InterFilterGroupOperator> (ACE_OS::atoi (value));
    }

  if (attrs.find ("default", value))
    {
      this->is_default_ = (ACE_OS::strcmp (value, "yes") == 0);
    }
}

TAO_Notify::Topology_Object * TAO_Notify_Admin::load_child	(	const ACE_CString &	type,
		CORBA::Long	id,
		const TAO_Notify::NVPList &	attrs
	)			`[virtual]`

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

Reimplemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.

Definition at line 186 of file Admin.cpp.

{
  ACE_UNUSED_ARG (attrs);
  TAO_Notify::Topology_Object* result = this;
  if (type == "subscriptions")
    {
      if (DEBUG_LEVEL)
        ACE_DEBUG ((LM_DEBUG,
                    ACE_TEXT ("(%P|%t) Admin reload subscription %d\n"),
                    static_cast<int> (id)
                    ));
      // since we initialized our subscribed types to everything
      // in the constructor. we have to clear it out first.
      this->subscribed_types_.reset();
      result = &this->subscribed_types_;
    }
  else if (type == "filter_admin")
    {
      if (DEBUG_LEVEL)
        ACE_DEBUG ((LM_DEBUG,
                    ACE_TEXT ("(%P|%t) Admin reload filter_admin %d\n"),
                    static_cast<int> (id)
                    ));
      result = & this->filter_admin_;
    }
  return result;
}

TAO_Notify_Admin::TAO_Notify_Proxy_Container & TAO_Notify_Admin::proxy_container ( ) [protected]

Definition at line 48 of file Admin.inl.

{
  ACE_ASSERT( proxy_container_.get() != 0 );
  return *proxy_container_;
}

void TAO_Notify_Admin::reconnect ( void ) [virtual]

Re-establish connections that we had before a shutdown.

After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.

Reimplemented from TAO_Notify::Topology_Savable.

Definition at line 217 of file Admin.cpp.

{
  TAO_Notify::Reconnect_Worker<TAO_Notify_Proxy> wrk;
  this->proxy_container().collection()->for_each(&wrk);
}

void TAO_Notify_Admin::remove ( TAO_Notify_Proxy * proxy ) [private]

Remove type from container_.

Definition at line 87 of file Admin.cpp.

{
  this->proxy_container().remove (proxy);
}

void TAO_Notify_Admin::save_attrs ( TAO_Notify::NVPList & attrs ) [protected]

Definition at line 158 of file Admin.cpp.

{
  TAO_Notify_Object::save_attrs(attrs);
  attrs.push_back(TAO_Notify::NVP("InterFilterGroupOperator",
                                  this->filter_operator_));
  if (this->is_default_)
    {
      attrs.push_back (TAO_Notify::NVP ("default", "yes"));
    }
}

void TAO_Notify_Admin::save_persistent ( TAO_Notify::Topology_Saver & saver ) [virtual]

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

Definition at line 124 of file Admin.cpp.

{
  bool changed = this->children_changed_;
  this->children_changed_ = false;
  this->self_changed_ = false;

  if (is_persistent ())
    {
      TAO_Notify::NVPList attrs;
      this->save_attrs(attrs);

      const char* type = this->get_admin_type_name();

      bool want_all_children =
        saver.begin_object(this->id(), type, attrs, changed);

      if (want_all_children || this->filter_admin_.is_changed ())
        {
          this->filter_admin_.save_persistent(saver);
        }
      if (want_all_children || this->subscribed_types_.is_changed ())
        {
          this->subscribed_types_.save_persistent(saver);
        }

      TAO_Notify::Save_Persist_Worker<TAO_Notify_Proxy>
        wrk(saver, want_all_children);
      this->proxy_container().collection()->for_each(&wrk);

      saver.end_object(this->id(), type);
    }
}

void TAO_Notify_Admin::set_default ( bool is_default )

Definition at line 35 of file Admin.inl.

{
  this->is_default_ = is_default;
}

int TAO_Notify_Admin::shutdown ( void ) [virtual]

Shutdown.

Definition at line 107 of file Admin.cpp.

{
  if (TAO_Notify_Object::shutdown () == 1)
    return 1;

  this->proxy_container().shutdown ();

  return 0;
}

void TAO_Notify_Admin::subscribed_types ( TAO_Notify_EventTypeSeq & subscribed_types )

Obtain the Admin's subscribed types.

Definition at line 93 of file Admin.cpp.

{
  ACE_GUARD_THROW_EX (TAO_SYNCH_MUTEX, ace_mon, this->lock_,
                      CORBA::INTERNAL ());

  // Adopt the Admin's subscription.
  TAO_Notify_EventTypeSeq added (this->subscribed_types_), removed;

  added.add_and_remove (subscribed_types, removed);

  subscribed_types = added;
}

void TAO_Notify_Admin::validate ( ) [virtual]

Definition at line 224 of file Admin.cpp.

{
  TAO_Notify::Validate_Worker<TAO_Notify_Proxy> wrk;
  this->proxy_container().collection()->for_each(&wrk);
}

Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]

Definition at line 42 of file Admin.h.

Member Data Documentation

TAO_Notify_EventChannel::Ptr TAO_Notify_Admin::ec_ [protected]

= Data Members

The EventChannel.

Definition at line 103 of file Admin.h.

TAO_Notify_FilterAdmin TAO_Notify_Admin::filter_admin_ [protected]

Filter Administration.

Definition at line 109 of file Admin.h.

CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator_ [protected]

Filter operator.

Definition at line 112 of file Admin.h.

bool TAO_Notify_Admin::is_default_ [protected]

Definition at line 114 of file Admin.h.

ACE_Auto_Ptr< TAO_Notify_Proxy_Container > TAO_Notify_Admin::proxy_container_ [private]

The Proxy Container.

Definition at line 120 of file Admin.h.

TAO_Notify_EventTypeSeq TAO_Notify_Admin::subscribed_types_ [protected]

The types that we've subscribed our proxy objects with the event manager.

Definition at line 106 of file Admin.h.

The documentation for this class was generated from the following files:
