#include <parser/debug_validator/Debug_Element_Builder.h>

Inheritance diagram for ACEXML_Debug_Element_Builder:

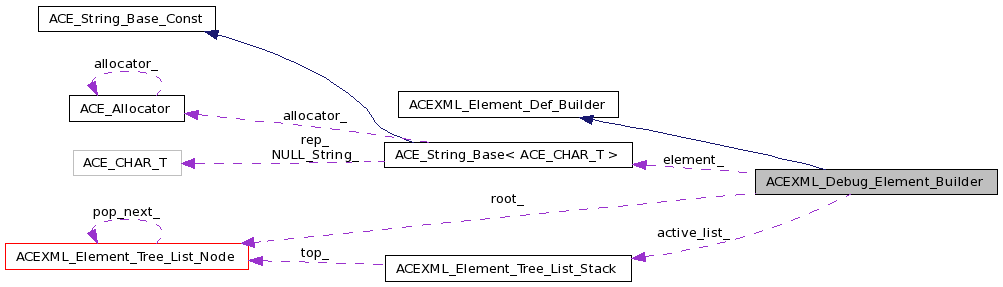

Collaboration diagram for ACEXML_Debug_Element_Builder:

Public Member Functions
	ACEXML_Debug_Element_Builder ()
virtual	~ACEXML_Debug_Element_Builder ()
virtual int	setElementName (const ACEXML_Char namespaceURI, const ACEXML_Char localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL)
virtual int	setContentType (CONTENT_TYPE type ACEXML_ENV_ARG_DECL)
virtual int	insertMixedElement (const ACEXML_Char namespaceURI, const ACEXML_Char localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL)
virtual int	startChildGroup ()
virtual int	endChildGroup (CARDINALITY card ACEXML_ENV_ARG_DECL)
virtual int	setChoice ()
virtual int	setSequence ()
virtual int	insertElement (const ACEXML_Char namespaceURI, const ACEXML_Char localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL)
virtual void	dump (void)
Private Attributes
CONTENT_TYPE	type_
ACEXML_String	element_
ACEXML_Element_Tree_List_Node *	root_
ACEXML_Element_Tree_List_Stack	active_list_

Detailed Description

This class prints out the element definition for debugging purpose.

Todo:: This class is not namespace-aware.

Definition at line 32 of file Debug_Element_Builder.h.

Constructor & Destructor Documentation

ACEXML_Debug_Element_Builder::ACEXML_Debug_Element_Builder ( )

Definition at line 6 of file Debug_Element_Builder.cpp.

  : type_ (UNDEFINED),
    root_ (0)
{
}

ACEXML_Debug_Element_Builder::~ACEXML_Debug_Element_Builder ( ) [virtual]

Definition at line 12 of file Debug_Element_Builder.cpp.

{
  delete this->root_;
}

Member Function Documentation

void ACEXML_Debug_Element_Builder::dump ( void ) [virtual]

Dump the content of the attribute definition.

Implements ACEXML_Element_Def_Builder.

Definition at line 120 of file Debug_Element_Builder.cpp.

{
  cout << "<!ELEMENT " << this->element_;

  // @@ Also dump element contentspec here.
  switch (this->type_)
    {
    case EMPTY:
      cout << "EMPTY";
      break;
    case ANY:
      cout << "ANY";
      break;
    case MIXED:
    case CHILDREN:
      // @@ Dump the content of this->root_
      cout << "*** not implemented ***";
      break;
    default:
      cout << "*** Unidentified element type ***";
      break;
    }

  cout << ">" << endl;
}

virtual int ACEXML_Debug_Element_Builder::endChildGroup ( CARDINALITY card ACEXML_ENV_ARG_DECL ) [virtual]

End a new group of children.

Return values:

0

on success.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::insertElement	(	const ACEXML_Char *	namespaceURI,
		const ACEXML_Char *	localName,
		const ACEXML_Char *qName	ACEXML_ENV_ARG_DECL
	)			`[virtual]`

Insert an new element into the current child group.

Return values:

0

on success, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

Definition at line 105 of file Debug_Element_Builder.cpp.

{
  ACEXML_Element_Tree_Name_Node *node;

  // @@ We should "throw" an exception here instead of returning -1.
  ACE_NEW_RETURN (node,
                  ACEXML_Element_Tree_Name_Node (qName),
                  -1);

  return this->active_list_.top ()->insert (node);
}

int ACEXML_Debug_Element_Builder::insertMixedElement	(	const ACEXML_Char *	namespaceURI,
		const ACEXML_Char *	localName,
		const ACEXML_Char *qName	ACEXML_ENV_ARG_DECL
	)			`[virtual]`

Insert one more element into Mixed definition.

Implements ACEXML_Element_Def_Builder.

Definition at line 39 of file Debug_Element_Builder.cpp.

{
  ACEXML_Element_Tree_Name_Node *node;

  // @@ We should "throw" an exception here instead of returning -1.
  ACE_NEW_RETURN (node,
                  ACEXML_Element_Tree_Name_Node (qName),
                  -1);

  if (this->root_ == 0)
    // @@ Memory leak if fail?
    ACE_NEW_RETURN (this->root_,
                    ACEXML_Element_Tree_List_Node (),
                    -1);


  return this->root_->insert (node);
}

int ACEXML_Debug_Element_Builder::setChoice ( ) [virtual]

Set the type of current child group to Choice.

Return values:

0

on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implements ACEXML_Element_Def_Builder.

Definition at line 91 of file Debug_Element_Builder.cpp.

{
  this->active_list_.top ()->set (ACEXML_Element_Tree_List_Node::CHOICE);
  return 0;
}

int ACEXML_Debug_Element_Builder::setContentType ( CONTENT_TYPE type ACEXML_ENV_ARG_DECL ) [virtual]

Define the content type of the element.

Return values:

0

if valid, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

Definition at line 27 of file Debug_Element_Builder.cpp.

{
  if (this->type_ == UNDEFINED)
    {
      this->type_ = type;
      return 0;
    }

  ACEXML_THROW_RETURN (ACEXML_SAXParseException (ACE_TEXT("Element type redefinition in Debug_Validator.")), -1);
}

int ACEXML_Debug_Element_Builder::setElementName	(	const ACEXML_Char *	namespaceURI,
		const ACEXML_Char *	localName,
		const ACEXML_Char *qName	ACEXML_ENV_ARG_DECL
	)			`[virtual]`

Define the name of the element.

Return values:

0

if valid, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

Definition at line 18 of file Debug_Element_Builder.cpp.

{
  this->element_.set (qName, 0);
  return 0;
}

int ACEXML_Debug_Element_Builder::setSequence ( ) [virtual]

Set the type of current child group to Sequence.

Return values:

0

on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implements ACEXML_Element_Def_Builder.

Definition at line 98 of file Debug_Element_Builder.cpp.

{
  this->active_list_.top ()->set (ACEXML_Element_Tree_List_Node::SEQUENCE);
  return 0;
}

int ACEXML_Debug_Element_Builder::startChildGroup ( ) [virtual]

Start a new group of children.

Implements ACEXML_Element_Def_Builder.

Definition at line 61 of file Debug_Element_Builder.cpp.

{
  ACEXML_Element_Tree_List_Node *lnode;

  ACE_NEW_RETURN (lnode,
                  ACEXML_Element_Tree_List_Node (),
                  -1);

  if (this->root_ == 0)
    {
      this->root_ = lnode;
    }
  else
    {
      // @@ check error?
      this->root_->insert (lnode);
    }

  this->active_list_.push (lnode);
  return 0;
}

Member Data Documentation

ACEXML_Element_Tree_List_Stack ACEXML_Debug_Element_Builder::active_list_ [private]

Definition at line 117 of file Debug_Element_Builder.h.

ACEXML_String ACEXML_Debug_Element_Builder::element_ [private]

Definition at line 113 of file Debug_Element_Builder.h.

ACEXML_Element_Tree_List_Node* ACEXML_Debug_Element_Builder::root_ [private]

Definition at line 115 of file Debug_Element_Builder.h.

CONTENT_TYPE ACEXML_Debug_Element_Builder::type_ [private]

Definition at line 111 of file Debug_Element_Builder.h.

The documentation for this class was generated from the following files:
