An abstract base class for describing a node list in a DTD child element definition. More...

#include <parser/debug_validator/Element_Tree.h>

Inheritance diagram for ACEXML_Element_Tree_List_Node:

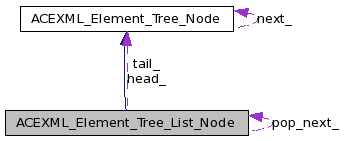

Collaboration diagram for ACEXML_Element_Tree_List_Node:

Public Types
enum	LIST_TYPE { SEQUENCE, CHOICE }
Public Member Functions
	ACEXML_Element_Tree_List_Node (void)
	Default constructor.
virtual	~ACEXML_Element_Tree_List_Node (void)
	Destructor.
int	insert (ACEXML_Element_Tree_Node *node)
	Insert a new ACEXML_Element_Tree_Node into the list.
LIST_TYPE	get (void)
	Get/set the type of list.
int	set (LIST_TYPE type)
virtual void	dump ()
	Displaying the content.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
Protected Attributes
LIST_TYPE	type_
ACEXML_Element_Tree_Node *	head_
ACEXML_Element_Tree_Node *	tail_
ACEXML_Element_Tree_List_Node *	pop_next_
Friends
class	ACEXML_Element_Tree_List_Stack

Detailed Description

An abstract base class for describing a node list in a DTD child element definition.

See also:: ACEXML_Element_Tree_Node, ACEXML_Element_Tree_Name_Node

Definition at line 91 of file Element_Tree.h.

Member Enumeration Documentation

enum ACEXML_Element_Tree_List_Node::LIST_TYPE

Enumerator:

SEQUENCE
CHOICE

Definition at line 97 of file Element_Tree.h.

               {
    SEQUENCE,
    CHOICE
  } LIST_TYPE;

Constructor & Destructor Documentation

ACEXML_INLINE ACEXML_Element_Tree_List_Node::ACEXML_Element_Tree_List_Node ( void )

Default constructor.

Definition at line 36 of file Element_Tree.inl.

  : type_ (SEQUENCE),
    head_ (0),
    tail_ (0),
    pop_next_ (0)
{
}

ACEXML_Element_Tree_List_Node::~ACEXML_Element_Tree_List_Node ( void ) [virtual]

Destructor.

Definition at line 24 of file Element_Tree.cpp.

{
  delete this->head_;
}

Member Function Documentation

void ACEXML_Element_Tree_List_Node::dump ( ) [virtual]

Displaying the content.

Implements ACEXML_Element_Tree_Node.

Definition at line 45 of file Element_Tree.cpp.

{
  ACEXML_Element_Tree_Node *ptr = this->head_;
  const ACEXML_Char *separator = (this->type_ == SEQUENCE) ? ACE_TEXT(" , ") : ACE_TEXT(" | ");

  cout << "(";

  if (ptr != 0)
    {
      ptr->dump ();
      ptr = ptr->next ();

      while (ptr != 0)
        {
          cout << separator;
          ptr->dump ();
          ptr->next ();
        }
    }

  cout << ")";
}

ACEXML_INLINE ACEXML_Element_Tree_List_Node::LIST_TYPE ACEXML_Element_Tree_List_Node::get ( void )

Get/set the type of list.

Definition at line 45 of file Element_Tree.inl.

{
  return this->type_;
}

int ACEXML_Element_Tree_List_Node::insert ( ACEXML_Element_Tree_Node * node )

Insert a new ACEXML_Element_Tree_Node into the list.

Definition at line 30 of file Element_Tree.cpp.

{
  if (this->head_ == 0)
    {
      this->tail_ = this->head_ = node;
    }
  else
    {
      this->tail_->next (node);
      this->tail_ = node;
    }
  return 0;
}
