TAO_CEC_TypedEventChannel Class Reference

#include <CEC_TypedEventChannel.h>

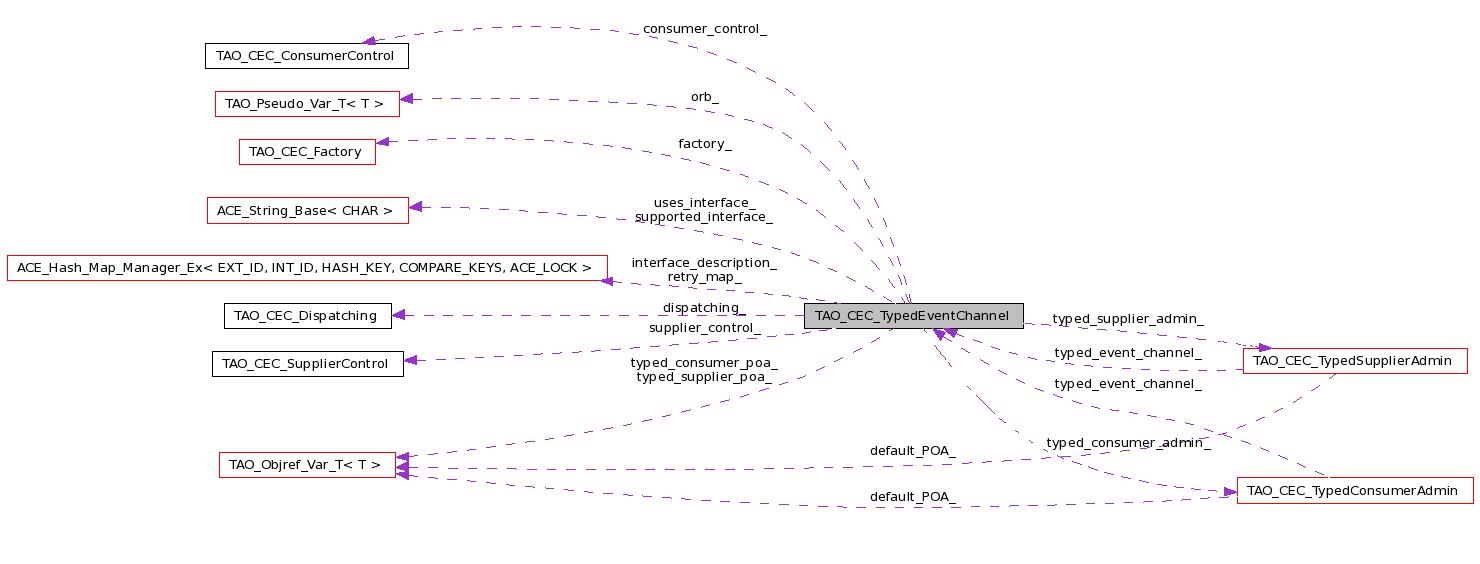

Collaboration diagram for TAO_CEC_TypedEventChannel:


Public Types
typedef ACE_Hash_Map_Manager_Ex< PortableServer::ServantBase , unsigned int, ServantBaseHash, ACE_Equal_To< PortableServer::ServantBase >, TAO_SYNCH_MUTEX >	ServantRetryMap
typedef ACE_Hash_Map_Manager_Ex< const char , TAO_CEC_Operation_Params , ACE_Hash< const char * >, ACE_Equal_To< const char * >, ACE_Null_Mutex >	InterfaceDescription
typedef InterfaceDescription::iterator	Iterator
Public Member Functions
	TAO_CEC_TypedEventChannel (const TAO_CEC_TypedEventChannel_Attributes &attributes, TAO_CEC_Factory *factory=0, int own_factory=0)
virtual	~TAO_CEC_TypedEventChannel (void)
	Destructor.
virtual void	activate (void)
virtual void	shutdown (void)
TAO_CEC_Dispatching *	dispatching (void) const
	Access the dispatching module....
TAO_CEC_TypedConsumerAdmin *	typed_consumer_admin (void) const
	Access the consumer admin implementation.
TAO_CEC_TypedSupplierAdmin *	typed_supplier_admin (void) const
	Access the supplier admin implementation.
TAO_CEC_ConsumerControl *	consumer_control (void) const
	Access the consumer control strategy.
TAO_CEC_SupplierControl *	supplier_control (void) const
	Access the supplier control strategy.
void	create_proxy (TAO_CEC_ProxyPushSupplier *&)
	Create and destroy a ProxyPushSupplier.
void	destroy_proxy (TAO_CEC_ProxyPushSupplier *)
void	create_proxy (TAO_CEC_TypedProxyPushConsumer *&)
	Create and destroy a TypedProxyPushConsumer.
void	destroy_proxy (TAO_CEC_TypedProxyPushConsumer *)
void	create_proxy_collection (TAO_CEC_ProxyPushSupplier_Collection *&)
void	destroy_proxy_collection (TAO_CEC_ProxyPushSupplier_Collection *)
void	create_proxy_collection (TAO_CEC_TypedProxyPushConsumer_Collection *&)
void	destroy_proxy_collection (TAO_CEC_TypedProxyPushConsumer_Collection *)
PortableServer::POA_ptr	typed_supplier_poa (void)
	Access the supplier and consumer POAs from the factory.
PortableServer::POA_ptr	typed_consumer_poa (void)
ACE_Lock *	create_consumer_lock (void)
void	destroy_consumer_lock (ACE_Lock *)
ACE_Lock *	create_supplier_lock (void)
void	destroy_supplier_lock (ACE_Lock *)
virtual void	connected (TAO_CEC_TypedProxyPushConsumer *)
virtual void	reconnected (TAO_CEC_TypedProxyPushConsumer *)
virtual void	disconnected (TAO_CEC_TypedProxyPushConsumer *)
virtual void	connected (TAO_CEC_ProxyPushSupplier *)
virtual void	reconnected (TAO_CEC_ProxyPushSupplier *)
virtual void	disconnected (TAO_CEC_ProxyPushSupplier *)
int	consumer_reconnect (void) const
	Can the consumers reconnect to the EC?
int	supplier_reconnect (void) const
	Can the suppliers reconnect to the EC?
int	disconnect_callbacks (void) const
TAO_CEC_Operation_Params *	find_from_ifr_cache (const char *operation)
	Finds a operation/parameter from the IFR cache.
int	consumer_register_uses_interace (const char *uses_interface)
	Function allows consumer admin to register the uses interface.
int	supplier_register_supported_interface (const char *supported_interface)
	Function allows supplier admin to register the supported interface.
const char *	supported_interface (void) const
	Function to return the supported_interface_.
CORBA::RepositoryId	base_interfaces (CORBA::ULong index) const
	Function to return the base_interfaces_.
CORBA::ULong	number_of_base_interfaces (void) const
	Function to return the number of base_interfaces_.
virtual void	create_operation_list (TAO_CEC_Operation_Params *oper_params, CORBA::NVList_out new_list)
	Function populates the NVList from the provide param information.
virtual void	create_list (CORBA::Long count, CORBA::NVList_out new_list)
	Function creates an empty NVList.
virtual ::CosTypedEventChannelAdmin::TypedConsumerAdmin_ptr	for_consumers (void)
virtual ::CosTypedEventChannelAdmin::TypedSupplierAdmin_ptr	for_suppliers (void)
virtual void	destroy (void)
ServantRetryMap &	get_servant_retry_map (void)
CORBA::Policy_ptr	create_roundtrip_timeout_policy (const ACE_Time_Value &timeout)
	Forwarded to the factory.
Protected Member Functions
int	cache_interface_description (const char *interface_)
	Function caches the full interface description from the IFR.
int	insert_into_ifr_cache (const char operation, TAO_CEC_Operation_Params parameters)
	Insert a operation/parameter into the IFR cache.
int	clear_ifr_cache (void)
	Function clears the IFR cache.
Private Attributes
PortableServer::POA_var	typed_supplier_poa_
PortableServer::POA_var	typed_consumer_poa_
CORBA::ORB_var	orb_
	The ORB.
CORBA::Repository_var	interface_repository_
	Storage of the IFR reference.
TAO_CEC_Factory *	factory_
int	own_factory_
	Flag that indicates if we own the factory.
TAO_CEC_Dispatching *	dispatching_
	The dispatching "module".
TAO_CEC_TypedConsumerAdmin *	typed_consumer_admin_
	The ConsumerAdmin implementation.
TAO_CEC_TypedSupplierAdmin *	typed_supplier_admin_
	The SupplierAdmin implementation.
int	consumer_reconnect_
	Consumer reconnection flags.
int	supplier_reconnect_
	Supplier reconnection flags.
int	disconnect_callbacks_
	If not zero we send callbacks when a proxy is disconnected.
int	destroy_on_shutdown_
	If not zero the event channel is destroyed on shutdown.
int	destroyed_
	Set if the event channel has been destroyed.
TAO_CEC_ConsumerControl *	consumer_control_
ServantRetryMap	retry_map_
TAO_CEC_SupplierControl *	supplier_control_
ACE_CString	uses_interface_
	The uses_interface_ for the TypedConsumerAdmin.
ACE_CString	supported_interface_
	The supported_interface_ for the TypedSupplierAdmin.
InterfaceDescription	interface_description_
	The IFR cache for the interface description.
CORBA::RepositoryIdSeq	base_interfaces_
	The supported_interface_ base interfaces.
Classes
class	ServantBaseHash

Detailed Description

Definition at line 113 of file CEC_TypedEventChannel.h.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<const char *, TAO_CEC_Operation_Params *, ACE_Hash<const char *>, ACE_Equal_To<const char *>, ACE_Null_Mutex> TAO_CEC_TypedEventChannel::InterfaceDescription

Definition at line 219 of file CEC_TypedEventChannel.h.

typedef InterfaceDescription::iterator TAO_CEC_TypedEventChannel::Iterator

Definition at line 220 of file CEC_TypedEventChannel.h.

typedef ACE_Hash_Map_Manager_Ex<PortableServer::ServantBase*, unsigned int, ServantBaseHash, ACE_Equal_To<PortableServer::ServantBase*>, TAO_SYNCH_MUTEX> TAO_CEC_TypedEventChannel::ServantRetryMap

Definition at line 128 of file CEC_TypedEventChannel.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_CEC_TypedEventChannel::TAO_CEC_TypedEventChannel	(	const TAO_CEC_TypedEventChannel_Attributes &	attributes,
		TAO_CEC_Factory *	factory = `0`,
		int	own_factory = `0`
	)

Constructor If <own_factory> is not 0 it assumes ownership of the factory. If the factory is <nil> it uses the Service_Configurator to load the Factory, if not found it uses TAO_CEC_Default_Resource_Factory

Definition at line 25 of file CEC_TypedEventChannel.cpp.

References ACE_ASSERT, consumer_control_, TAO_CEC_Factory::create_consumer_admin(), TAO_CEC_Factory::create_consumer_control(), TAO_CEC_Factory::create_dispatching(), TAO_CEC_Factory::create_supplier_admin(), TAO_CEC_Factory::create_supplier_control(), dispatching_, factory_, ACE_Dynamic_Service< TYPE >::instance(), own_factory_, supplier_control_, typed_consumer_admin_, and typed_supplier_admin_.

00028   : typed_supplier_poa_ (PortableServer::POA::_duplicate (attr.typed_supplier_poa)),
00029     typed_consumer_poa_ (PortableServer::POA::_duplicate (attr.typed_consumer_poa)),
00030     orb_ (CORBA::ORB::_duplicate (attr.orb)),
00031     interface_repository_ (CORBA::Repository::_duplicate (attr.interface_repository)),
00032     factory_ (factory),
00033     own_factory_ (own_factory),
00034     consumer_reconnect_ (attr.consumer_reconnect),
00035     supplier_reconnect_ (attr.supplier_reconnect),
00036     disconnect_callbacks_ (attr.disconnect_callbacks),
00037     destroy_on_shutdown_ (attr.destroy_on_shutdown),
00038     destroyed_ (0)
00039 {
00040   if (this->factory_ == 0)
00041     {
00042       this->factory_ =
00043         ACE_Dynamic_Service<TAO_CEC_Factory>::instance ("CEC_Factory");
00044       this->own_factory_ = 0;
00045       ACE_ASSERT (this->factory_ != 0);
00046     }
00047
00048   this->dispatching_ =
00049     this->factory_->create_dispatching (this);
00050   this->typed_consumer_admin_ =
00051     this->factory_->create_consumer_admin (this);
00052   this->typed_supplier_admin_ =
00053     this->factory_->create_supplier_admin (this);
00054   this->consumer_control_ =
00055     this->factory_->create_consumer_control (this);
00056   this->supplier_control_ =
00057     this->factory_->create_supplier_control (this);
00058 }

TAO_CEC_TypedEventChannel::~TAO_CEC_TypedEventChannel ( void ) [virtual]

Destructor.

Definition at line 61 of file CEC_TypedEventChannel.cpp.

References clear_ifr_cache(), ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::close(), TAO_CEC_Factory::destroy_consumer_admin(), TAO_CEC_Factory::destroy_dispatching(), TAO_CEC_Factory::destroy_supplier_admin(), dispatching_, factory_, interface_description_, typed_consumer_admin_, and typed_supplier_admin_.

00062 {
00063   this->clear_ifr_cache ();
00064   this->interface_description_.close ();
00065
00066   this->factory_->destroy_dispatching (this->dispatching_);
00067   this->dispatching_ = 0;
00068
00069   this->factory_->destroy_consumer_admin (this->typed_consumer_admin_);
00070   this->typed_consumer_admin_ = 0;
00071   this->factory_->destroy_supplier_admin (this->typed_supplier_admin_);
00072   this->typed_supplier_admin_ = 0;
00073
00074   if (this->own_factory_)
00075     delete this->factory_;
00076 }

Member Function Documentation

void TAO_CEC_TypedEventChannel::activate ( void ) [virtual]

Start the internal threads (if any), etc. After this call the EC can be used.

Definition at line 79 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_SupplierControl::activate(), TAO_CEC_ConsumerControl::activate(), TAO_CEC_Dispatching::activate(), consumer_control_, dispatching_, and supplier_control_.

00080 {
00081   this->dispatching_->activate ();
00082   this->consumer_control_->activate ();
00083   this->supplier_control_->activate ();
00084 }

ACE_INLINE CORBA::RepositoryId TAO_CEC_TypedEventChannel::base_interfaces ( CORBA::ULong index ) const

Function to return the base_interfaces_.

Definition at line 165 of file CEC_TypedEventChannel.inl.

References base_interfaces_.

00166 {
00167   return const_cast <CORBA::RepositoryId>(this->base_interfaces_[index].in ());
00168 }

int TAO_CEC_TypedEventChannel::cache_interface_description ( const char * interface_ ) [protected]

Function caches the full interface description from the IFR.

Definition at line 251 of file CEC_TypedEventChannel.cpp.

References CORBA::Exception::_tao_print_exception(), ACE_DEBUG, ACE_TEXT(), base_interfaces_, TAO_CEC_Param::direction_, insert_into_ifr_cache(), interface_repository_, CORBA::is_nil(), LM_DEBUG, TAO_CEC_Param::name_, TAO_CEC_Operation_Params::num_params_, TAO_CEC_Operation_Params::parameters_, TAO_debug_level, and TAO_CEC_Param::type_.

Referenced by consumer_register_uses_interace(), and supplier_register_supported_interface().

00252 {
00253   try
00254     {
00255       // Lookup the Interface Name in the IFR
00256       CORBA::Contained_var contained =
00257         this->interface_repository_->lookup_id (interface_);
00258
00259       // Narrow the interface
00260       CORBA::InterfaceDef_var intface =
00261         CORBA::InterfaceDef::_narrow (contained.in ());
00262
00263       if (CORBA::is_nil (intface.in () ))
00264         {
00265           if (TAO_debug_level >= 10)
00266             {
00267               ACE_DEBUG ((LM_DEBUG,
00268                           ACE_TEXT ("***** CORBA::InterfaceDef::_narrow failed for interface %s *****\n"),
00269                           interface_));
00270             }
00271           return -1;
00272         }
00273       else
00274         {
00275           // Obtain the full interface description
00276           CORBA::InterfaceDef::FullInterfaceDescription_var fid =
00277             intface->describe_interface ();
00278
00279           // Obtain the base interfaces
00280           this->base_interfaces_ = fid->base_interfaces;
00281           if (TAO_debug_level >= 10)
00282             {
00283               for (CORBA::ULong base=0; base<fid->base_interfaces.length(); base++)
00284                 {
00285                   ACE_DEBUG ((LM_DEBUG,
00286                               ACE_TEXT ("***** Base interface %s found on interface %s *****\n"),
00287                               static_cast<char const*>(fid->base_interfaces[base]),
00288                               interface_ ));
00289                 }
00290             }
00291
00292           // Obtain the operations
00293           for (CORBA::ULong oper=0; oper<fid->operations.length(); oper++)
00294             {
00295               if (TAO_debug_level >= 10)
00296                 {
00297                   ACE_DEBUG ((LM_DEBUG,
00298                               ACE_TEXT ("***** Operation %s found on interface %s, num params %d *****\n"),
00299                               fid->operations[oper].name.in(),
00300                               interface_,
00301                               fid->operations[oper].parameters.length() ));
00302                 }
00303
00304               // Obtain the parameters
00305               CORBA::ULong num_params = fid->operations[oper].parameters.length();
00306               TAO_CEC_Operation_Params *oper_params = new TAO_CEC_Operation_Params (num_params);
00307
00308               for (CORBA::ULong param=0; param<num_params; param++)
00309                 {
00310                   oper_params->parameters_[param].name_ = fid->operations[oper].parameters[param].name.in();
00311                   oper_params->parameters_[param].type_ = fid->operations[oper].parameters[param].type;
00312                   switch (fid->operations[oper].parameters[param].mode)
00313                     {
00314                     case CORBA::PARAM_IN:
00315                       oper_params->parameters_[param].direction_ = CORBA::ARG_IN;
00316                       break;
00317                     case CORBA::PARAM_OUT:
00318                       oper_params->parameters_[param].direction_ = CORBA::ARG_OUT;
00319                       break;
00320                     case CORBA::PARAM_INOUT:
00321                       oper_params->parameters_[param].direction_ = CORBA::ARG_INOUT;
00322                       break;
00323                     }
00324
00325                   if (TAO_debug_level >= 10)
00326                     {
00327                       ACE_DEBUG ((LM_DEBUG,
00328                                   ACE_TEXT ("***** Parameter %s found on operation %s *****\n"),
00329                                   oper_params->parameters_[param].name_.in(),
00330                                   fid->operations[oper].name.in() ));
00331                     }
00332                 }
00333
00334               if (TAO_debug_level >= 10)
00335                 {
00336                   ACE_DEBUG ((LM_DEBUG,
00337                               ACE_TEXT ("***** Adding operation %s with %d parameters to the IFR cache *****\n"),
00338                               fid->operations[oper].name.in(),
00339                               oper_params->num_params_ ));
00340                 }
00341
00342               int result = insert_into_ifr_cache (fid->operations[oper].name.in(), oper_params);
00343               if (result != 0)
00344                 {
00345                   if (TAO_debug_level >= 10)
00346                     {
00347                       ACE_DEBUG ((LM_DEBUG,
00348                                   ACE_TEXT ("***** Adding operation to IFR cache failed *****\n")));
00349                     }
00350                 }
00351             }
00352         }
00353     }
00354   catch (const CORBA::SystemException& sysex)
00355     {
00356       if (TAO_debug_level >= 4)
00357         {
00358           sysex._tao_print_exception (
00359             "during TAO_CEC_TypedEventChannel::cache_interface_description");
00360         }
00361       return -1;
00362     }
00363   catch (const CORBA::Exception& ex)
00364     {
00365       if (TAO_debug_level >= 4)
00366         {
00367           ex._tao_print_exception (
00368             "ex raised during TAO_CEC_TypedEventChannel::cache_interface_description");
00369         }
00370       return -1;
00371     }
00372   return 0;
00373 }

int TAO_CEC_TypedEventChannel::clear_ifr_cache ( void ) [protected]

Function clears the IFR cache.

Definition at line 219 of file CEC_TypedEventChannel.cpp.

References ACE_DEBUG, ACE_TEXT(), ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::end(), interface_description_, LM_DEBUG, CORBA::string_free(), TAO_debug_level, and ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::unbind_all().

Referenced by ~TAO_CEC_TypedEventChannel().

00220 {
00221   for (Iterator i = this->interface_description_.begin ();
00222        i != this->interface_description_.end ();
00223        ++i)
00224     {
00225       if (TAO_debug_level >= 10)
00226         {
00227           ACE_DEBUG ((LM_DEBUG,
00228                       ACE_TEXT ("***** Destroying operation %s from ifr cache *****\n"),
00229                       const_cast<char *> ((*i).ext_id_)));
00230         }
00231
00232       // Deallocate the operation
00233       CORBA::string_free (const_cast<char *> ((*i).ext_id_));
00234
00235       // Destroy the parameter
00236       delete ((*i).int_id_);
00237     }
00238
00239   int result = this->interface_description_.unbind_all ();
00240
00241   return result;
00242 }

void TAO_CEC_TypedEventChannel::connected ( TAO_CEC_ProxyPushSupplier * ) [virtual]

Used to inform the EC that a Supplier has connected or disconnected from it.

Definition at line 163 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_TypedConsumerAdmin::connected(), and typed_consumer_admin_.

00164 {
00165   this->typed_consumer_admin_->connected (supplier);
00166 }

void TAO_CEC_TypedEventChannel::connected ( TAO_CEC_TypedProxyPushConsumer * ) [virtual]

Used to inform the EC that a Consumer has connected or disconnected from it.

Definition at line 145 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_TypedSupplierAdmin::connected(), and typed_supplier_admin_.

Referenced by TAO_CEC_TypedProxyPushConsumer::connect_push_supplier().

00146 {
00147   this->typed_supplier_admin_->connected (consumer);
00148 }

ACE_INLINE TAO_CEC_ConsumerControl * TAO_CEC_TypedEventChannel::consumer_control ( void ) const

Access the consumer control strategy.

Definition at line 45 of file CEC_TypedEventChannel.inl.

References consumer_control_.

00046 {
00047   return this->consumer_control_;
00048 }

ACE_INLINE int TAO_CEC_TypedEventChannel::consumer_reconnect ( void ) const

Can the consumers reconnect to the EC?

Definition at line 141 of file CEC_TypedEventChannel.inl.

References consumer_reconnect_.

00142 {
00143   return this->consumer_reconnect_;
00144 }

int TAO_CEC_TypedEventChannel::consumer_register_uses_interace ( const char * uses_interface )

Function allows consumer admin to register the uses interface.

Definition at line 384 of file CEC_TypedEventChannel.cpp.

References ACE_DEBUG, ACE_TEXT(), cache_interface_description(), LM_DEBUG, TAO_debug_level, and uses_interface_.

Referenced by TAO_CEC_TypedConsumerAdmin::obtain_typed_push_supplier().

00385 {
00386   // Check if a consumer has already registered an interface with the typed EC
00387   if (this->uses_interface_.length() > 0)
00388     {
00389       // Check if the registered uses_interface_ == the new uses_interface
00390       if (this->uses_interface_ == ACE_CString (uses_interface))
00391         {
00392           return 0;
00393         }
00394       else
00395         {
00396           if (TAO_debug_level >= 10)
00397             {
00398               ACE_DEBUG ((LM_DEBUG,
00399                           ACE_TEXT ("***** different uses_interface_ already registered *****\n")));
00400             }
00401           return -1;
00402         }
00403     }
00404
00405   // Check if a supplier has already registered an inerface with the typed EC
00406   if (this->supported_interface_.length() > 0)
00407     {
00408       // Check if the registered supported_interface_ == the new uses_interface
00409       if (this->supported_interface_ == ACE_CString (uses_interface))
00410         {
00411           this->uses_interface_ = uses_interface;
00412           return 0;
00413         }
00414       else
00415         {
00416           if (TAO_debug_level >= 10)
00417             {
00418               ACE_DEBUG ((LM_DEBUG,
00419                           ACE_TEXT ("***** different supported_interface_ already registered *****\n")));
00420             }
00421           return -1;
00422         }
00423     }
00424   else
00425     {
00426       // Neither a consumer nor a supplier has connected yet
00427       int result = cache_interface_description (uses_interface);
00428
00429       if (result == 0)
00430         {
00431           this->uses_interface_ = uses_interface;
00432         }
00433       return result;
00434     }
00435 }

ACE_INLINE ACE_Lock * TAO_CEC_TypedEventChannel::create_consumer_lock ( void )

Locking strategies for the ProxyPushConsumer and ProxyPushSupplier objects

Definition at line 117 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::create_consumer_lock(), and factory_.

00118 {
00119   return this->factory_->create_consumer_lock ();
00120 }

void TAO_CEC_TypedEventChannel::create_list	(	CORBA::Long	count,
		CORBA::NVList_out	new_list
	)			`[virtual]`

Function creates an empty NVList.

Definition at line 520 of file CEC_TypedEventChannel.cpp.

References orb_.

Referenced by TAO_CEC_DynamicImplementationServer::invoke(), and TAO_CEC_DynamicImplementationServer::is_a().

00522 {
00523   this->orb_->create_list (count, new_list);
00524 }

void TAO_CEC_TypedEventChannel::create_operation_list	(	TAO_CEC_Operation_Params *	oper_params,
		CORBA::NVList_out	new_list
	)			`[virtual]`

Function populates the NVList from the provide param information.

Definition at line 501 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_Param::direction_, TAO_Pseudo_Var_T< T >::in(), TAO_CEC_Param::name_, TAO_CEC_Operation_Params::num_params_, orb_, TAO_CEC_Operation_Params::parameters_, and TAO_CEC_Param::type_.

Referenced by TAO_CEC_DynamicImplementationServer::invoke().

00503 {
00504   this->orb_->create_list (0, new_list);
00505
00506   for (CORBA::ULong param=0; param<oper_params->num_params_; param++)
00507     {
00508
00509       CORBA::Any any_1;
00510       any_1._tao_set_typecode(oper_params->parameters_[param].type_.in ());
00511
00512       new_list->add_value (oper_params->parameters_[param].name_. in (),
00513                            any_1,
00514                            oper_params->parameters_[param].direction_);
00515     }
00516 }

ACE_INLINE void TAO_CEC_TypedEventChannel::create_proxy ( TAO_CEC_TypedProxyPushConsumer *& )

Create and destroy a TypedProxyPushConsumer.

Definition at line 69 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::create_proxy_push_consumer(), and factory_.

00070 {
00071   x = this->factory_->create_proxy_push_consumer (this);
00072 }

ACE_INLINE void TAO_CEC_TypedEventChannel::create_proxy ( TAO_CEC_ProxyPushSupplier *& )

Create and destroy a ProxyPushSupplier.

Definition at line 57 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::create_proxy_push_supplier(), and factory_.

00058 {
00059   x = this->factory_->create_proxy_push_supplier (this);
00060 }

ACE_INLINE void TAO_CEC_TypedEventChannel::create_proxy_collection ( TAO_CEC_TypedProxyPushConsumer_Collection *& )

Create and destroy a the collections used to store Proxy*Consumers

Definition at line 93 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::create_proxy_push_consumer_collection(), and factory_.

00094 {
00095   x = this->factory_->create_proxy_push_consumer_collection (this);
00096 }

ACE_INLINE void TAO_CEC_TypedEventChannel::create_proxy_collection ( TAO_CEC_ProxyPushSupplier_Collection *& )

Create and destroy a the collections used to store Proxy*Suppliers

Definition at line 81 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::create_proxy_push_supplier_collection(), and factory_.

00082 {
00083   x = this->factory_->create_proxy_push_supplier_collection (this);
00084 }

CORBA::Policy_ptr TAO_CEC_TypedEventChannel::create_roundtrip_timeout_policy ( const ACE_Time_Value & timeout )

Forwarded to the factory.

Definition at line 551 of file CEC_TypedEventChannel.cpp.

Referenced by TAO_CEC_TypedProxyPushConsumer::apply_policy().

00552 {
00553   return this->factory_->create_roundtrip_timeout_policy (timeout);
00554 }

ACE_INLINE ACE_Lock * TAO_CEC_TypedEventChannel::create_supplier_lock ( void )

Definition at line 129 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::create_supplier_lock(), and factory_.

00130 {
00131   return this->factory_->create_supplier_lock ();
00132 }

void TAO_CEC_TypedEventChannel::destroy ( void ) [virtual]

Definition at line 540 of file CEC_TypedEventChannel.cpp.

References destroyed_, and shutdown().

00541 {
00542   if (!destroyed_)
00543     {
00544       destroyed_ = 1;
00545       this->shutdown ();
00546     }
00547 }

ACE_INLINE void TAO_CEC_TypedEventChannel::destroy_consumer_lock ( ACE_Lock * )

Definition at line 123 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::destroy_consumer_lock(), and factory_.

Referenced by TAO_CEC_TypedProxyPushConsumer::~TAO_CEC_TypedProxyPushConsumer().

00124 {
00125   this->factory_->destroy_consumer_lock (x);
00126 }

ACE_INLINE void TAO_CEC_TypedEventChannel::destroy_proxy ( TAO_CEC_TypedProxyPushConsumer * )

Definition at line 75 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::destroy_proxy_push_consumer(), and factory_.

00076 {
00077   this->factory_->destroy_proxy_push_consumer (consumer);
00078 }

ACE_INLINE void TAO_CEC_TypedEventChannel::destroy_proxy ( TAO_CEC_ProxyPushSupplier * )

Definition at line 63 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::destroy_proxy_push_supplier(), and factory_.

Referenced by TAO_CEC_TypedProxyPushConsumer::_decr_refcnt(), and TAO_CEC_TypedProxyPushConsumer_Guard::~TAO_CEC_TypedProxyPushConsumer_Guard().

00064 {
00065   this->factory_->destroy_proxy_push_supplier (supplier);
00066 }

ACE_INLINE void TAO_CEC_TypedEventChannel::destroy_proxy_collection ( TAO_CEC_TypedProxyPushConsumer_Collection * )

Definition at line 99 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::destroy_proxy_push_consumer_collection(), and factory_.

00100 {
00101   this->factory_->destroy_proxy_push_consumer_collection (x);
00102 }

ACE_INLINE void TAO_CEC_TypedEventChannel::destroy_proxy_collection ( TAO_CEC_ProxyPushSupplier_Collection * )

Definition at line 87 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::destroy_proxy_push_supplier_collection(), and factory_.

00088 {
00089   this->factory_->destroy_proxy_push_supplier_collection (x);
00090 }

ACE_INLINE void TAO_CEC_TypedEventChannel::destroy_supplier_lock ( ACE_Lock * )

Definition at line 135 of file CEC_TypedEventChannel.inl.

References TAO_CEC_Factory::destroy_supplier_lock(), and factory_.

00136 {
00137   this->factory_->destroy_supplier_lock (x);
00138 }

ACE_INLINE int TAO_CEC_TypedEventChannel::disconnect_callbacks ( void ) const

Should we send callback disconnect messages when a proxy is disconnected by the client

Definition at line 153 of file CEC_TypedEventChannel.inl.

References disconnect_callbacks_.

00154 {
00155   return this->disconnect_callbacks_;
00156 }

void TAO_CEC_TypedEventChannel::disconnected ( TAO_CEC_ProxyPushSupplier * ) [virtual]

Definition at line 175 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_TypedConsumerAdmin::disconnected(), and typed_consumer_admin_.

00176 {
00177   this->typed_consumer_admin_->disconnected (supplier);
00178 }

void TAO_CEC_TypedEventChannel::disconnected ( TAO_CEC_TypedProxyPushConsumer * ) [virtual]

Definition at line 157 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_TypedSupplierAdmin::disconnected(), and typed_supplier_admin_.

Referenced by TAO_CEC_TypedProxyPushConsumer::connect_push_supplier(), and TAO_CEC_TypedProxyPushConsumer::disconnect_push_consumer().

00158 {
00159   this->typed_supplier_admin_->disconnected (consumer);
00160 }

ACE_INLINE TAO_CEC_Dispatching * TAO_CEC_TypedEventChannel::dispatching ( void ) const

Access the dispatching module....

Definition at line 27 of file CEC_TypedEventChannel.inl.

References dispatching_.

00028 {
00029   return this->dispatching_;
00030 }

TAO_CEC_Operation_Params * TAO_CEC_TypedEventChannel::find_from_ifr_cache ( const char * operation )

Finds a operation/parameter from the IFR cache.

Definition at line 182 of file CEC_TypedEventChannel.cpp.

References ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::find(), and interface_description_.

Referenced by TAO_CEC_DynamicImplementationServer::invoke().

00183 {
00184   TAO_CEC_Operation_Params *found = 0;
00185
00186   this->interface_description_.find (operation, found);
00187
00188   return found;
00189 }

CosTypedEventChannelAdmin::TypedConsumerAdmin_ptr TAO_CEC_TypedEventChannel::for_consumers ( void )

Definition at line 528 of file CEC_TypedEventChannel.cpp.

References typed_consumer_admin_.

00529 {
00530   return this->typed_consumer_admin_->_this ();
00531 }

CosTypedEventChannelAdmin::TypedSupplierAdmin_ptr TAO_CEC_TypedEventChannel::for_suppliers ( void )

Definition at line 534 of file CEC_TypedEventChannel.cpp.

References typed_supplier_admin_.

00535 {
00536   return this->typed_supplier_admin_->_this ();
00537 }

ACE_INLINE TAO_CEC_TypedEventChannel::ServantRetryMap & TAO_CEC_TypedEventChannel::get_servant_retry_map ( void )

Definition at line 177 of file CEC_TypedEventChannel.inl.

References retry_map_.

Referenced by TAO_CEC_TypedProxyPushConsumer::~TAO_CEC_TypedProxyPushConsumer().

00178 {
00179   return this->retry_map_;
00180 }

int TAO_CEC_TypedEventChannel::insert_into_ifr_cache	(	const char *	operation,
		TAO_CEC_Operation_Params *	parameters
	)			`[protected]`

Insert a operation/parameter into the IFR cache.

Definition at line 193 of file CEC_TypedEventChannel.cpp.

References ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::bind(), interface_description_, and CORBA::string_dup().

Referenced by cache_interface_description().

00195 {
00196   // Make sure that the supplied Object reference is valid,
00197   // i.e. not nil.
00198   if (operation_ == 0 || parameters_ == 0)
00199     {
00200       errno = EINVAL;
00201       return -1;
00202     };
00203
00204   CORBA::String_var operation = CORBA::string_dup (operation_);
00205
00206   int result = this->interface_description_.bind (operation.in (), parameters_);
00207
00208   if (result == 0)
00209     {
00210       // Transfer ownership to the Object InterfaceDescription map.
00211       (void) operation._retn ();
00212     }
00213
00214   return result;
00215 }

ACE_INLINE CORBA::ULong TAO_CEC_TypedEventChannel::number_of_base_interfaces ( void ) const

Function to return the number of base_interfaces_.

Definition at line 171 of file CEC_TypedEventChannel.inl.

References base_interfaces_.

Referenced by TAO_CEC_DynamicImplementationServer::is_a().

00172 {
00173   return this->base_interfaces_.length ();
00174 }

void TAO_CEC_TypedEventChannel::reconnected ( TAO_CEC_ProxyPushSupplier * ) [virtual]

Definition at line 169 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_TypedConsumerAdmin::reconnected(), and typed_consumer_admin_.

00170 {
00171   this->typed_consumer_admin_->reconnected (supplier);
00172 }

void TAO_CEC_TypedEventChannel::reconnected ( TAO_CEC_TypedProxyPushConsumer * ) [virtual]

Definition at line 151 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_TypedSupplierAdmin::reconnected(), and typed_supplier_admin_.

00152 {
00153   this->typed_supplier_admin_->reconnected (consumer);
00154 }

void TAO_CEC_TypedEventChannel::shutdown ( void ) [virtual]

Shutdown any internal threads, cleanup all the internal structures, flush all the messages, etc.

Definition at line 104 of file CEC_TypedEventChannel.cpp.

References TAO_CEC_TypedSupplierAdmin::_default_POA(), TAO_CEC_TypedConsumerAdmin::_default_POA(), ACE_NEW, consumer_control_, destroy_on_shutdown_, dispatching_, orb_, ACE_Reactor::schedule_timer(), TAO_CEC_TypedConsumerAdmin::shutdown(), TAO_CEC_TypedSupplierAdmin::shutdown(), TAO_CEC_ConsumerControl::shutdown(), TAO_CEC_SupplierControl::shutdown(), TAO_CEC_Dispatching::shutdown(), supplier_control_, typed_consumer_admin_, typed_consumer_poa(), typed_supplier_admin_, and typed_supplier_poa().

Referenced by destroy().

00105 {
00106   this->dispatching_->shutdown ();
00107   this->supplier_control_->shutdown ();
00108   this->consumer_control_->shutdown ();
00109
00110   PortableServer::POA_var typed_consumer_poa =
00111     this->typed_consumer_admin_->_default_POA ();
00112   PortableServer::ObjectId_var typed_consumer_id =
00113     typed_consumer_poa->servant_to_id (this->typed_consumer_admin_);
00114   typed_consumer_poa->deactivate_object (typed_consumer_id.in ());
00115
00116   PortableServer::POA_var typed_supplier_poa =
00117     this->typed_supplier_admin_->_default_POA ();
00118   PortableServer::ObjectId_var typed_supplier_id =
00119     typed_supplier_poa->servant_to_id (this->typed_supplier_admin_);
00120   typed_supplier_poa->deactivate_object (typed_supplier_id.in ());
00121
00122   this->typed_supplier_admin_->shutdown ();
00123
00124   this->typed_consumer_admin_->shutdown ();
00125
00126   if (destroy_on_shutdown_)
00127     {
00128       // Deactivate the Typed EC
00129       PortableServer::POA_var t_poa =
00130         this->_default_POA ();
00131
00132       PortableServer::ObjectId_var t_id =
00133         t_poa->servant_to_id (this);
00134
00135       t_poa->deactivate_object (t_id.in ());
00136
00137       ACE_Event_Handler *timer;
00138       ACE_NEW (timer, ShutdownHandler (this->orb_.in ()));
00139       ACE_Reactor *reactor = this->orb_->orb_core ()->reactor ();
00140       reactor->schedule_timer (timer, 0, ACE_Time_Value (1));
00141     }
00142 }

ACE_INLINE TAO_CEC_SupplierControl * TAO_CEC_TypedEventChannel::supplier_control ( void ) const

Access the supplier control strategy.

Definition at line 51 of file CEC_TypedEventChannel.inl.

References supplier_control_.

00052 {
00053   return this->supplier_control_;
00054 }

ACE_INLINE int TAO_CEC_TypedEventChannel::supplier_reconnect ( void ) const

Can the suppliers reconnect to the EC?

Definition at line 147 of file CEC_TypedEventChannel.inl.

References supplier_reconnect_.

00148 {
00149   return this->supplier_reconnect_;
00150 }

int TAO_CEC_TypedEventChannel::supplier_register_supported_interface ( const char * supported_interface )

Function allows supplier admin to register the supported interface.

Definition at line 446 of file CEC_TypedEventChannel.cpp.

References ACE_DEBUG, ACE_TEXT(), cache_interface_description(), LM_DEBUG, supported_interface_, and TAO_debug_level.

Referenced by TAO_CEC_TypedSupplierAdmin::obtain_typed_push_consumer().

00447 {
00448   // Check if a supplier has already registered an interface with the typed EC
00449   if (this->supported_interface_.length() > 0)
00450     {
00451       // Check if the registered interface == the new supported_interface
00452       if (this->supported_interface_ == ACE_CString (supported_interface))
00453         {
00454           return 0;
00455         }
00456       else
00457         {
00458           if (TAO_debug_level >= 10)
00459             {
00460               ACE_DEBUG ((LM_DEBUG,
00461                           ACE_TEXT ("***** different supported_interface_ already registered *****\n")));
00462             }
00463           return -1;
00464         }
00465     }
00466
00467   // Check if a consumer has already registered an inerface with the typed EC
00468   if (this->uses_interface_.length() > 0)
00469     {
00470       // Check if the registered uses_interface_ == the new supported_interface
00471       if (this->uses_interface_ == ACE_CString (supported_interface))
00472         {
00473           this->supported_interface_ = supported_interface;
00474           return 0;
00475         }
00476       else
00477         {
00478           if (TAO_debug_level >= 10)
00479             {
00480               ACE_DEBUG ((LM_DEBUG,
00481                           ACE_TEXT ("***** different uses_interface_ already registered *****\n")));
00482             }
00483           return -1;
00484         }
00485     }
00486   else
00487     {
00488       // Neither a consumer nor a supplier has connected yet
00489       int result = cache_interface_description (supported_interface);
00490
00491       if (result == 0)
00492         {
00493           this->supported_interface_ = supported_interface;
00494         }
00495       return result;
00496     }
00497 }

ACE_INLINE const char * TAO_CEC_TypedEventChannel::supported_interface ( void ) const

Function to return the supported_interface_.

Definition at line 159 of file CEC_TypedEventChannel.inl.

References ACE_String_Base< CHAR >::c_str(), and supported_interface_.

00160 {
00161   return this->supported_interface_.c_str ();
00162 }

ACE_INLINE TAO_CEC_TypedConsumerAdmin * TAO_CEC_TypedEventChannel::typed_consumer_admin ( void ) const

Access the consumer admin implementation.

Definition at line 33 of file CEC_TypedEventChannel.inl.

References typed_consumer_admin_.

Referenced by TAO_CEC_TypedProxyPushConsumer::invoke().

00034 {
00035   return this->typed_consumer_admin_;
00036 }

ACE_INLINE PortableServer::POA_ptr TAO_CEC_TypedEventChannel::typed_consumer_poa ( void )

Definition at line 111 of file CEC_TypedEventChannel.inl.

Referenced by shutdown(), and TAO_CEC_TypedConsumerAdmin::TAO_CEC_TypedConsumerAdmin().

00112 {
00113   return PortableServer::POA::_duplicate (this->typed_consumer_poa_.in ());
00114 }

ACE_INLINE TAO_CEC_TypedSupplierAdmin * TAO_CEC_TypedEventChannel::typed_supplier_admin ( void ) const

Access the supplier admin implementation.

Definition at line 39 of file CEC_TypedEventChannel.inl.

References typed_supplier_admin_.

00040 {
00041   return this->typed_supplier_admin_;
00042 }

ACE_INLINE PortableServer::POA_ptr TAO_CEC_TypedEventChannel::typed_supplier_poa ( void )

Access the supplier and consumer POAs from the factory.

Definition at line 105 of file CEC_TypedEventChannel.inl.

Referenced by shutdown(), and TAO_CEC_TypedSupplierAdmin::TAO_CEC_TypedSupplierAdmin().

00106 {
00107   return PortableServer::POA::_duplicate (this->typed_supplier_poa_.in ());
00108 }

Member Data Documentation

CORBA::RepositoryIdSeq TAO_CEC_TypedEventChannel::base_interfaces_ [private]

The supported_interface_ base interfaces.

Definition at line 336 of file CEC_TypedEventChannel.h.

Referenced by base_interfaces(), cache_interface_description(), and number_of_base_interfaces().

TAO_CEC_ConsumerControl* TAO_CEC_TypedEventChannel::consumer_control_ [private]

Strategies to disconnect misbehaving or destroyed consumers and suppliers

Definition at line 321 of file CEC_TypedEventChannel.h.

Referenced by activate(), consumer_control(), shutdown(), and TAO_CEC_TypedEventChannel().

int TAO_CEC_TypedEventChannel::consumer_reconnect_ [private]

Consumer reconnection flags.

Definition at line 305 of file CEC_TypedEventChannel.h.

Referenced by consumer_reconnect().

int TAO_CEC_TypedEventChannel::destroy_on_shutdown_ [private]

If not zero the event channel is destroyed on shutdown.

Definition at line 314 of file CEC_TypedEventChannel.h.

Referenced by shutdown().

int TAO_CEC_TypedEventChannel::destroyed_ [private]

Set if the event channel has been destroyed.

Definition at line 317 of file CEC_TypedEventChannel.h.

Referenced by destroy().

int TAO_CEC_TypedEventChannel::disconnect_callbacks_ [private]

If not zero we send callbacks when a proxy is disconnected.

Definition at line 311 of file CEC_TypedEventChannel.h.

Referenced by disconnect_callbacks().

TAO_CEC_Dispatching* TAO_CEC_TypedEventChannel::dispatching_ [private]

The dispatching "module".

Definition at line 296 of file CEC_TypedEventChannel.h.

Referenced by activate(), dispatching(), shutdown(), TAO_CEC_TypedEventChannel(), and ~TAO_CEC_TypedEventChannel().

TAO_CEC_Factory* TAO_CEC_TypedEventChannel::factory_ [private]

This is the abstract factory that creates all the objects that compose an event channel, the event channel simply acts as a Mediator among them.

Definition at line 290 of file CEC_TypedEventChannel.h.

Referenced by create_consumer_lock(), create_proxy(), create_proxy_collection(), create_supplier_lock(), destroy_consumer_lock(), destroy_proxy(), destroy_proxy_collection(), destroy_supplier_lock(), TAO_CEC_TypedEventChannel(), and ~TAO_CEC_TypedEventChannel().

InterfaceDescription TAO_CEC_TypedEventChannel::interface_description_ [private]

The IFR cache for the interface description.

Definition at line 333 of file CEC_TypedEventChannel.h.

Referenced by clear_ifr_cache(), find_from_ifr_cache(), insert_into_ifr_cache(), and ~TAO_CEC_TypedEventChannel().

CORBA::Repository_var TAO_CEC_TypedEventChannel::interface_repository_ [private]

Storage of the IFR reference.

Definition at line 283 of file CEC_TypedEventChannel.h.

Referenced by cache_interface_description().

CORBA::ORB_var TAO_CEC_TypedEventChannel::orb_ [private]

The ORB.

Definition at line 280 of file CEC_TypedEventChannel.h.

Referenced by create_list(), create_operation_list(), and shutdown().

int TAO_CEC_TypedEventChannel::own_factory_ [private]

Flag that indicates if we own the factory.

Definition at line 293 of file CEC_TypedEventChannel.h.

Referenced by TAO_CEC_TypedEventChannel().

ServantRetryMap TAO_CEC_TypedEventChannel::retry_map_ [private]

Definition at line 322 of file CEC_TypedEventChannel.h.

Referenced by get_servant_retry_map().

TAO_CEC_SupplierControl* TAO_CEC_TypedEventChannel::supplier_control_ [private]

Definition at line 324 of file CEC_TypedEventChannel.h.

Referenced by activate(), shutdown(), supplier_control(), and TAO_CEC_TypedEventChannel().

int TAO_CEC_TypedEventChannel::supplier_reconnect_ [private]

Supplier reconnection flags.

Definition at line 308 of file CEC_TypedEventChannel.h.

Referenced by supplier_reconnect().

ACE_CString TAO_CEC_TypedEventChannel::supported_interface_ [private]

The supported_interface_ for the TypedSupplierAdmin.

Definition at line 330 of file CEC_TypedEventChannel.h.

Referenced by supplier_register_supported_interface(), and supported_interface().

TAO_CEC_TypedConsumerAdmin* TAO_CEC_TypedEventChannel::typed_consumer_admin_ [private]

The ConsumerAdmin implementation.

Definition at line 299 of file CEC_TypedEventChannel.h.

Referenced by connected(), disconnected(), for_consumers(), reconnected(), shutdown(), TAO_CEC_TypedEventChannel(), typed_consumer_admin(), and ~TAO_CEC_TypedEventChannel().

PortableServer::POA_var TAO_CEC_TypedEventChannel::typed_consumer_poa_ [private]

Definition at line 277 of file CEC_TypedEventChannel.h.

TAO_CEC_TypedSupplierAdmin* TAO_CEC_TypedEventChannel::typed_supplier_admin_ [private]

The SupplierAdmin implementation.

Definition at line 302 of file CEC_TypedEventChannel.h.

Referenced by connected(), disconnected(), for_suppliers(), reconnected(), shutdown(), TAO_CEC_TypedEventChannel(), typed_supplier_admin(), and ~TAO_CEC_TypedEventChannel().

PortableServer::POA_var TAO_CEC_TypedEventChannel::typed_supplier_poa_ [private]

The POAs used to activate "supplier-side" and "consumer-side" objects.

Definition at line 276 of file CEC_TypedEventChannel.h.

ACE_CString TAO_CEC_TypedEventChannel::uses_interface_ [private]

The uses_interface_ for the TypedConsumerAdmin.

Definition at line 327 of file CEC_TypedEventChannel.h.

Referenced by consumer_register_uses_interace().

The documentation for this class was generated from the following files:

Generated on Tue Feb 2 17:45:02 2010 for TAO_CosEvent by

1.4.7

TAO_CEC_TypedEventChannel Class Reference

Public Types

Public Member Functions

Protected Member Functions

Private Attributes

Classes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
