TAO_ServantBase Class Reference

Base class for skeletons and servants. More...

#include <Servant_Base.h>

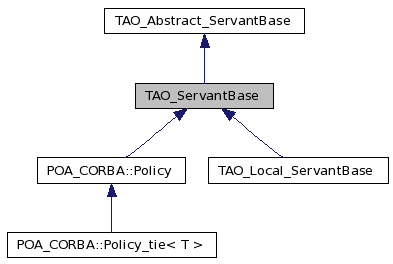

Inheritance diagram for TAO_ServantBase:

Inheritance graph
[legend]

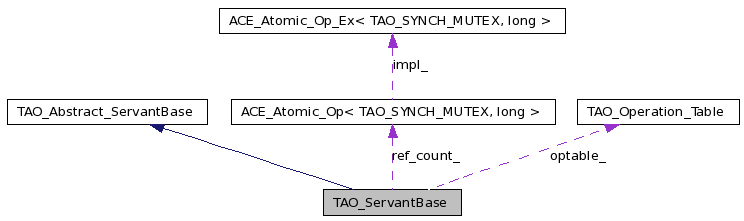

Collaboration diagram for TAO_ServantBase:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual ~TAO_ServantBase (void)
 Destructor.
virtual PortableServer::POA_ptr _default_POA (void)
 Returns the default POA for this servant.
virtual CORBA::Boolean _is_a (const char *logical_type_id)
 Local implementation of the CORBA::Object::_is_a method.
virtual CORBA::Boolean _non_existent (void)
 Default _non_existent: always returns false.
virtual CORBA::InterfaceDef_ptr _get_interface (void)
 Query the Interface Repository for the interface definition.
virtual CORBA::Object_ptr _get_component (void)
 Default _get_component: always returns CORBA::Object::_nil().
virtual char * _repository_id (void)
 Get the repository id.
virtual TAO_Stub * _create_stub (void)
 This is an auxiliary method for _this() and _narrow().
virtual void _dispatch (TAO_ServerRequest &request, void *servant_upcall)=0
virtual int _find (const char *opname, TAO_Skeleton &skelfunc, const size_t length=0)
virtual int _find (const char *opname, TAO_Collocated_Skeleton &skelfunc, TAO::Collocation_Strategy st, const size_t length=0)
virtual const char * _interface_repository_id (void) const =0
 Get this interface's repository id (TAO specific).
Reference Counting Operations
virtual void _add_ref (void)
 Increase reference count by one.
virtual void _remove_ref (void)
virtual CORBA::ULong _refcount_value (void) const

Protected Member Functions

 TAO_ServantBase (void)
 Default constructor, only derived classes can be created.
 TAO_ServantBase (const TAO_ServantBase &)
 Copy constructor, protected so no instances can be created.
TAO_ServantBase & operator= (const TAO_ServantBase &)
 Assignment operator.
virtual void synchronous_upcall_dispatch (TAO_ServerRequest &req, void *servant_upcall, void *derived_this)
virtual void asynchronous_upcall_dispatch (TAO_ServerRequest &req, void *servant_upcall, void *derived_this)

Protected Attributes

ACE_Atomic_Op< TAO_SYNCH_MUTEX,
long > 		ref_count_
 Reference counter.
TAO_Operation_Table * optable_

Detailed Description

Base class for skeletons and servants.

The POA spec requires that all servants inherit from this class' base class.

An instance of a servant class derived from ServantBase initially has a reference count of one. Invoking _add_ref on the servant instance increases its reference count by one. Invoking _remove_ref on the servant instance decreases its reference count by one; if the resulting reference count equals zero, _remove_ref invokes delete on its this pointer in order to destroy the servant. For ORBs that operate in multi-threaded environments, the implementations of _add_ref and _remove_ref that the ServantBase class provides shall be thread-safe.

Like ServantBase supports copy construction and the default assignment operation. Copy construction always sets the reference count of the new servant instance to one. The default assignment implementation merely returns *this and does not affect the reference count.

Definition at line 61 of file Servant_Base.h.

Constructor & Destructor Documentation

TAO_ServantBase::~TAO_ServantBase ( void   )  [virtual]

Destructor.

Definition at line 71 of file Servant_Base.cpp.

00072 {
00073 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ServantBase::TAO_ServantBase ( void   )  [protected]

Default constructor, only derived classes can be created.

Definition at line 50 of file Servant_Base.cpp.

00051   : TAO_Abstract_ServantBase ()
00052   , ref_count_ (1)
00053   , optable_ (0)
00054 {
00055 }

TAO_ServantBase::TAO_ServantBase ( const TAO_ServantBase &   )  [protected]

Copy constructor, protected so no instances can be created.

Definition at line 57 of file Servant_Base.cpp.

00058   : TAO_Abstract_ServantBase ()
00059   , ref_count_ (1)
00060   , optable_ (rhs.optable_)
00061 {
00062 }

Member Function Documentation

void TAO_ServantBase::_add_ref ( void   )  [virtual]

Increase reference count by one.

Implements TAO_Abstract_ServantBase.

Definition at line 312 of file Servant_Base.cpp.

References ref_count_.

Referenced by TAO::Portable_Server::ServantRetentionStrategyRetain::activate_object(), TAO::Portable_Server::ServantRetentionStrategyRetain::activate_object_with_id(), TAO_Root_POA::get_servant(), TAO_Root_POA::id_to_servant_i(), TAO_Root_POA::reference_to_servant_i(), and TAO::Portable_Server::RequestProcessingStrategyDefaultServant::set_servant().

00313 {
00314   ++this->ref_count_;
00315 }

TAO_Stub * TAO_ServantBase::_create_stub ( void   )  [virtual]

This is an auxiliary method for _this() and _narrow().

Implements TAO_Abstract_ServantBase.

Reimplemented in TAO_Local_ServantBase.

Definition at line 146 of file Servant_Base.cpp.

References _default_POA(), TAO_Stub::_incr_refcnt(), _interface_repository_id(), TAO_TSS_Resources::instance(), TAO::Portable_Server::POA_Current_Impl::object_key(), TAO_ORB_Core::orb(), TAO_Stub::orb_core(), TAO::Portable_Server::POA_Current_Impl::orb_core(), TAO::Portable_Server::POA_Current_Impl::poa(), TAO_TSS_Resources::poa_current_impl_, TAO::Portable_Server::POA_Current_Impl::priority(), TAO::Portable_Server::POA_Current_Impl::servant(), and TAO_Stub::servant_orb().

Referenced by POA_CORBA::Policy::_this().

00147 {
00148   TAO_Stub *stub = 0;
00149
00150   TAO::Portable_Server::POA_Current_Impl *poa_current_impl =
00151     static_cast<TAO::Portable_Server::POA_Current_Impl *>
00152                     (TAO_TSS_Resources::instance ()->poa_current_impl_);
00153
00154   CORBA::ORB_ptr servant_orb = 0;
00155
00156   if (poa_current_impl != 0
00157       && this == poa_current_impl->servant ())
00158     {
00159       servant_orb = poa_current_impl->orb_core ().orb () ;
00160
00161       stub =
00162         poa_current_impl->poa ()->key_to_stub (
00163             poa_current_impl->object_key (),
00164             this->_interface_repository_id (),
00165             poa_current_impl->priority ());
00166     }
00167   else
00168     {
00169       PortableServer::POA_var poa = this->_default_POA ();
00170
00171       CORBA::Object_var object = poa->servant_to_reference (this);
00172
00173       // Get the stub object
00174       stub = object->_stubobj ();
00175
00176       // Increment the reference count since <object> will zap its
00177       // stub object on deletion.
00178       stub->_incr_refcnt ();
00179
00180       servant_orb = stub->orb_core ()->orb ();
00181     }
00182
00183   stub->servant_orb (servant_orb);
00184   return stub;
00185 }

PortableServer::POA_ptr TAO_ServantBase::_default_POA ( void   )  [virtual]

Returns the default POA for this servant.

Reimplemented in POA_CORBA::Policy_tie< T >.

Definition at line 76 of file Servant_Base.cpp.

References TAO_Pseudo_Var_T< T >::in(), TAO_ORB_Core::root_poa(), and TAO_ORB_Core_instance().

Referenced by _create_stub(), and POA_CORBA::Policy_tie< T >::_default_POA().

00077 {
00078   CORBA::Object_var object = TAO_ORB_Core_instance ()->root_poa ();
00079
00080   return PortableServer::POA::_narrow (object.in ());
00081 }

virtual void TAO_ServantBase::_dispatch ( TAO_ServerRequest &  request,
void *  servant_upcall
) [pure virtual]

Dispatches a request to the object: find the operation, cast the type to the most derived type, demarshall all the parameters from the request and finally invokes the operation, storing the results and out parameters (if any) or the exceptions thrown into request.

Implements TAO_Abstract_ServantBase.

Implemented in TAO_Local_ServantBase, and POA_CORBA::Policy.

Referenced by TAO_Object_Adapter::do_dispatch().

int TAO_ServantBase::_find ( const char *  opname,
TAO_Collocated_Skeleton &  skelfunc,
TAO::Collocation_Strategy  st,
const size_t  length = 0
) [virtual]

Implements TAO_Abstract_ServantBase.

Definition at line 136 of file Servant_Base.cpp.

References ACE_FUNCTION_TIMEPROBE, TAO_Operation_Table::find(), and optable_.

00140 {
00141   ACE_FUNCTION_TIMEPROBE (TAO_SERVANT_BASE_FIND_START);
00142   return this->optable_->find (opname, skelfunc, st, length);
00143 }

int TAO_ServantBase::_find ( const char *  opname,
TAO_Skeleton &  skelfunc,
const size_t  length = 0
) [virtual]

Please see documentation in tao/Abstract_Servant_Base.h for details.

Implements TAO_Abstract_ServantBase.

Definition at line 127 of file Servant_Base.cpp.

References ACE_FUNCTION_TIMEPROBE, TAO_Operation_Table::find(), and optable_.

00130 {
00131   ACE_FUNCTION_TIMEPROBE (TAO_SERVANT_BASE_FIND_START);
00132   return this->optable_->find (opname, skelfunc, length);
00133 }

CORBA::Object_ptr TAO_ServantBase::_get_component ( void   )  [virtual]

Default _get_component: always returns CORBA::Object::_nil().

Implements TAO_Abstract_ServantBase.

Definition at line 115 of file Servant_Base.cpp.

References CORBA::Object::_nil().

Referenced by TAO::Collocated_Object_Proxy_Broker::_get_component().

00116 {
00117   return CORBA::Object::_nil ();
00118 }

CORBA::InterfaceDef_ptr TAO_ServantBase::_get_interface ( void   )  [virtual]

Query the Interface Repository for the interface definition.

Implements TAO_Abstract_ServantBase.

Definition at line 97 of file Servant_Base.cpp.

References TAO_IFR_Client_Adapter::get_interface(), TAO_ORB_Core::ifr_client_adapter_name(), ACE_Dynamic_Service< TYPE >::instance(), and TAO_ORB_Core_instance().

Referenced by TAO::Collocated_Object_Proxy_Broker::_get_interface(), and POA_CORBA::Policy::_interface_skel().

00098 {
00099   TAO_IFR_Client_Adapter *adapter =
00100     ACE_Dynamic_Service<TAO_IFR_Client_Adapter>::instance (
00101         TAO_ORB_Core::ifr_client_adapter_name ());
00102
00103   if (adapter == 0)
00104     {
00105       throw ::CORBA::INTF_REPOS ();
00106     }
00107
00108   // This doesn't take multiple ORBs into account, but it's being
00109   // used only to resolve the IFR, so we should be ok.
00110   return adapter->get_interface (TAO_ORB_Core_instance ()->orb (),
00111                                  this->_interface_repository_id ());
00112 }

virtual const char* TAO_ServantBase::_interface_repository_id ( void   )  const [pure virtual]

Get this interface's repository id (TAO specific).

Implements TAO_Abstract_ServantBase.

Implemented in POA_CORBA::Policy.

Referenced by _create_stub(), TAO::Portable_Server::ServantRetentionStrategyRetain::id_to_reference(), and TAO::Portable_Server::ServantRetentionStrategyRetain::servant_to_reference().

CORBA::Boolean TAO_ServantBase::_is_a ( const char *  logical_type_id  )  [virtual]

Local implementation of the CORBA::Object::_is_a method.

Implements TAO_Abstract_ServantBase.

Reimplemented in POA_CORBA::Policy.

Definition at line 84 of file Servant_Base.cpp.

References ACE_OS::strcmp().

Referenced by TAO::Collocated_Object_Proxy_Broker::_is_a().

00085 {
00086   static char const id[] = "IDL:omg.org/CORBA/Object:1.0";
00087   return ACE_OS::strcmp (logical_type_id, id) == 0;
00088 }

CORBA::Boolean TAO_ServantBase::_non_existent ( void   )  [virtual]

Default _non_existent: always returns false.

Implements TAO_Abstract_ServantBase.

Definition at line 91 of file Servant_Base.cpp.

Referenced by TAO::Collocated_Object_Proxy_Broker::_non_existent().

00092 {
00093   return false;
00094 }

CORBA::ULong TAO_ServantBase::_refcount_value ( void   )  const [virtual]

Returns the current reference count value.

Implements TAO_Abstract_ServantBase.

Definition at line 327 of file Servant_Base.cpp.

References ref_count_, and ACE_Atomic_Op< ACE_LOCK, TYPE >::value().

00328 {
00329   return static_cast<CORBA::ULong> (this->ref_count_.value ());
00330 }

void TAO_ServantBase::_remove_ref ( void   )  [virtual]

Decreases reference count by one; if the resulting reference count equals zero, _remove_ref invokes delete on its this pointer in order to destroy the servant.

Implements TAO_Abstract_ServantBase.

Definition at line 318 of file Servant_Base.cpp.

References ref_count_.

Referenced by TAO::Portable_Server::RequestProcessingStrategyServantLocator::cleanup_servant(), TAO::Portable_Server::RequestProcessingStrategyServantActivator::cleanup_servant(), TAO::Portable_Server::RequestProcessingStrategyDefaultServant::cleanup_servant(), and TAO::Portable_Server::RequestProcessingStrategyAOMOnly::cleanup_servant().

00319 {
00320   long const new_count = --this->ref_count_;
00321
00322   if (new_count == 0)
00323     delete this;
00324 }

char * TAO_ServantBase::_repository_id ( void   )  [virtual]

Get the repository id.

Implements TAO_Abstract_ServantBase.

Definition at line 121 of file Servant_Base.cpp.

References CORBA::string_dup().

Referenced by TAO::Collocated_Object_Proxy_Broker::_repository_id().

00122 {
00123   return CORBA::string_dup (this->_interface_repository_id ());
00124 }

void TAO_ServantBase::asynchronous_upcall_dispatch ( TAO_ServerRequest &  req,
void *  servant_upcall,
void *  derived_this
) [protected, virtual]

Definition at line 260 of file Servant_Base.cpp.

References TAO_ServerRequest::operation(), TAO_ServerRequest::operation_length(), TAO_ServerRequest::send_no_exception_reply(), TAO_ServerRequest::sync_with_server(), and TAO_ServerRequest::tao_send_reply_exception().

00263 {
00264   TAO_Skeleton skel;
00265   const char *opname = req.operation ();
00266
00267   // It seems that I might have missed s/g here.  What if
00268   // it is a one way that is SYNC_WITH_SERVER.
00269   // Add the following line to handle this reply send as well.
00270
00271   // Handle the one ways that are SYNC_WITH_SERVER
00272   if (req.sync_with_server ())
00273     {
00274       req.send_no_exception_reply ();
00275     }
00276
00277   // Fetch the skeleton for this operation
00278   if (this->_find (opname,
00279                    skel,
00280                    static_cast <unsigned int> (req.operation_length())) == -1)
00281     {
00282       throw ::CORBA::BAD_OPERATION ();
00283     }
00284
00285   try
00286     {
00287       // Invoke the skeleton, it will demarshal the arguments, invoke
00288       // the right operation on the skeleton class, and marshal any
00289       // results.  De/marshaling will only occur in the uncollocated
00290       // case.
00291       skel (req, servant_upcall, derived_this);
00292
00293       // It is our job to send the already marshaled reply, but only
00294       // send if it is expected and it has not already been sent
00295
00296       // Return immediately. Do not send a reply; this is an
00297       // asynchronous upcall. (unless, of course there is a system
00298       // exception.
00299
00300     }
00301   catch (const ::CORBA::Exception& ex)
00302     {
00303       // If an exception was raised we should marshal it and send
00304       // the appropriate reply to the client
00305       req.tao_send_reply_exception (ex);
00306     }
00307
00308   return;
00309 }

TAO_ServantBase & TAO_ServantBase::operator= ( const TAO_ServantBase &   )  [protected]

Assignment operator.

Definition at line 65 of file Servant_Base.cpp.

References optable_.

00066 {
00067   this->optable_ = rhs.optable_;
00068   return *this;
00069 }

void TAO_ServantBase::synchronous_upcall_dispatch ( TAO_ServerRequest &  req,
void *  servant_upcall,
void *  derived_this
) [protected, virtual]

Implements TAO_Abstract_ServantBase.

Definition at line 187 of file Servant_Base.cpp.

References TAO_ServerRequest::collocated(), TAO_ServerRequest::deferred_reply(), TAO_ServerRequest::operation(), TAO_ServerRequest::operation_length(), TAO_ServerRequest::response_expected(), TAO_ServerRequest::send_no_exception_reply(), TAO_ServerRequest::sync_with_server(), TAO_ServerRequest::tao_send_reply(), and TAO_ServerRequest::tao_send_reply_exception().

Referenced by POA_CORBA::Policy::_dispatch().

00190 {
00191   TAO_Skeleton skel;
00192   char const * const opname = req.operation ();
00193
00194   // It seems that I might have missed s/g here.  What if
00195   // it is a one way that is SYNC_WITH_SERVER.
00196   // Add the following line to handle this reply send as well.
00197
00198   // Handle the one ways that are SYNC_WITH_SERVER and not collocated
00199   if (req.sync_with_server () && !req.collocated ())
00200     {
00201       req.send_no_exception_reply ();
00202     }
00203
00204   // Fetch the skeleton for this operation
00205   if (this->_find (opname,
00206                    skel,
00207                    static_cast <unsigned int> (req.operation_length())) == -1)
00208     {
00209       throw ::CORBA::BAD_OPERATION ();
00210     }
00211
00212   CORBA::Boolean const send_reply =
00213     !req.sync_with_server ()
00214     && req.response_expected ()
00215     && !req.deferred_reply ();
00216
00217   try
00218     {
00219       // Invoke the skeleton, it will demarshal the arguments, invoke
00220       // the right operation on the skeleton class, and marshal any
00221       // results.  De/marshaling will only occur in the uncollocated
00222       // case.
00223       skel (req, servant_upcall, derived_this);
00224
00225       /*
00226        * Dispatch resolution specialization add hook.
00227        * Over-ridden with code to handle optimized dispatch.
00228        */
00229       //@@ TAO_DISPATCH_RESOLUTION_OPT_ADD_HOOK
00230
00231       // It is our job to send the already marshaled reply, but only
00232       // send if it is expected and it has not already been sent
00233
00234       // We send the reply only if it is NOT a SYNC_WITH_SERVER, a
00235       // response is expected and if the reply is not deferred.
00236       if (send_reply)
00237         {
00238           req.tao_send_reply ();
00239         }
00240     }
00241   catch (const ::CORBA::Exception& ex)
00242     {
00243       // If an exception was raised we should marshal it and send
00244       // the appropriate reply to the client
00245       if (send_reply)
00246         {
00247           if (req.collocated ())
00248             {
00249               // Report the exception to the collocated client.
00250               throw;
00251             }
00252           else
00253             req.tao_send_reply_exception (ex);
00254         }
00255     }
00256
00257   return;
00258 }

Member Data Documentation

TAO_Operation_Table* TAO_ServantBase::optable_ [protected]

The operation table for this servant. It is initialized by the most derived class.

Definition at line 158 of file Servant_Base.h.

Referenced by _find(), operator=(), and POA_CORBA::Policy::Policy().

ACE_Atomic_Op<TAO_SYNCH_MUTEX, long> TAO_ServantBase::ref_count_ [protected]

Reference counter.

Definition at line 154 of file Servant_Base.h.

Referenced by _add_ref(), _refcount_value(), and _remove_ref().

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:41:34 2010 for TAO_PortableServer by  doxygen 1.4.7
