TAO_Leader_Follower Class Reference

TAO_Leader_Follower. More...

#include <Leader_Follower.h>

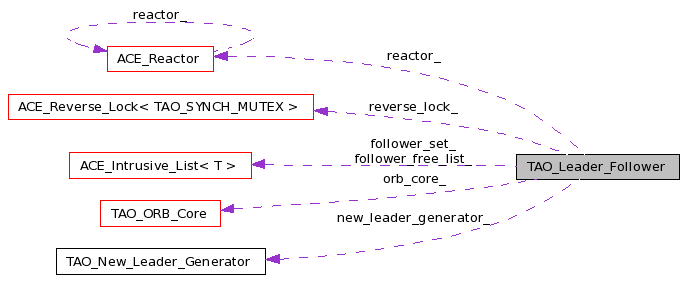

Collaboration diagram for TAO_Leader_Follower:

[legend]List of all members.

Public Member Functions
	TAO_Leader_Follower (TAO_ORB_Core *orb_core, TAO_New_Leader_Generator *new_leader_generator=0)
	Constructor.
	~TAO_Leader_Follower (void)
	Destructor.
int	set_event_loop_thread (ACE_Time_Value *max_wait_time)
void	reset_event_loop_thread (void)
void	set_upcall_thread (void)
int	leader_available (void) const
	Is there any thread running as a leader?
void	set_client_thread (void)
	A server thread is making a request.
void	reset_client_thread (void)
	A server thread has finished is making a request.
int	wait_for_event (TAO_LF_Event *event, TAO_Transport *transport, ACE_Time_Value *max_wait_time)
	Wait on the Leader/Followers loop until one event happens.
void	set_client_leader_thread (void)
void	reset_client_leader_thread (void)
void	set_client_leader_thread (ACE_thread_t thread_ID)
int	is_client_leader_thread (void) const
	checks if we are a leader thread
int	elect_new_leader (void)
TAO_SYNCH_MUTEX &	lock (void)
	Get a reference to the underlying mutex.
ACE_Reverse_Lock< TAO_SYNCH_MUTEX > &	reverse_lock (void)
int	has_clients (void) const
	Check if there are any client threads running.
ACE_Reactor *	reactor (void)
	Accesor to the reactor.
void	no_leaders_available (void)
	Called when we are out of leaders.
Follower creation/destructions
The Leader/Followers set acts as a factory for the Follower objects. Followers are used to represent a thread blocked waiting in the Follower set. The Leader/Followers abstraction keeps a list of the waiting followers, so it can wake up one when the leader thread stops handling events. For performance reasons the Leader/Followers set uses a pool (or free-list) to keep Follower objects unattached to any thread. It could be tempting to use TSS to keep such followers, after all a thread can only need one such Follower object, however, that does not work with multiple Leader/Followers sets, consult this bug report for more details: http://ace.cs.wustl.edu/bugzilla/show_bug.cgi?id=296
TAO_LF_Follower *	allocate_follower (void)
	Allocate a new follower to the caller.
void	release_follower (TAO_LF_Follower *)
	The caller has finished using a follower.
Follower Set Operations
void	add_follower (TAO_LF_Follower *follower)
	Add a new follower to the set.
void	remove_follower (TAO_LF_Follower *follower)
	Removes a follower from the leader-follower set.
int	follower_available (void) const
	Checks if there are any followers available.
Private Types
typedef ACE_Intrusive_List< TAO_LF_Follower >	Follower_Set
	Implement the Leader/Followers set using an intrusive list.
Private Member Functions
TAO_ORB_Core_TSS_Resources *	get_tss_resources (void) const
	Shortcut to obtain the TSS resources of the orb core.
int	wait_for_client_leader_to_complete (ACE_Time_Value *max_wait_time)
	Wait for the client leader to complete.
void	reset_event_loop_thread_i (TAO_ORB_Core_TSS_Resources *tss)
Follower Set Operations
int	elect_new_leader_i (void)
Private Attributes
TAO_ORB_Core *	orb_core_
	The orb core.
TAO_SYNCH_MUTEX	lock_
	To synchronize access to the members.
ACE_Reverse_Lock< TAO_SYNCH_MUTEX >	reverse_lock_
	Do protect the access to the following three members.
Follower_Set	follower_set_
Follower_Set	follower_free_list_
	Use a free list to allocate and release Follower objects.
int	leaders_
int	clients_
ACE_Reactor *	reactor_
	The reactor.
int	client_thread_is_leader_
	Is a client thread the current leader?
int	event_loop_threads_waiting_
	Are server threads waiting for the client leader to complete?
TAO_SYNCH_CONDITION	event_loop_threads_condition_
TAO_New_Leader_Generator *	new_leader_generator_

---

Detailed Description

TAO_Leader_Follower.

TAO_Leader_Follower

Definition at line 49 of file Leader_Follower.h.

---

Member Typedef Documentation

typedef ACE_Intrusive_List<TAO_LF_Follower> TAO_Leader_Follower::Follower_Set [private]

Implement the Leader/Followers set using an intrusive list.

Definition at line 227 of file Leader_Follower.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Leader_Follower::TAO_Leader_Follower	(	TAO_ORB_Core *	orb_core,
		TAO_New_Leader_Generator *	new_leader_generator = 0
	)

Constructor.

Definition at line 13 of file Leader_Follower.inl.

  : orb_core_ (orb_core),
    reverse_lock_ (lock_),
    leaders_ (0),
    clients_ (0),
    reactor_ (0),
    client_thread_is_leader_ (0),
    event_loop_threads_waiting_ (0),
    event_loop_threads_condition_ (lock_),
    new_leader_generator_ (new_leader_generator)
{
}

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Leader_Follower::~TAO_Leader_Follower

(

void

)

Destructor.

Definition at line 27 of file Leader_Follower.cpp.

{
  while (!this->follower_free_list_.empty ())
    {
      TAO_LF_Follower *follower =
        this->follower_free_list_.pop_front ();
      delete follower;
    }
  // Hand the reactor back to the resource factory.
  // use GUI reactor factory if available
  if ( this->orb_core_->gui_resource_factory () )
    this->orb_core_->gui_resource_factory ()->reclaim_reactor (this->reactor_);
  else
    this->orb_core_->resource_factory ()->reclaim_reactor (this->reactor_);

  this->reactor_ = 0;
}

---

Member Function Documentation

ACE_INLINE void TAO_Leader_Follower::add_follower

(

TAO_LF_Follower *

follower

)

Add a new follower to the set.

Definition at line 176 of file Leader_Follower.inl.

References follower_set_, and ACE_Intrusive_List< T >::push_back().

{
  this->follower_set_.push_back (follower);
}

TAO_LF_Follower * TAO_Leader_Follower::allocate_follower

(

void

)

Allocate a new follower to the caller.

Definition at line 46 of file Leader_Follower.cpp.

References ACE_NEW_RETURN.

{
  if (!this->follower_free_list_.empty ())
    return this->follower_free_list_.pop_front ();

  TAO_LF_Follower* ptr = 0;
  ACE_NEW_RETURN (ptr,
                  TAO_LF_Follower (*this),
                  0);
  return ptr;
}

ACE_INLINE int TAO_Leader_Follower::elect_new_leader

(

void

)

A leader thread is relinquishing its role, unless there are more leader threads running pick up a follower (if there is any) to play the leader role.

Definition at line 47 of file Leader_Follower.inl.

References event_loop_threads_condition_, and no_leaders_available().

Referenced by TAO_LF_Strategy_Complete::reset_event_loop_thread(), and set_upcall_thread().

{
  if (this->leaders_ == 0)
    {
      if (this->event_loop_threads_waiting_)
        {
          return this->event_loop_threads_condition_.broadcast ();
        }
      else if (this->follower_available ())
        {
          return this->elect_new_leader_i ();
        }
      else
        {
          this->no_leaders_available ();
        }
    }
  return 0;
}

int TAO_Leader_Follower::elect_new_leader_i

(

void

)

[private]

This is a helper routine for elect_new_leader(), after verifying that all the pre-conditions are satisfied the Follower set is changed and the promoted Follower is signaled.

Definition at line 65 of file Leader_Follower.cpp.

References ACE_DEBUG, follower_set_, ACE_Intrusive_List< T >::head(), LM_DEBUG, and TAO_LF_Follower::signal().

{
  TAO_LF_Follower* const follower =
    this->follower_set_.head ();

#if defined (TAO_DEBUG_LEADER_FOLLOWER)
  ACE_DEBUG ((LM_DEBUG,
              "TAO (%P|%t) LF::elect_new_leader_i - "
              "follower is %x\n",
              follower));
#endif /* TAO_DEBUG_LEADER_FOLLOWER */

  return follower->signal ();
}

ACE_INLINE int TAO_Leader_Follower::follower_available

(

void

)

const

Checks if there are any followers available.

Returns:

1 if there follower set is not empty

Definition at line 34 of file Leader_Follower.inl.

References ACE_Intrusive_List< T >::empty(), and follower_set_.

{
  return !this->follower_set_.empty ();
}

ACE_INLINE TAO_ORB_Core_TSS_Resources * TAO_Leader_Follower::get_tss_resources

(

void

)

const [private]

Shortcut to obtain the TSS resources of the orb core.

Definition at line 28 of file Leader_Follower.inl.

References TAO_ORB_Core::get_tss_resources(), and orb_core_.

Referenced by is_client_leader_thread(), reset_client_leader_thread(), reset_client_thread(), reset_event_loop_thread(), set_client_leader_thread(), set_client_thread(), set_event_loop_thread(), and set_upcall_thread().

{
  return this->orb_core_->get_tss_resources ();
}

ACE_INLINE int TAO_Leader_Follower::has_clients

(

void

)

const

Check if there are any client threads running.

Definition at line 194 of file Leader_Follower.inl.

References clients_.

Referenced by TAO_Thread_Lane_Resources::shutdown_reactor().

{
  return this->clients_;
}

ACE_INLINE int TAO_Leader_Follower::is_client_leader_thread

(

void

)

const

checks if we are a leader thread

Definition at line 169 of file Leader_Follower.inl.

References TAO_ORB_Core_TSS_Resources::client_leader_thread_, and get_tss_resources().

{
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
  return tss->client_leader_thread_ != 0;
}

ACE_INLINE int TAO_Leader_Follower::leader_available

(

void

)

const

Is there any thread running as a leader?

Definition at line 145 of file Leader_Follower.inl.

References leaders_.

Referenced by wait_for_event().

{
  return this->leaders_ != 0;
}

ACE_INLINE TAO_SYNCH_MUTEX & TAO_Leader_Follower::lock

(

void

)

Get a reference to the underlying mutex.

Definition at line 125 of file Leader_Follower.inl.

References lock_.

Referenced by TAO_LF_Strategy_Complete::reset_event_loop_thread(), TAO_LF_Strategy_Complete::set_event_loop_thread(), TAO_Thread_Lane_Resources::shutdown_reactor(), and TAO_LF_Event::state_changed().

{
  return this->lock_;
}

ACE_INLINE void TAO_Leader_Follower::no_leaders_available

(

void

)

Called when we are out of leaders.

Definition at line 40 of file Leader_Follower.inl.

References new_leader_generator_, and TAO_New_Leader_Generator::no_leaders_available().

Referenced by elect_new_leader().

{
  if (this->new_leader_generator_)
    this->new_leader_generator_->no_leaders_available ();
}

ACE_Reactor * TAO_Leader_Follower::reactor

(

void

)

Accesor to the reactor.

Definition at line 127 of file Leader_Follower.cpp.

References ACE_GUARD_RETURN, TAO_Resource_Factory::get_reactor(), orb_core_, reactor_, TAO_ORB_Core::resource_factory(), and TAO_SYNCH_MUTEX.

Referenced by TAO_ORB_Core::reactor(), TAO_Thread_Lane_Resources::shutdown_reactor(), and wait_for_event().

{
  if (this->reactor_ == 0)
    {
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock (), 0);
      if (this->reactor_ == 0)
        {
          // use GUI reactor factory if available
          if ( this->orb_core_->gui_resource_factory () )
            this->reactor_ =
              this->orb_core_->gui_resource_factory ()->get_reactor ();
          else
            this->reactor_ =
              this->orb_core_->resource_factory ()->get_reactor ();
        }
    }
  return this->reactor_;
}

void TAO_Leader_Follower::release_follower

(

TAO_LF_Follower *

)

The caller has finished using a follower.

Definition at line 59 of file Leader_Follower.cpp.

References follower_free_list_, and ACE_Intrusive_List< T >::push_front().

{
  this->follower_free_list_.push_front (follower);
}

ACE_INLINE void TAO_Leader_Follower::remove_follower

(

TAO_LF_Follower *

follower

)

Removes a follower from the leader-follower set.

Definition at line 182 of file Leader_Follower.inl.

References follower_set_, and ACE_Intrusive_List< T >::remove().

{
  this->follower_set_.remove (follower);
}

ACE_INLINE void TAO_Leader_Follower::reset_client_leader_thread

(

void

)

The current thread is no longer the leader thread in the client side leader-follower set.

Definition at line 160 of file Leader_Follower.inl.

References TAO_ORB_Core_TSS_Resources::client_leader_thread_, client_thread_is_leader_, get_tss_resources(), and leaders_.

Referenced by TAO_LF_Client_Leader_Thread_Helper::~TAO_LF_Client_Leader_Thread_Helper().

{
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
  --tss->client_leader_thread_;
  --this->leaders_;
  --this->client_thread_is_leader_;
}

void TAO_Leader_Follower::reset_client_thread

(

void

)

A server thread has finished is making a request.

Definition at line 171 of file Leader_Follower.cpp.

References TAO_ORB_Core_TSS_Resources::client_leader_thread_, clients_, TAO_ORB_Core_TSS_Resources::event_loop_thread_, get_tss_resources(), and leaders_.

Referenced by TAO_LF_Client_Thread_Helper::~TAO_LF_Client_Thread_Helper().

{
  // If we were a leader thread or an event loop thread, take back
  // leadership.
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
  if (tss->event_loop_thread_ ||
      tss->client_leader_thread_)
    {
      ++this->leaders_;
    }

  --this->clients_;
  if (this->clients_ == 0 &&
      this->orb_core_->has_shutdown ())
    {
      // The ORB has shutdown and we are the last client thread, we
      // must stop the reactor to ensure that any server threads go
      // away.
      this->orb_core_->reactor ()->end_reactor_event_loop ();
    }
}

ACE_INLINE void TAO_Leader_Follower::reset_event_loop_thread

(

void

)

The current thread is not a server thread anymore, reset any flags and counters.

Definition at line 117 of file Leader_Follower.inl.

References TAO_ORB_Core_TSS_Resources::event_loop_thread_, get_tss_resources(), and reset_event_loop_thread_i().

Referenced by TAO_LF_Strategy_Complete::reset_event_loop_thread().

{
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
  if (tss->event_loop_thread_ > 0)
    this->reset_event_loop_thread_i (tss);
}

ACE_INLINE void TAO_Leader_Follower::reset_event_loop_thread_i

(

TAO_ORB_Core_TSS_Resources *

tss

)

[private]

Implement the reset_event_loop_thread() method, once the TSS resources have been acquired. Also used in the set_upcall_thread.

Definition at line 101 of file Leader_Follower.inl.

References TAO_ORB_Core_TSS_Resources::client_leader_thread_, TAO_ORB_Core_TSS_Resources::event_loop_thread_, and leaders_.

Referenced by reset_event_loop_thread(), and set_upcall_thread().

{
  // Always decrement <event_loop_thread_>. If <event_loop_thread_>
  // reaches 0 and we are not a client leader, we are done with our
  // duties of running the event loop. Therefore, decrement the
  // leaders.  Otherwise, we just got done with a nested call to the
  // event loop or a call to the event loop when we were the client
  // leader.
  --tss->event_loop_thread_;

  if (tss->event_loop_thread_ == 0 &&
      tss->client_leader_thread_ == 0)
    --this->leaders_;
}

ACE_INLINE ACE_Reverse_Lock< TAO_SYNCH_MUTEX > & TAO_Leader_Follower::reverse_lock

(

void

)

The Leader/Followers set mutex must be release during some long running operations. This helper class simplifies the process of releasing and reacquiring said mutex.

Definition at line 188 of file Leader_Follower.inl.

References reverse_lock_.

{
  return this->reverse_lock_;
}

void TAO_Leader_Follower::set_client_leader_thread

(

ACE_thread_t

thread_ID

)

sets the thread ID of the leader thread in the leader-follower model

ACE_INLINE void TAO_Leader_Follower::set_client_leader_thread

(

void

)

The current thread has become the leader thread in the client side leader-follower set.

Definition at line 151 of file Leader_Follower.inl.

References TAO_ORB_Core_TSS_Resources::client_leader_thread_, client_thread_is_leader_, get_tss_resources(), and leaders_.

Referenced by TAO_LF_Client_Leader_Thread_Helper::TAO_LF_Client_Leader_Thread_Helper().

{
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
  ++this->leaders_;
  ++this->client_thread_is_leader_;
  ++tss->client_leader_thread_;
}

void TAO_Leader_Follower::set_client_thread

(

void

)

A server thread is making a request.

Definition at line 147 of file Leader_Follower.cpp.

References TAO_ORB_Core_TSS_Resources::client_leader_thread_, clients_, TAO_Resource_Factory::drop_replies_during_shutdown(), TAO_ORB_Core_TSS_Resources::event_loop_thread_, get_tss_resources(), leaders_, orb_core_, and TAO_ORB_Core::resource_factory().

Referenced by TAO_LF_Client_Thread_Helper::TAO_LF_Client_Thread_Helper().

{
  // If we were a leader thread or an event loop thread, give up
  // leadership.
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
  if (tss->event_loop_thread_ ||
      tss->client_leader_thread_)
    {
      --this->leaders_;
    }

  if (this->clients_ == 0 &&
      this->orb_core_->has_shutdown () &&
      !this->orb_core_->resource_factory ()->drop_replies_during_shutdown ())
    {
      // The ORB has shutdown and we are the first client after
      // that. This means that the reactor is disabled, we must
      // re-enable it if we want to receive any replys...
      this->orb_core_->reactor ()->reset_reactor_event_loop ();
    }
  ++this->clients_;
}

ACE_INLINE int TAO_Leader_Follower::set_event_loop_thread

(

ACE_Time_Value *

max_wait_time

)

The current thread has become a server thread (i.e. called ORB::run), update any flags and counters.

Definition at line 68 of file Leader_Follower.inl.

References TAO_ORB_Core_TSS_Resources::client_leader_thread_, TAO_ORB_Core_TSS_Resources::event_loop_thread_, get_tss_resources(), leaders_, and wait_for_client_leader_to_complete().

Referenced by TAO_LF_Strategy_Complete::set_event_loop_thread().

{
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();

  // Make sure that there is no other client thread run the show.  If
  // we are the client thread running the show, then it is ok.
  if (this->client_thread_is_leader_ &&
      tss->client_leader_thread_ == 0)
    {
      int result =
        this->wait_for_client_leader_to_complete (max_wait_time);

      if (result != 0)
        return result;
    }

  // If <event_loop_thread_> == 0 and <client_leader_thread_> == 0, we
  // are running the event loop for the first time.  Therefore,
  // increment the leaders.  Otherwise, simply increment
  // <event_loop_thread_> since either (a) if <event_loop_thread_> !=
  // 0 this is a nested call to the event loop, or (b)
  // <client_leader_thread_> != 0 this is a call to the event loop
  // while we are a client leader.
  if (tss->event_loop_thread_ == 0 &&
      tss->client_leader_thread_ == 0)
    ++this->leaders_;

  ++tss->event_loop_thread_;

  return 0;
}

ACE_INLINE void TAO_Leader_Follower::set_upcall_thread

(

void

)

This thread is going to perform an upcall, it will no longer be an event loop thread.

Definition at line 131 of file Leader_Follower.inl.

References ACE_GUARD, elect_new_leader(), TAO_ORB_Core_TSS_Resources::event_loop_thread_, get_tss_resources(), reset_event_loop_thread_i(), and TAO_SYNCH_MUTEX.

Referenced by TAO_LF_Strategy_Complete::set_upcall_thread().

{
  TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();

  if (tss->event_loop_thread_ > 0)
    {
      ACE_GUARD (TAO_SYNCH_MUTEX, ace_mon, this->lock ());
      this->reset_event_loop_thread_i (tss);

      this->elect_new_leader ();
    }
}

int TAO_Leader_Follower::wait_for_client_leader_to_complete

(

ACE_Time_Value *

max_wait_time

)

[private]

Wait for the client leader to complete.

Definition at line 81 of file Leader_Follower.cpp.

References ACE_ERROR, ACE_TEXT, event_loop_threads_waiting_, ACE_OS::gettimeofday(), LM_ERROR, and ACE_Countdown_Time::update().

Referenced by set_event_loop_thread().

{
  int result = 0;
  ACE_Countdown_Time countdown (max_wait_time);

  // Note that we are waiting.
  ++this->event_loop_threads_waiting_;

  while (this->client_thread_is_leader_ &&
         result != -1)
    {
      if (max_wait_time == 0)
        {
          if (this->event_loop_threads_condition_.wait () == -1)
            {
              ACE_ERROR ((LM_ERROR,
                          ACE_TEXT ("TAO (%P|%t): TAO_Leader_Follower::wait_for_client_leader_to_complete - ")
                          ACE_TEXT ("Condition variable wait failed\n")));

              result = -1;
            }
        }
      else
        {
          countdown.update ();
          ACE_Time_Value tv = ACE_OS::gettimeofday ();
          tv += *max_wait_time;
          if (this->event_loop_threads_condition_.wait (&tv) == -1)
            {
              if (errno != ETIME)
                ACE_ERROR ((LM_ERROR,
                            ACE_TEXT ("TAO (%P|%t): TAO_Leader_Follower::wait_for_client_leader_to_complete - ")
                            ACE_TEXT ("Condition variable wait failed\n")));

              result = -1;
            }
        }
    }

  // Reset waiting state.
  --this->event_loop_threads_waiting_;

  return result;
}

int TAO_Leader_Follower::wait_for_event	(	TAO_LF_Event *	event,
		TAO_Transport *	transport,
		ACE_Time_Value *	max_wait_time
	)

Wait on the Leader/Followers loop until one event happens.

Parameters:

	event	The event we wait for, the loop iterates until the event is sucessful, or it fails due to timeout, and error or a connection closed.
	transport	The transport attached to the event
	max_wait_time	Limit the time spent on the loop
	return	Returns -1 on error, 0 or non-zero value otherwise.

Todo:

Document this better, split the Follower code to the TAO_LF_Follower class, we probably don't need the transport object.

There should be no reason to reset the value of result here. If there was an error in handle_events () that the leader saw, I (Bala) beleave it should be propogated to the clients. result = 0;

Definition at line 194 of file Leader_Follower.cpp.

References ACE_DEBUG, ACE_ERROR, ACE_ERROR_RETURN, ACE_GUARD_RETURN, TAO_LF_Event::error_detected(), ACE_OS::gettimeofday(), TAO_Transport::id(), TAO_LF_Event::keep_waiting(), leader_available(), TAO_LF_Event::LFS_TIMEOUT, LM_DEBUG, LM_ERROR, ACE_Reactor::owner(), reactor(), reactor_, ACE_Thread::self(), TAO_LF_Event::set_state(), TAO_LF_Event::successful(), TAO_debug_level, TAO_SYNCH_MUTEX, and ACE_Time_Value::zero.

Referenced by TAO_Leader_Follower_Flushing_Strategy::flush_message(), TAO_Wait_On_Leader_Follower::wait(), and TAO_LF_Connect_Strategy::wait_i().

{
  // Obtain the lock.
  ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock (), -1);

  ACE_Countdown_Time countdown (max_wait_time);

  // Optmize the first iteration [no access to errno]
  int result = 1;

  // For some cases the transport may dissappear like when waiting for
  // connection to be initiated or closed. So cache the id.
  // @@ NOTE: This is not completely safe either. We will be fine for
  // cases that dont access the id ie. when debug level is off but
  // with debugging level on we are on a sticky wicket. Hopefully none
  // of our users should run TAO with debugging enabled like they did
  // in PathFinder
  size_t t_id = 0;

  if (TAO_debug_level && transport != 0)
    {
      t_id = transport->id ();
    }

  {
    // Calls this->set_client_thread () on construction and
    // this->reset_client_thread () on destruction.
    TAO_LF_Client_Thread_Helper client_thread_helper (*this);
    ACE_UNUSED_ARG (client_thread_helper);

    // Check if there is a leader.  Note that it cannot be us since we
    // gave up our leadership when we became a client.
    if (this->leader_available ())
      {
        // = Wait as a follower.

        // Grab a follower:
        TAO_LF_Follower_Auto_Ptr follower (*this);
        if (follower.get () == 0)
          return -1;

        if (TAO_debug_level >= 5)
          ACE_DEBUG ((LM_DEBUG,
                      "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
                      " (follower), cond <%x>\n",
                      t_id, follower.get ()));

        // Bound the follower and the LF_Event, this is important to
        // get a signal when the event terminates
        TAO_LF_Event_Binder event_binder (event, follower.get ());

        while (event->keep_waiting () &&
               this->leader_available ())
          {
            // Add ourselves to the list, do it everytime we wake up
            // from the CV loop. Because:
            //
            // - The leader thread could have elected us as the new
            // leader.
            // - Before we can assume the role another thread becomes
            // the leader
            // - But our condition variable could have been removed
            // already, if we don't add it again we will never wake
            // up.
            //
            // Notice that we can have spurious wake ups, in that case
            // adding the leader results in an error, that must be
            // ignored.
            // You may be thinking of not removing the condition
            // variable in the code that sends the signal, but
            // removing it here, that does not work either, in that
            // case the condition variable may be used twice:
            //
            //  - Wake up because its reply arrived
            //  - Wake up because it must become the leader
            //
            // but only the first one has any effect, so the leader is
            // lost.
            //

            TAO_LF_Follower_Auto_Adder auto_adder (*this, follower);

            if (max_wait_time == 0)
              {
                if (follower->wait (max_wait_time) == -1)
                  {
                    if (TAO_debug_level >= 5)
                      ACE_DEBUG ((LM_DEBUG,
                                  "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event, "
                                  " (follower) [no timer, cond failed]\n",
                                  t_id));

                    // @@ Michael: What is our error handling in this case?
                    //             We could be elected as leader and
                    //             no leader would come in?
                    return -1;
                  }
              }
            else
              {
                countdown.update ();
                ACE_Time_Value tv = ACE_OS::gettimeofday ();
                tv += *max_wait_time;
                if (follower->wait (&tv) == -1)
                  {
                    if (TAO_debug_level >= 5)
                      ACE_DEBUG ((LM_DEBUG,
                                  "TAO (%P|%t) - Leader_Follower[%d]::wait, "
                                  "(follower) [has timer, follower failed]\n",
                                  t_id ));

                    // If we have timedout set the state in the
                    // LF_Event. We call the non-locking,
                    // no-signalling method on LF_Event.
                    if (errno == ETIME)
                        // We have timedout
                        event->set_state (TAO_LF_Event::LFS_TIMEOUT);

                    if (!event->successful ())
                      {
                        // Remove follower can fail because either
                        // 1) the condition was satisfied (i.e. reply
                        //    received or queue drained), or
                        // 2) somebody elected us as leader, or
                        // 3) the connection got closed.
                        //
                        // Therefore:
                        // If remove_follower fails and the condition
                        // was not satisfied, we know that we got
                        // elected as a leader.
                        // But we got a timeout, so we cannot become
                        // the leader, therefore, we have to select a
                        // new leader.
                        //

                        if (this->elect_new_leader () == -1
                            && TAO_debug_level > 0)
                          {
                            ACE_ERROR ((LM_ERROR,
                                        "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event, "
                                        "elect_new_leader failed\n",
                                        t_id ));
                          }
                      }


                    return -1;
                  }
              }
          }

        countdown.update ();

        // @@ Michael: This is an old comment why we do not want to
        //             remove the follower here.
        // We should not remove the follower here, we *must* remove it when
        // we signal it so the same condition is not signalled for
        // both wake up as a follower and as the next leader.

        if (TAO_debug_level >= 5)
          ACE_DEBUG ((LM_DEBUG,
                      "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
                      " done (follower), successful %d\n",
                      t_id,
                      event->successful ()));

        // Now somebody woke us up to become a leader or to handle our
        // input. We are already removed from the follower queue.

        if (event->successful ())
          return 0;

        if (event->error_detected ())
          return -1;

        // FALLTHROUGH
        // We only get here if we woke up but the reply is not
        // complete yet, time to assume the leader role....
        // i.e. ACE_ASSERT (event->successful () == 0);
      }

    // = Leader Code.

    // The only way to reach this point is if we must become the
    // leader, because there is no leader or we have to update to a
    // leader or we are doing nested upcalls in this case we do
    // increase the refcount on the leader in TAO_ORB_Core.

    // Calls this->set_client_leader_thread () on
    // construction and this->reset_client_leader_thread ()
    // on destruction.  Note that this may increase the refcount of
    // the leader.
    TAO_LF_Client_Leader_Thread_Helper client_leader_thread_helper (*this);
    ACE_UNUSED_ARG (client_leader_thread_helper);

    {
      ACE_GUARD_RETURN (ACE_Reverse_Lock<TAO_SYNCH_MUTEX>, rev_mon,
                        this->reverse_lock (), -1);

      // Become owner of the reactor.
      ACE_Reactor *reactor = this->reactor_;
      reactor->owner (ACE_Thread::self ());

      // Run the reactor event loop.

      if (TAO_debug_level >= 5)
        ACE_DEBUG ((LM_DEBUG,
                    "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
                    " (leader) enter reactor event loop\n",
                    t_id));

      // If we got our event, no need to run the event loop any
      // further.
      while (event->keep_waiting ())
        {
          // Run the event loop.
          result = reactor->handle_events (max_wait_time);

          // Did we timeout? If so, stop running the loop.
          if (result == 0 &&
              max_wait_time != 0 &&
              *max_wait_time == ACE_Time_Value::zero)
            break;

          // Other errors? If so, stop running the loop.
          if (result == -1)
            break;

          // Otherwise, keep going...
        }

      if (TAO_debug_level >= 5)
        ACE_DEBUG ((LM_DEBUG,
                    "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
                    " (leader) exit reactor event loop\n",
                    t_id));
    }
  }
  //
  // End artificial scope for auto_ptr like helpers calling:
  // this->reset_client_thread () and (maybe)
  // this->reset_client_leader_thread ().
  //

  // Wake up the next leader, we cannot do that in handle_input,
  // because the woken up thread would try to get into handle_events,
  // which is at the time in handle_input still occupied. But do it
  // before checking the error in <result>, even if there is an error
  // in our input we should continue running the loop in another
  // thread.

  if (this->elect_new_leader () == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
                       " failed to elect new leader\n",
                       t_id),
                      -1);

  if (result == -1 && !this->reactor_->reactor_event_loop_done ())
    ACE_ERROR_RETURN ((LM_ERROR,
                       "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
                       " handle_events failed\n",
                       t_id),
                      -1);

  // Return an error if there was a problem receiving the reply...
  if (max_wait_time != 0)
    {
      if (!event->successful ()
          && *max_wait_time == ACE_Time_Value::zero)
        {
          result = -1;
          errno = ETIME;
        }
      else if (event->error_detected ())
        {
          // If the time did not expire yet, but we get a failure,
          // e.g. the connections closed, we should still return an error.
          result = -1;
        }
    }
  else
    {
      /**
       * There should be no reason to reset the value of result
       * here. If there was an error in handle_events () that the
       * leader saw, I (Bala) beleave it should be propogated to the
       * clients.
       * result = 0;
       */
      if (event->error_detected ())
        {
          result = -1;
        }
    }

  return result;
}

---

Member Data Documentation

int TAO_Leader_Follower::client_thread_is_leader_ [private]

Is a client thread the current leader?

Definition at line 249 of file Leader_Follower.h.

Referenced by reset_client_leader_thread(), and set_client_leader_thread().

int TAO_Leader_Follower::clients_ [private]

Count the number of active clients, this is useful to know when to deactivate the reactor

Definition at line 243 of file Leader_Follower.h.

Referenced by has_clients(), reset_client_thread(), and set_client_thread().

TAO_SYNCH_CONDITION TAO_Leader_Follower::event_loop_threads_condition_ [private]

Condition variable for server threads waiting for the client leader to complete.

Definition at line 256 of file Leader_Follower.h.

Referenced by elect_new_leader().

int TAO_Leader_Follower::event_loop_threads_waiting_ [private]

Are server threads waiting for the client leader to complete?

Definition at line 252 of file Leader_Follower.h.

Referenced by wait_for_client_leader_to_complete().

Follower_Set TAO_Leader_Follower::follower_free_list_ [private]

Use a free list to allocate and release Follower objects.

Definition at line 231 of file Leader_Follower.h.

Referenced by release_follower().

Follower_Set TAO_Leader_Follower::follower_set_ [private]

Definition at line 228 of file Leader_Follower.h.

Referenced by add_follower(), elect_new_leader_i(), follower_available(), and remove_follower().

int TAO_Leader_Follower::leaders_ [private]

Count the number of active leaders. There could be many leaders in the thread pool (i.e. calling ORB::run), and the same leader could show up multiple times as it receives nested upcalls and sends more requests.

Definition at line 239 of file Leader_Follower.h.

Referenced by leader_available(), reset_client_leader_thread(), reset_client_thread(), reset_event_loop_thread_i(), set_client_leader_thread(), set_client_thread(), and set_event_loop_thread().

TAO_SYNCH_MUTEX TAO_Leader_Follower::lock_ [private]

To synchronize access to the members.

Definition at line 221 of file Leader_Follower.h.

Referenced by lock().

TAO_New_Leader_Generator* TAO_Leader_Follower::new_leader_generator_ [private]

Leader/Follower class uses this method to notify the system that we are out of leaders.

Definition at line 260 of file Leader_Follower.h.

Referenced by no_leaders_available().

TAO_ORB_Core* TAO_Leader_Follower::orb_core_ [private]

The orb core.

Definition at line 218 of file Leader_Follower.h.

Referenced by get_tss_resources(), reactor(), and set_client_thread().

ACE_Reactor* TAO_Leader_Follower::reactor_ [private]

The reactor.

Definition at line 246 of file Leader_Follower.h.

Referenced by reactor(), and wait_for_event().

ACE_Reverse_Lock<TAO_SYNCH_MUTEX> TAO_Leader_Follower::reverse_lock_ [private]

Do protect the access to the following three members.

Definition at line 224 of file Leader_Follower.h.

Referenced by reverse_lock().

---

The documentation for this class was generated from the following files:

• Leader_Follower.h
• Leader_Follower.cpp
• Leader_Follower.inl

---
