TAO_Connect_Strategy Class Reference

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections. More...

#include <Connect_Strategy.h>

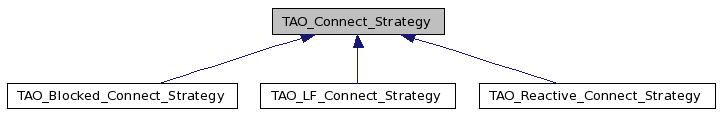

Inheritance diagram for TAO_Connect_Strategy:

[legend]Collaboration diagram for TAO_Connect_Strategy:

[legend]List of all members.

Public Member Functions
	TAO_Connect_Strategy (TAO_ORB_Core *orb)
	Constructor.
virtual	~TAO_Connect_Strategy (void)
	Destructor.
virtual void	synch_options (ACE_Time_Value *val, ACE_Synch_Options &opt)=0
	Obtain the synch options that can be passed to ACE_Connector.
int	wait (TAO_Connection_Handler *ch, ACE_Time_Value *val)
	Wait for the connection to be completed till a timeout occurs.
int	wait (TAO_Transport *t, ACE_Time_Value *val)
int	wait (TAO_LF_Multi_Event *ev, ACE_Time_Value *val)
int	poll (TAO_LF_Multi_Event *ev)
Protected Member Functions
virtual int	wait_i (TAO_LF_Event *ev, TAO_Transport *t, ACE_Time_Value *val)=0
	This is the method that does all the real interesting stuff.
Protected Attributes
TAO_ORB_Core *const	orb_core_
	Cached copy of the ORB core pointer.

---

Detailed Description

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections.

The thread that establishes remote connections can either make a blocking or a non-blocking connect. The strategy to wait for the connection completion can also be different.

This strategy controls how does the ORB schedules and waits for connection completion.

Definition at line 55 of file Connect_Strategy.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Connect_Strategy::TAO_Connect_Strategy

(

TAO_ORB_Core *

orb

)

Constructor.

Definition at line 12 of file Connect_Strategy.cpp.

  : orb_core_ (orb_core)
{
}

TAO_Connect_Strategy::~TAO_Connect_Strategy

(

void

)

[virtual]

Destructor.

Definition at line 18 of file Connect_Strategy.cpp.

{
}

---

Member Function Documentation

int TAO_Connect_Strategy::poll

(

TAO_LF_Multi_Event *

ev

)

Do a quick check to see if any connections are complete. This does the same as the wait with an explicit time value of 0.

Definition at line 52 of file Connect_Strategy.cpp.

References TAO_LF_Multi_Event::base_transport(), wait_i(), and ACE_Time_Value::zero.

Referenced by TAO_IIOP_Connector::make_parallel_connection().

{
  ACE_Time_Value zero (ACE_Time_Value::zero);
  return this->wait_i (mev, mev->base_transport (), &zero);
}

virtual void TAO_Connect_Strategy::synch_options	(	ACE_Time_Value *	val,
		ACE_Synch_Options &	opt
	)			[pure virtual]

Obtain the synch options that can be passed to ACE_Connector.

Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

Referenced by TAO_IIOP_Connector::begin_connection().

int TAO_Connect_Strategy::wait	(	TAO_LF_Multi_Event *	ev,
		ACE_Time_Value *	val
	)

Wait for one of many connections to complete. Returns when one succeeds or all fail.

Definition at line 45 of file Connect_Strategy.cpp.

References TAO_LF_Multi_Event::base_transport(), and wait_i().

{
  return this->wait_i (mev, mev->base_transport (), max_wait_time);
}

int TAO_Connect_Strategy::wait	(	TAO_Transport *	t,
		ACE_Time_Value *	val
	)

Definition at line 33 of file Connect_Strategy.cpp.

References TAO_Transport::connection_handler(), and wait_i().

{
  // Basically the connection was EINPROGRESS, but before we could
  // wait for it some other thread detected a failure and cleaned up
  // the connection handler.
  if (t == 0)
    return -1;

  return this->wait_i (t->connection_handler (), t, max_wait_time);
}

int TAO_Connect_Strategy::wait	(	TAO_Connection_Handler *	ch,
		ACE_Time_Value *	val
	)

Wait for the connection to be completed till a timeout occurs.

Definition at line 23 of file Connect_Strategy.cpp.

References TAO_Connection_Handler::transport(), and wait_i().

Referenced by TAO_Connector::wait_for_connection_completion().

{
  if (ch == 0)
    return -1;

  return this->wait_i (ch, ch->transport (), max_wait_time);
}

virtual int TAO_Connect_Strategy::wait_i	(	TAO_LF_Event *	ev,
		TAO_Transport *	t,
		ACE_Time_Value *	val
	)			[protected, pure virtual]

This is the method that does all the real interesting stuff.

Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

Referenced by poll(), and wait().

---

Member Data Documentation

TAO_ORB_Core* const TAO_Connect_Strategy::orb_core_ [protected]

Cached copy of the ORB core pointer.

Definition at line 96 of file Connect_Strategy.h.

Referenced by TAO_LF_Connect_Strategy::wait_i().

---

The documentation for this class was generated from the following files:

• Connect_Strategy.h
• Connect_Strategy.cpp

---
