TAO_Client_Strategy_Factory Class Reference

Abstract factory used by the client to manufacture various strategies used on the client-side. More...

#include <Client_Strategy_Factory.h>

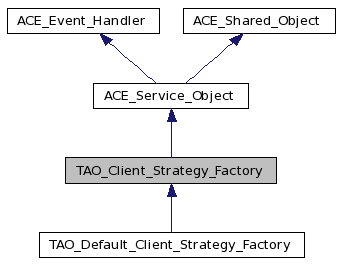

Inheritance diagram for TAO_Client_Strategy_Factory:

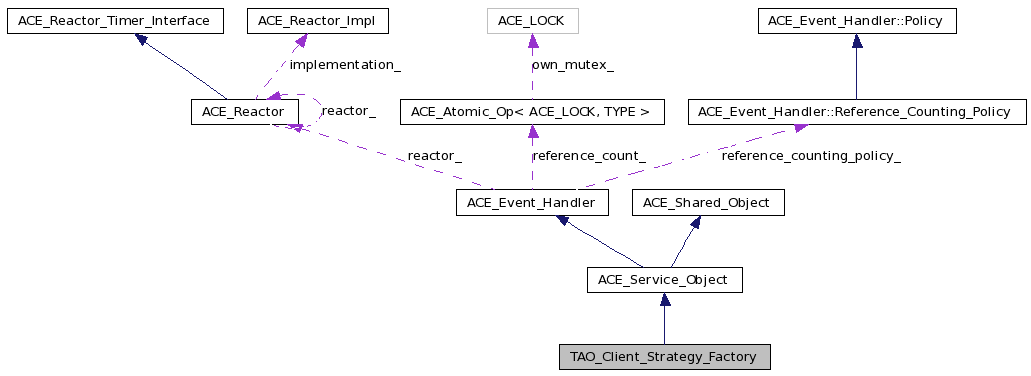

[legend]Collaboration diagram for TAO_Client_Strategy_Factory:

[legend]List of all members.

Public Types
	TAO_BLOCKED_CONNECT
	TAO_REACTIVE_CONNECT
	TAO_LEADER_FOLLOWER_CONNECT
enum	Connect_Strategy { TAO_BLOCKED_CONNECT, TAO_REACTIVE_CONNECT, TAO_LEADER_FOLLOWER_CONNECT }
Public Member Functions
virtual	~TAO_Client_Strategy_Factory (void)
	Destructor.
virtual ACE_Lock *	create_profile_lock (void)
virtual TAO_Configurable_Refcount	create_profile_refcount (void)
	Create the refcount for the profile.
virtual TAO_Transport_Mux_Strategy *	create_transport_mux_strategy (TAO_Transport *transport)
	Create the correct client request muxing strategy.
virtual ACE_Lock *	create_transport_mux_strategy_lock (void)
	Create the correct lock for request muxing strategy.
virtual int	reply_dispatcher_table_size (void) const
	Return the size of the reply dispatcher table.
virtual TAO_Wait_Strategy *	create_wait_strategy (TAO_Transport *transport)
	Create the correct client <wait_for_reply> strategy.
virtual TAO_Connect_Strategy *	create_connect_strategy (TAO_ORB_Core *)
	Create the correct client <asynch_connect> strategy.
virtual Connect_Strategy	connect_strategy (void) const
	Return the selected connection strategy option.
virtual int	allow_callback (void)
	Does the client allow any form of callback?
virtual bool	use_cleanup_options (void) const
	Cleanup options for wait strategy.

---

Detailed Description

Abstract factory used by the client to manufacture various strategies used on the client-side.

Definition at line 48 of file Client_Strategy_Factory.h.

---

Member Enumeration Documentation

enum TAO_Client_Strategy_Factory::Connect_Strategy

Enumerator:

TAO_BLOCKED_CONNECT
TAO_REACTIVE_CONNECT
TAO_LEADER_FOLLOWER_CONNECT

Definition at line 78 of file Client_Strategy_Factory.h.

  {
    TAO_BLOCKED_CONNECT,
    TAO_REACTIVE_CONNECT,
    TAO_LEADER_FOLLOWER_CONNECT
  };

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Client_Strategy_Factory::~TAO_Client_Strategy_Factory

(

void

)

[virtual]

Destructor.

Definition at line 9 of file Client_Strategy_Factory.cpp.

{
}

---

Member Function Documentation

int TAO_Client_Strategy_Factory::allow_callback

(

void

)

[virtual]

Does the client allow any form of callback?

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 62 of file Client_Strategy_Factory.cpp.

{
  return 0;
}

TAO_Client_Strategy_Factory::Connect_Strategy TAO_Client_Strategy_Factory::connect_strategy

(

void

)

const [virtual]

Return the selected connection strategy option.

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 50 of file Client_Strategy_Factory.cpp.

References TAO_BLOCKED_CONNECT.

Referenced by TAO::Profile_Transport_Resolver::use_parallel_connect().

{
  return TAO_BLOCKED_CONNECT;
}

TAO_Connect_Strategy * TAO_Client_Strategy_Factory::create_connect_strategy

(

TAO_ORB_Core *

)

[virtual]

Create the correct client <asynch_connect> strategy.

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 56 of file Client_Strategy_Factory.cpp.

Referenced by TAO_Connector::create_connect_strategy().

{
  return 0;
}

ACE_Lock * TAO_Client_Strategy_Factory::create_profile_lock

(

void

)

[virtual]

Create the lock for the stub and the profile

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 14 of file Client_Strategy_Factory.cpp.

{
  return 0;
}

TAO_Configurable_Refcount TAO_Client_Strategy_Factory::create_profile_refcount

(

void

)

[virtual]

Create the refcount for the profile.

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 20 of file Client_Strategy_Factory.cpp.

References TAO_Configurable_Refcount::TAO_NULL_LOCK.

{
  return TAO_Configurable_Refcount (TAO_Configurable_Refcount::TAO_NULL_LOCK);
}

TAO_Transport_Mux_Strategy * TAO_Client_Strategy_Factory::create_transport_mux_strategy

(

TAO_Transport *

transport

)

[virtual]

Create the correct client request muxing strategy.

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 26 of file Client_Strategy_Factory.cpp.

Referenced by TAO_Transport::TAO_Transport().

{
  return 0;
}

ACE_Lock * TAO_Client_Strategy_Factory::create_transport_mux_strategy_lock

(

void

)

[virtual]

Create the correct lock for request muxing strategy.

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 32 of file Client_Strategy_Factory.cpp.

Referenced by TAO_Muxed_TMS::TAO_Muxed_TMS().

{
  return 0;
}

TAO_Wait_Strategy * TAO_Client_Strategy_Factory::create_wait_strategy

(

TAO_Transport *

transport

)

[virtual]

Create the correct client <wait_for_reply> strategy.

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 44 of file Client_Strategy_Factory.cpp.

Referenced by TAO_Transport::TAO_Transport().

{
  return 0;
}

int TAO_Client_Strategy_Factory::reply_dispatcher_table_size

(

void

)

const [virtual]

Return the size of the reply dispatcher table.

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 38 of file Client_Strategy_Factory.cpp.

{
  return 0;
}

bool TAO_Client_Strategy_Factory::use_cleanup_options

(

void

)

const [virtual]

Cleanup options for wait strategy.

Only applicable to RW wait strategy

Reimplemented in TAO_Default_Client_Strategy_Factory.

Definition at line 68 of file Client_Strategy_Factory.cpp.

Referenced by TAO::Transport_Cache_Manager::find_transport().

{
  return false;
}

---

The documentation for this class was generated from the following files:

• Client_Strategy_Factory.h
• Client_Strategy_Factory.cpp

---
