TAO_Asynch_Reply_Dispatcher_Base Class Reference

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher. More...

#include <Asynch_Reply_Dispatcher_Base.h>

Inheritance diagram for TAO_Asynch_Reply_Dispatcher_Base:

Inheritance graph
[legend]

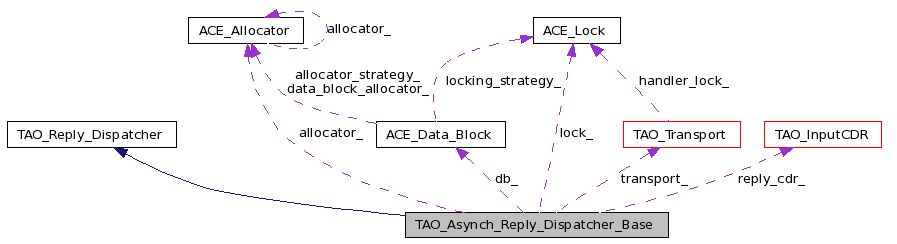

Collaboration diagram for TAO_Asynch_Reply_Dispatcher_Base:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Asynch_Reply_Dispatcher_Base (TAO_ORB_Core *orb_core, ACE_Allocator *allocator=0)
 Default constructor.
void transport (TAO_Transport *t)
 Sets the transport for this invocation.
virtual void reply_timed_out (void)=0
 Inform that the reply timed out.
virtual long schedule_timer (CORBA::ULong, const ACE_Time_Value &)=0
 Install the timeout handler.
bool try_dispatch_reply (void)
 A helper method that can be used by the subclasses.
The Reply Dispatcher methods
virtual int dispatch_reply (TAO_Pluggable_Reply_Params &)=0
virtual void connection_closed (void)=0
Mutators for refcount
void incr_refcount (void)
void decr_refcount (void)

Protected Member Functions

virtual ~TAO_Asynch_Reply_Dispatcher_Base (void)
 Destructor.

Protected Attributes

IOP::ServiceContextList reply_service_info_
 The service context list.
char buf_ [ACE_CDR::DEFAULT_BUFSIZE]
 The buffer that is used to initialise the data block.
ACE_Data_Block db_
TAO_InputCDR reply_cdr_
TAO_Transport * transport_
 This invocation is using this transport, may change...

Private Attributes

ACE_Lock * lock_
 Lock to protect refcount and is_reply_dispatched_ flag.
CORBA::ULong refcount_
 Refcount paraphernalia for this class.
bool is_reply_dispatched_
 Has the reply been dispatched?
ACE_Allocator * allocator_

Detailed Description

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher.

Definition at line 45 of file Asynch_Reply_Dispatcher_Base.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base ( TAO_ORB_Core *  orb_core,
ACE_Allocator *  allocator = 0
)

Default constructor.

Definition at line 20 of file Asynch_Reply_Dispatcher_Base.cpp.

00024   : db_ (sizeof buf_,
00025          ACE_Message_Block::MB_DATA,
00026          this->buf_,
00027          orb_core->input_cdr_buffer_allocator (),
00028          orb_core->locking_strategy (),
00029          ACE_Message_Block::DONT_DELETE,
00030          orb_core->input_cdr_dblock_allocator ()),
00031     reply_cdr_ (&db_,
00032                 ACE_Message_Block::MB_DATA,
00033                 TAO_ENCAP_BYTE_ORDER,
00034                 TAO_DEF_GIOP_MAJOR,
00035                 TAO_DEF_GIOP_MINOR,
00036                 orb_core)
00037   , transport_ (0)
00038   , lock_ (0)
00039   , refcount_ (1)
00040   , is_reply_dispatched_ (false)
00041   , allocator_ (allocator)
00042 {
00043   // @@ NOTE: Need a seperate option for this..
00044   this->lock_ =
00045     orb_core->resource_factory ()->create_cached_connection_lock ();
00046 }

TAO_Asynch_Reply_Dispatcher_Base::~TAO_Asynch_Reply_Dispatcher_Base ( void   )  [protected, virtual]

Destructor.

Definition at line 49 of file Asynch_Reply_Dispatcher_Base.cpp.

References lock_, TAO_Transport::remove_reference(), and transport_.

00050 {
00051   // Release the transport that we own
00052   if (this->transport_ != 0)
00053     this->transport_->remove_reference ();
00054
00055   if (this->lock_)
00056     delete this->lock_;
00057 }

Member Function Documentation

void TAO_Asynch_Reply_Dispatcher_Base::connection_closed ( void   )  [pure virtual]

The used for the pending reply has been closed. No reply is expected.

Todo:
If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function.

Implements TAO_Reply_Dispatcher.

Definition at line 79 of file Asynch_Reply_Dispatcher_Base.cpp.

00080 {
00081 }

void TAO_Asynch_Reply_Dispatcher_Base::decr_refcount ( void   )

Definition at line 98 of file Asynch_Reply_Dispatcher_Base.cpp.

References ACE_DES_FREE, ACE_GUARD, and refcount_.

00099 {
00100   {
00101     ACE_GUARD (ACE_Lock,
00102                mutex,
00103                *this->lock_);
00104     --this->refcount_;
00105
00106     if (this->refcount_ > 0)
00107       return;
00108   }
00109
00110   if (this->allocator_)
00111     {
00112       ACE_DES_FREE (this,
00113                     this->allocator_->free,
00114                     TAO_Asynch_Reply_Dispatcher_Base);
00115     }
00116   else
00117     {
00118       delete this;
00119     }
00120
00121   return;
00122 }

int TAO_Asynch_Reply_Dispatcher_Base::dispatch_reply ( TAO_Pluggable_Reply_Params &   )  [pure virtual]

Dispatch the reply. Return 1 on sucess, -1 on error.

Todo:
Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class.

Implements TAO_Reply_Dispatcher.

Definition at line 72 of file Asynch_Reply_Dispatcher_Base.cpp.

00074 {
00075   return 0;
00076 }

void TAO_Asynch_Reply_Dispatcher_Base::incr_refcount ( void   )

Definition at line 89 of file Asynch_Reply_Dispatcher_Base.cpp.

References ACE_GUARD, and refcount_.

00090 {
00091   ACE_GUARD (ACE_Lock,
00092              mutex,
00093              *this->lock_);
00094   ++this->refcount_;
00095 }

void TAO_Asynch_Reply_Dispatcher_Base::reply_timed_out ( void   )  [pure virtual]

Inform that the reply timed out.

Definition at line 84 of file Asynch_Reply_Dispatcher_Base.cpp.

00085 {
00086 }

virtual long TAO_Asynch_Reply_Dispatcher_Base::schedule_timer ( CORBA::ULong  ,
const ACE_Time_Value &
) [pure virtual]

Install the timeout handler.

void TAO_Asynch_Reply_Dispatcher_Base::transport ( TAO_Transport *  t  )

Sets the transport for this invocation.

Definition at line 60 of file Asynch_Reply_Dispatcher_Base.cpp.

References TAO_Transport::add_reference(), TAO_Transport::remove_reference(), and transport_.

00061 {
00062   if (this->transport_ != 0)
00063     this->transport_->remove_reference ();
00064
00065   this->transport_ = t;
00066
00067   this->transport_->add_reference ();
00068 }

bool TAO_Asynch_Reply_Dispatcher_Base::try_dispatch_reply ( void   )

A helper method that can be used by the subclasses.

The semantics of this helper method needs careful attention. A call to this method will do the following

Why are we clumping everything in one method. Answer is we need atomicity?

Definition at line 125 of file Asynch_Reply_Dispatcher_Base.cpp.

References ACE_GUARD_RETURN, and is_reply_dispatched_.

00126 {
00127   if (this->is_reply_dispatched_)
00128     {
00129       return false;
00130     }
00131   else
00132     {
00133       ACE_GUARD_RETURN (ACE_Lock,
00134                         mutex,
00135                         *this->lock_,
00136                         false);
00137
00138       if (!this->is_reply_dispatched_)
00139         {
00140           this->is_reply_dispatched_ = true;
00141           return true;
00142         }
00143     }
00144
00145   return false;
00146 }

Member Data Documentation

ACE_Allocator* TAO_Asynch_Reply_Dispatcher_Base::allocator_ [private]

Allocator that was used to allocate this reply dispatcher. In case of zero we come from the heap.

Definition at line 133 of file Asynch_Reply_Dispatcher_Base.h.

char TAO_Asynch_Reply_Dispatcher_Base::buf_[ACE_CDR::DEFAULT_BUFSIZE] [protected]

The buffer that is used to initialise the data block.

Definition at line 108 of file Asynch_Reply_Dispatcher_Base.h.

ACE_Data_Block TAO_Asynch_Reply_Dispatcher_Base::db_ [protected]

Datablock that is created on the stack to initialise the CDR stream underneath.

Definition at line 112 of file Asynch_Reply_Dispatcher_Base.h.

bool TAO_Asynch_Reply_Dispatcher_Base::is_reply_dispatched_ [private]

Has the reply been dispatched?

Definition at line 129 of file Asynch_Reply_Dispatcher_Base.h.

Referenced by try_dispatch_reply().

ACE_Lock* TAO_Asynch_Reply_Dispatcher_Base::lock_ [private]

Lock to protect refcount and is_reply_dispatched_ flag.

Definition at line 123 of file Asynch_Reply_Dispatcher_Base.h.

Referenced by ~TAO_Asynch_Reply_Dispatcher_Base().

CORBA::ULong TAO_Asynch_Reply_Dispatcher_Base::refcount_ [private]

Refcount paraphernalia for this class.

Definition at line 126 of file Asynch_Reply_Dispatcher_Base.h.

Referenced by decr_refcount(), and incr_refcount().

TAO_InputCDR TAO_Asynch_Reply_Dispatcher_Base::reply_cdr_ [protected]

CDR stream which has the reply information that needs to be demarshalled by the stubs

Definition at line 116 of file Asynch_Reply_Dispatcher_Base.h.

IOP::ServiceContextList TAO_Asynch_Reply_Dispatcher_Base::reply_service_info_ [protected]

The service context list.

Note, that this is not a reference as in the synchronous case. We own the reply_service_info because our TAO_Asynch_Invocation or TAO_DII_Deferred_Invocation will go out of scope before we are done.

Definition at line 105 of file Asynch_Reply_Dispatcher_Base.h.

TAO_Transport* TAO_Asynch_Reply_Dispatcher_Base::transport_ [protected]

This invocation is using this transport, may change...

Definition at line 119 of file Asynch_Reply_Dispatcher_Base.h.

Referenced by transport(), and ~TAO_Asynch_Reply_Dispatcher_Base().

The documentation for this class was generated from the following files:
