TAO::Collocated_Invocation Class Reference

Class for Collocated invocations. More...

#include <Collocated_Invocation.h>

Inheritance diagram for TAO::Collocated_Invocation:

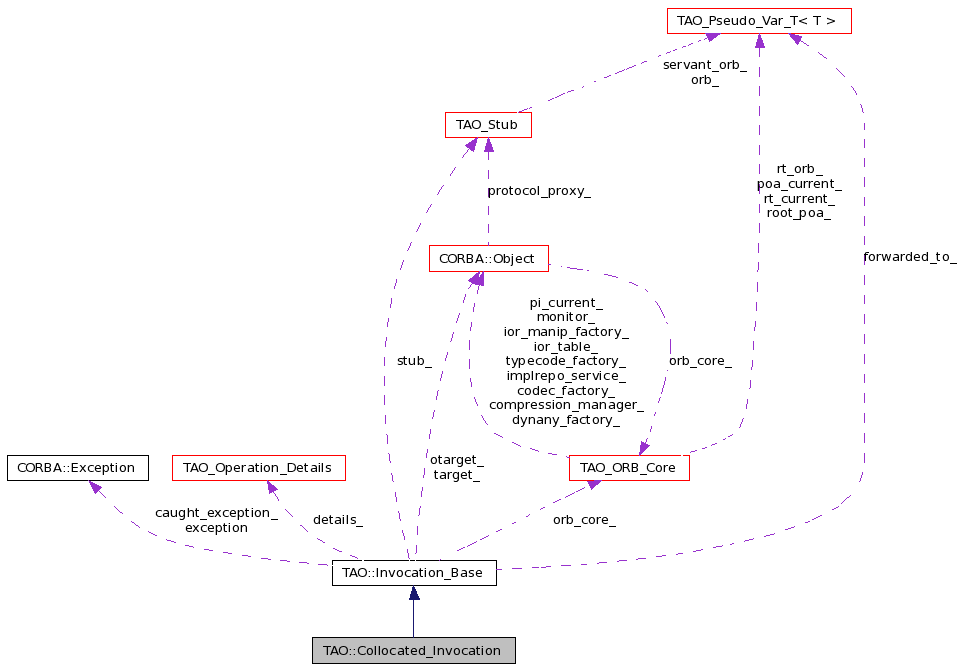

[legend]Collaboration diagram for TAO::Collocated_Invocation:

[legend]List of all members.

Public Member Functions
	Collocated_Invocation (CORBA::Object_ptr t, CORBA::Object_ptr et, TAO_Stub *stub, TAO_Operation_Details &detail, bool response_expected=true)
	Constructor used by TAO::Invocation_Adapter.
Invocation_Status	invoke (Collocation_Proxy_Broker *cpb, Collocation_Strategy strat)
Private Member Functions
	Collocated_Invocation (void)

---

Detailed Description

Class for Collocated invocations.

Note:

Reliable oneways are not handled properly including use of interceptors. This class should technically serve as the base for all invocation types. But now, this is the only class that handles collocated invocations and that too in a brain dead way.

Definition at line 50 of file Collocated_Invocation.h.

---

Constructor & Destructor Documentation

TAO::Collocated_Invocation::Collocated_Invocation	(	CORBA::Object_ptr	t,
		CORBA::Object_ptr	et,
		TAO_Stub *	stub,
		TAO_Operation_Details &	detail,
		bool	response_expected = true
	)

Constructor used by TAO::Invocation_Adapter.

Parameters:

	t	The target on which invocation first started.
	et	The effective target in which this invocation is now flowing
	stub	Stub for effective target et
	detail	operation details of the invocation including the service context list
	response_expected	flag to indicate whether the operation encapsulated by detail returns a response or not.

Definition at line 24 of file Collocated_Invocation.cpp.

    : Invocation_Base (t,
                       et,
                       stub,
                       detail,
                       response_expected,
                       false /* request_is_remote */ )
  {
  }

TAO::Collocated_Invocation::Collocated_Invocation

(

void

)

[private]

---

Member Function Documentation

Invocation_Status TAO::Collocated_Invocation::invoke	(	Collocation_Proxy_Broker *	cpb,
		Collocation_Strategy	strat
	)

Practically this method is a place holder to do the following

• Call the start and end interception points on the client side.

• Handle location forwards that could be thrown by the servant.

Start the interception point

Definition at line 39 of file Collocated_Invocation.cpp.

References TAO_ORB_Core::_incr_refcnt(), CORBA::Object::_stubobj(), TAO_Operation_Details::args(), TAO_Operation_Details::args_num(), CORBA::COMPLETED_MAYBE, TAO::Collocation_Proxy_Broker::dispatch(), CORBA::OMGVMCID, TAO_Operation_Details::opname(), TAO_Operation_Details::opname_len(), TAO_Pseudo_Var_T< T >::out(), TAO_ORB_Core::request_dispatcher(), TAO_Stub::servant_orb_ptr(), TAO::TAO_CS_THRU_POA_STRATEGY, TAO_INTERCEPTOR, TAO::TAO_INVOKE_FAILURE, TAO::TAO_INVOKE_RESTART, and TAO::TAO_INVOKE_SUCCESS.

  {
    Invocation_Status s = TAO_INVOKE_FAILURE;

    /// Start the interception point
#if TAO_HAS_INTERCEPTORS == 1
    s = this->send_request_interception ();

    if (s != TAO_INVOKE_SUCCESS)
      return s;
#endif /*TAO_HAS_INTERCEPTORS */

    try
      {
        if (strat == TAO_CS_THRU_POA_STRATEGY)
          {
            // Perform invocations on the servant through the servant's ORB.
            CORBA::ORB_var servant_orb =
              this->effective_target ()->_stubobj ()->servant_orb_ptr ();
            TAO_ORB_Core * const orb_core = servant_orb->orb_core ();

            TAO_ServerRequest request (orb_core,
                                       this->details_,
                                       this->effective_target ());

            TAO_Request_Dispatcher * const dispatcher =
              orb_core->request_dispatcher ();

            // Retain ownership of the servant's ORB_Core in case
            // another thread attempts to destroy it (e.g. via
            // CORBA::ORB::destroy()) before this thread complete the
            // invocation.
            orb_core->_incr_refcnt ();
            TAO_ORB_Core_Auto_Ptr my_orb_core (orb_core);

            dispatcher->dispatch (orb_core,
                                  request,
                                  this->forwarded_to_.out ());

            if (request.is_forwarded ())
              {
                this->reply_status_ = GIOP::LOCATION_FORWARD;
              }
          }
        else
          {
            bool is_forwarded = false;

            cpb->dispatch (this->effective_target (),
                           this->forwarded_to_.out (),
                           is_forwarded,
                           this->details_.args (),
                           this->details_.args_num (),
                           this->details_.opname (),
                           this->details_.opname_len (),
                           strat);

            if (is_forwarded)
              {
                this->reply_status_ = GIOP::LOCATION_FORWARD;
              }
          }

        // Invocation completed succesfully
        s = TAO_INVOKE_SUCCESS;

#if TAO_HAS_INTERCEPTORS == 1
        if (this->reply_status_ == GIOP::LOCATION_FORWARD ||
            this->response_expected_ == false)
          {
            if (this->reply_status_ == GIOP::LOCATION_FORWARD)
              this->invoke_status (TAO_INVOKE_RESTART);

            s = this->receive_other_interception ();
          }
        // NOTE: Any other condition that needs handling?
        else if (this->response_expected ())
          {
            this->invoke_status (TAO_INVOKE_SUCCESS);

            s = this->receive_reply_interception ();
          }
        if (s != TAO_INVOKE_SUCCESS)
          return s;
#endif /*TAO_HAS_INTERCEPTORS */
      }
    catch ( ::CORBA::UserException& ex)
      {
        // Ignore CORBA exceptions for oneways
        if (this->response_expected_ == false)
          return TAO_INVOKE_SUCCESS;

#if TAO_HAS_INTERCEPTORS == 1
        PortableInterceptor::ReplyStatus const status =
          this->handle_any_exception (&ex);

        if (status == PortableInterceptor::LOCATION_FORWARD ||
            status == PortableInterceptor::TRANSPORT_RETRY)
          s = TAO_INVOKE_RESTART;
        else
#endif /* TAO_HAS_INTERCEPTORS */
          {
            // Check whether the user exception thrown matches the signature
            // list, if not, then throw an Unknown exception
            if (!this->details_.has_exception (ex))
              {
                throw ::CORBA::UNKNOWN (CORBA::OMGVMCID | 1,
                                        CORBA::COMPLETED_MAYBE);
              }
            else
             {
               throw;
             }
          }
      }
    catch ( ::CORBA::SystemException& TAO_INTERCEPTOR (ex))
      {
        // Ignore CORBA exceptions for oneways
        if (this->response_expected_ == false)
          return TAO_INVOKE_SUCCESS;

#if TAO_HAS_INTERCEPTORS == 1
        PortableInterceptor::ReplyStatus const status =
          this->handle_any_exception (&ex);

        if (status == PortableInterceptor::LOCATION_FORWARD ||
            status == PortableInterceptor::TRANSPORT_RETRY)
          s = TAO_INVOKE_RESTART;
        else
#endif /* TAO_HAS_INTERCEPTORS */
          throw;
      }
#if TAO_HAS_INTERCEPTORS == 1
    catch (...)
      {
        // Notify interceptors of non-CORBA exception, and propagate
        // that exception to the caller.
        PortableInterceptor::ReplyStatus const st =
          this->handle_all_exception ();

        if (st == PortableInterceptor::LOCATION_FORWARD ||
            st == PortableInterceptor::TRANSPORT_RETRY)
          s = TAO_INVOKE_RESTART;
        else
          throw;
      }
#endif  /* TAO_HAS_INTERCEPTORS == 1 */

    if (this->reply_status_ == GIOP::LOCATION_FORWARD)
      s =  TAO_INVOKE_RESTART;

    return s;
  }

---

The documentation for this class was generated from the following files:

• Collocated_Invocation.h
• Collocated_Invocation.cpp

---
