casacore::WCCompound Class Reference

Base class for compound WCRegion objects. More...

#include <WCCompound.h>

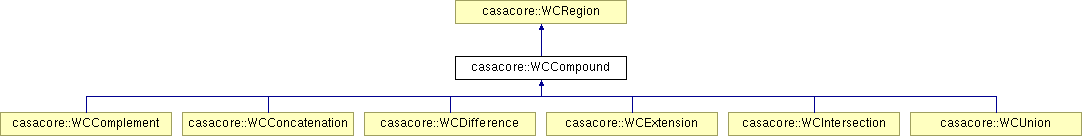

Inheritance diagram for casacore::WCCompound:

List of all members.

Public Member Functions
	WCCompound (const ImageRegion &region1, const ImageRegion &region2)
	Construct from one or more image regions.
	WCCompound (const ImageRegion *region1, const ImageRegion *region2=0, const ImageRegion *region3=0, const ImageRegion *region4=0, const ImageRegion *region5=0, const ImageRegion *region6=0, const ImageRegion *region7=0, const ImageRegion *region8=0, const ImageRegion *region9=0, const ImageRegion *region10=0)
	WCCompound (const PtrBlock< const ImageRegion * > &regions)
	WCCompound (Bool takeOver, const PtrBlock< const WCRegion * > &regions)
	Construct from multiple regions given as a Block.
	WCCompound (const WCCompound &other)
	Copy constructor (copy semantics).
virtual	~WCCompound ()
virtual Bool	operator== (const WCRegion &other) const
	Comparison.
const PtrBlock< const WCRegion * > &	regions () const
	Get the contributing regions.
Protected Member Functions
WCCompound &	operator= (const WCCompound &other)
	Assignment (copy semantics) makes only sense for a derived class.
void	multiToLCRegion (PtrBlock< const LCRegion * > &regions, const CoordinateSystem &cSys, const IPosition &shape, const IPosition &pixelAxesMap, const IPosition &extendAxes) const
	Convert each WCRegion to an LCRegion.
TableRecord	makeRecord (const String &tableName) const
	Store the contributing regions in a record.
Static Protected Member Functions
static void	unmakeRecord (PtrBlock< const WCRegion * > &, const TableRecord &, const String &tableName)
	Retrieve the contributing objects from the record.
Private Member Functions
void	makeWCRegion (const PtrBlock< const ImageRegion * > &)
	Check if the ImageRegion's contain WCRegion's and extract them.
void	init (Bool takeOver)
	Check if the regions are correct.
Private Attributes
PtrBlock< const WCRegion * >	itsRegions
Block< IPosition >	itsAxesUsed

---

Detailed Description

Base class for compound WCRegion objects.

Intended use:

Internal

Prerequisite

• WCRegion

Synopsis

WCCompound is the base class for world coordinate regions. It defines the functionality simply as conversion to an LCRegion. This is because you need an LCRegion to be able to access the pixels in a Lattice.

The conversion functions should be flexible in that the supplied CoordinateSystem does not have to be the same as that with which the derived class was constructed. This means that you can apply a WCCompound from one image to another, provided that operation has some meaning.

Example

Definition at line 84 of file WCCompound.h.

---

Constructor & Destructor Documentation

casacore::WCCompound::WCCompound	(	const ImageRegion &	region1,
		const ImageRegion &	region2
	)

Construct from one or more image regions.

The image regions have to contain WCRegion objects, otherwise an exception is thrown.

casacore::WCCompound::WCCompound	(	const ImageRegion *	region1,
		const ImageRegion *	region2 = 0,
		const ImageRegion *	region3 = 0,
		const ImageRegion *	region4 = 0,
		const ImageRegion *	region5 = 0,
		const ImageRegion *	region6 = 0,
		const ImageRegion *	region7 = 0,
		const ImageRegion *	region8 = 0,
		const ImageRegion *	region9 = 0,
		const ImageRegion *	region10 = 0
	)

casacore::WCCompound::WCCompound

(

const PtrBlock< const ImageRegion * > &

regions

)

casacore::WCCompound::WCCompound	(	Bool	takeOver,
		const PtrBlock< const WCRegion * > &	regions
	)

Construct from multiple regions given as a Block.

When takeOver is True, the destructor will delete the given regions. Otherwise a copy of the regions is made.

casacore::WCCompound::WCCompound

(

const WCCompound &

other

)

Copy constructor (copy semantics).

virtual casacore::WCCompound::~WCCompound

(

)

[virtual]

---

Member Function Documentation

void casacore::WCCompound::init

(

Bool

takeOver

)

[private]

Check if the regions are correct.

If needed, make a copy of the region objects.

TableRecord casacore::WCCompound::makeRecord

(

const String &

tableName

)

const [protected]

Store the contributing regions in a record.

void casacore::WCCompound::makeWCRegion

(

const PtrBlock< const ImageRegion * > &

)

[private]

Check if the ImageRegion's contain WCRegion's and extract them.

void casacore::WCCompound::multiToLCRegion	(	PtrBlock< const LCRegion * > &	regions,
		const CoordinateSystem &	cSys,
		const IPosition &	shape,
		const IPosition &	pixelAxesMap,
		const IPosition &	extendAxes
	)			const [protected]

Convert each WCRegion to an LCRegion.

The axes argument tells which axes to use from the coordinate system and shape.

WCCompound& casacore::WCCompound::operator=

(

const WCCompound &

other

)

[protected]

Assignment (copy semantics) makes only sense for a derived class.

Reimplemented from casacore::WCRegion.

Reimplemented in casacore::WCComplement, casacore::WCConcatenation, casacore::WCDifference, casacore::WCExtension, casacore::WCIntersection, and casacore::WCUnion.

virtual Bool casacore::WCCompound::operator==

(

const WCRegion &

other

)

const [virtual]

Comparison.

Reimplemented in casacore::WCComplement, casacore::WCConcatenation, casacore::WCDifference, casacore::WCExtension, casacore::WCIntersection, and casacore::WCUnion.

const PtrBlock< const WCRegion * > & casacore::WCCompound::regions

(

)

const [inline]

Get the contributing regions.

Definition at line 156 of file WCCompound.h.

References itsRegions.

static void casacore::WCCompound::unmakeRecord	(	PtrBlock< const WCRegion * > &	,
		const TableRecord &	,
		const String &	tableName
	)			[static, protected]

Retrieve the contributing objects from the record.

---

Member Data Documentation

Block<IPosition> casacore::WCCompound::itsAxesUsed [private]

Definition at line 152 of file WCCompound.h.

PtrBlock<const WCRegion*> casacore::WCCompound::itsRegions [private]

Definition at line 151 of file WCCompound.h.

Referenced by regions().

---

The documentation for this class was generated from the following file:

• casacore/images/Regions/WCCompound.h
