casacore::LCRegion Class Reference

Abstract base class to define a region of interest in lattice coordinates. More...

#include <LCRegion.h>

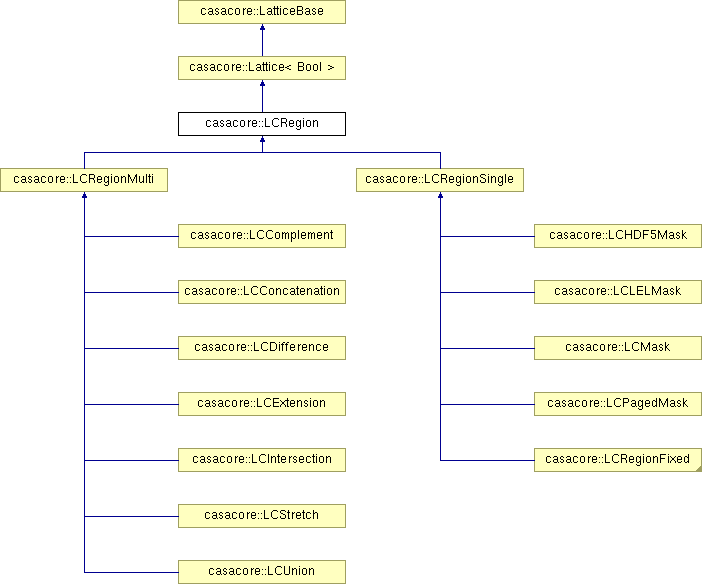

Inheritance diagram for casacore::LCRegion:

Public Member Functions
	LCRegion ()
	LCRegion (const IPosition &latticeShape)
	Construct with the lattice shape only.
	LCRegion (const LCRegion &other)
	Copy constructor (copy semantics).
virtual	~LCRegion ()
virtual Bool	operator== (const LCRegion &other) const
	Equality.
Bool	operator!= (const LCRegion &other) const
	Non-equality.
virtual Lattice< Bool > *	clone () const
	Make a copy of the derived object.
virtual LCRegion *	cloneRegion () const =0
virtual void	handleDelete ()
	Handle deletion of the region by deleting possible tables.
virtual void	handleRename (const String &newName, Bool overwrite)
	Handle renaming the region by renaming possible tables.
virtual String	type () const =0
	Region type.
const String &	comment () const
	Get or set the comment.
void	setComment (const String &comment)
virtual Bool	hasMask () const =0
	Does the region have a mask?
LCRegion *	translate (const IPosition &translateVector) const
	Construct another LCRegion (for e.g.
LCRegion *	translate (const IPosition &translateVector, const IPosition &newLatticeShape) const
LCRegion *	translate (const Vector< Float > &translateVector) const
LCRegion *	translate (const Vector< Float > &translateVector, const IPosition &newLatticeShape) const
const IPosition &	latticeShape () const
	Give the full lattice shape.
const Slicer &	boundingBox () const
	Give the bounding box.
Slicer	expand (const Slicer &slicer) const
	Expand a slicer or position in the region to the full lattice.
IPosition	expand (const IPosition &index) const
virtual TableRecord	toRecord (const String &tableName) const =0
	Convert the (derived) object to a record.
virtual uInt	ndim () const
	Return the dimensionality of the region.
virtual IPosition	shape () const
	Return the shape of the region (i.e.
virtual Bool	isWritable () const
	Usually the lattice (i.e.
virtual void	doPutSlice (const Array< Bool > &sourceBuffer, const IPosition &where, const IPosition &stride)
	Regions can usually not be put; i.e.
virtual void	set (const Bool &value)
	Set all elements in the Lattice to the given value.
virtual void	apply (Bool(*function)(Bool))
	Replace every element, x, of the Lattice with the result of f(x).
virtual void	apply (Bool(*function)(const Bool &))
virtual void	apply (const Functional< Bool, Bool > &function)
virtual void	putAt (const Bool &value, const IPosition &where)
	Put the value of a single element.
virtual void	copyData (const Lattice< Bool > &from)
	Copy the data from the given lattice to this one.
Static Public Member Functions
static LCRegion *	fromRecord (const TableRecord &, const String &tableName)
	Convert correct object from a record.
Protected Member Functions
LCRegion &	operator= (const LCRegion &other)
	Assignment (copy semantics) is only useful for derived classes.
void	setBoundingBox (const Slicer &boundingBox)
	Sometimes it is inconvenient for a derived class to set the bounding box in the constructor.
void	setShapeAndBoundingBox (const IPosition &latticeShape, const Slicer &boundingBox)
virtual LCRegion *	doTranslate (const Vector< Float > &translateVector, const IPosition &newLatticeShape) const =0
	Do the actual translate in a derived class.
void	defineRecordFields (RecordInterface &record, const String &className) const
	Define the type and class name in the record.
Private Attributes
IPosition	itsShape
Slicer	itsBoundingBox
String	itsComment

Detailed Description

Abstract base class to define a region of interest in lattice coordinates.

Intended use:

Public interface

Prerequisite

Slicer

Synopsis

The LCRegion class is the abstract base class for various types of LCRegion's (e.g. LCEllipsoid , LCBox ). It contains the minimal bounding box of the region and, if needed, a mask with the same shape as the bounding box. A mask element is true if the element is inside the box.

Each LCRegion object must be able to convert itself to and from a record. In that way they can be made persistent (in for example a Table).

The LCRegion can be used in several Lattices and Images classes and functions to limit the area to operate on.

Example

Motivation

The Slicer class is too limited as a region, because it can only describe a rectangular region. Specialized classes are needed to describe arbitrary regions. They need a base class to combine them.

Definition at line 87 of file LCRegion.h.

Constructor & Destructor Documentation

casacore::LCRegion::LCRegion ( )

casacore::LCRegion::LCRegion ( const IPosition & latticeShape )

Construct with the lattice shape only.

casacore::LCRegion::LCRegion ( const LCRegion & other )

Copy constructor (copy semantics).

virtual casacore::LCRegion::~LCRegion ( ) [virtual]

Member Function Documentation

virtual void casacore::LCRegion::apply ( const Functional< Bool, Bool > & function ) [virtual]

Reimplemented from casacore::Lattice< Bool >.

Reimplemented in casacore::LCRegionSingle.

virtual void casacore::LCRegion::apply ( Bool(*)(const Bool &) function ) [virtual]

Reimplemented from casacore::Lattice< Bool >.

Reimplemented in casacore::LCRegionSingle.

virtual void casacore::LCRegion::apply ( Bool(*)(Bool) function ) [virtual]

Replace every element, x, of the Lattice with the result of f(x).

You must pass in the address of the function -- so the function must be declared and defined in the scope of your program. All versions of apply require a function that accepts a single argument of type T (the Lattice template type) and return a result of the same type. The first apply expects a function with an argument passed by value; the second expects the argument to be passed by const reference; the third requires an instance of the class Functional<T,T>. The first form ought to run faster for the built-in types, which may be an issue for large Lattices stored in memory, where disk access is not an issue.

Reimplemented from casacore::Lattice< Bool >.

Reimplemented in casacore::LCRegionSingle.

const Slicer & casacore::LCRegion::boundingBox ( ) const [inline]

Give the bounding box.

Definition at line 227 of file LCRegion.h.

References itsBoundingBox.

virtual Lattice<Bool>* casacore::LCRegion::clone ( ) const [virtual]

Make a copy of the derived object.

Implements casacore::Lattice< Bool >.

virtual LCRegion* casacore::LCRegion::cloneRegion ( ) const [pure virtual]

Implemented in casacore::LCBox, casacore::LCComplement, casacore::LCConcatenation, casacore::LCDifference, casacore::LCEllipsoid, casacore::LCExtension, casacore::LCHDF5Mask, casacore::LCIntersection, casacore::LCLELMask, casacore::LCMask, casacore::LCPagedMask, casacore::LCPixelSet, casacore::LCPolygon, casacore::LCStretch, and casacore::LCUnion.

const String & casacore::LCRegion::comment ( ) const [inline]

Get or set the comment.

Definition at line 244 of file LCRegion.h.

References itsComment.

virtual void casacore::LCRegion::copyData ( const Lattice< Bool > & from ) [virtual]

Copy the data from the given lattice to this one.

The default implementation uses function copyDataTo.

Reimplemented from casacore::Lattice< Bool >.

Reimplemented in casacore::LCRegionSingle.

void casacore::LCRegion::defineRecordFields	(	RecordInterface &	record,
		const String &	className
	)			const `[protected]`

Define the type and class name in the record.

virtual void casacore::LCRegion::doPutSlice	(	const Array< Bool > &	sourceBuffer,
		const IPosition &	where,
		const IPosition &	stride
	)			`[virtual]`

Regions can usually not be put; i.e.

no putSlice, etc. can be done on their masks. Hence LCRegion throws by default an exception for the following functions.

Implements casacore::Lattice< Bool >.

Reimplemented in casacore::LCRegionSingle.

virtual LCRegion* casacore::LCRegion::doTranslate	(	const Vector< Float > &	translateVector,
		const IPosition &	newLatticeShape
	)			const `[protected, pure virtual]`

Do the actual translate in a derived class.

Implemented in casacore::LCBox, casacore::LCComplement, casacore::LCConcatenation, casacore::LCDifference, casacore::LCEllipsoid, casacore::LCExtension, casacore::LCHDF5Mask, casacore::LCIntersection, casacore::LCLELMask, casacore::LCMask, casacore::LCPagedMask, casacore::LCPixelSet, casacore::LCPolygon, casacore::LCStretch, and casacore::LCUnion.

IPosition casacore::LCRegion::expand ( const IPosition & index ) const

Slicer casacore::LCRegion::expand ( const Slicer & slicer ) const

Expand a slicer or position in the region to the full lattice.

This converts the positions in the region to positions in the entire lattice.

static LCRegion* casacore::LCRegion::fromRecord	(	const TableRecord &	,
		const String &	tableName
	)			`[static]`

Convert correct object from a record.

Reimplemented in casacore::LCBox, casacore::LCComplement, casacore::LCConcatenation, casacore::LCDifference, casacore::LCEllipsoid, casacore::LCExtension, casacore::LCHDF5Mask, casacore::LCIntersection, casacore::LCPagedMask, casacore::LCPixelSet, casacore::LCPolygon, casacore::LCStretch, and casacore::LCUnion.

virtual void casacore::LCRegion::handleDelete ( ) [virtual]

Handle deletion of the region by deleting possible tables.

The default implementation does nothing.

Reimplemented in casacore::LCPagedMask.

virtual void casacore::LCRegion::handleRename	(	const String &	newName,
		Bool	overwrite
	)			`[virtual]`

Handle renaming the region by renaming possible tables.

The default implementation does nothing.

Reimplemented in casacore::LCPagedMask.

virtual Bool casacore::LCRegion::hasMask ( ) const [pure virtual]

Does the region have a mask?

Implemented in casacore::LCRegionMulti, and casacore::LCRegionSingle.

virtual Bool casacore::LCRegion::isWritable ( ) const [virtual]

Usually the lattice (i.e.

the region mask) is not writable.

Reimplemented from casacore::LatticeBase.

Reimplemented in casacore::LCHDF5Mask, casacore::LCMask, and casacore::LCPagedMask.

const IPosition & casacore::LCRegion::latticeShape ( ) const [inline]

Give the full lattice shape.

Definition at line 231 of file LCRegion.h.

References itsShape.

virtual uInt casacore::LCRegion::ndim ( ) const [virtual]

Return the dimensionality of the region.

Reimplemented from casacore::LatticeBase.

Bool casacore::LCRegion::operator!= ( const LCRegion & other ) const [inline]

Non-equality.

Watch out ! You must not, in the derived class structure, invoke LCRegion::operator!= If you do, you will be stuck in a time warp, as this will just fetch the operator== of the concrete class and you start all over again.

Be careful, do not use this anywhere in the derived class structure. You must use, e.g., if (! LCRegion::operator== (...)) rather than if (LCRegion::operator!= (...)) as the latter will invoke an infinite loop. It is ok to use when applying to a concrete class object.

You must use always use !LCRegionoperator==. It is ok in application code using the concrete class to say if (x != y) where x and y are, say, LCBoxes.

Definition at line 253 of file LCRegion.h.

LCRegion& casacore::LCRegion::operator= ( const LCRegion & other ) [protected]

Assignment (copy semantics) is only useful for derived classes.

Reimplemented from casacore::LatticeBase.

Reimplemented in casacore::LCBox, casacore::LCComplement, casacore::LCConcatenation, casacore::LCDifference, casacore::LCEllipsoid, casacore::LCExtension, casacore::LCHDF5Mask, casacore::LCIntersection, casacore::LCLELMask, casacore::LCMask, casacore::LCPagedMask, casacore::LCPixelSet, casacore::LCPolygon, casacore::LCRegionFixed, casacore::LCRegionMulti, casacore::LCRegionSingle, casacore::LCStretch, and casacore::LCUnion.

virtual Bool casacore::LCRegion::operator== ( const LCRegion & other ) const [virtual]

Equality.

virtual void casacore::LCRegion::putAt	(	const Bool &	value,
		const IPosition &	where
	)			`[virtual]`

Put the value of a single element.

The default implementation uses putSlice.

Reimplemented from casacore::Lattice< Bool >.

Reimplemented in casacore::LCRegionSingle.

virtual void casacore::LCRegion::set ( const Bool & value ) [virtual]

Set all elements in the Lattice to the given value.

Reimplemented from casacore::Lattice< Bool >.

Reimplemented in casacore::LCRegionSingle.

void casacore::LCRegion::setBoundingBox ( const Slicer & boundingBox ) [protected]

Sometimes it is inconvenient for a derived class to set the bounding box in the constructor.

So it can be set explicitly. It fills in the possibly undefined Slicer values. It may even be needed to set the lattice shape.

void casacore::LCRegion::setComment ( const String & comment ) [inline]

Definition at line 248 of file LCRegion.h.

References itsComment.

void casacore::LCRegion::setShapeAndBoundingBox	(	const IPosition &	latticeShape,
		const Slicer &	boundingBox
	)			`[protected]`

virtual IPosition casacore::LCRegion::shape ( ) const [virtual]

Return the shape of the region (i.e.

of its bounding box).

Implements casacore::LatticeBase.

virtual TableRecord casacore::LCRegion::toRecord ( const String & tableName ) const [pure virtual]

Convert the (derived) object to a record.

The record can be used to make the object persistent. The tableName argument can be used by derived classes (e.g. LCPagedMask) to put very large objects.

Implemented in casacore::LCBox, casacore::LCComplement, casacore::LCConcatenation, casacore::LCDifference, casacore::LCEllipsoid, casacore::LCExtension, casacore::LCHDF5Mask, casacore::LCIntersection, casacore::LCLELMask, casacore::LCMask, casacore::LCPagedMask, casacore::LCPixelSet, casacore::LCPolygon, casacore::LCStretch, and casacore::LCUnion.
