casacore::MCBase Class Reference

Base for specific measure conversions. More...

#include <MCBase.h>

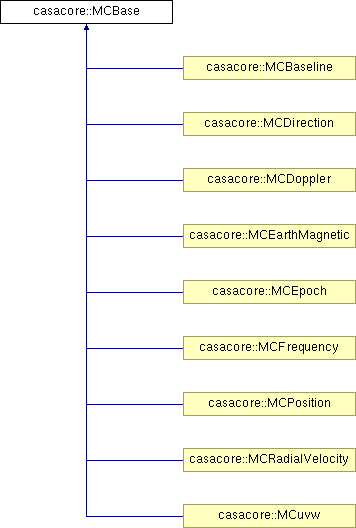

Inheritance diagram for casacore::MCBase:

List of all members.

Public Types
enum	Routes { N_Routes }
	Each derived class should have a list of routines to be called:. More...
Public Member Functions
virtual	~MCBase ()
virtual void	getConvert (MConvertBase &mc, const MRBase &inref, const MRBase &outref)=0
	All these functions are called by Measure::Convert classes only.
virtual void	initConvert (uInt which, MConvertBase &mc)=0
	Create help structures for Measure conversion routines.
virtual void	clearConvert ()=0
	Delete the pointers used in the MeasConvert help structure cache.
virtual void	doConvert (MeasValue &in, MRBase &inref, MRBase &outref, const MConvertBase &mc)=0
	Routine to convert a Measure from one reference frame to another.
Static Protected Member Functions
static void	makeState (uInt *state, const uInt ntyp, const uInt nrout, const uInt list[][3])
	The following routines create a state transition matrix from a list of all defined transitions.
static String	showState (uInt *state, const uInt ntyp, const uInt nrout, const uInt list[][3])
	Return a fromatted String with matrix information (based on < 100 types).
Static Private Member Functions
static Bool	findState (uInt &len, uInt *state, uInt *mcnt, Bool &okall, Bool *visit, const uInt *tcnt, const uInt *tree, const uInt &in, const uInt &out, const uInt ntyp, const uInt nrout, const uInt list[][3])
	Routine to find the shortest route between two points.

---

Detailed Description

Base for specific measure conversions.

Intended use:

Internal

Review Status

Reviewed By:

UNKNOWN

Date Reviewed:

before2004/08/25

Test programs:

tMeasure

Prerequisite

• Measure class
• MConvertBase : conversion engine

Etymology

Measure, Conversion and Base

Synopsis

MCBase forms the base for the individual state machines doing actual conversions between frames. (see e.g. MCEpoch )

It also has a static routine to calculate the state transition table based on a list of transitions. The makeState() method find the shortest route (weighted if necessary) for a given list of state transitions.

The user of the Measure classes has no direct interaction with this class.

Example

Convert (with all steps explicit) a UTC to an IAT time.

 #include <casacore/measures/Measures.h>
 #include <casacore/measures/Measures/MCEpoch.h>
 cout << "TAI for UTC = MJD(50237.29): " <<
 MEpoch::Convert(MEpoch(MVEpoch(Quantity(50237.29, "d")),
 MEpoch::Ref(MEpoch::UTC)),
 MEpoch::Ref(MEpoch::TAI))() <<
 endl;

To get a static state transition matrix:

 static Bool made = False;              // set not yet done
 enum types {                           // states
 A=0, B, C, D, E, ntyp };
 enum routes {                          // routes
 A_B, B_C, B_D, C_D, C_E,
 D_C, C_B, B_A, D_B, E_C, nrout };
 static uInt list [nrout][3] = {                // description. The third number
 {A, B, 0},                     // is a penalty hop to weight
 {B, C, 0},                     // against using this route
 {B, D, 0},
 {C, D, 0},
 {C, E, 0},
 {D, C, 0},
 {C, B, 0},
 {B, A, 0},
 {D, B, 0},
 {E, C, 0} };
 static uInt state[ntyp][ntyp]; // the resultant transition matrix
 // diagonal == nrout
 // Make the state machine
 MCBase::makeState(state[0], ntyp, nrout, routes);
 made = True;

Motivation

To have specific conversion bases

To Do

• Nothing I know

Definition at line 119 of file MCBase.h.

---

Member Enumeration Documentation

enum casacore::MCBase::Routes

Each derived class should have a list of routines to be called:.

Enumerator:

N_Routes

Reimplemented in casacore::MCBaseline, casacore::MCDirection, casacore::MCDoppler, casacore::MCEarthMagnetic, casacore::MCEpoch, casacore::MCFrequency, casacore::MCPosition, casacore::MCRadialVelocity, and casacore::MCuvw.

Definition at line 134 of file MCBase.h.

---

Constructor & Destructor Documentation

virtual casacore::MCBase::~MCBase

(

)

[virtual]

---

Member Function Documentation

virtual void casacore::MCBase::clearConvert

(

)

[pure virtual]

Delete the pointers used in the MeasConvert help structure cache.

Implemented in casacore::MCBaseline, casacore::MCDirection, casacore::MCDoppler, casacore::MCEarthMagnetic, casacore::MCEpoch, casacore::MCFrequency, casacore::MCPosition, casacore::MCRadialVelocity, and casacore::MCuvw.

virtual void casacore::MCBase::doConvert	(	MeasValue &	in,
		MRBase &	inref,
		MRBase &	outref,
		const MConvertBase &	mc
	)			[pure virtual]

Routine to convert a Measure from one reference frame to another.

Implemented in casacore::MCBaseline, casacore::MCDirection, casacore::MCDoppler, casacore::MCEarthMagnetic, casacore::MCEpoch, casacore::MCFrequency, casacore::MCPosition, casacore::MCRadialVelocity, and casacore::MCuvw.

static Bool casacore::MCBase::findState	(	uInt &	len,
		uInt *	state,
		uInt *	mcnt,
		Bool &	okall,
		Bool *	visit,
		const uInt *	tcnt,
		const uInt *	tree,
		const uInt &	in,
		const uInt &	out,
		const uInt	ntyp,
		const uInt	nrout,
		const uInt	list[][3]
	)			[static, private]

Routine to find the shortest route between two points.

virtual void casacore::MCBase::getConvert	(	MConvertBase &	mc,
		const MRBase &	inref,
		const MRBase &	outref
	)			[pure virtual]

All these functions are called by Measure::Convert classes only.

Create conversion state machine list

Implemented in casacore::MCBaseline, casacore::MCDirection, casacore::MCDoppler, casacore::MCEarthMagnetic, casacore::MCEpoch, casacore::MCFrequency, casacore::MCPosition, casacore::MCRadialVelocity, and casacore::MCuvw.

virtual void casacore::MCBase::initConvert	(	uInt	which,
		MConvertBase &	mc
	)			[pure virtual]

Create help structures for Measure conversion routines.

Implemented in casacore::MCBaseline, casacore::MCDirection, casacore::MCDoppler, casacore::MCEarthMagnetic, casacore::MCEpoch, casacore::MCFrequency, casacore::MCPosition, casacore::MCRadialVelocity, and casacore::MCuvw.

static void casacore::MCBase::makeState	(	uInt *	state,
		const uInt	ntyp,
		const uInt	nrout,
		const uInt	list[][3]
	)			[static, protected]

The following routines create a state transition matrix from a list of all defined transitions.

It uses the following information:

• nrout: the number of transitions; numbered 0, ..\.
• ntyp: the number of states
• list: a [nrout][3] list of input and output transition type of transition and a penalty hop number (<100)
• state: a [ntyp][ntyp] transition matrix with diagonal elements set to nrout.

Routine to make the transition table if necessary

static String casacore::MCBase::showState	(	uInt *	state,
		const uInt	ntyp,
		const uInt	nrout,
		const uInt	list[][3]
	)			[static, protected]

Return a fromatted String with matrix information (based on < 100 types).

---

The documentation for this class was generated from the following file:

• casacore/measures/Measures/MCBase.h
