casacore::MEpoch Class Reference

A Measure: instant in time. More...

#include <MEpoch.h>

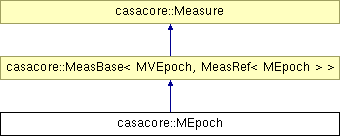

Inheritance diagram for casacore::MEpoch:

Public Types
enum	Types { LAST, LMST, GMST1, GAST, UT1, UT2, UTC, TAI, TDT, TCG, TDB, TCB, N_Types, RAZE, EXTRA, IAT, GMST, TT, UT, ET, DEFAULT }
	Types of known MEpochs Caution: The order defines the order in the translation matrix in the MCEpoch class; Do not change the order without changing the array; Additions should be made before N_types, and an additional row and column should be coded in FromTo (MCEpoch), and in showType(); . More...
typedef MVEpoch	MVType
	Measure value container for this class (i.e.
typedef MCEpoch	MCType
	Measure conversion routines for this class (i.e.
typedef MeasRef< MEpoch >	Ref
	Measure reference (i.e.
typedef MeasConvert< MEpoch >	Convert
	Measure Convert (i.e.
typedef ScalarMeasColumn< MEpoch >	ScalarColumn
	Measure table Columns (e.g., MEpoch::ScalarColumn).
typedef ArrayMeasColumn< MEpoch >	ArrayColumn
Public Member Functions
typedef	WHATEVER_SUN_TYPEDEF (MEpoch) Types Types
	Reference enum Types (included originally for gcc 2.95).
	MEpoch ()
	Tip: In the following constructors and other functions, all MeasRef* can be replaced with simple `Measure::TYPE` where no offsets or frames are needed in the reference;* Default constructor; generates an instant at MJD 0 UTC
	MEpoch (const MVEpoch &dt)
	Create from data and reference.
	MEpoch (const MVEpoch &dt, const MEpoch::Ref &rf)
	MEpoch (const MVEpoch &dt, MEpoch::Types rf)
	MEpoch (const Quantity &dt)
	MEpoch (const Quantity &dt, const MEpoch::Ref &rf)
	MEpoch (const Quantity &dt, MEpoch::Types rf)
	MEpoch (const Measure *dt)
	MEpoch (const MeasValue *dt)
virtual	~MEpoch ()
virtual const String &	tellMe () const
	Tell me your type.
virtual uInt	type () const
	Get the type (== Register() of derived Measure (faster than Strings) All should have: static uInt myType();.
Bool	giveMe (MEpoch::Ref &mr, const String &in)
virtual Bool	setOffset (const Measure &in)
	Set the offset in the reference (False if non-matching Measure).
virtual Bool	setRefString (const String &in)
	Set the reference type to the specified String.
virtual const String &	getDefaultType () const
	Get the default reference type.
virtual const String *	allTypes (Int &nall, Int &nextra, const uInt *&typ) const
	Get a list of all known reference codes.
virtual void	checkTypes () const
	Check if all internal tables of types (both enum and String) are complete and correct.
virtual String	getRefString () const
	Get the reference type (for records, including codes like R_).
Quantity	get (const Unit &inunit) const
	Get time in specified units.
virtual Measure *	clone () const
	Create copy.
Static Public Member Functions
static const String &	showMe ()
static void	assure (const Measure &in)
static MEpoch::Types	castType (uInt tp)
	Translate reference code.
static const String &	showType (MEpoch::Types tp)
static const String &	showType (uInt tp)
static Bool	getType (MEpoch::Types &tp, const String &in)
	Translate string to reference code.
static const String *	allMyTypes (Int &nall, Int &nextra, const uInt *&typ)
static void	checkMyTypes ()
static uInt	myType ()
	Get my type (as Register).
Friends
class	MeasConvert< MEpoch >

Detailed Description

A Measure: instant in time.

Intended use:

Public interface

Review Status

Reviewed By:: UNKNOWN
Date Reviewed:: before2004/08/25
Test programs:: tMeasure

Prerequisite

Measure class

Etymology

Measure and Epoch

Synopsis

MEpoch forms derived Measure class for an instant in time.

Example

Convert (with all steps explicit) a UTC to an IAT time.

 #include <casacore/measures/Measures.h>
 #include <casacore/measures/Measures/MEpoch.h>
 #include <casacore/measures/Measures/MCEpoch.h>
 #include <casacore/casa/logging/LogIO.h>

 cout << "TAI for UTC = MJD(50237.29): " <<
 MEpoch::Convert(MEpoch(MVEpoch(Quantity(50237.29, "d")),
 MEpoch::Ref(MEpoch::UTC)),
 MEpoch::Ref(MEpoch::TAI))() <<
 endl;
 LogIO os(LogOrigin("FluxCalc_SS_JPL_Butler", "readEphem"));
 os << LogIO::DEBUG1 << " at ";
 os.output() << MEpoch::Convert(MEpoch(MVEpoch(Quantity(50237.29, "d")),
 MEpoch::Ref(MEpoch::UTC)),
 MEpoch::Ref(MEpoch::TAI))();
 os << LogIO::POST;

Results in:

 TAI for UTC = MJD(50237.29): Epoch: 50237::06:58:06.0000 (on stdout)
 at Epoch: 50237::06:58:06.0000 (in logger)

Motivation

To Do

Definition at line 104 of file MEpoch.h.

Member Typedef Documentation

typedef ArrayMeasColumn<MEpoch> casacore::MEpoch::ArrayColumn

Definition at line 161 of file MEpoch.h.

typedef MeasConvert<MEpoch> casacore::MEpoch::Convert

Measure Convert (i.e.

MEpoch::Convert)

Reimplemented from casacore::Measure.

Definition at line 158 of file MEpoch.h.

typedef MCEpoch casacore::MEpoch::MCType

Measure conversion routines for this class (i.e.

MEpoch::MCType)

Definition at line 154 of file MEpoch.h.

typedef MVEpoch casacore::MEpoch::MVType

Measure value container for this class (i.e.

MEpoch::MVType)

Definition at line 152 of file MEpoch.h.

typedef MeasRef<MEpoch> casacore::MEpoch::Ref

Measure reference (i.e.

MEpoch::Ref)

Definition at line 156 of file MEpoch.h.

typedef ScalarMeasColumn<MEpoch> casacore::MEpoch::ScalarColumn

Measure table Columns (e.g., MEpoch::ScalarColumn).

Definition at line 160 of file MEpoch.h.

Member Enumeration Documentation

enum casacore::MEpoch::Types

Types of known MEpochs
Caution: The order defines the order in the translation matrix in the MCEpoch class; Do not change the order without changing the array; Additions should be made before N_types, and an additional row and column should be coded in FromTo (MCEpoch), and in showType();
.

Enumerator:

LAST	Local Apparent Sidereal Time.
LMST	Local Mean Sidereal Time.
GMST1	Greenwich Mean ST1.
GAST	Greenwich Apparent ST.
UT1
UT2
UTC
TAI
TDT
TCG
TDB
TCB
N_Types	Number of types.
RAZE	Reduce result to integer days.
EXTRA	All extra bits.
IAT	Synonyms.
GMST
TT
UT
ET
DEFAULT	Default.

Reimplemented from casacore::Measure.

Definition at line 117 of file MEpoch.h.

Constructor & Destructor Documentation

casacore::MEpoch::MEpoch ( )

Tip: In the following constructors and other functions, all MeasRef can be replaced with simple Measure::TYPE where no offsets or frames are needed in the reference;
Default constructor; generates an instant at MJD 0 UTC

casacore::MEpoch::MEpoch ( const MVEpoch & dt )

Create from data and reference.

casacore::MEpoch::MEpoch	(	const MVEpoch &	dt,
		const MEpoch::Ref &	rf
	)

casacore::MEpoch::MEpoch	(	const MVEpoch &	dt,
		MEpoch::Types	rf
	)

casacore::MEpoch::MEpoch ( const Quantity & dt )

casacore::MEpoch::MEpoch	(	const Quantity &	dt,
		const MEpoch::Ref &	rf
	)

casacore::MEpoch::MEpoch	(	const Quantity &	dt,
		MEpoch::Types	rf
	)

casacore::MEpoch::MEpoch ( const Measure * dt )

casacore::MEpoch::MEpoch ( const MeasValue * dt )

virtual casacore::MEpoch::~MEpoch ( ) [virtual]

Member Function Documentation

static const String* casacore::MEpoch::allMyTypes	(	Int &	nall,
		Int &	nextra,
		const uInt *&	typ
	)			`[static]`

virtual const String* casacore::MEpoch::allTypes	(	Int &	nall,
		Int &	nextra,
		const uInt *&	typ
	)			const `[virtual]`

Get a list of all known reference codes.

nall returns the number in list, nextra the number of specials (like planets) that should be at end of list). typ returns the list of corresponding types.

Reimplemented from casacore::Measure.

static void casacore::MEpoch::assure ( const Measure & in ) [static]

static MEpoch::Types casacore::MEpoch::castType ( uInt tp ) [static]

Translate reference code.

The uInt version has a check for valid codes (i.e. it is a safe cast).

Thrown Exceptions

AipsError in the uInt interface if illegal code given

static void casacore::MEpoch::checkMyTypes ( ) [static]

virtual void casacore::MEpoch::checkTypes ( ) const [virtual]

Check if all internal tables of types (both enum and String) are complete and correct.

This function is called automatically if and when necessary.

Thrown Exceptions

AipsError if a (programming) error in the types.

Implements casacore::Measure.

virtual Measure* casacore::MEpoch::clone ( ) const [virtual]

Create copy.

Implements casacore::Measure.

Quantity casacore::MEpoch::get ( const Unit & inunit ) const

Get time in specified units.

virtual const String& casacore::MEpoch::getDefaultType ( ) const [virtual]

Get the default reference type.

Implements casacore::Measure.

virtual String casacore::MEpoch::getRefString ( ) const [virtual]

Get the reference type (for records, including codes like R_).

Implements casacore::Measure.

static Bool casacore::MEpoch::getType	(	MEpoch::Types &	tp,
		const String &	in
	)			`[static]`

Translate string to reference code.

Bool casacore::MEpoch::giveMe	(	MEpoch::Ref &	mr,
		const String &	in
	)

static uInt casacore::MEpoch::myType ( ) [static]

Get my type (as Register).

virtual Bool casacore::MEpoch::setOffset ( const Measure & in ) [virtual]

Set the offset in the reference (False if non-matching Measure).

virtual Bool casacore::MEpoch::setRefString ( const String & in ) [virtual]

Set the reference type to the specified String.

False if illegal string, reference set to DEFAULT.

Implements casacore::Measure.

static const String& casacore::MEpoch::showMe ( ) [static]

static const String& casacore::MEpoch::showType ( uInt tp ) [static]

static const String& casacore::MEpoch::showType ( MEpoch::Types tp ) [static]

virtual const String& casacore::MEpoch::tellMe ( ) const [virtual]

Tell me your type.

Implements casacore::Measure.

virtual uInt casacore::MEpoch::type ( ) const [virtual]

Get the type (== Register() of derived Measure (faster than Strings) All should have: static uInt myType();.

Implements casacore::Measure.

typedef casacore::MEpoch::WHATEVER_SUN_TYPEDEF ( MEpoch )

Reference enum Types (included originally for gcc 2.95).

Friends And Related Function Documentation

friend class MeasConvert< MEpoch > [friend]

Definition at line 108 of file MEpoch.h.

The documentation for this class was generated from the following file:

casacore/measures/Measures/MEpoch.h
