casacore::LCBox Class Reference

Class to define a rectangular box of interest. More...

#include <LCBox.h>

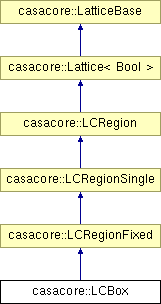

Inheritance diagram for casacore::LCBox:

List of all members.

Public Member Functions
	LCBox ()
	LCBox (const IPosition &latticeShape)
	Construct a box for the full lattice shape.
	LCBox (const Slicer &box, const IPosition &latticeShape)
	Construct from the Slicer defining the box.
	LCBox (const IPosition &blc, const IPosition &trc, const IPosition &latticeShape)
	Construct from the IPosition's defining the bottom-left and top-right corner of the box.
	LCBox (const Vector< Float > &blc, const Vector< Float > &trc, const IPosition &latticeShape)
	Construct from the Vector's defining the bottom-left and top-right corner of the box.
	LCBox (const Vector< Double > &blc, const Vector< Double > &trc, const IPosition &latticeShape)
	LCBox (const LCBox &other)
	Copy constructor (reference semantics).
virtual	~LCBox ()
LCBox &	operator= (const LCBox &other)
	Assignment (copy semantics).
virtual Bool	operator== (const LCRegion &other) const
	Comparison.
virtual LCRegion *	cloneRegion () const
	Make a copy of the derived object.
virtual String	type () const
	Get the region type.
virtual TableRecord	toRecord (const String &tableName) const
	Convert the (derived) object to a record.
Vector< Float >	blc () const
	Get the box blc.
Vector< Float >	trc () const
	Get the box trc.
Static Public Member Functions
static String	className ()
	Get the class name (to store in the record).
static LCBox *	fromRecord (const TableRecord &, const String &tablename)
	Convert correct object from a record.
static Bool	verify (IPosition &blc, IPosition &trc, IPosition &inc, const IPosition &shape)
	Verify a box specification.
Protected Member Functions
virtual LCRegion *	doTranslate (const Vector< Float > &translateVector, const IPosition &newLatticeShape) const
	Construct another LCBox (for e.g.
Private Member Functions
void	setSlicerBox (const IPosition &blc, const IPosition &trc)
	Make a box from the blc,trc such that it does not exceed the lattice boundaries.
void	fillBlcTrc ()
	Fill the blc and trc vector from IPositions.
Private Attributes
Vector< Float >	itsBlc
Vector< Float >	itsTrc

---

Detailed Description

Class to define a rectangular box of interest.

Intended use:

Public interface

Prerequisite

• LCRegion

Synopsis

The LCBox class is a specialization of class LCRegion . It makes it possible to define a rectangular region of interest.

Example

Definition at line 67 of file LCBox.h.

---

Constructor & Destructor Documentation

casacore::LCBox::LCBox

(

)

casacore::LCBox::LCBox

(

const IPosition &

latticeShape

)

[explicit]

Construct a box for the full lattice shape.

casacore::LCBox::LCBox	(	const Slicer &	box,
		const IPosition &	latticeShape
	)

Construct from the Slicer defining the box.

The slicer may not contain a stride.

casacore::LCBox::LCBox	(	const IPosition &	blc,
		const IPosition &	trc,
		const IPosition &	latticeShape
	)

Construct from the IPosition's defining the bottom-left and top-right corner of the box.

casacore::LCBox::LCBox	(	const Vector< Float > &	blc,
		const Vector< Float > &	trc,
		const IPosition &	latticeShape
	)

Construct from the Vector's defining the bottom-left and top-right corner of the box.

casacore::LCBox::LCBox	(	const Vector< Double > &	blc,
		const Vector< Double > &	trc,
		const IPosition &	latticeShape
	)

casacore::LCBox::LCBox

(

const LCBox &

other

)

Copy constructor (reference semantics).

virtual casacore::LCBox::~LCBox

(

)

[virtual]

---

Member Function Documentation

Vector< Float > casacore::LCBox::blc

(

)

const [inline]

Get the box blc.

Definition at line 157 of file LCBox.h.

References itsBlc.

static String casacore::LCBox::className

(

)

[static]

Get the class name (to store in the record).

virtual LCRegion* casacore::LCBox::cloneRegion

(

)

const [virtual]

Make a copy of the derived object.

Implements casacore::LCRegion.

virtual LCRegion* casacore::LCBox::doTranslate	(	const Vector< Float > &	translateVector,
		const IPosition &	newLatticeShape
	)			const [protected, virtual]

Construct another LCBox (for e.g.

another lattice) by moving this one. It recalculates the bounding box. A positive translation value indicates "to right".

Implements casacore::LCRegion.

void casacore::LCBox::fillBlcTrc

(

)

[private]

Fill the blc and trc vector from IPositions.

static LCBox* casacore::LCBox::fromRecord	(	const TableRecord &	,
		const String &	tablename
	)			[static]

Convert correct object from a record.

Reimplemented from casacore::LCRegion.

LCBox& casacore::LCBox::operator=

(

const LCBox &

other

)

Assignment (copy semantics).

Reimplemented from casacore::LCRegionFixed.

virtual Bool casacore::LCBox::operator==

(

const LCRegion &

other

)

const [virtual]

Comparison.

Mask not checked. Use function LRegionSingle::maskEqual to do this

Reimplemented from casacore::LCRegionFixed.

void casacore::LCBox::setSlicerBox	(	const IPosition &	blc,
		const IPosition &	trc
	)			[private]

Make a box from the blc,trc such that it does not exceed the lattice boundaries.

virtual TableRecord casacore::LCBox::toRecord

(

const String &

tableName

)

const [virtual]

Convert the (derived) object to a record.

Implements casacore::LCRegion.

Vector< Float > casacore::LCBox::trc

(

)

const [inline]

Get the box trc.

Definition at line 161 of file LCBox.h.

References itsTrc.

virtual String casacore::LCBox::type

(

)

const [virtual]

Get the region type.

Returns className()

Implements casacore::LCRegion.

static Bool casacore::LCBox::verify	(	IPosition &	blc,
		IPosition &	trc,
		IPosition &	inc,
		const IPosition &	shape
	)			[static]

Verify a box specification.

Illegal (inlcuding blc > trc) or unspecified values are given 0 (blc) shape (trc) or unity (inc). Returns True if any of the blc/trc/inc are changed from their input values, else returns False

---

Member Data Documentation

Vector<Float> casacore::LCBox::itsBlc [private]

Definition at line 152 of file LCBox.h.

Referenced by blc().

Vector<Float> casacore::LCBox::itsTrc [private]

Definition at line 153 of file LCBox.h.

Referenced by trc().

---

The documentation for this class was generated from the following file:

• casacore/lattices/LRegions/LCBox.h
